Sensor-Wheel Speed-Abs-Rear: Installation
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the harness to the sensor. Be sure the seal is securely in place between the sensor and the wiring connector.
- Install the O-ring on the sensor (if removed).
- Insert the sensor (1) in the differential housing (3).
- Install the sensor shield.
- Install the sensor mounting stud (2) and tighten to 24 N.m (200 in. lbs.).
- Install the brake line on the sensor stud (2) and install the nut.
- Lower the vehicle.

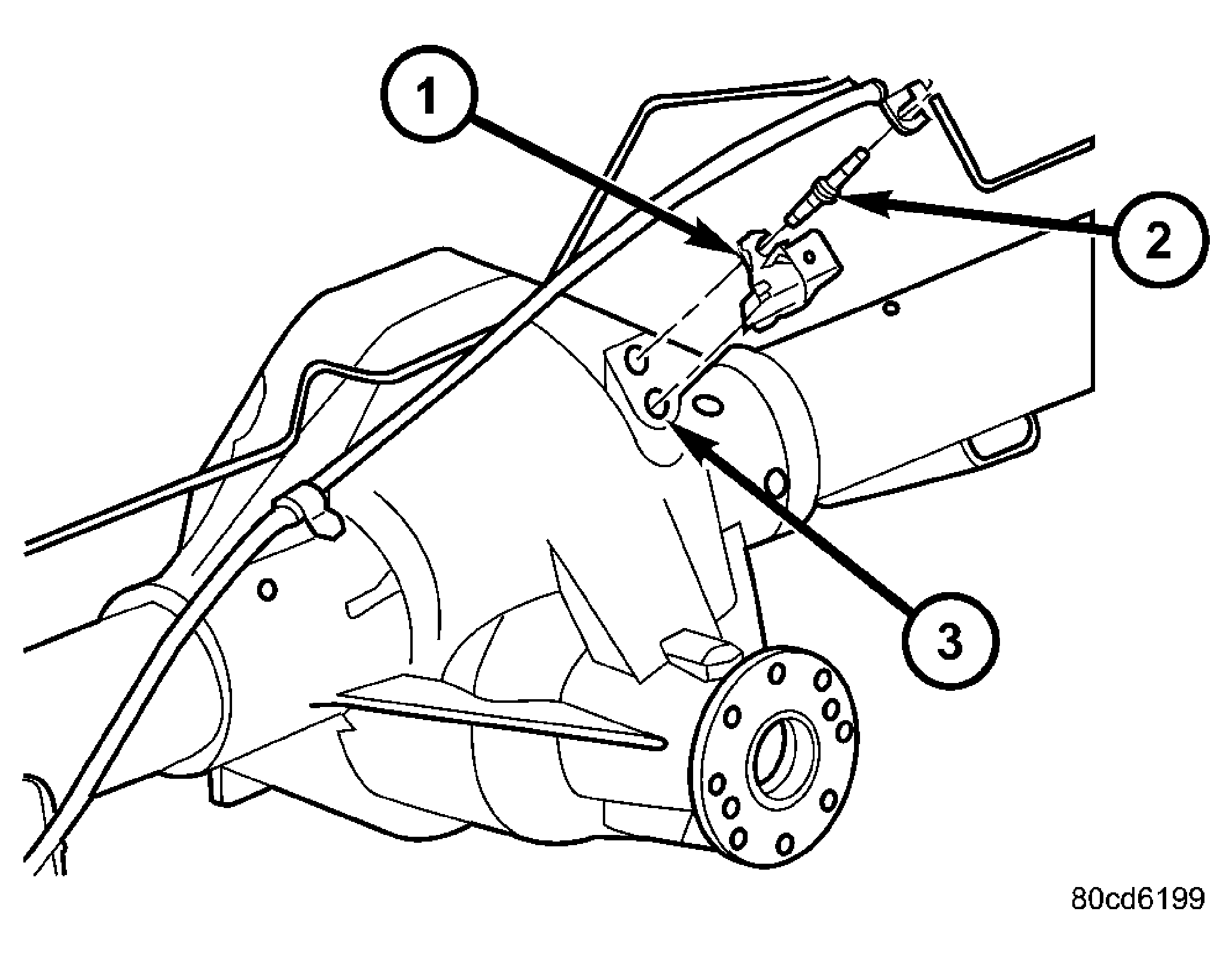

1 - WHEEL SPEED SENSOR 2 - MOUNTING STUD 3 - AXLE HOUSING
