Sensor- Wheel Speed-Abs-Front: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front rotor (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) .
  2. Remove the wheel speed sensor mounting bolt (1) from the hub (3). See Fig 1

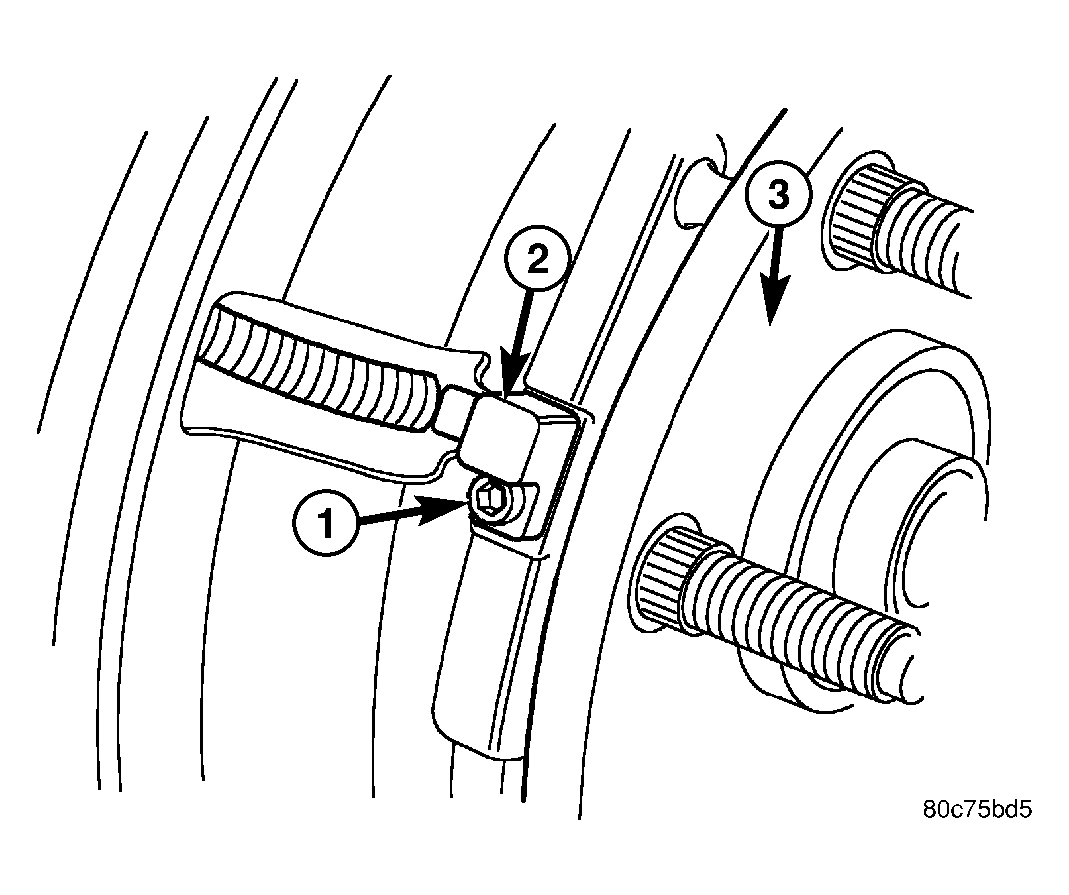

    Fig 1: Removing Front Wheel Speed Sensor
    GC0006391Courtesy of DAIMLERCHRYSLER CORP.
    1 - WHEEL SPEED SENSOR MOUNTING BOLT
    2 - WHEEL SPEED SENSOR
    3 - HUB/BEARING
  3. Remove the wheel speed sensor (2) from the hub (3).
  4. Remove the wiring from the clips and disconnect the electrical connector.
