Sensor- Wheel Speed-Abs-Front: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiring to the clips and Reconnect the electrical connector.
Install the wheel speed sensor (2) to the hub (3).
Install the wheel speed sensor mounting bolt (1) to the hub (3). Tighten the bolt to 21 N.m (190 in. lbs.).

Install the front rotor and brake caliper assembly (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .

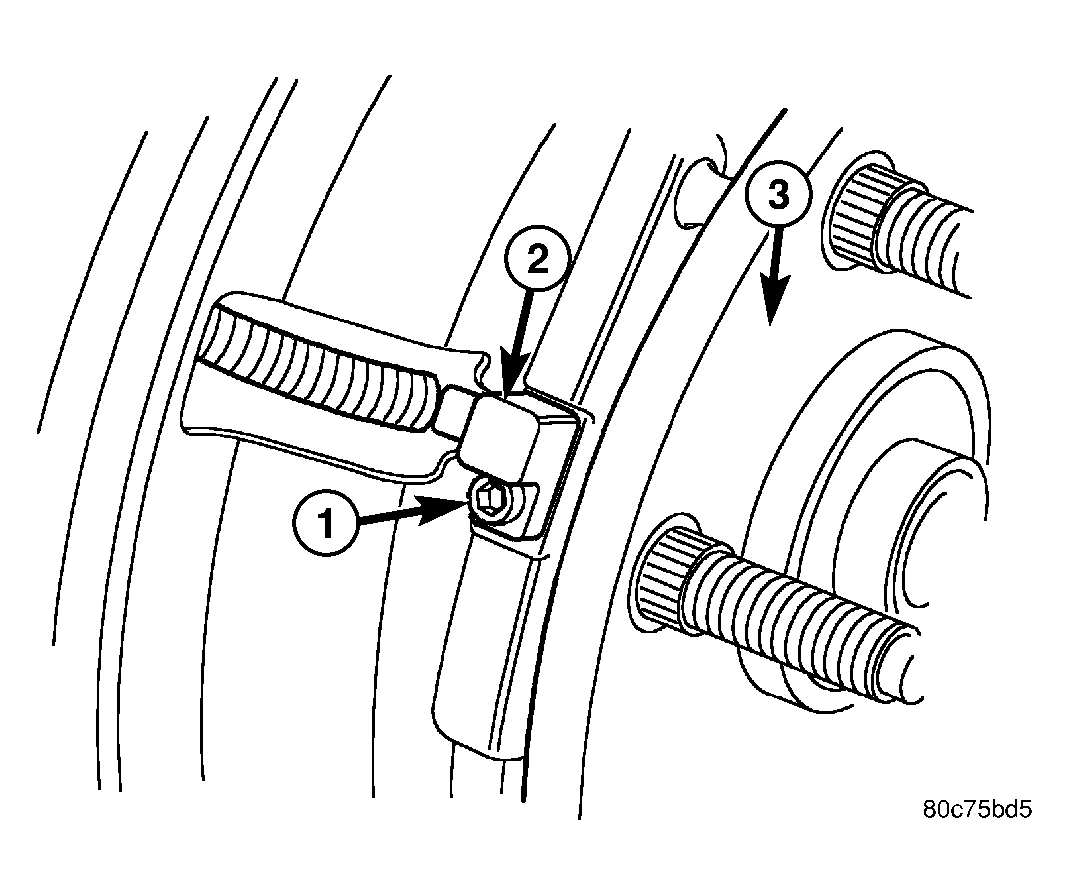

Fig 1: Installing Front Wheel Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEEL SPEED SENSOR MOUNTING BOLT

2 - WHEEL SPEED SENSOR

3 - HUB/BEARING
