Switch-Blower Motor: Description

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

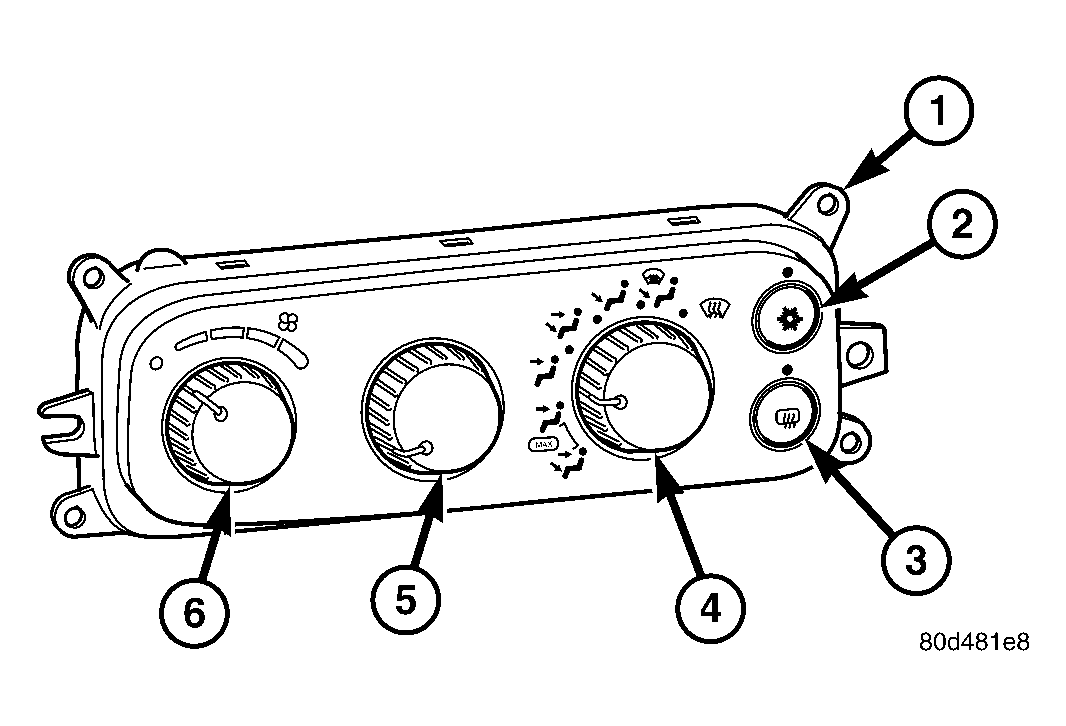

Fig 1: A/C-Heater Control - Single Zone Shown, Dual Zone Typical

Courtesy of DAIMLERCHRYSLER CORP.

The blower motor is controlled by a rotary-type blower motor switch (6), mounted in the A/C-heater control (1). The switch allows the selection of one of four different blower motor speeds and includes an Off position.
