Sensor-Evaporator Temperature: Description
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

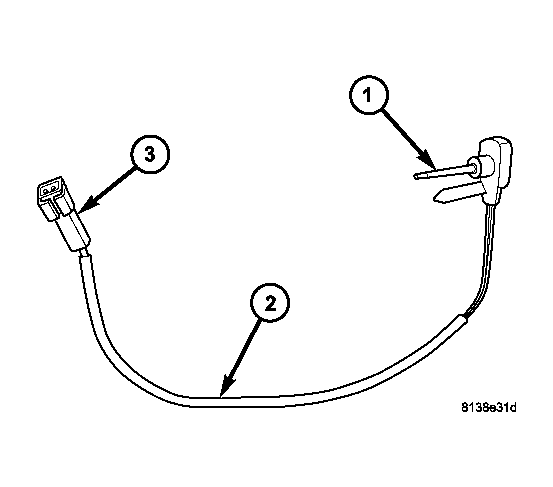

The evaporator temperature sensor is a two-wire temperature sensing element located at the coldest point on the face of the A/C evaporator. The probe (1) for evaporator temperature sensor is attached to the evaporator coil fins. The wire lead (2) for evaporator temperature sensor is routed through an opening at the back of the HVAC housing and the connector (3) is attached to the HVAC wire harness.
