Flex Drive: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flex drive assembly in the vehicle.
  2. Install the flex drive on the lower drive unit. Push straight on until it snaps in place. It may be necessary to rotate drive unit gear slightly until the flex drive seats in place.
  3. Install the lower drive unit cover and retaining screws.
  4. Install the flex drive in the motor assembly. Line up the square shaped inner shaft and push straight on (Fig 1 ).

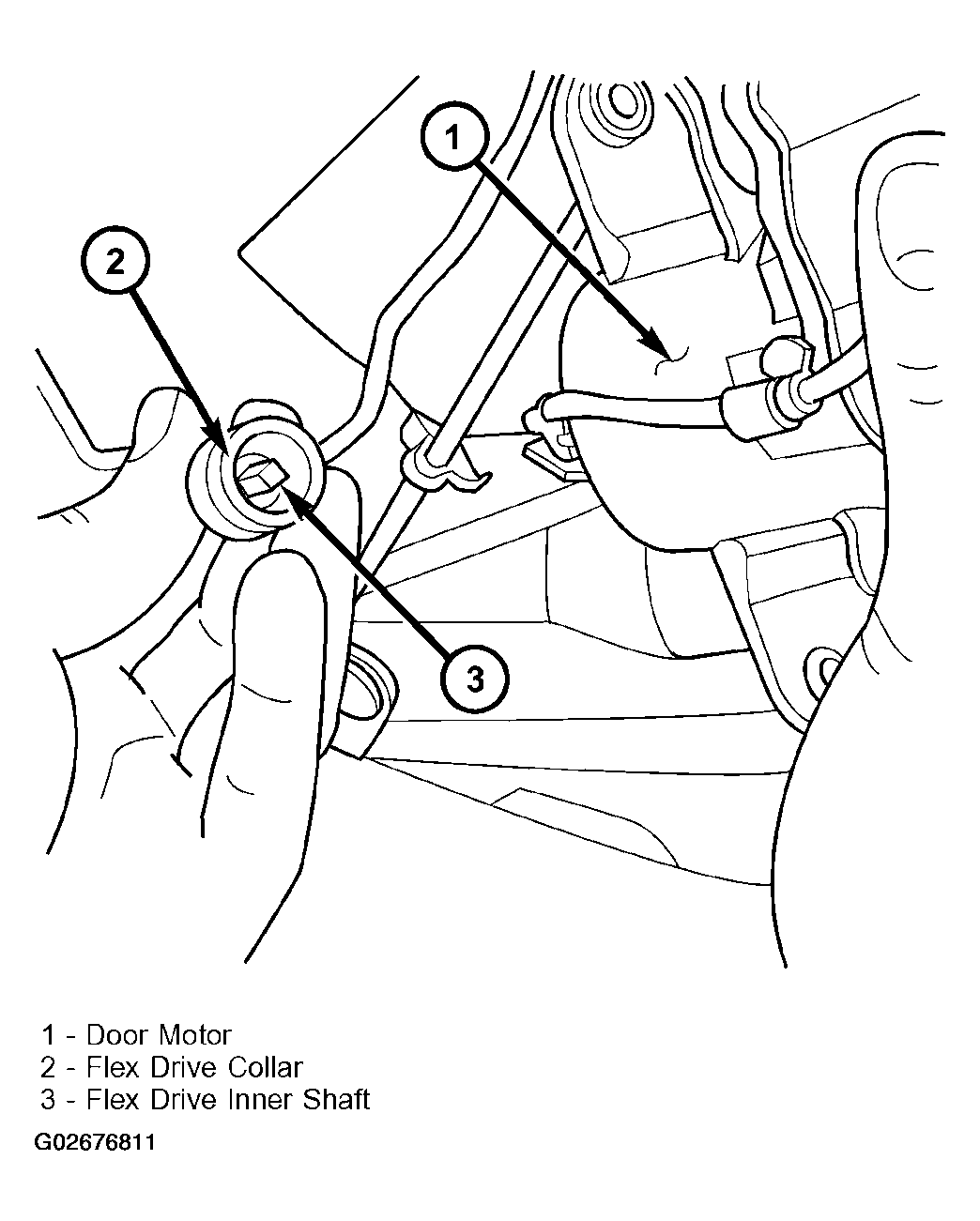

    Fig 1: Removing Flex Drive Cable
    G02676811Courtesy of DAIMLERCHRYSLER CORP.

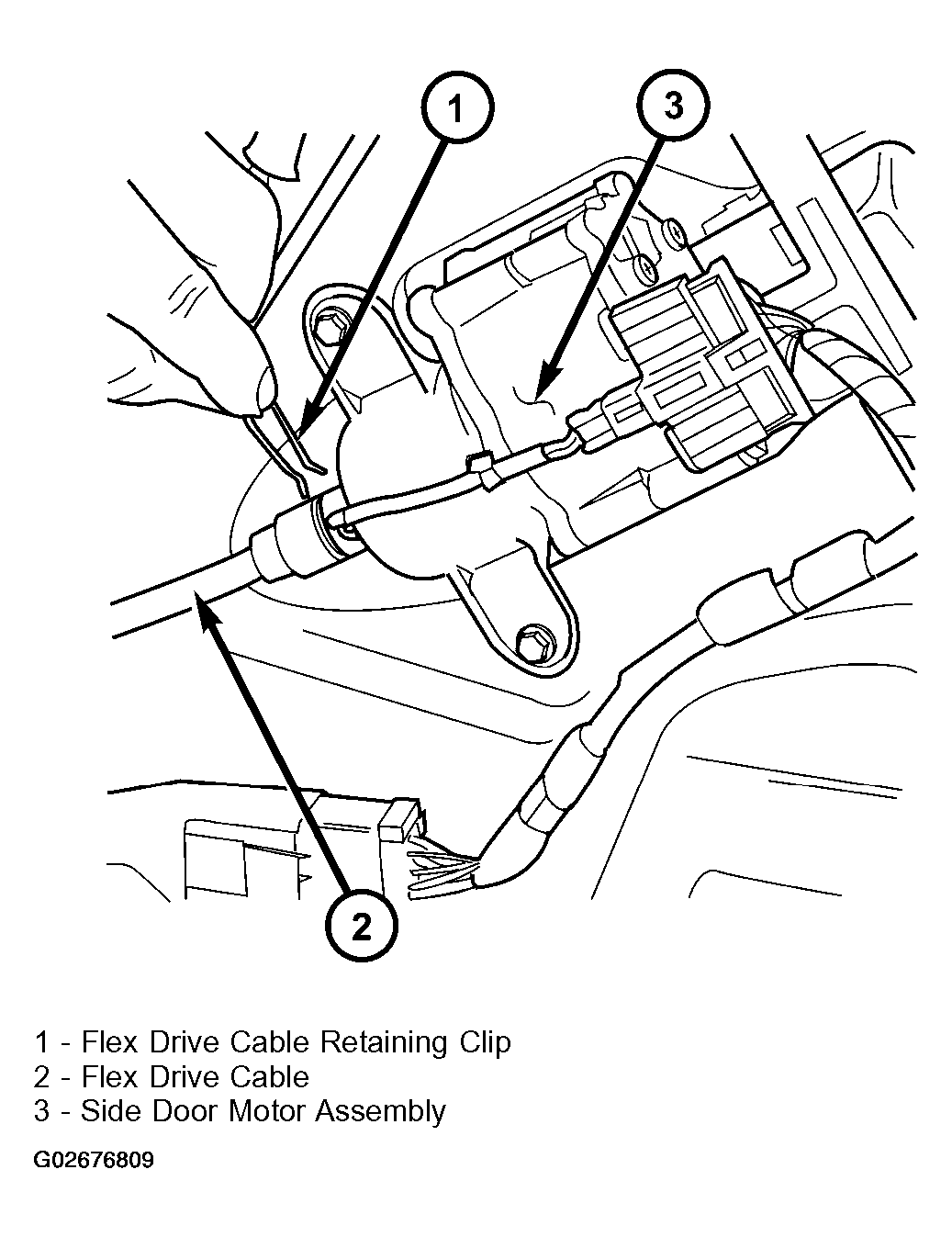

  5. Install the E-clip on the flex drive assembly (Figure ).
  6. Install the weathershield. Refer to SLIDING DOOR WEATHERSTRIP for the procedure.
  7. Install the side door trim panel on the vehicle. Refer to TRIM PANEL for the procedure.
  8. Connect the negative cable.
