DRBIII® Error Messages And Blank Screen: Notes

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Under normal operation, the DRBIII® will display one of only two error messages:

User-Requested WARM Boot or User Requested COLD Boot.

If the DRBIII® should display any other error message, record the entire display and call the STAR Center. This is a sample of such an error message display.

User-Requested WARM Boot by pressing MORE and NO at the same time.

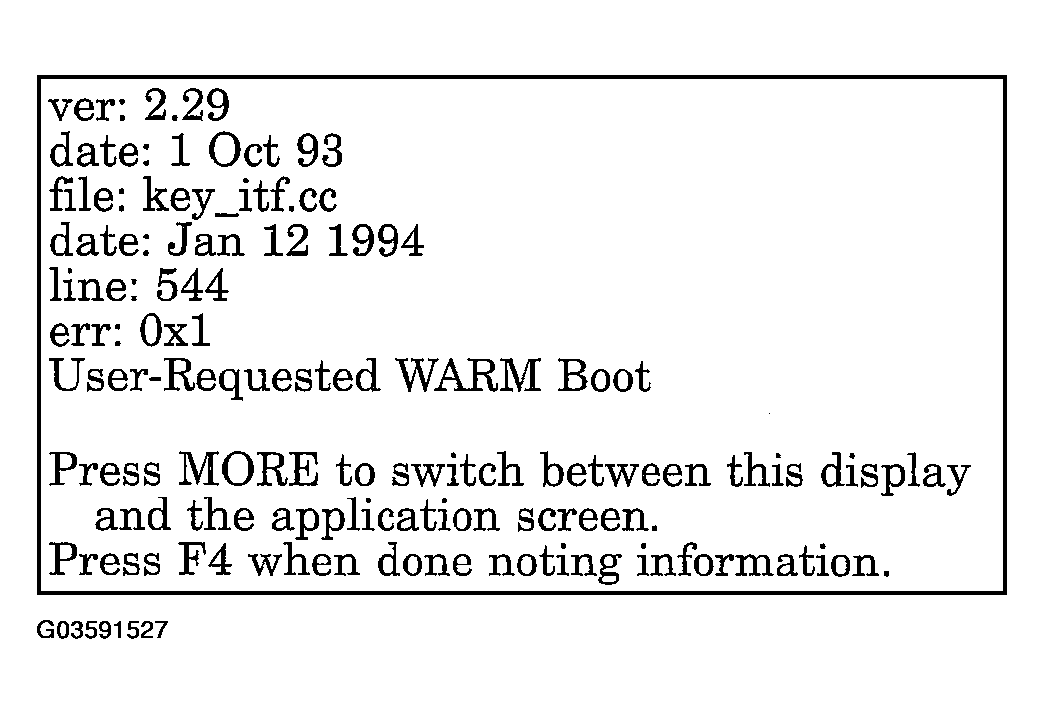

Fig 1: Display DRBIII Scan Tool (Error Message) (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

or User-Requested COLD Boot by pressing MORE and YES at the same time.

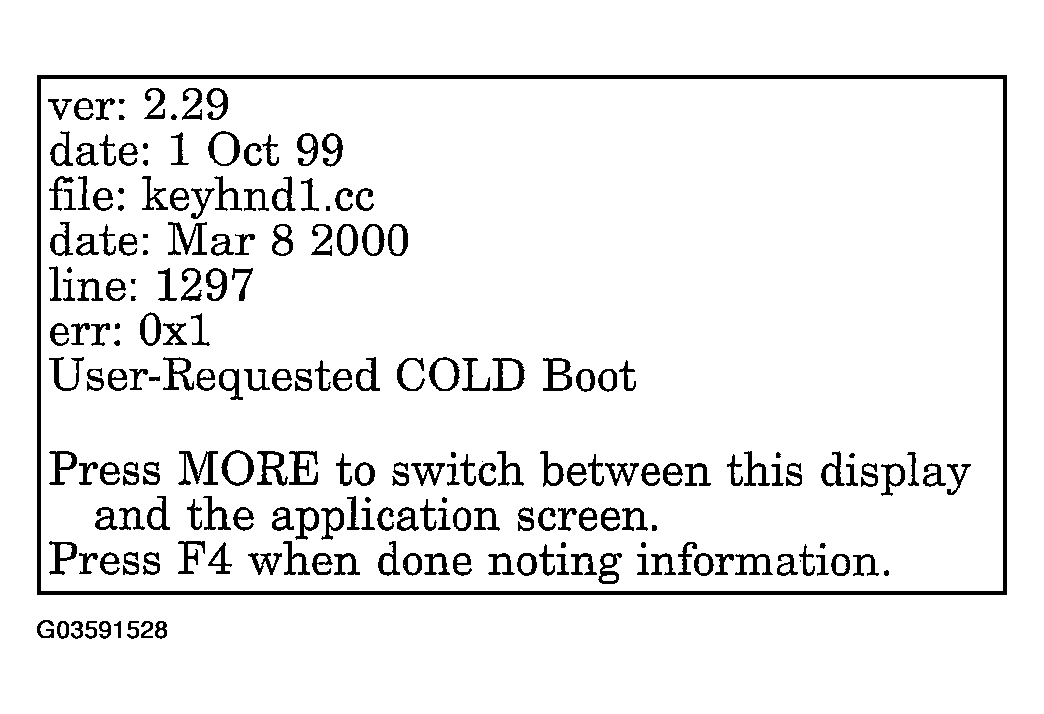

Fig 2: Display DRBIII Scan Tool (Error Message) (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
