Specifications - Weld Locations: Index

DESCRIPTION	FIGURE
FRONT FENDER SHIELD - RIGHT	Fig 1
FRONT FENDER SHIELD - LEFT	Fig 2

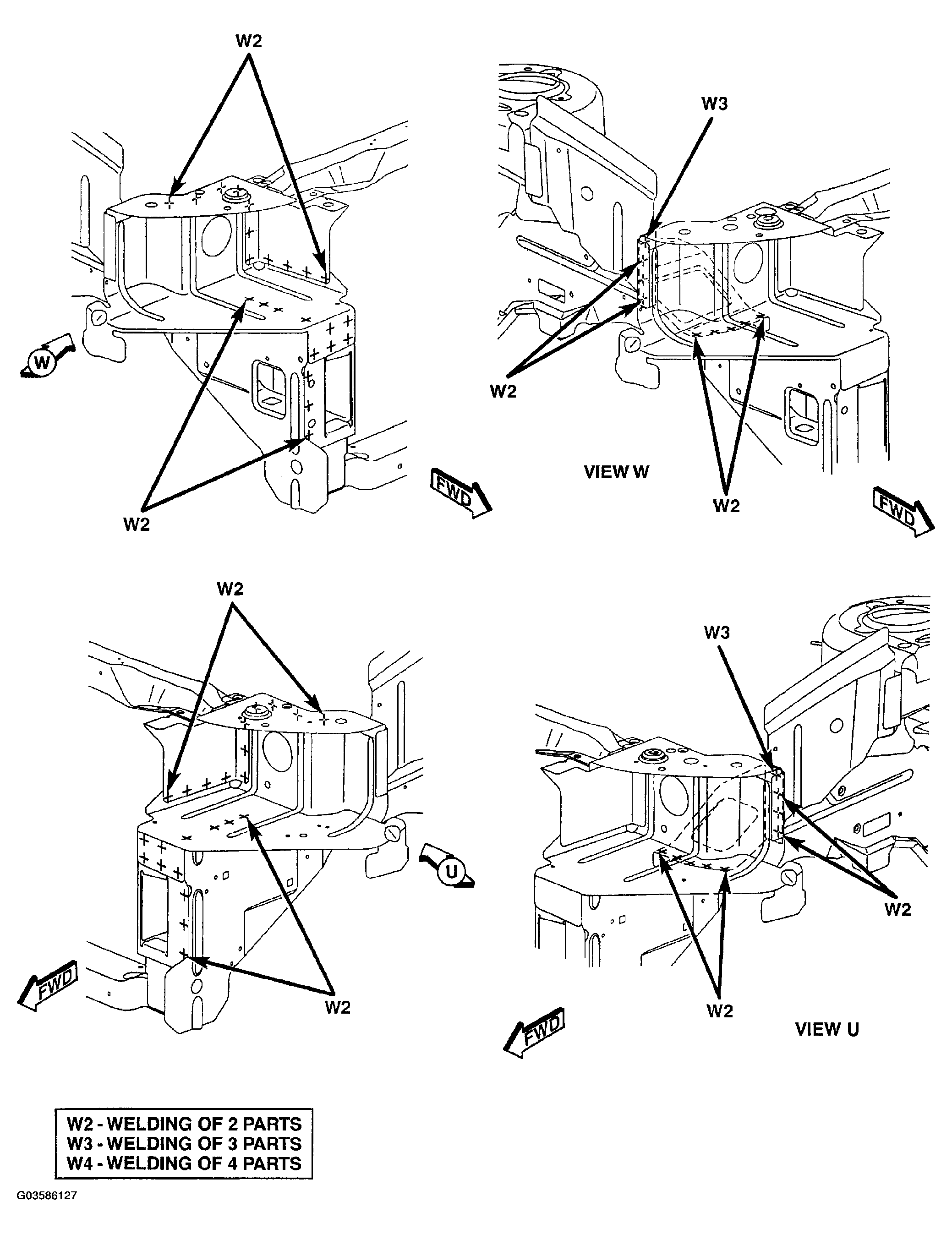

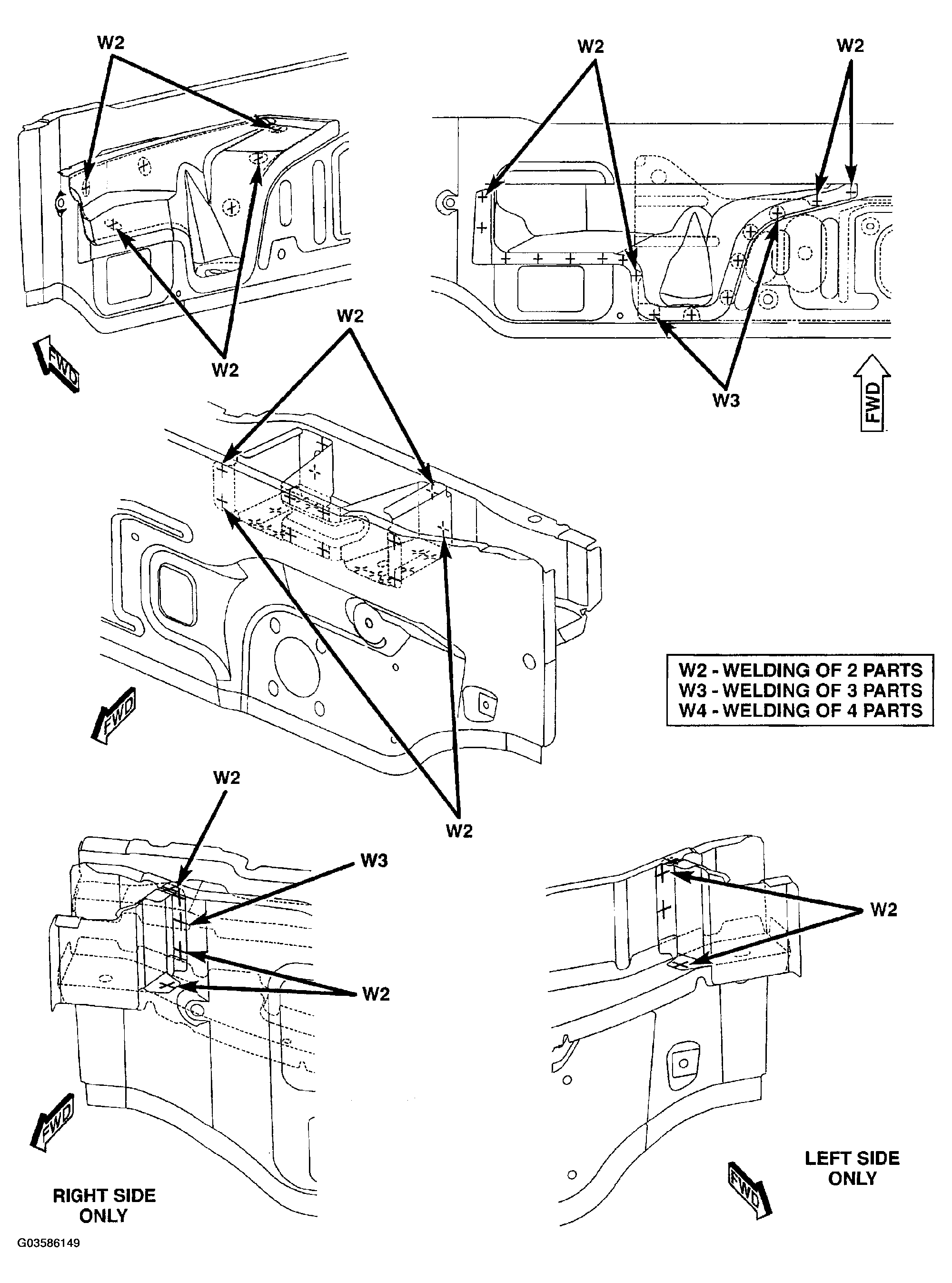

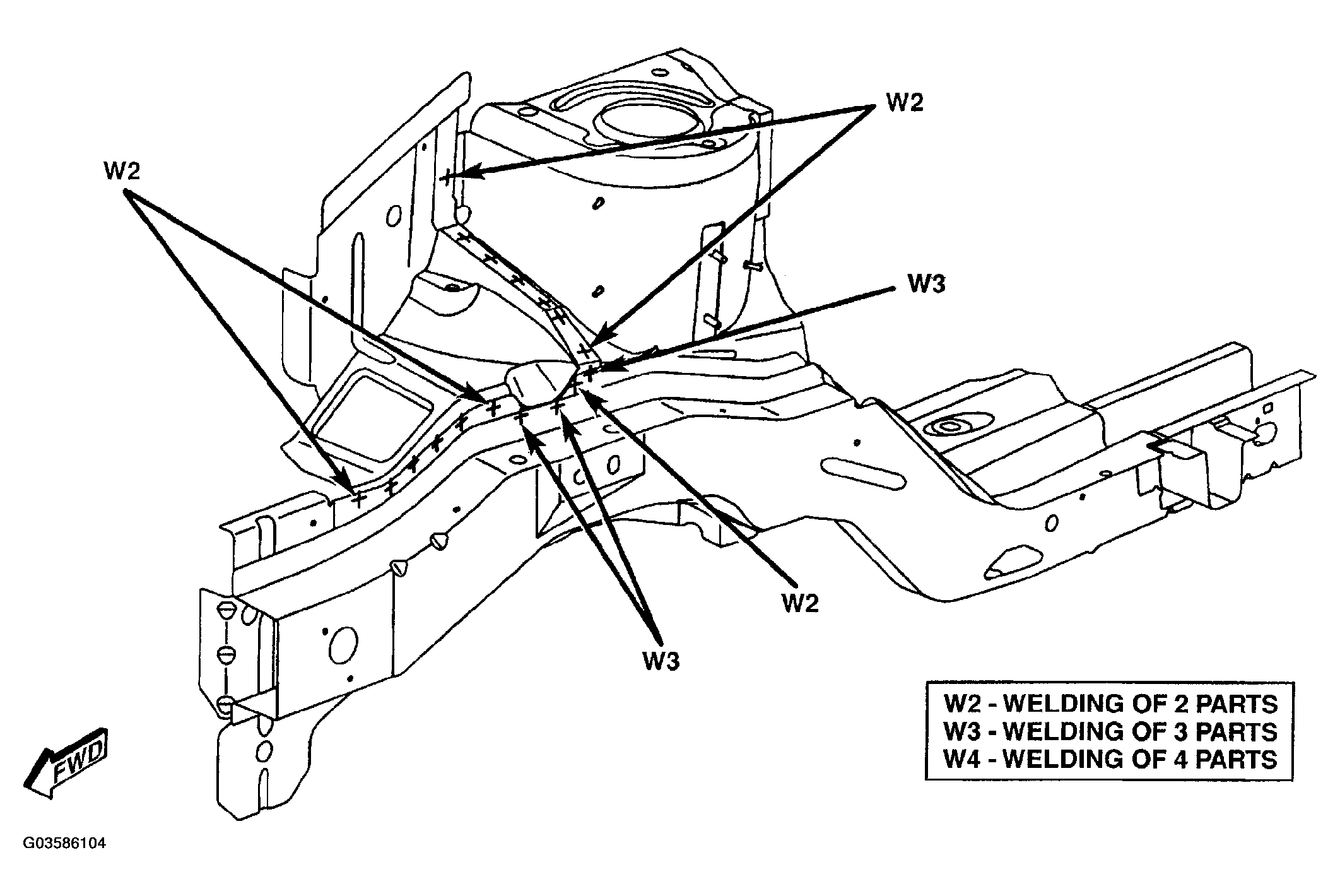

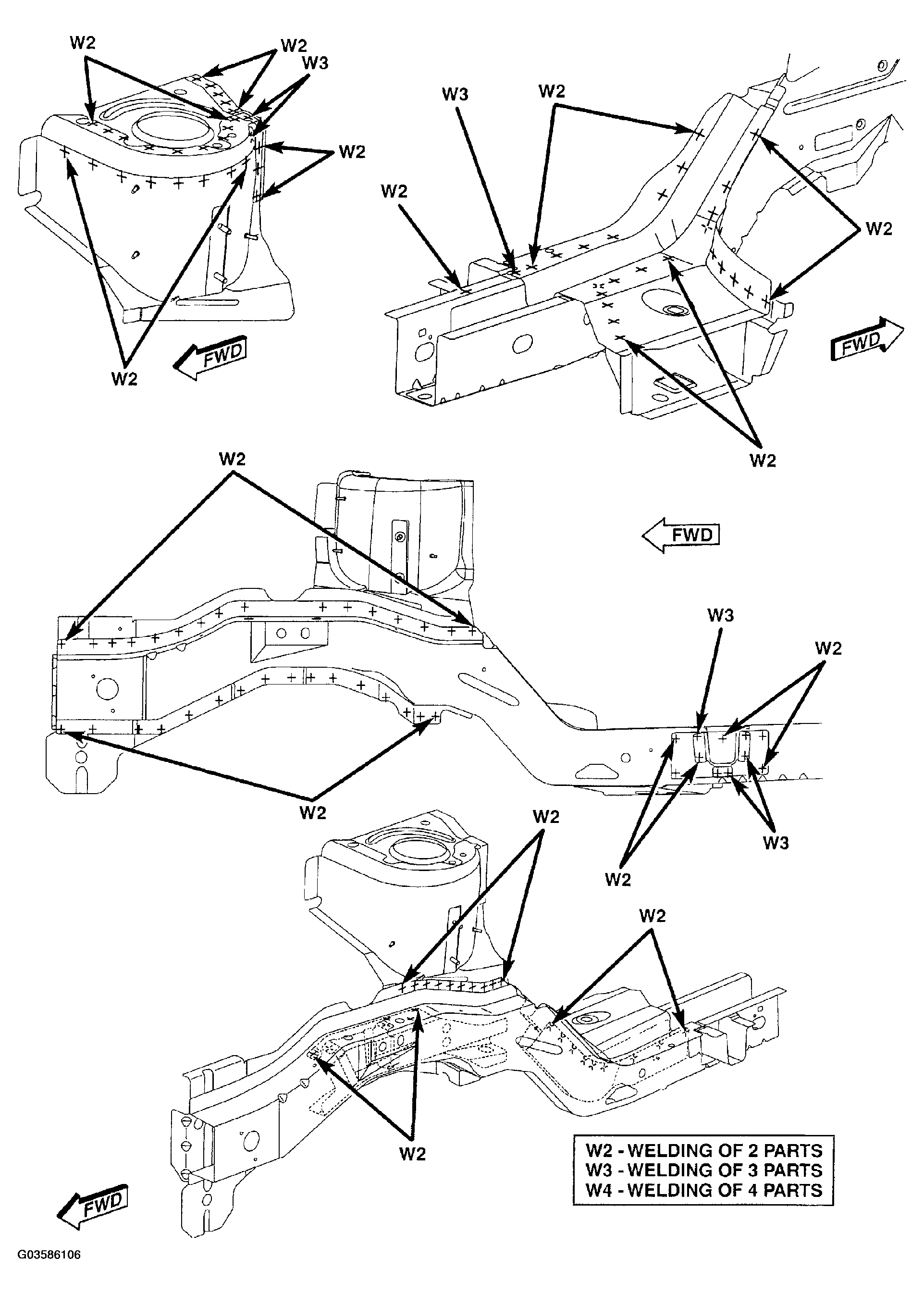

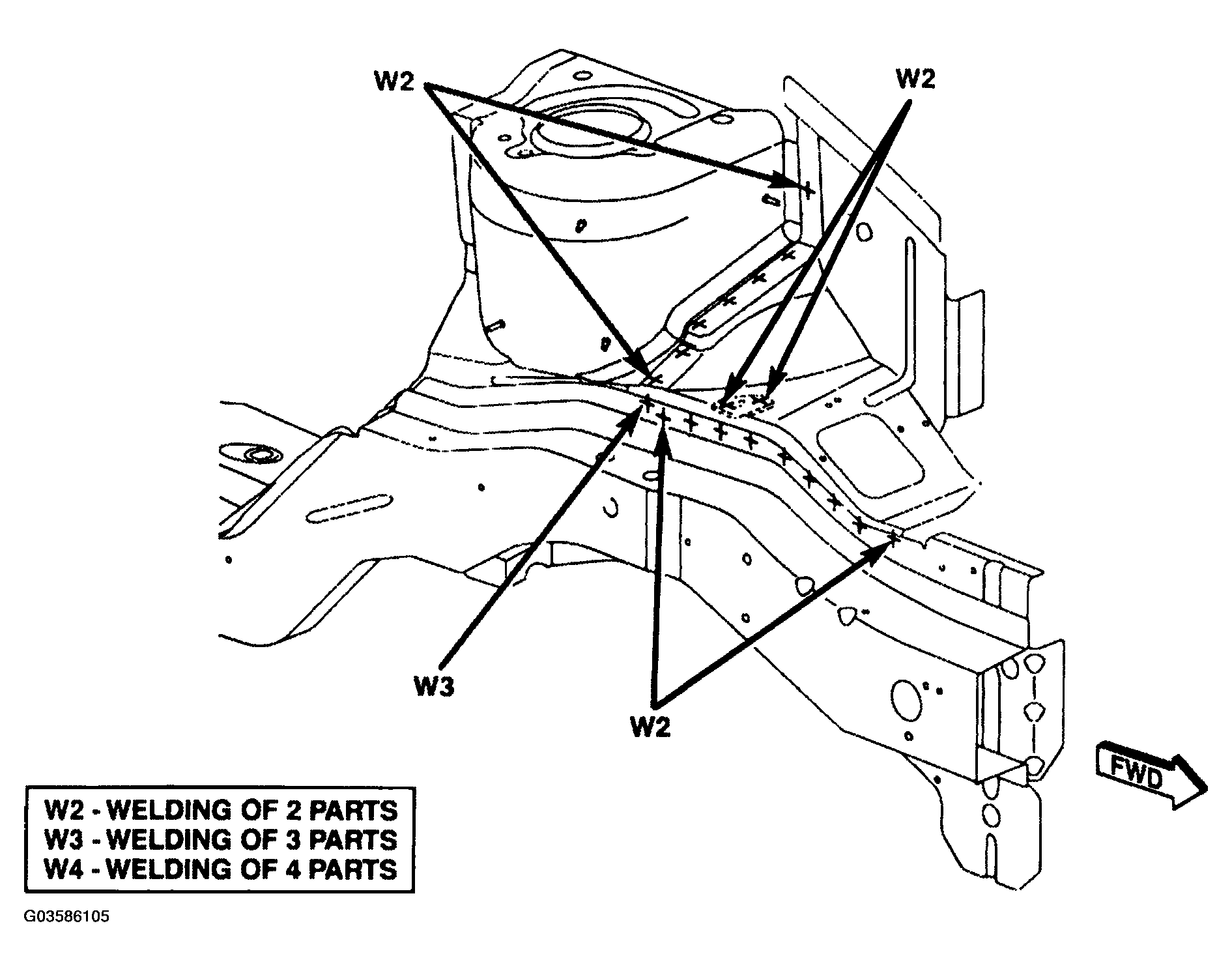

STRUT TOWER AND REINFORCEMENTS - RIGHT	Fig 3
SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT	Fig 4
STRUT TOWER AND REINFORCEMENTS - LEFT	Fig 5
SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT	Fig 6

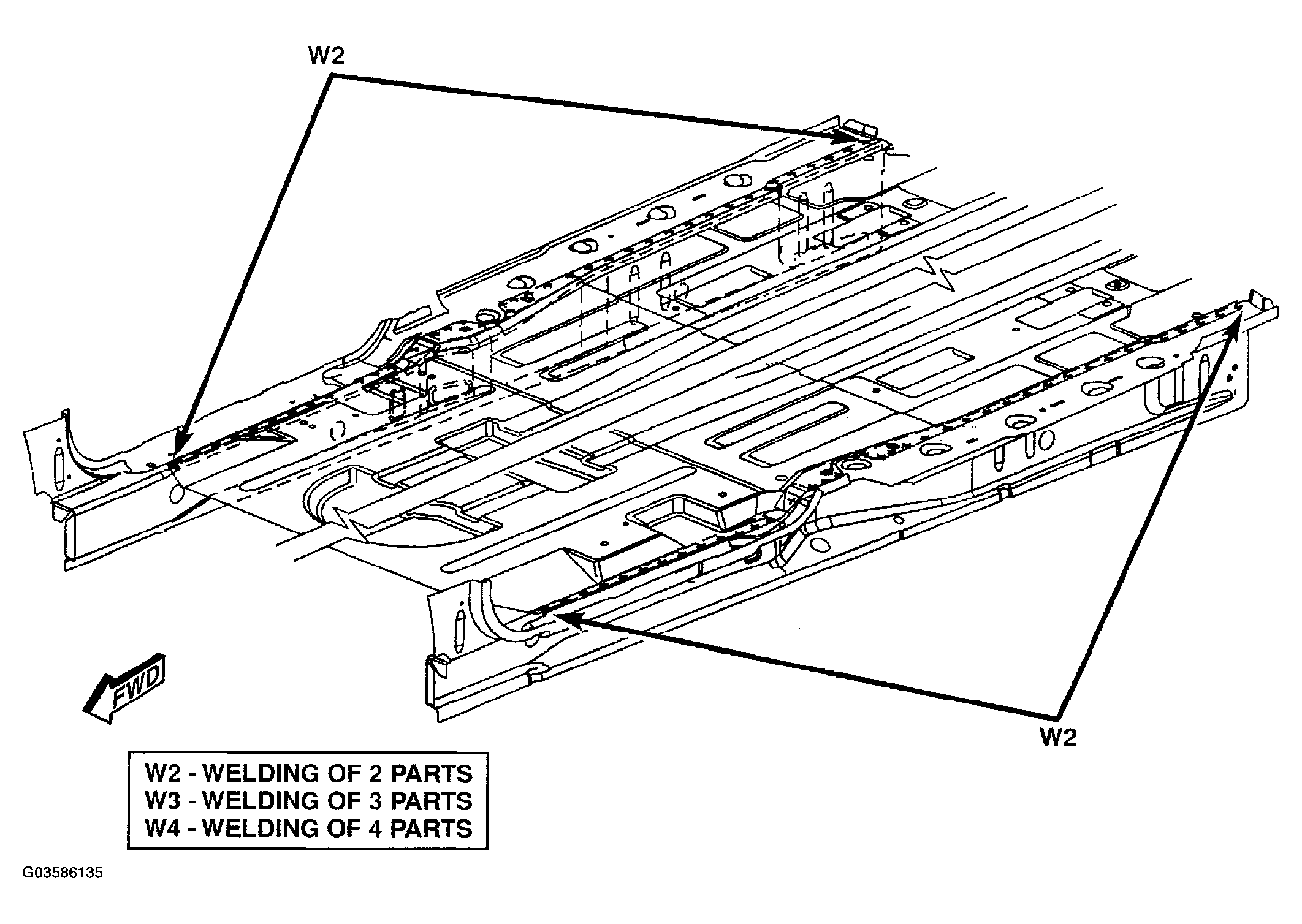

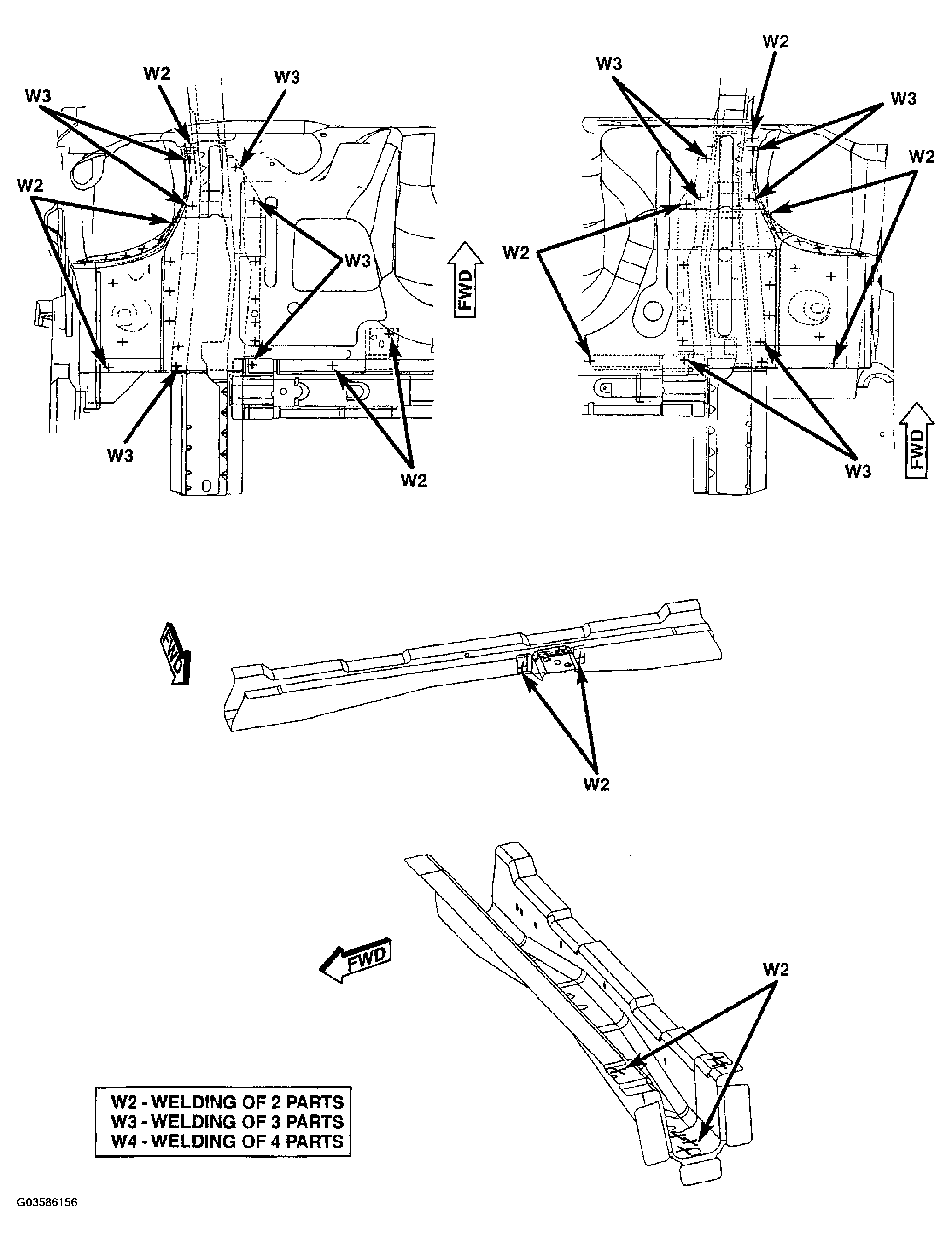

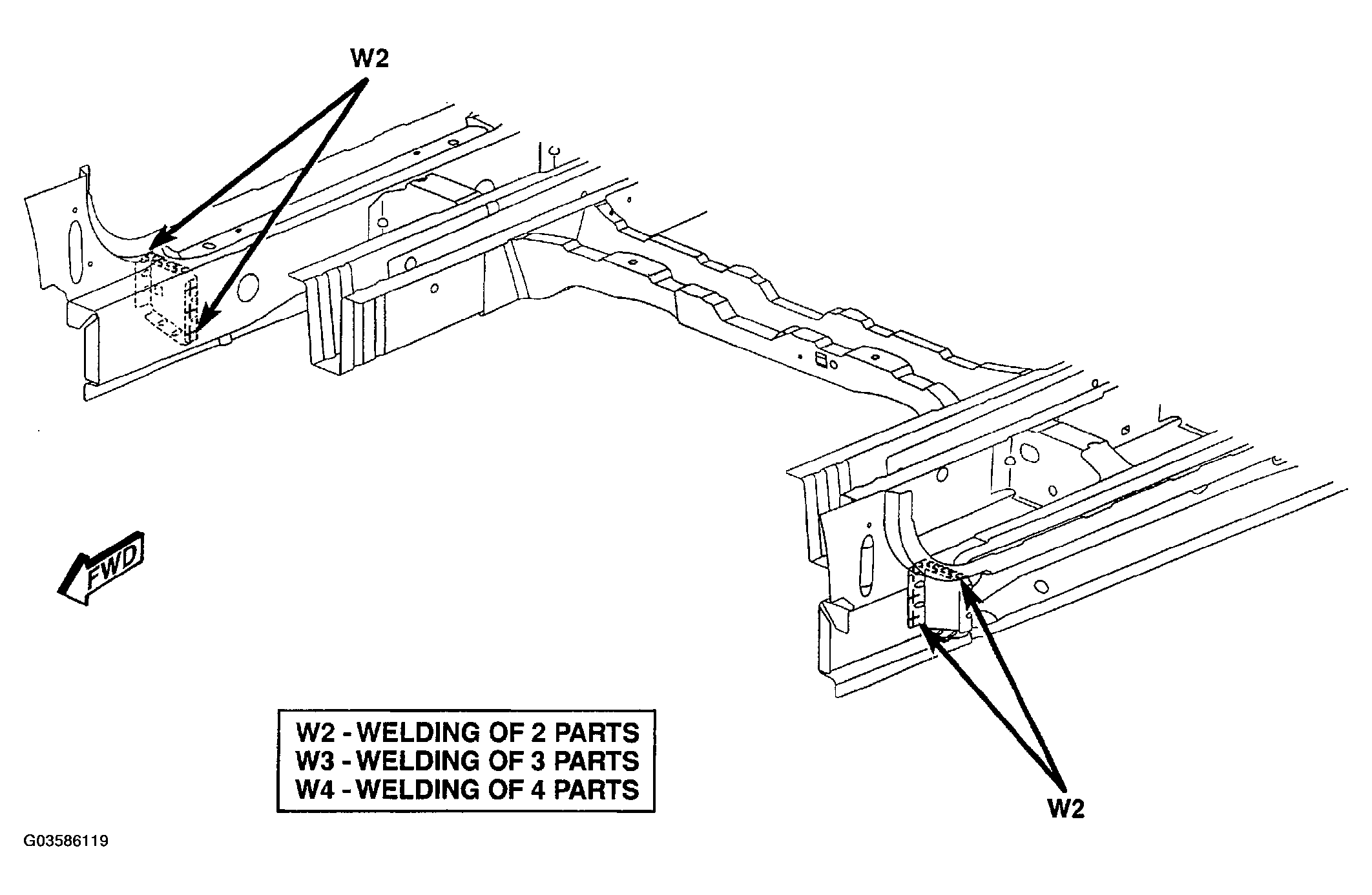

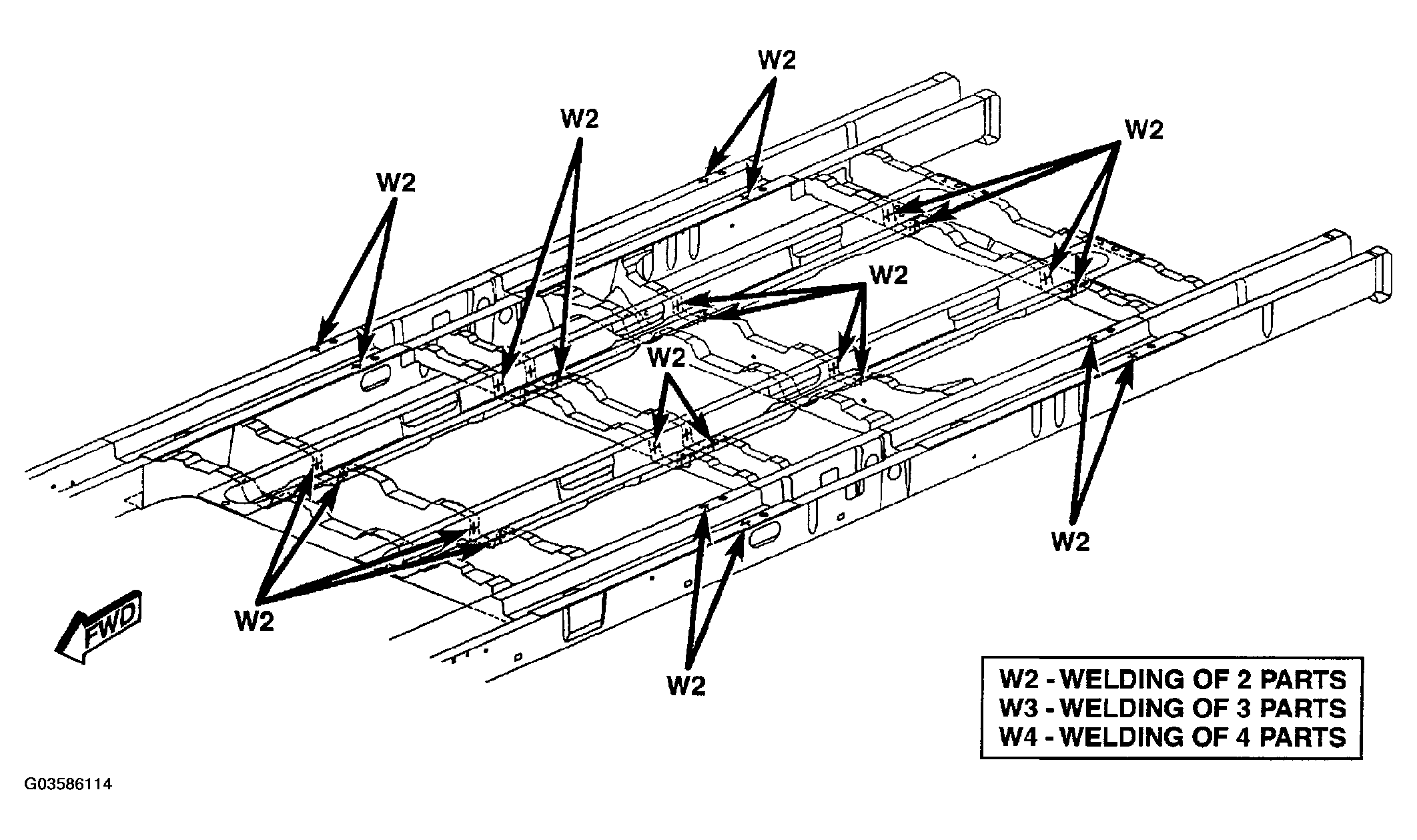

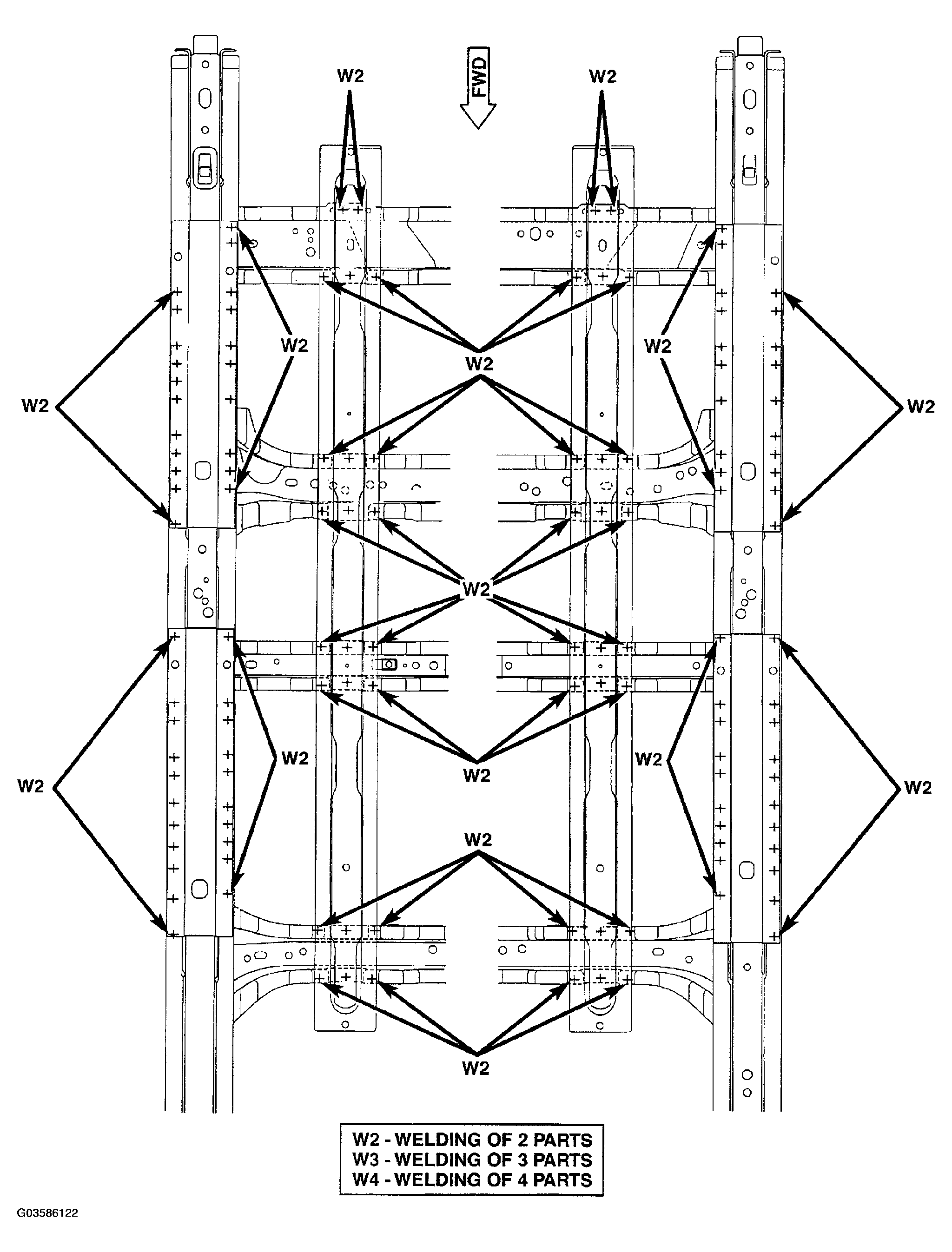

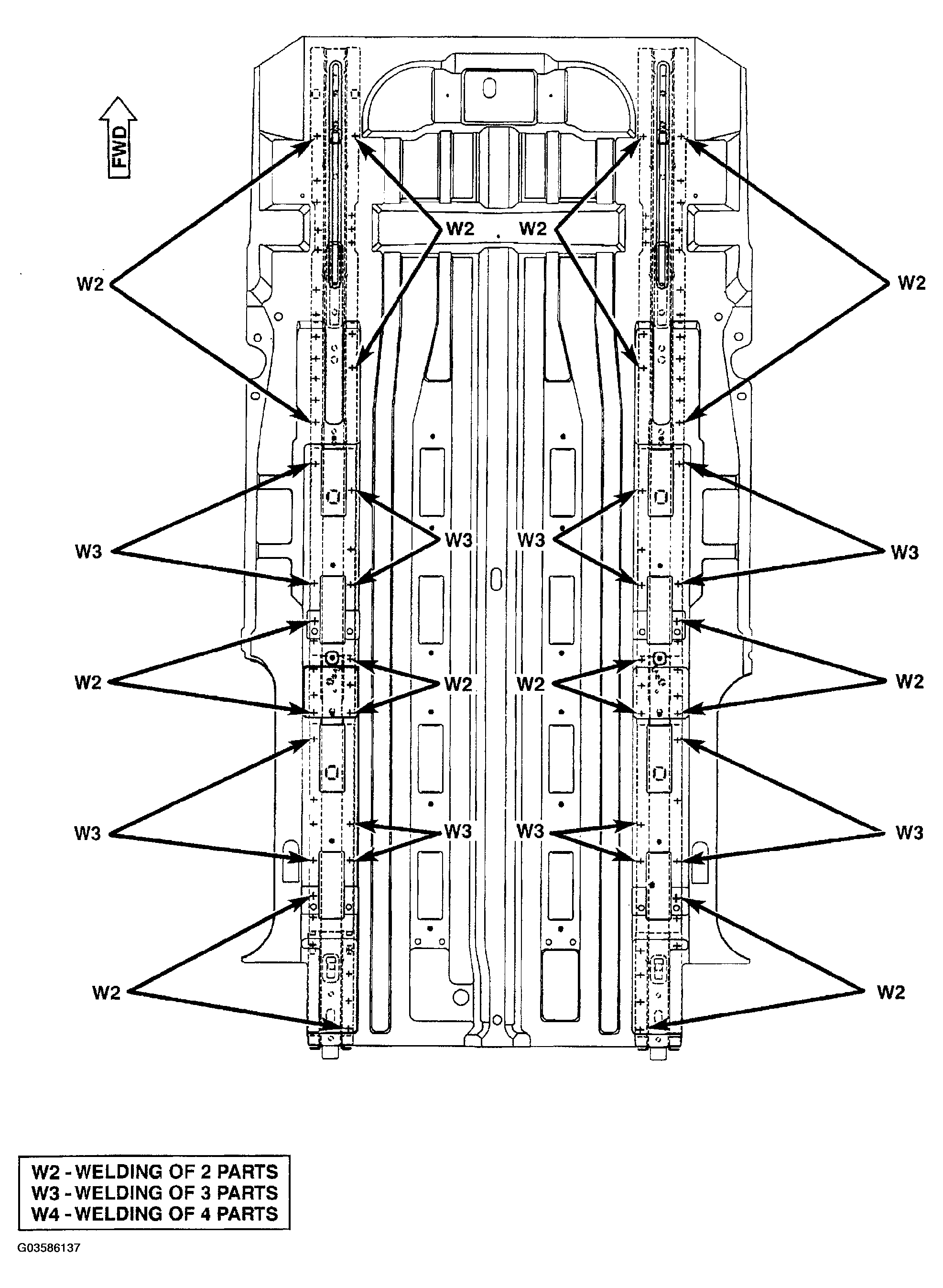

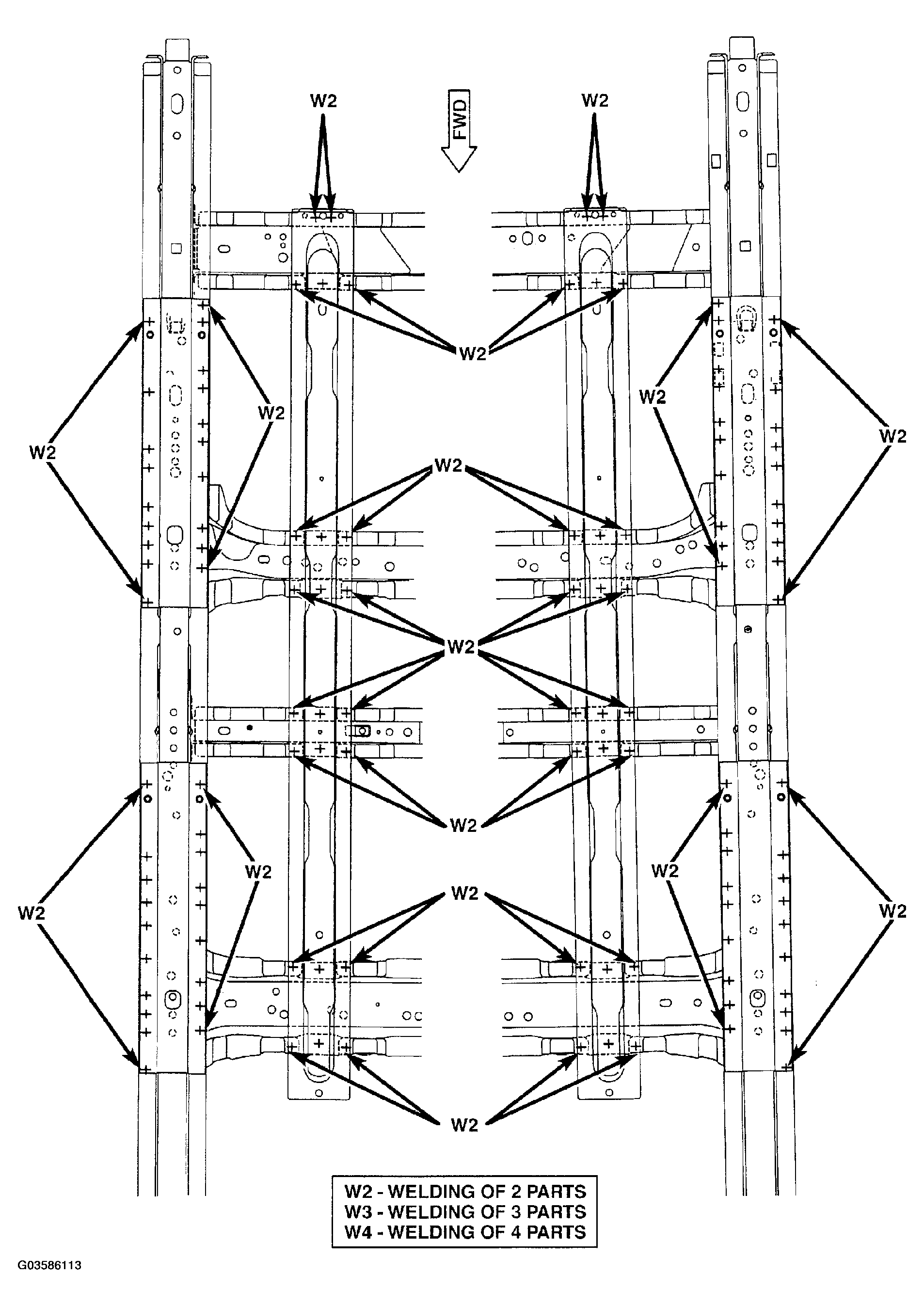

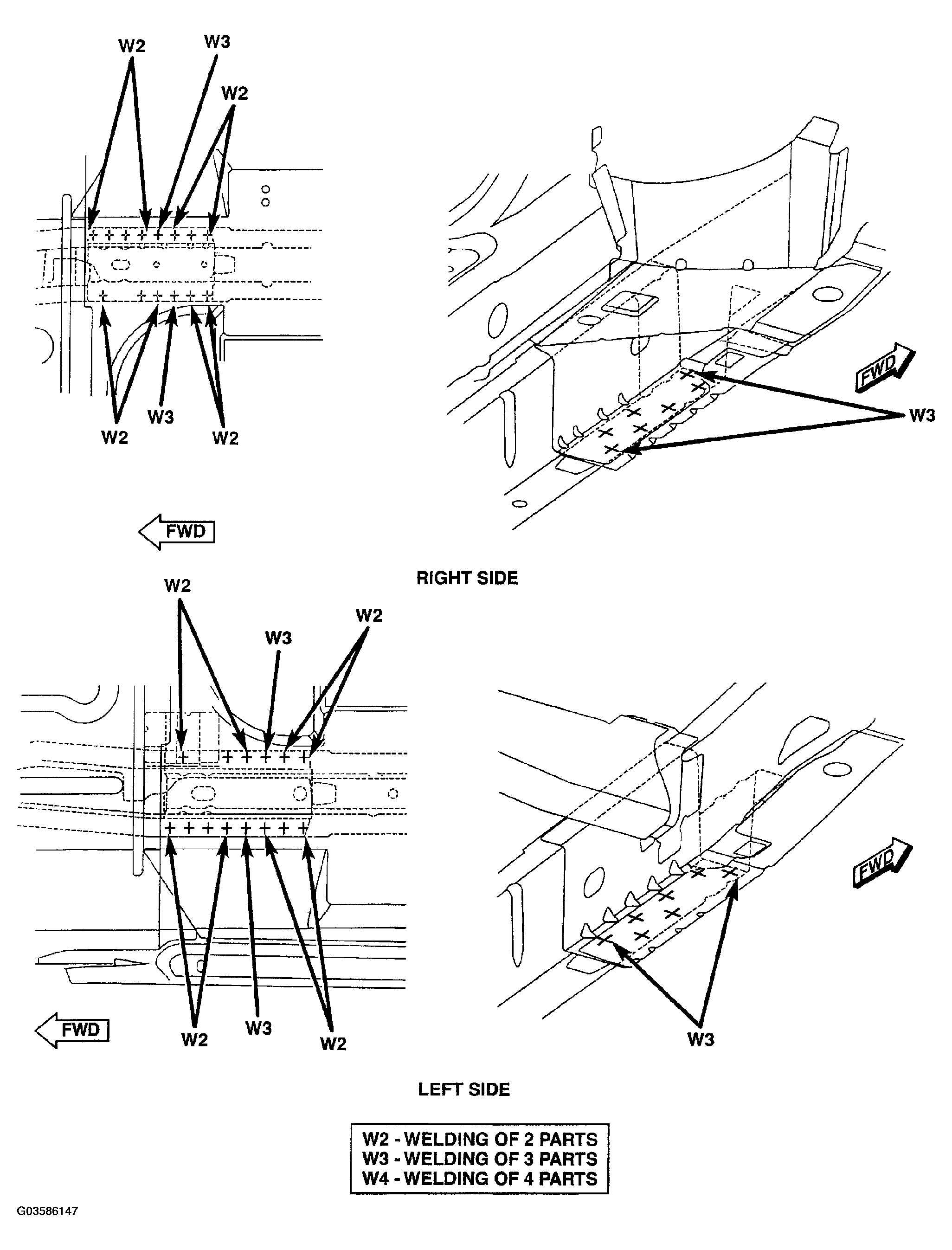

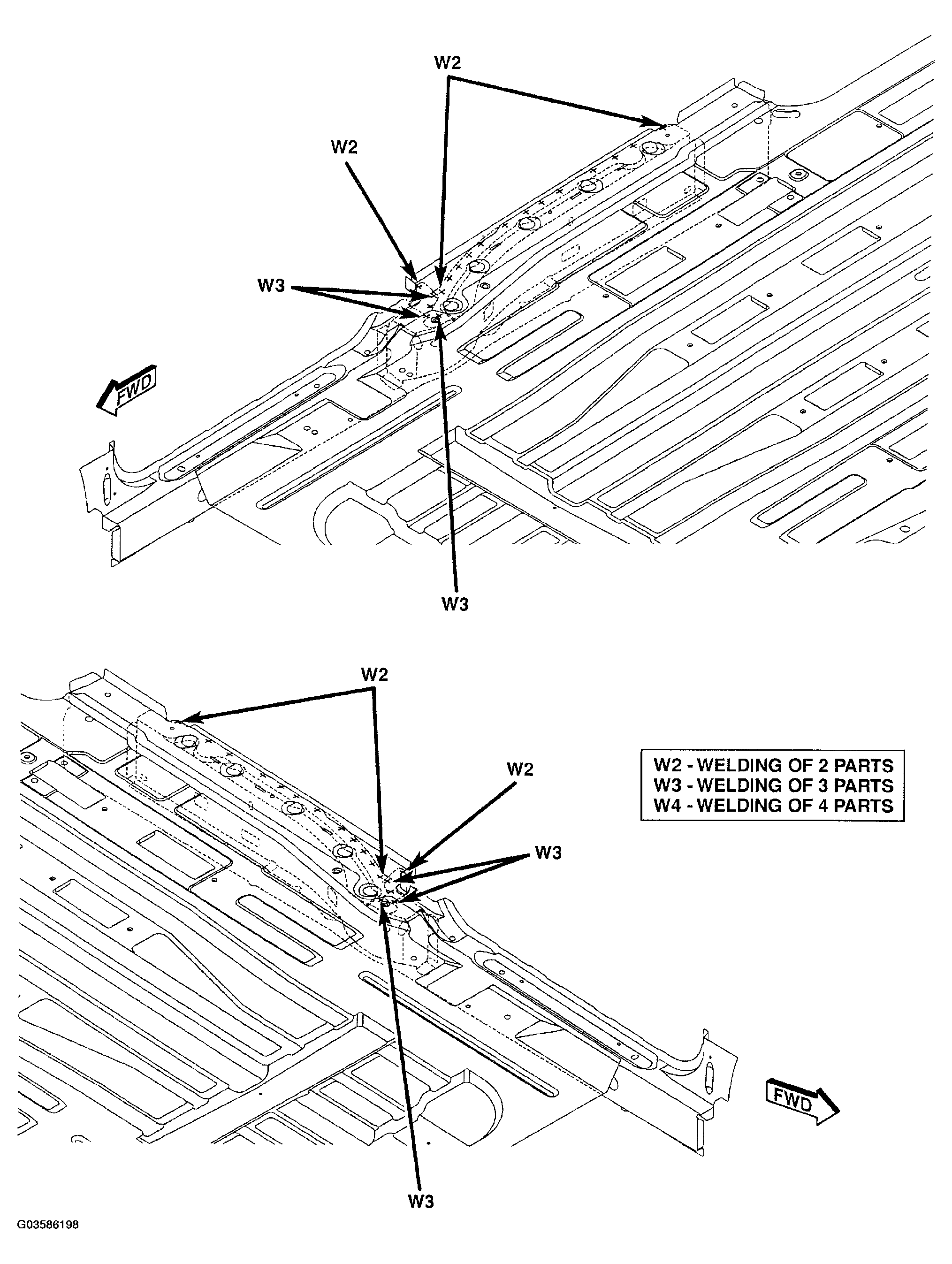

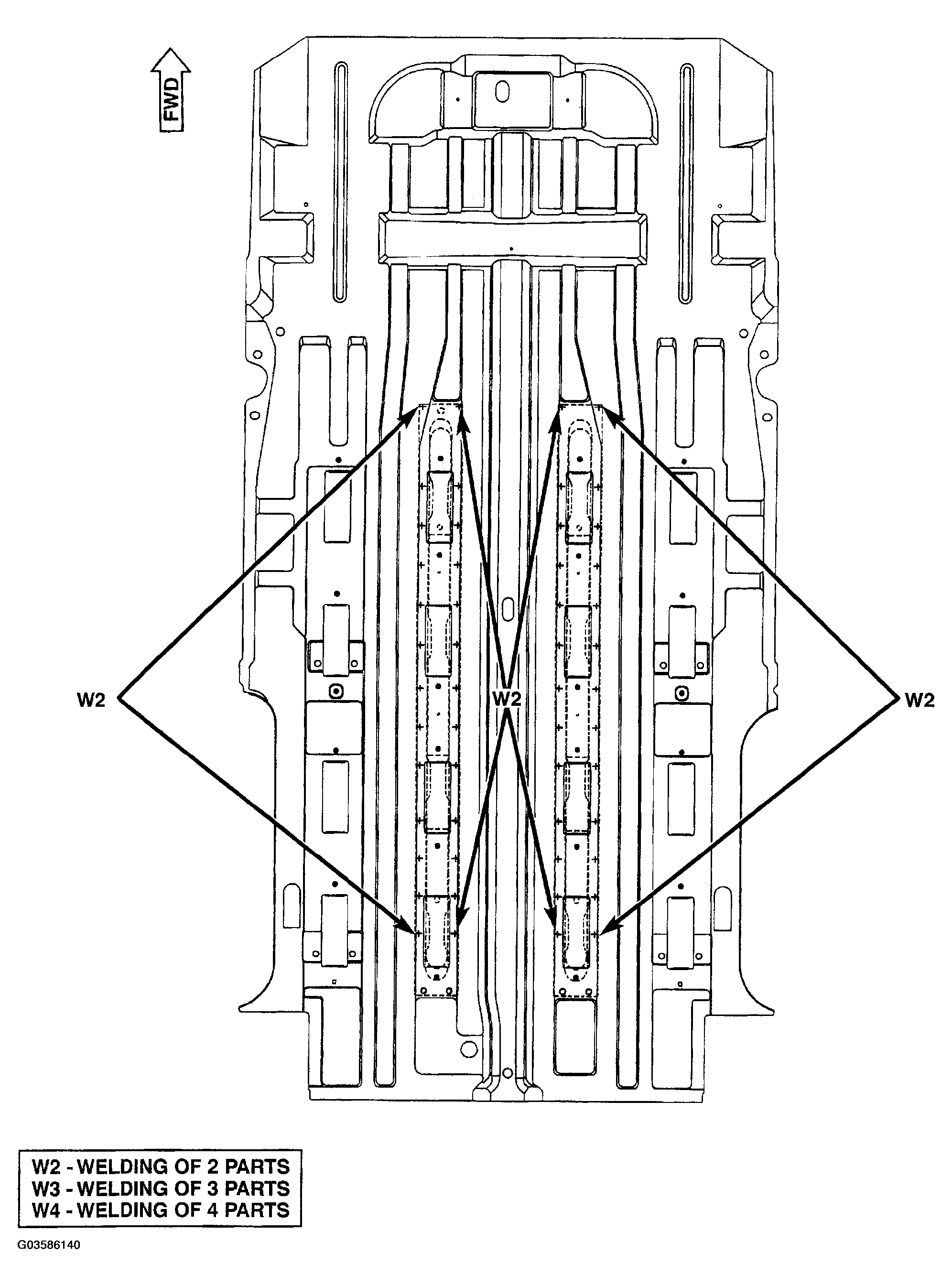

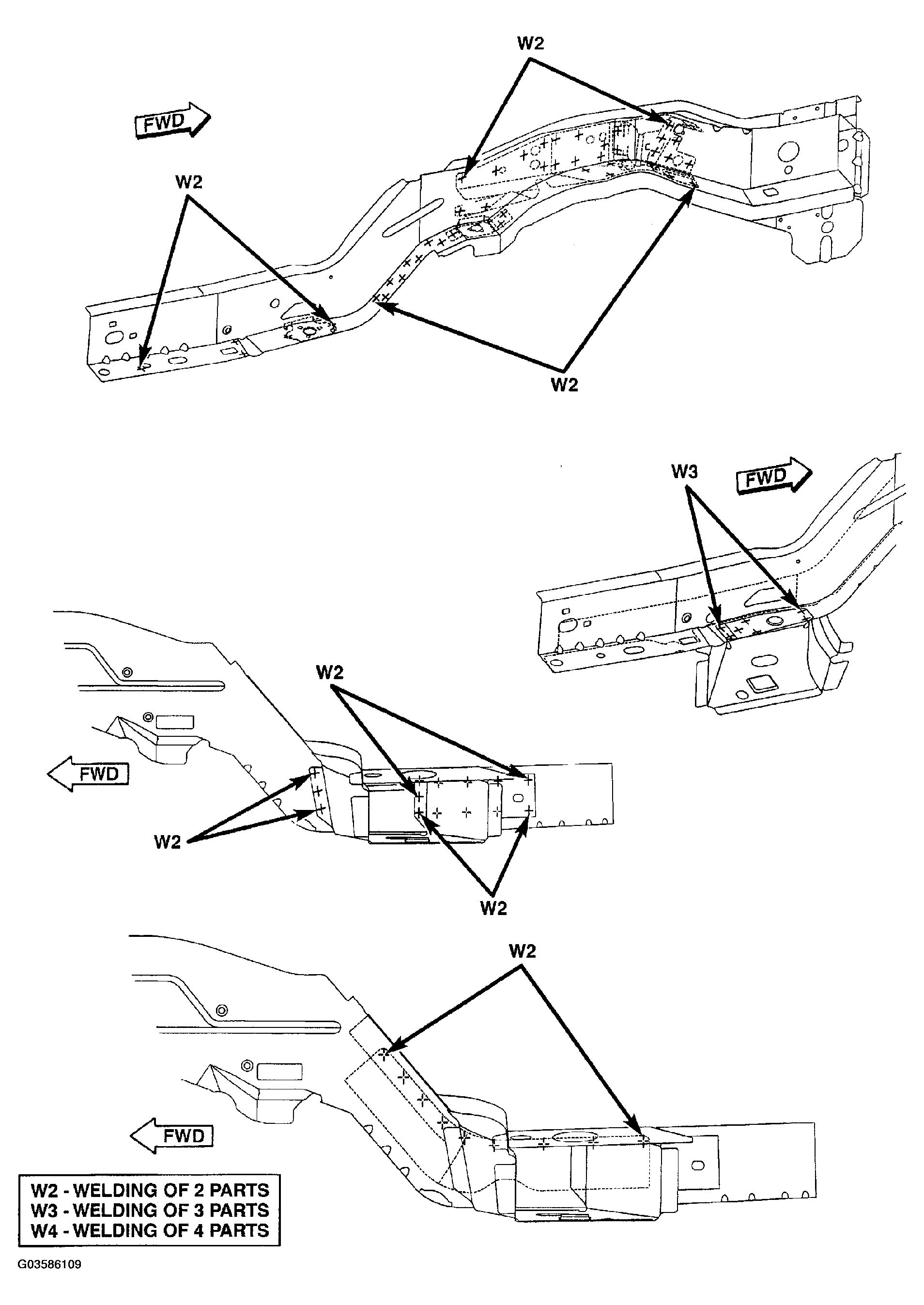

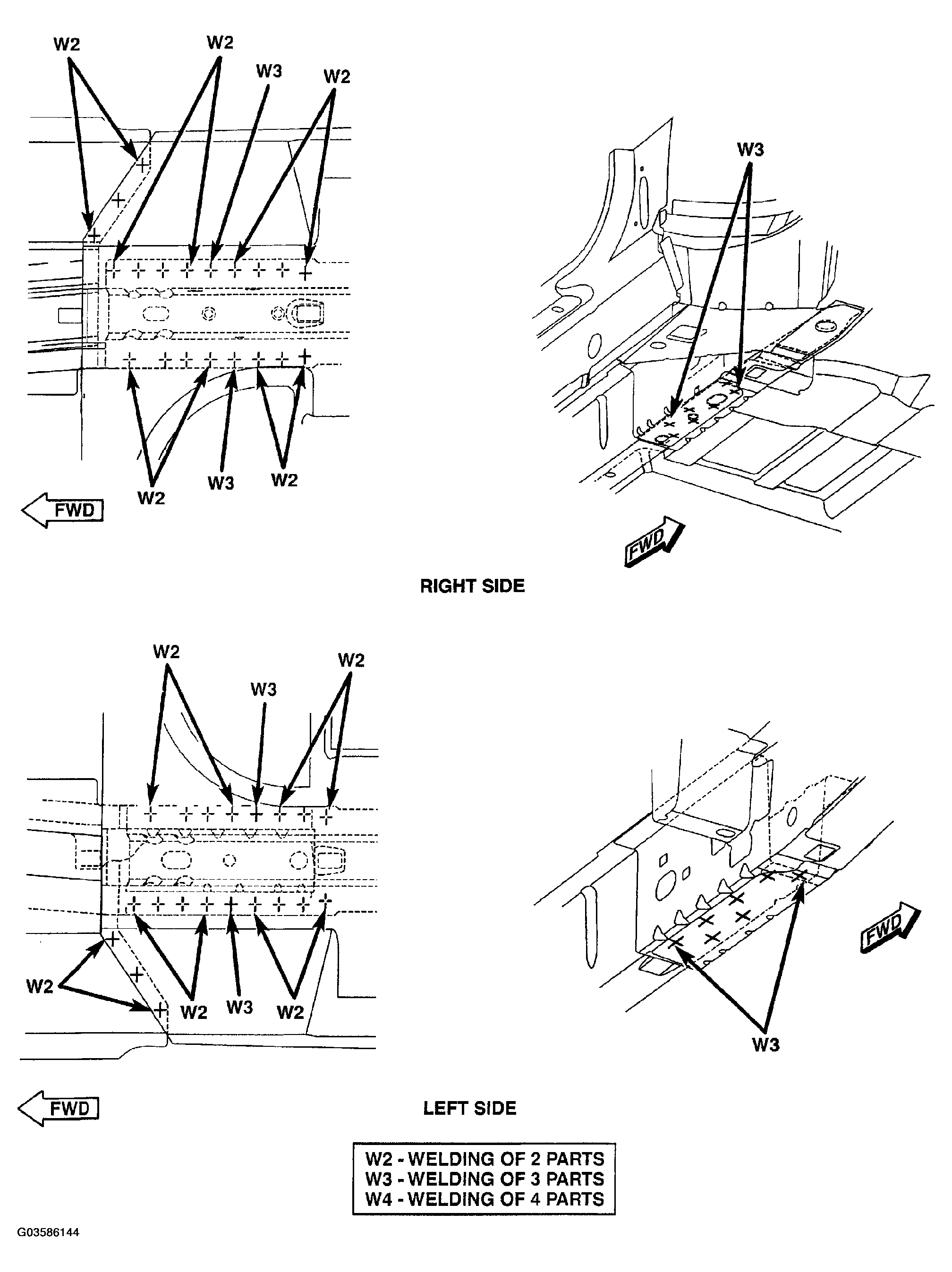

FLOOR PAN REINFORCEMENTS - SIDE RAILS	Fig 7

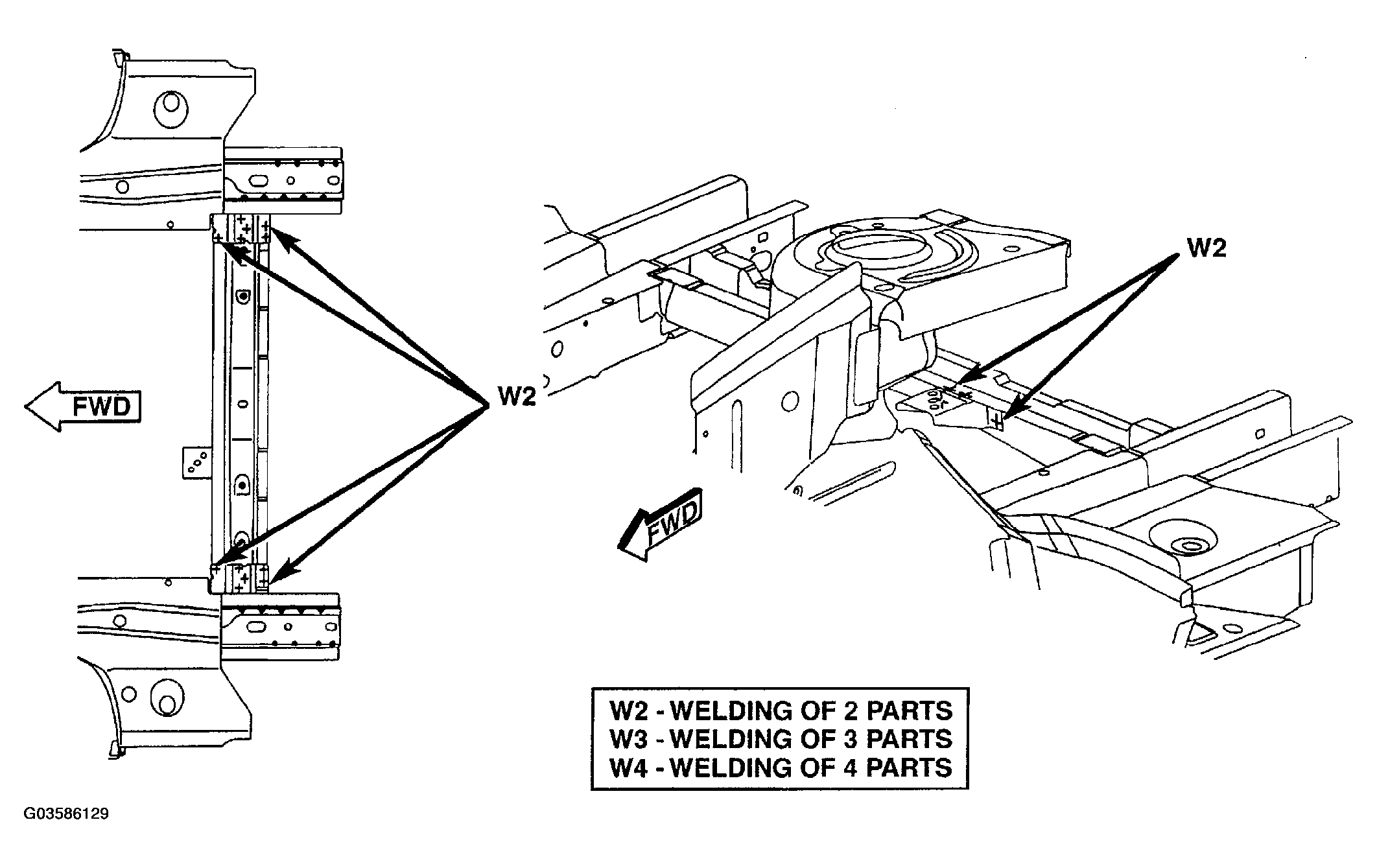

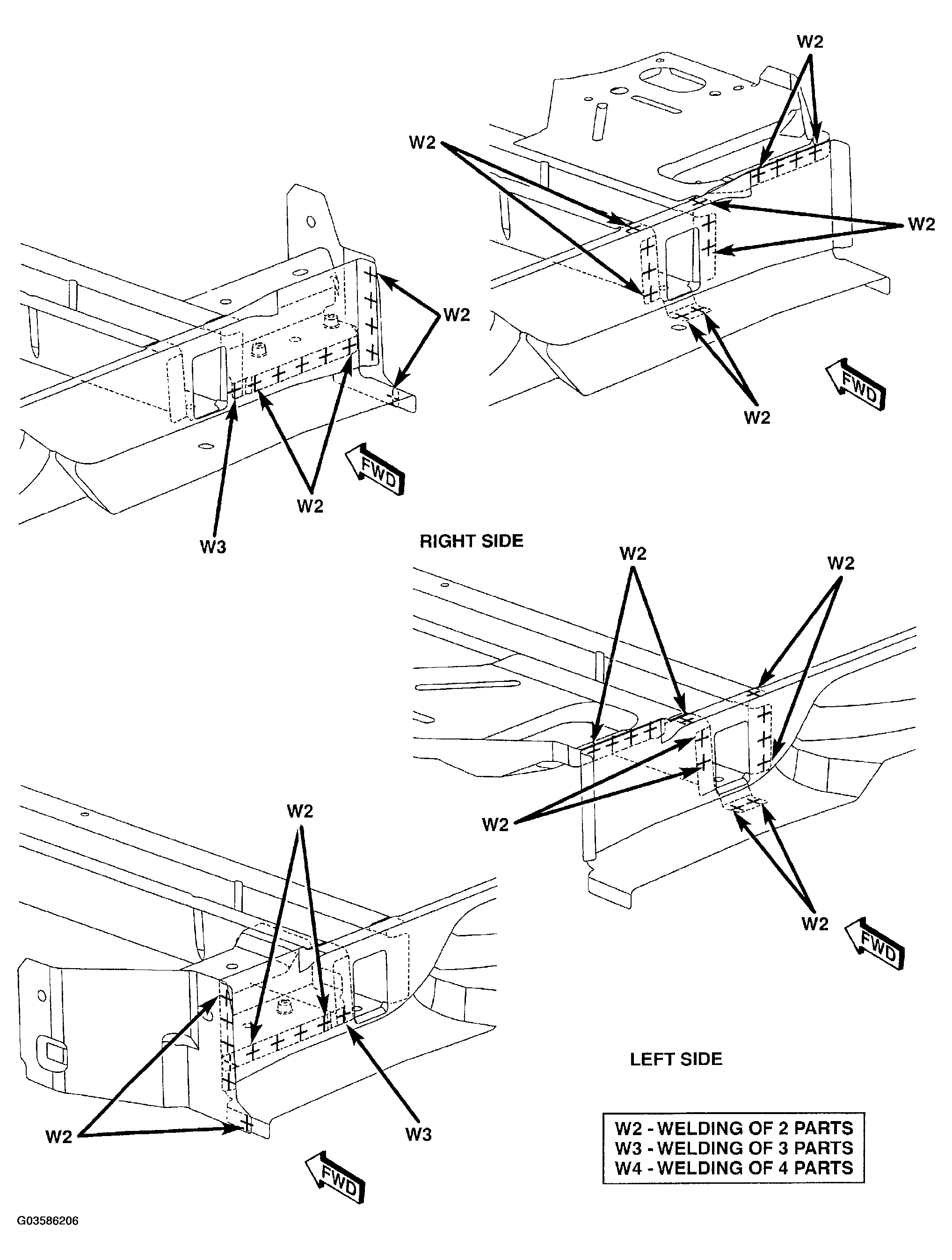

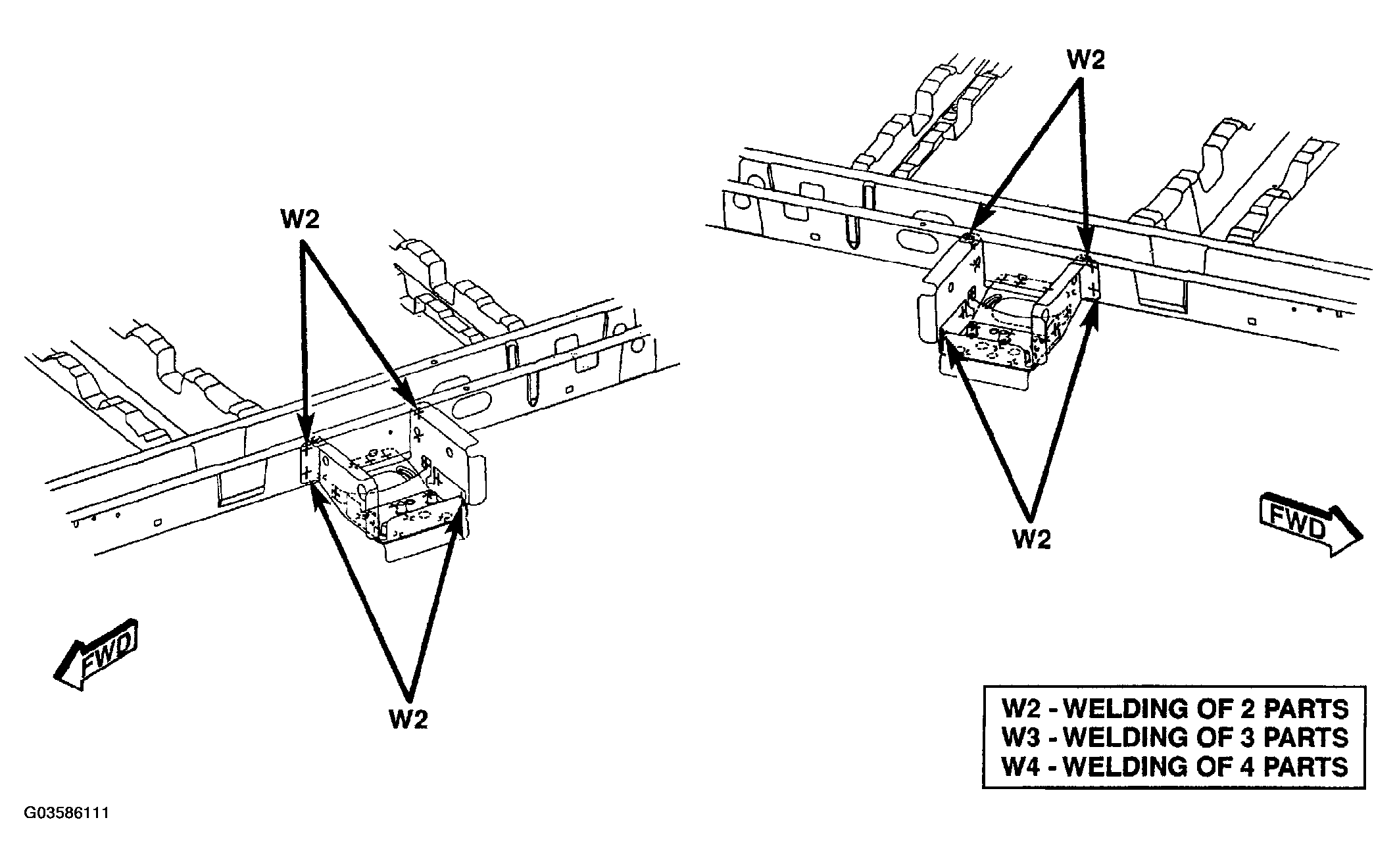

REAR SUSPENSION BRACKETS	Fig 8

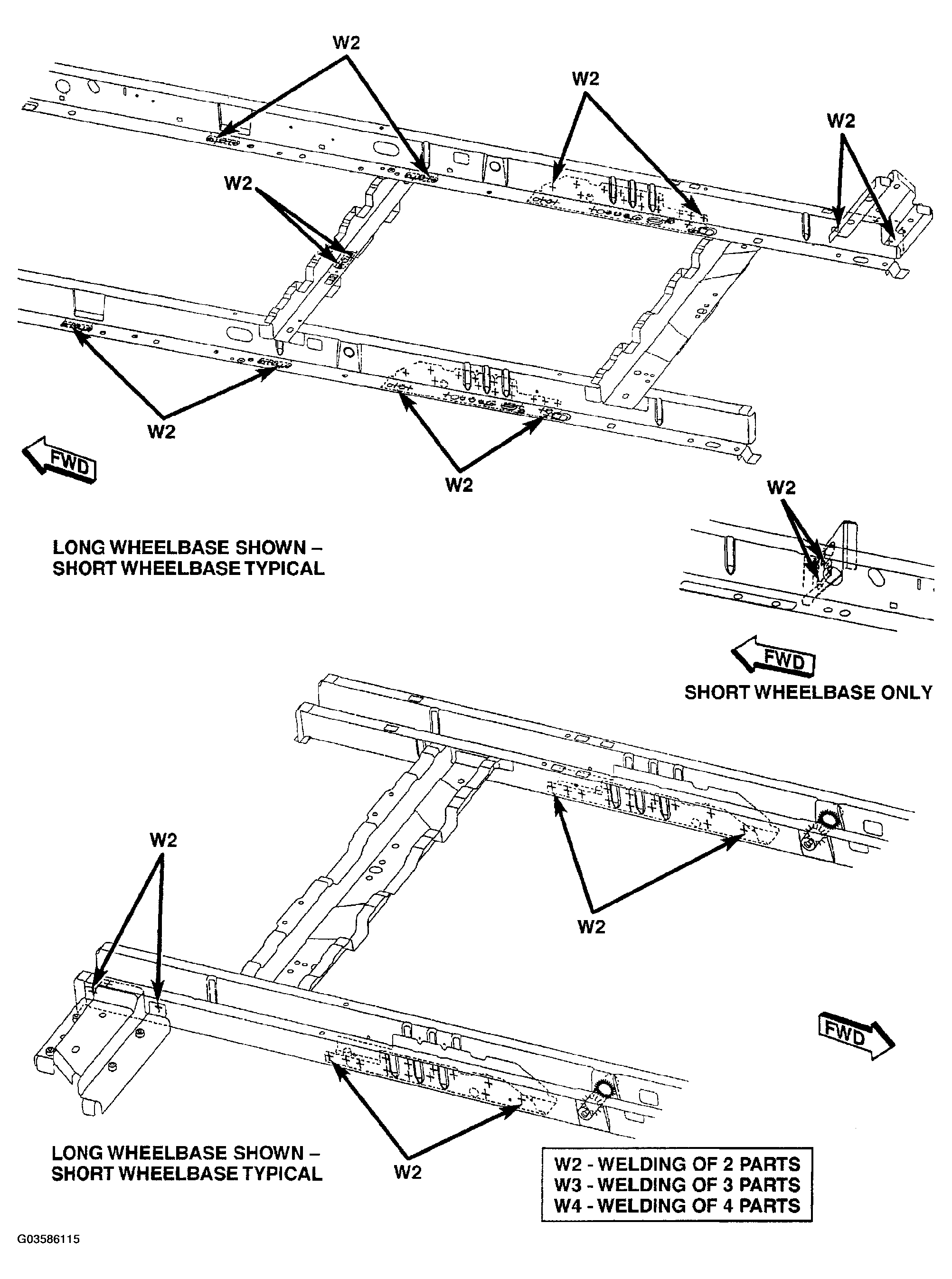

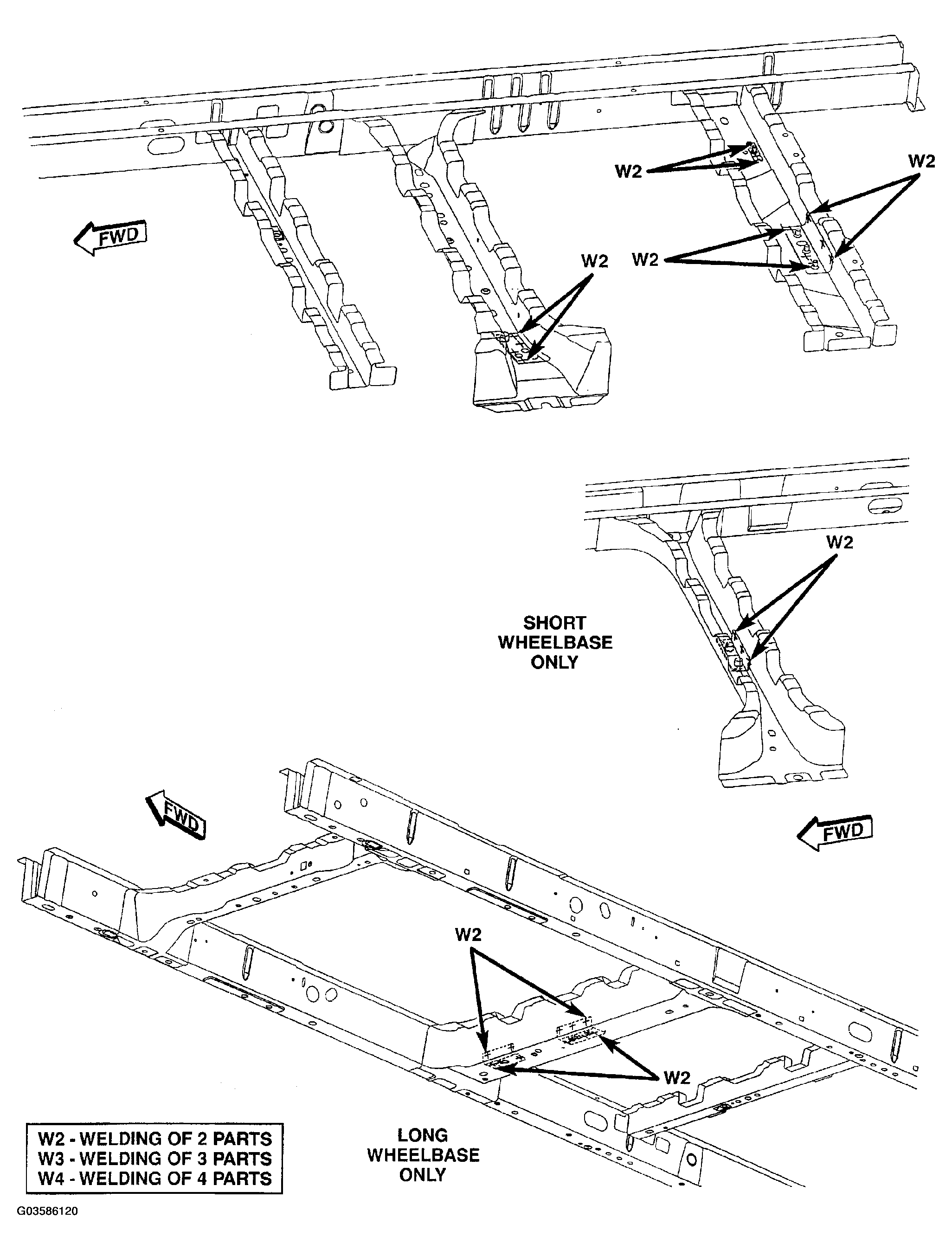

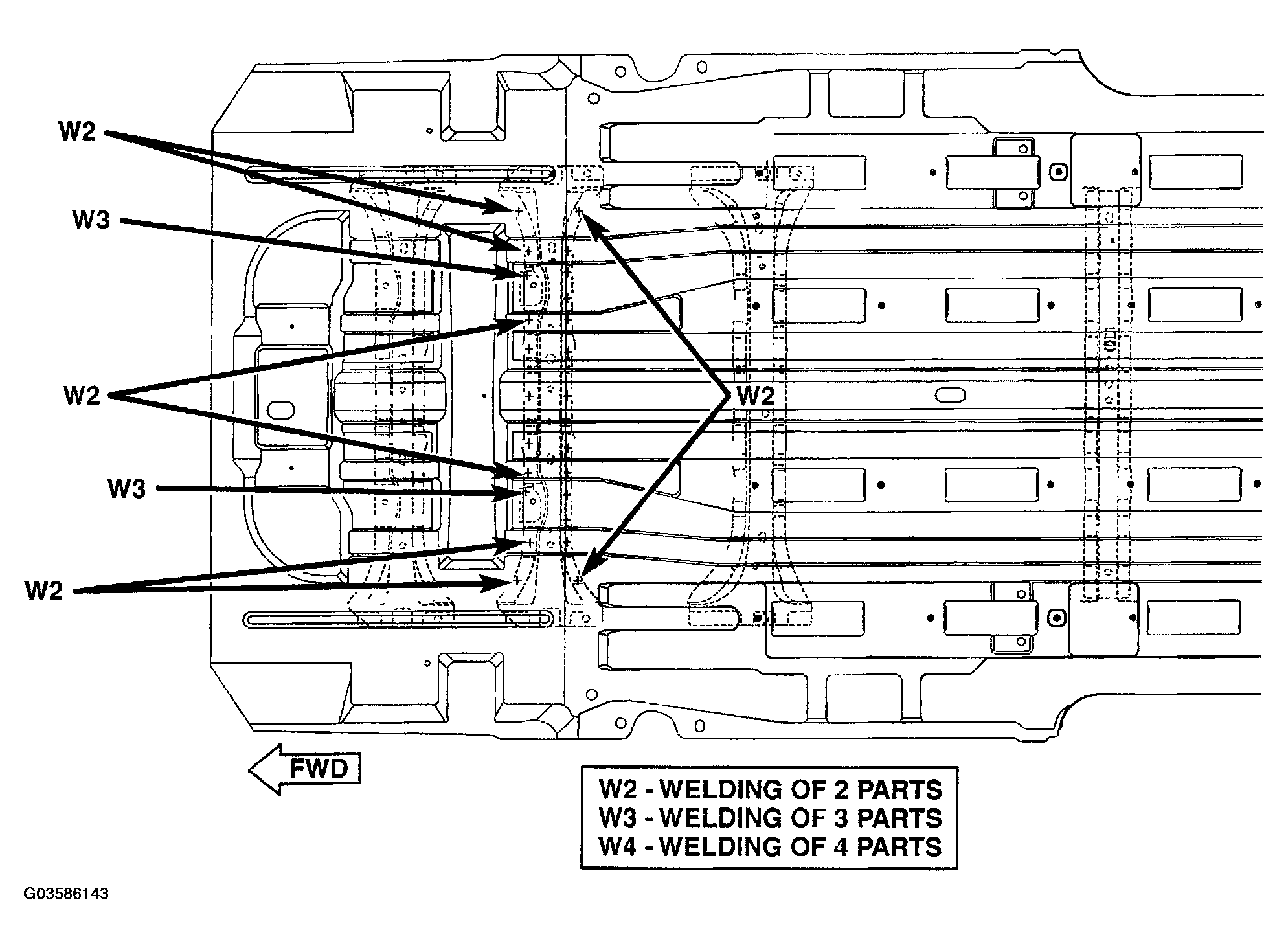

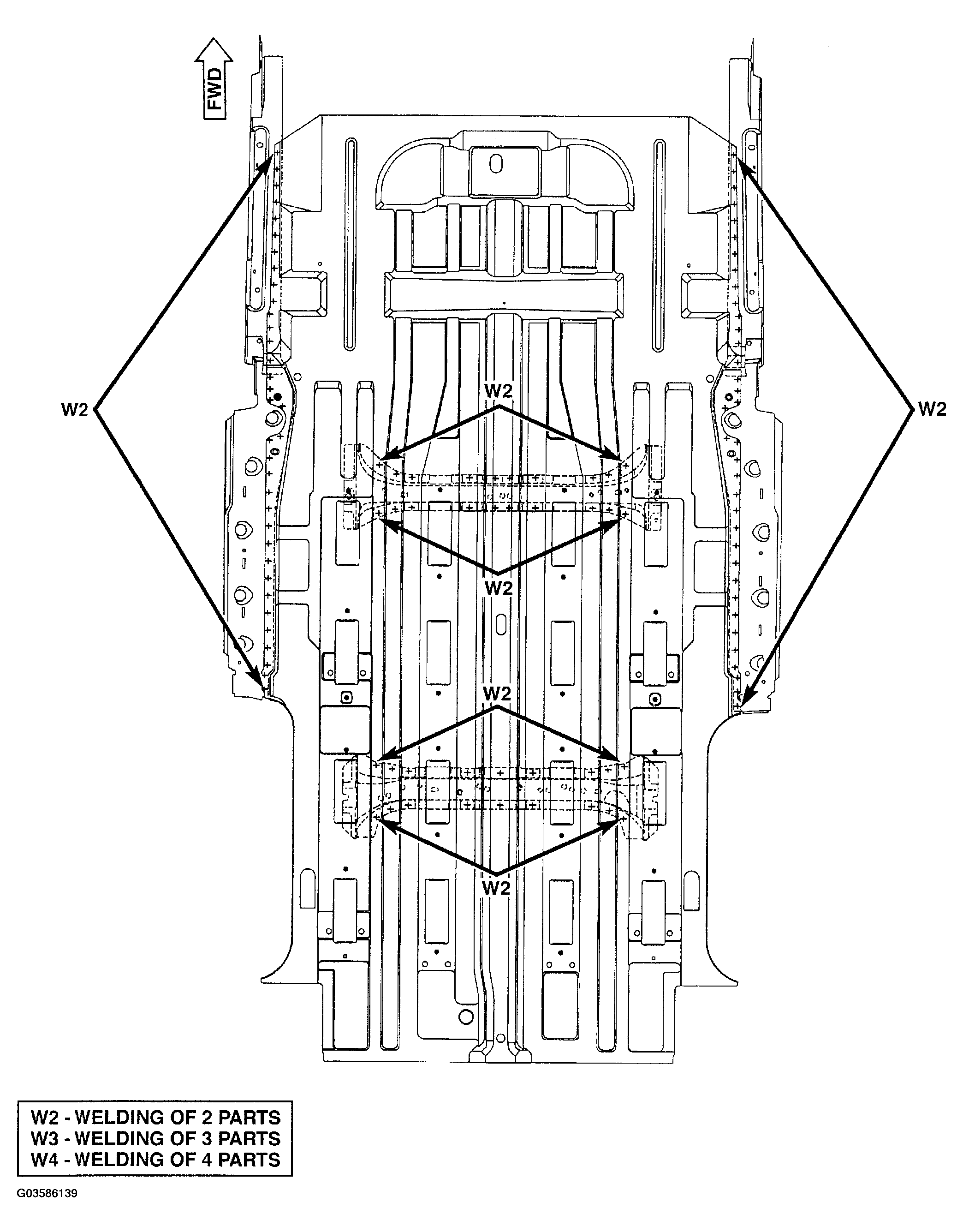

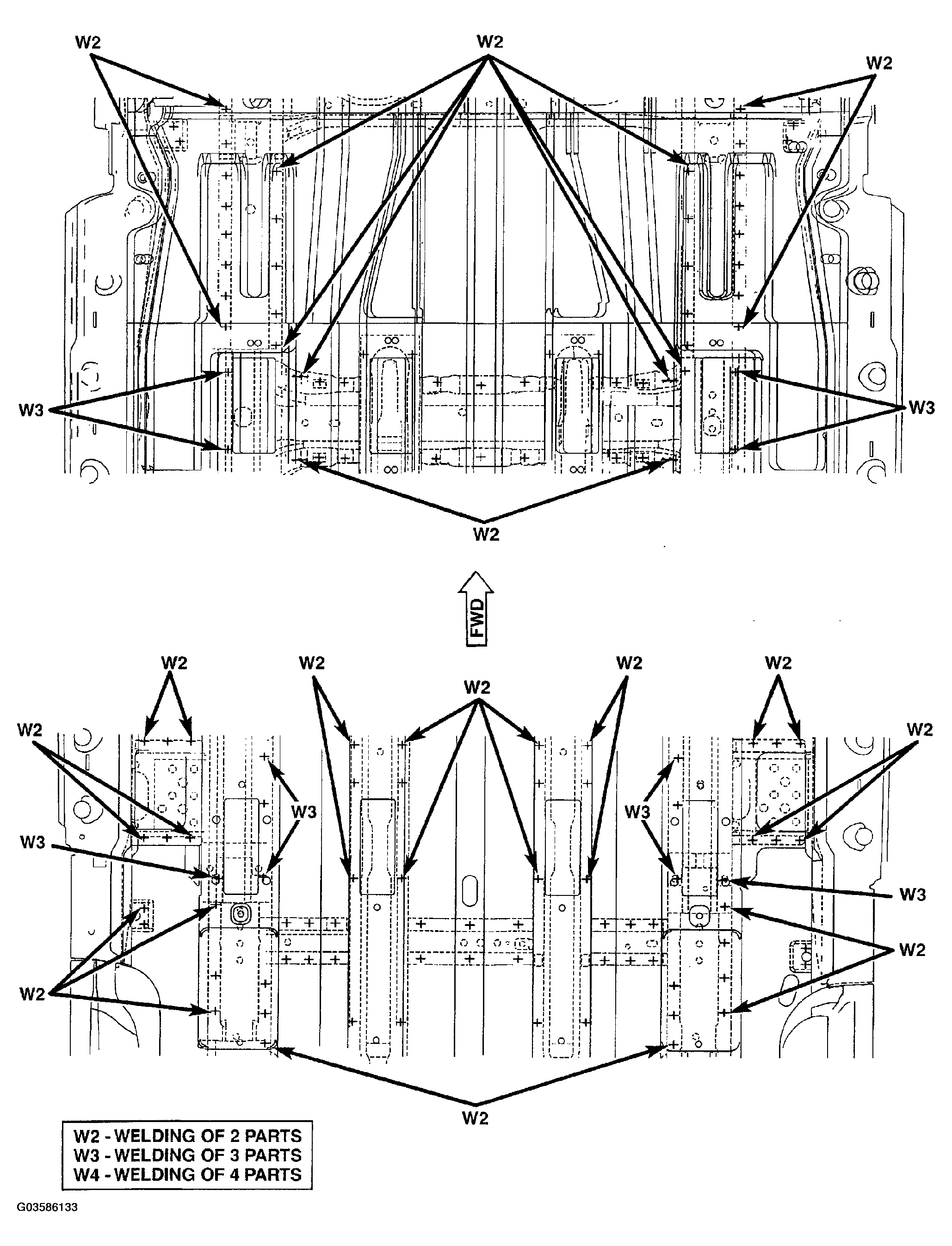

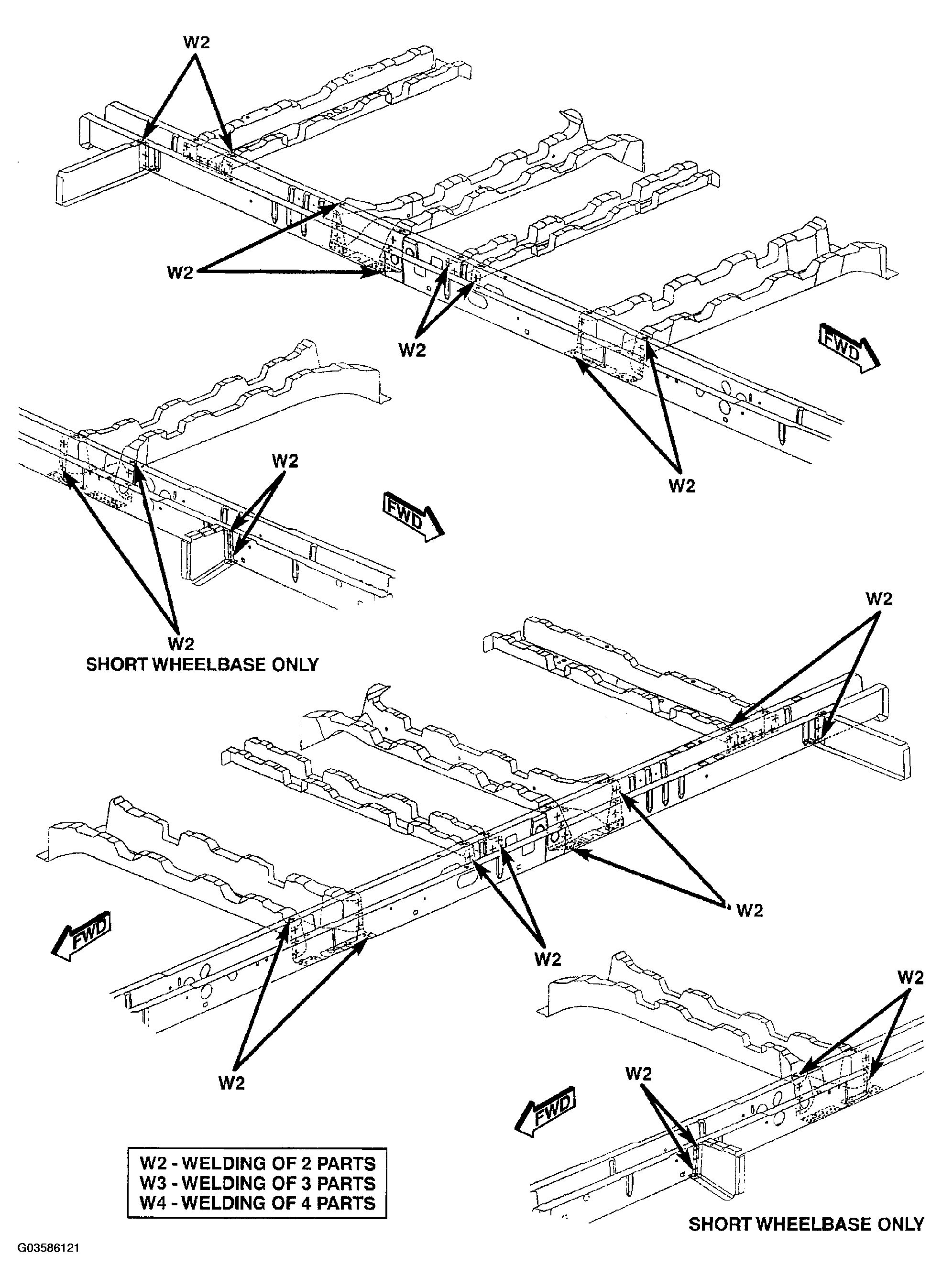

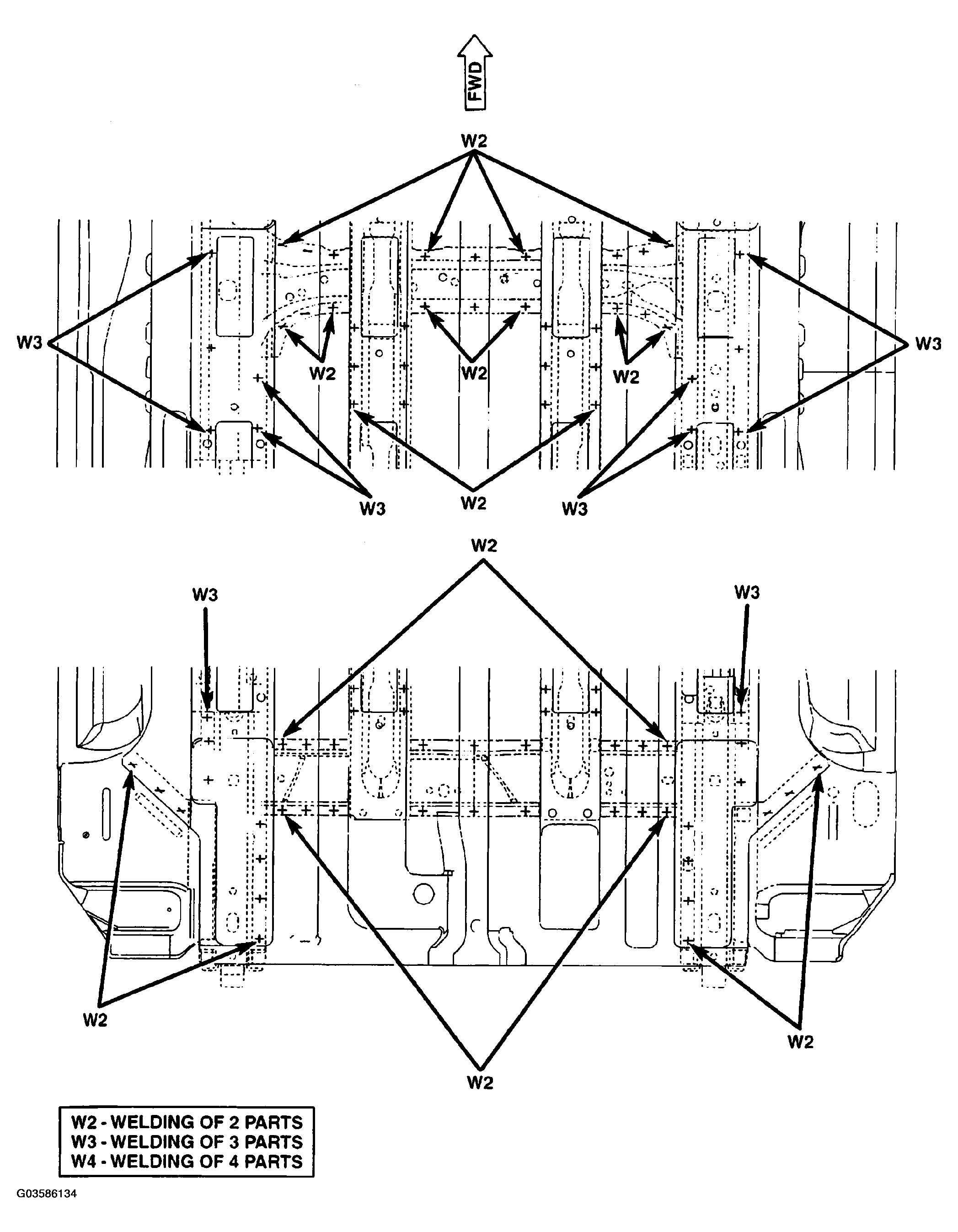

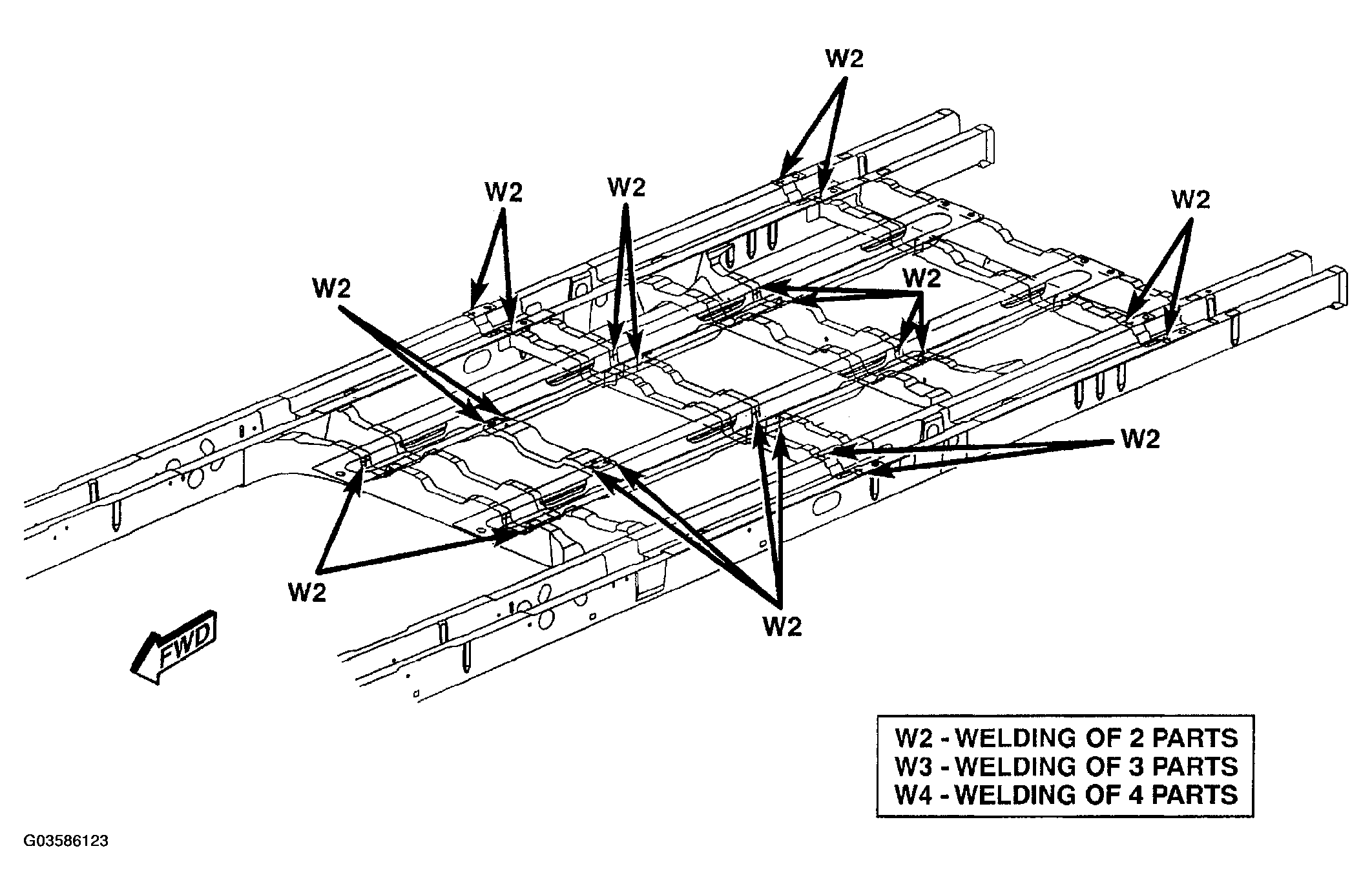

FLOOR PAN CROSS MEMBERS	Fig 9

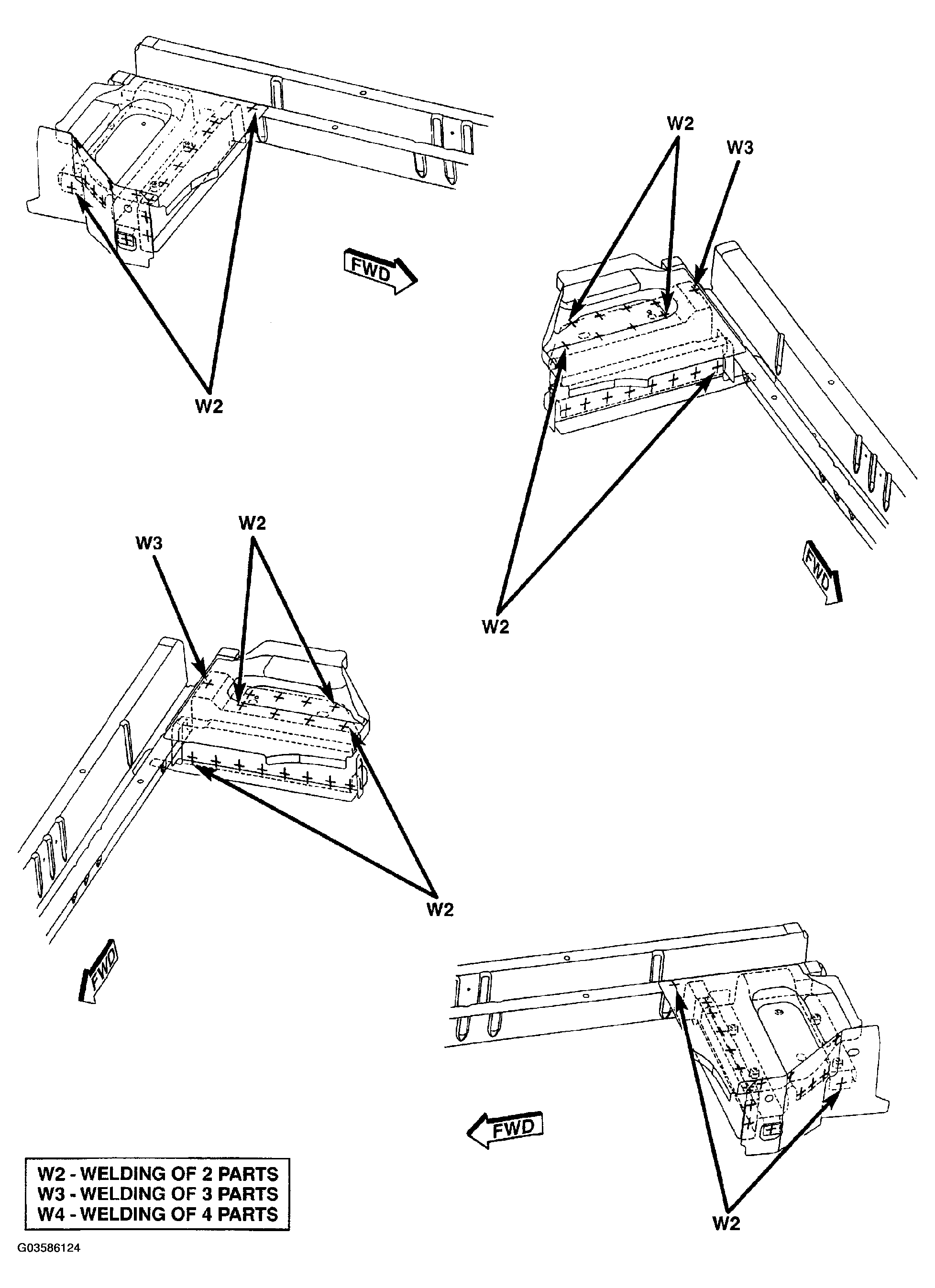

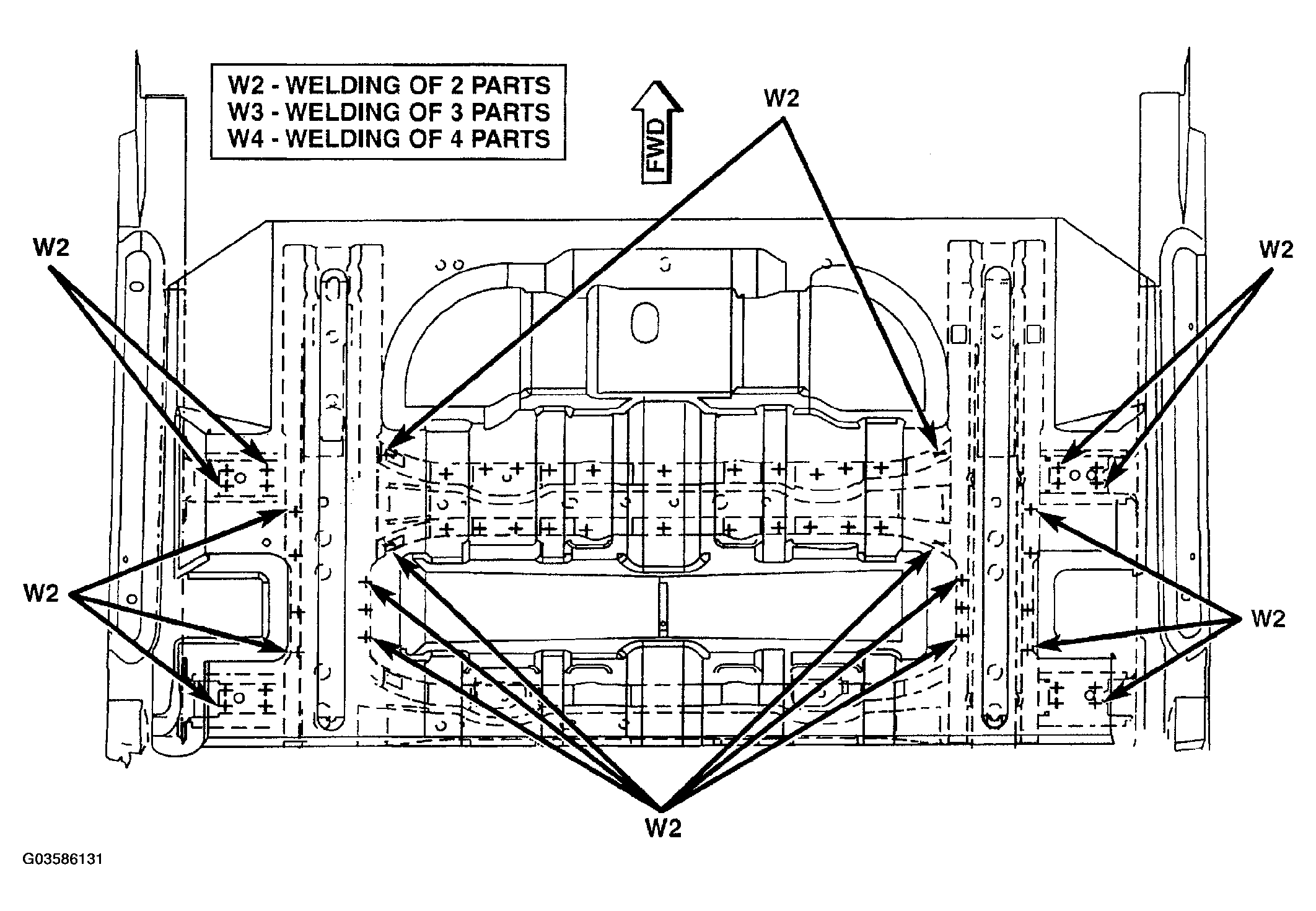

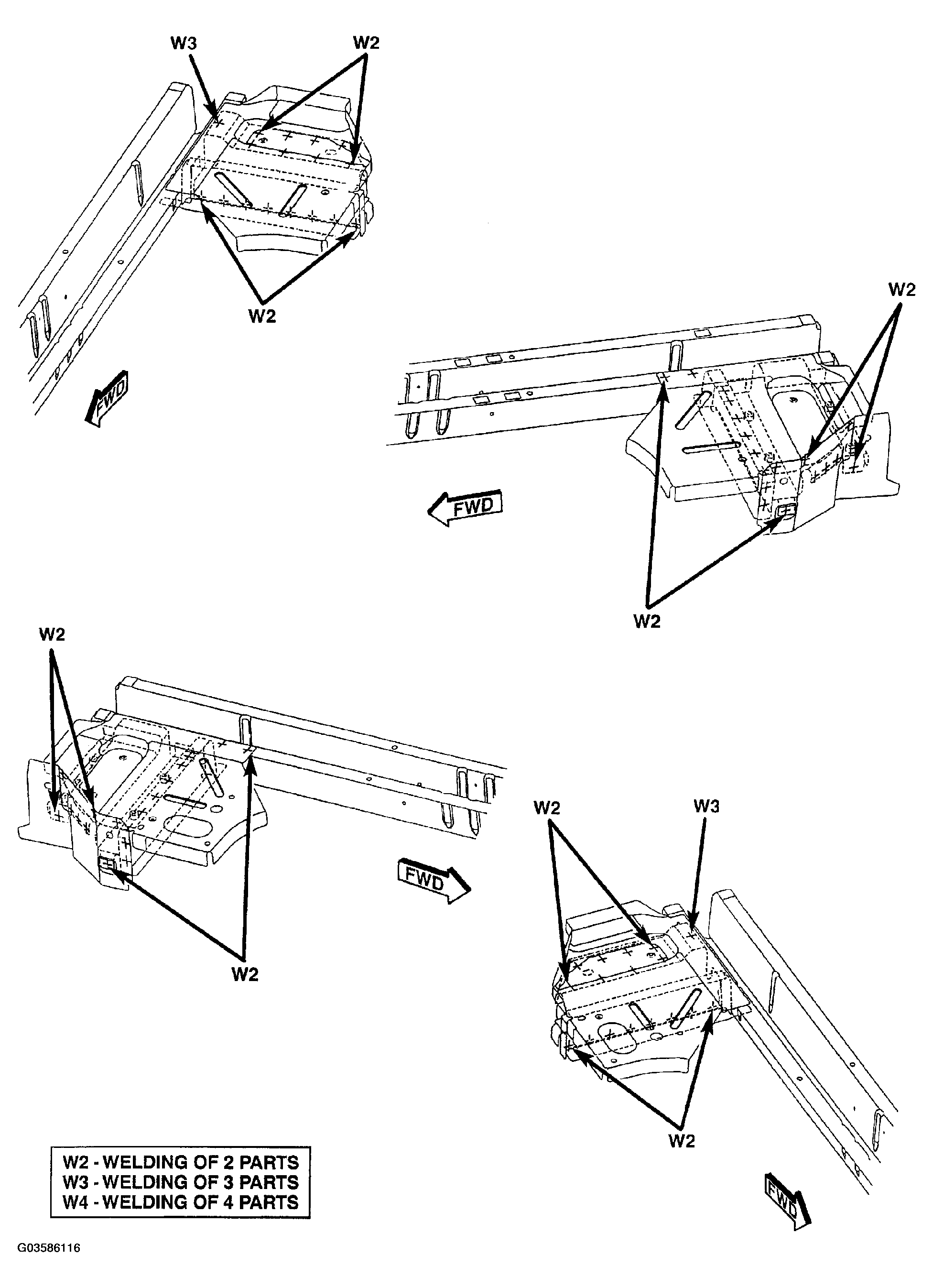

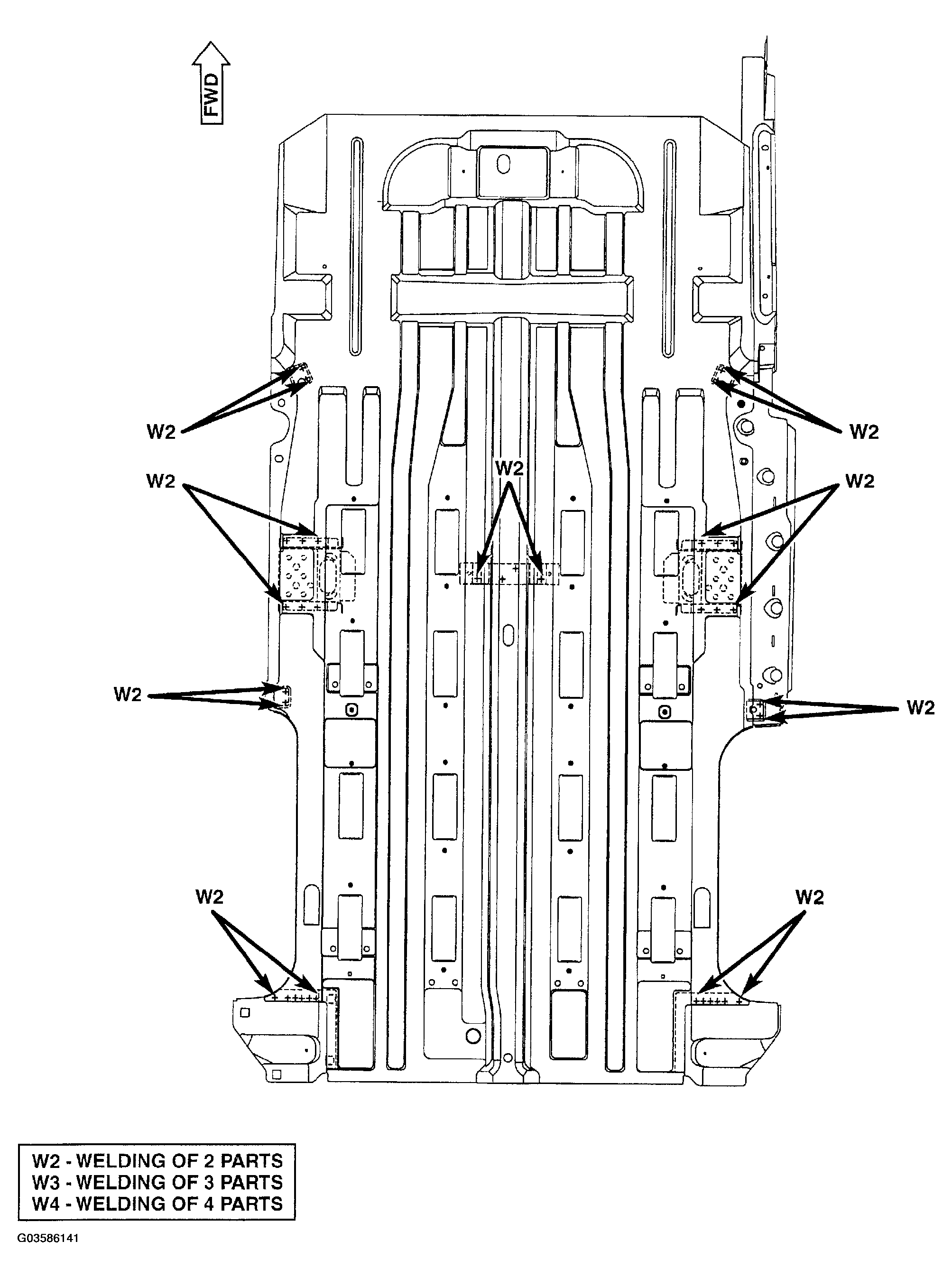

SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY	Fig 10
STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY	Fig 11
FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION	Fig 12
REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE	Fig 13

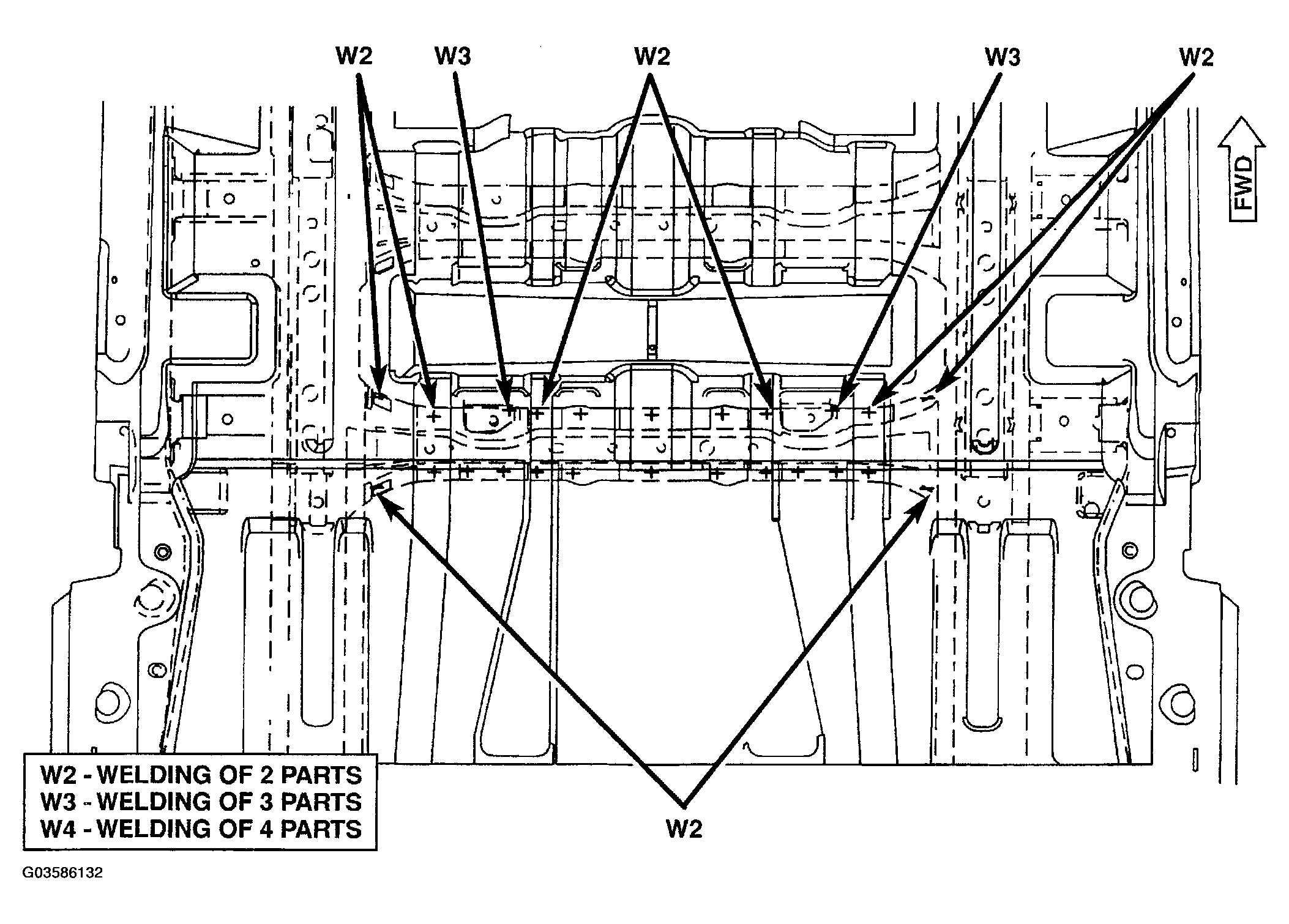

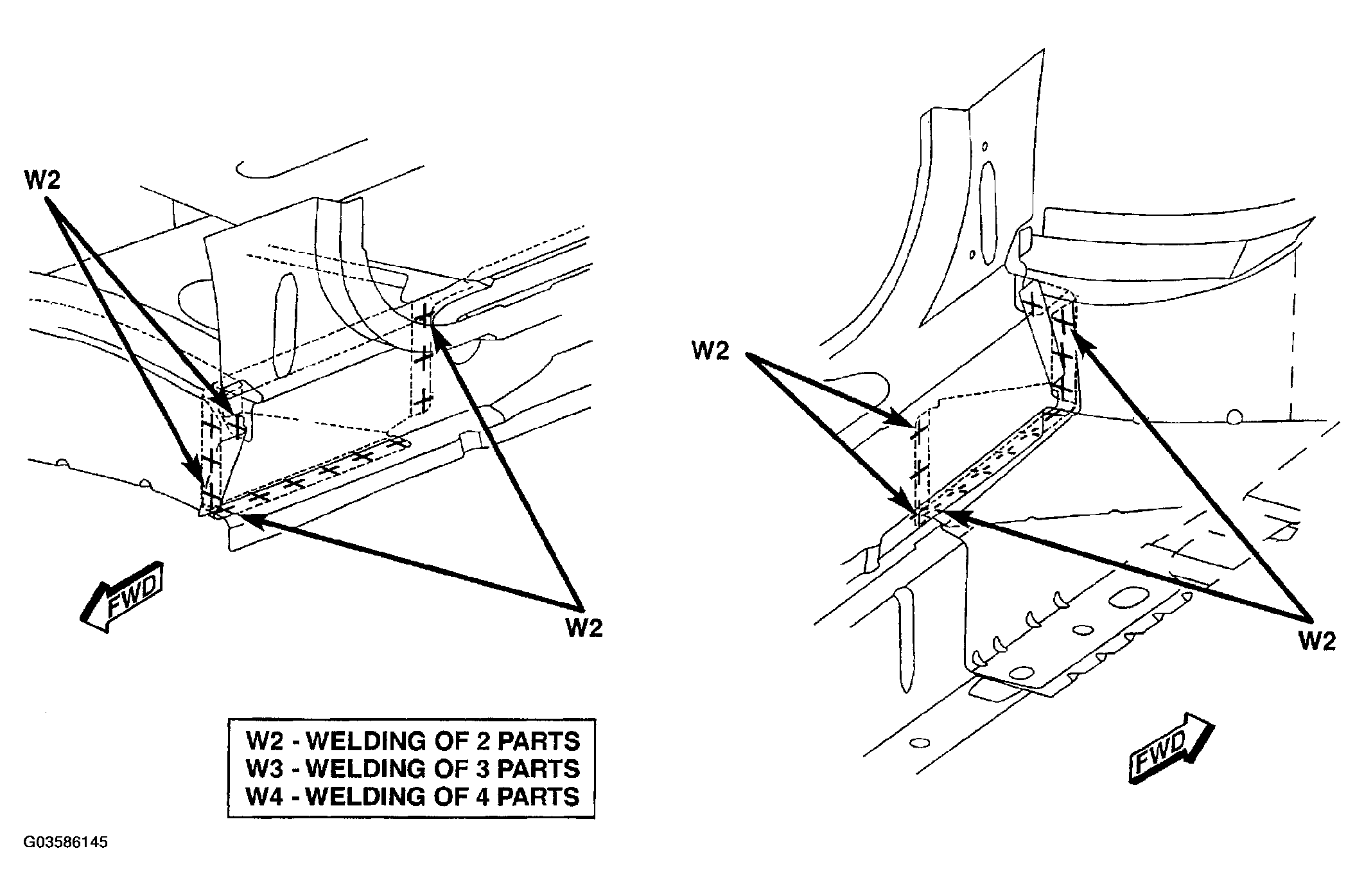

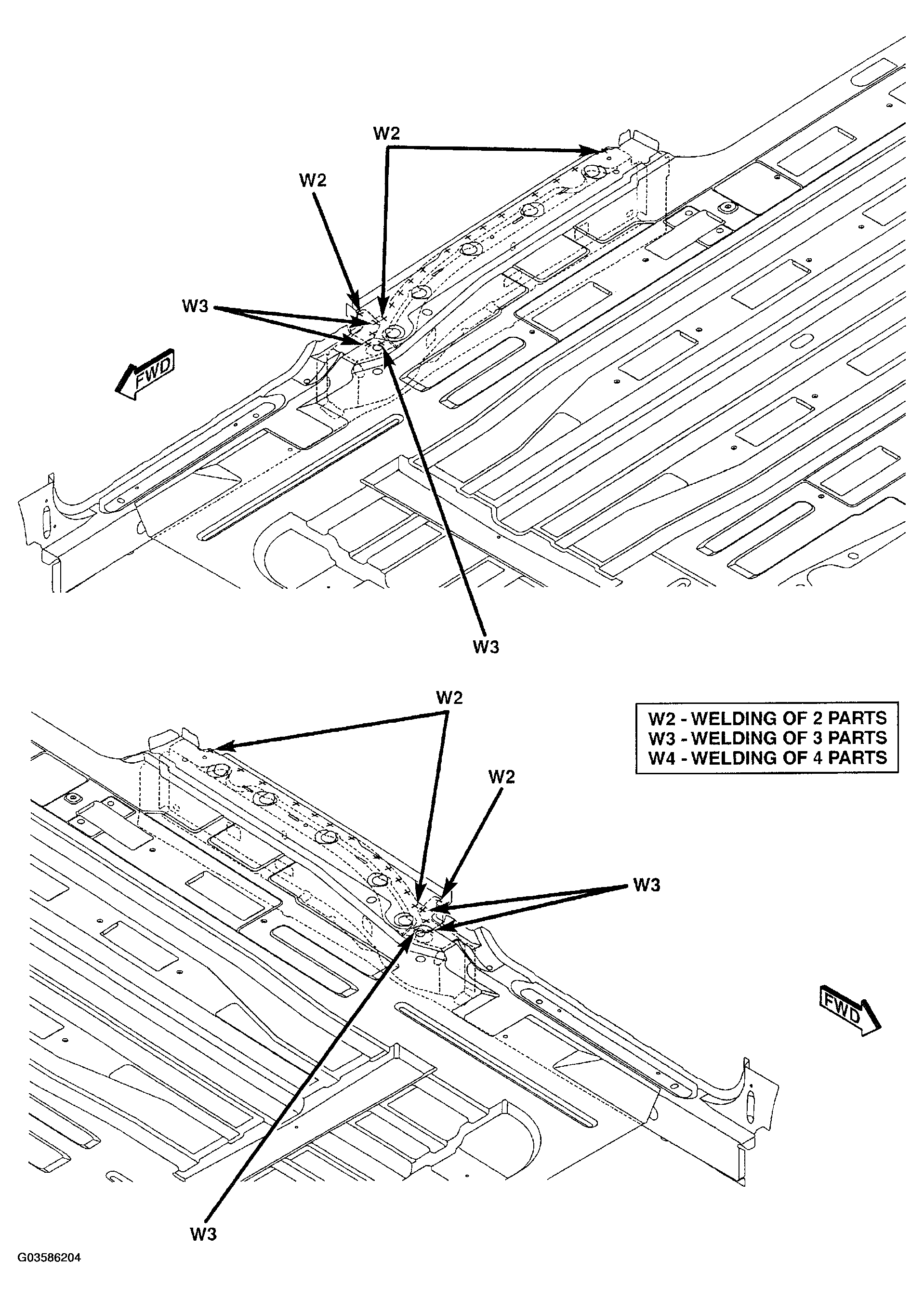

FRONT SEAT CROSS MEMBER	Fig 14
FLOOR PAN SIDE RAIL REINFORCEMENT	Fig 15

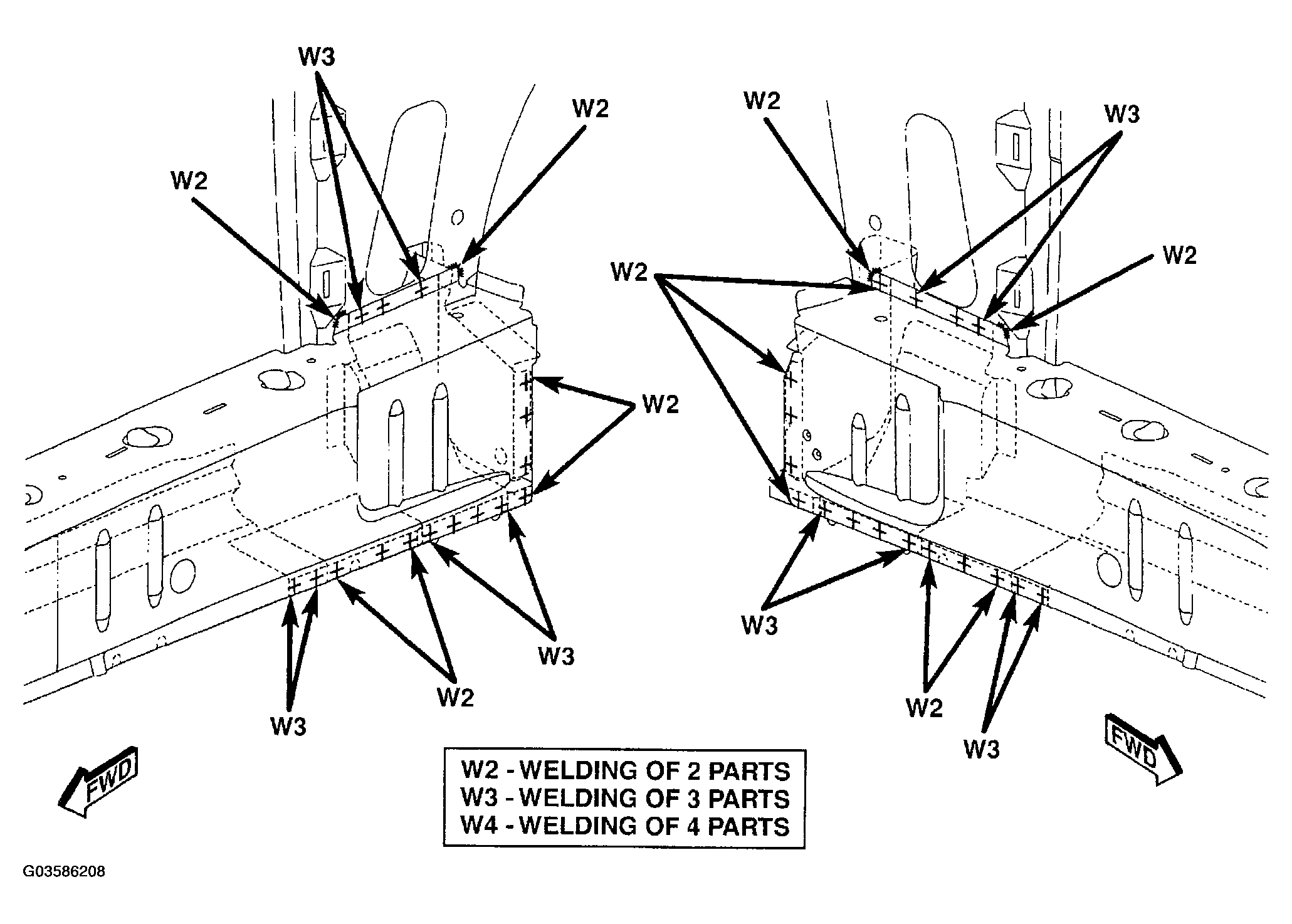

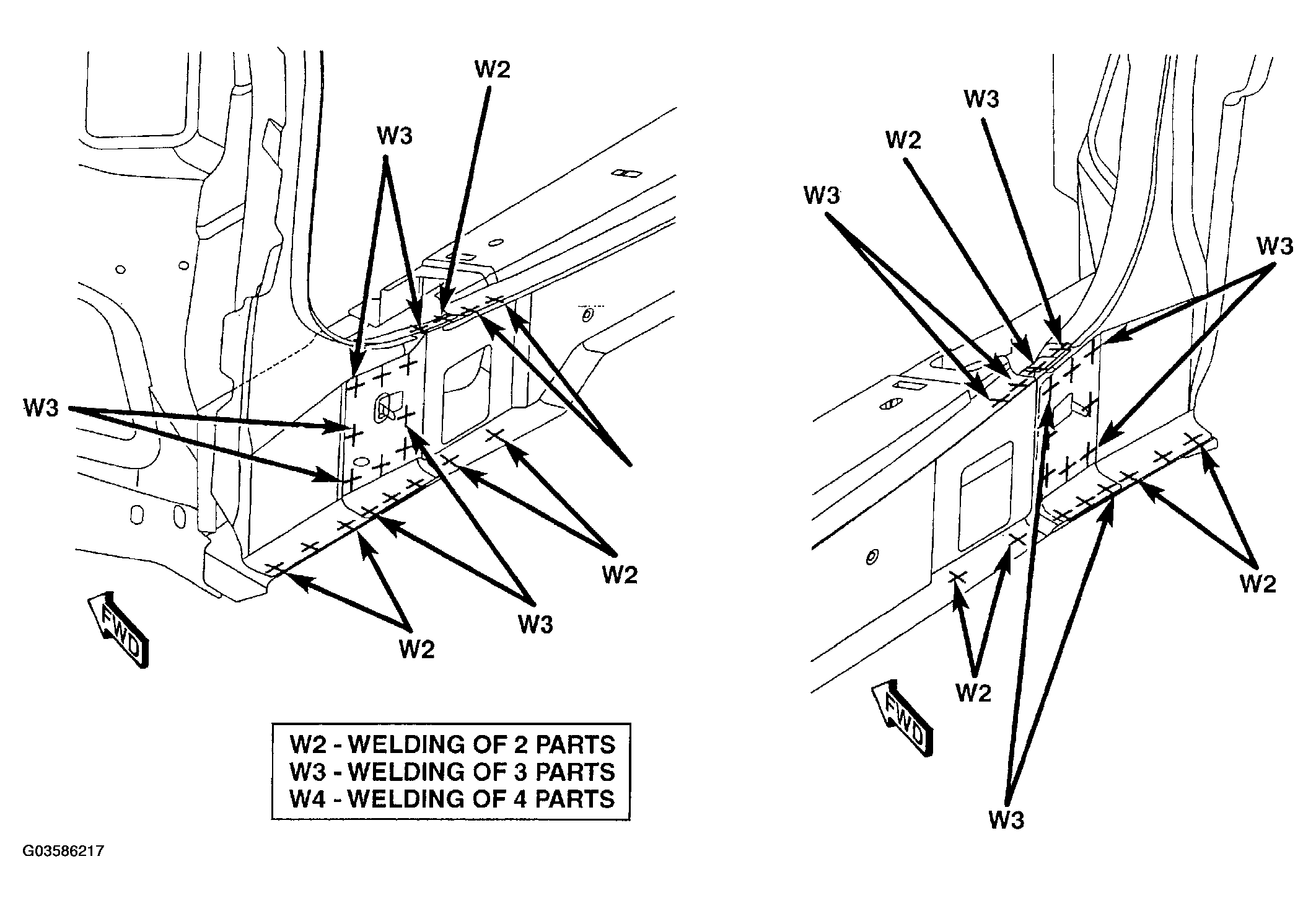

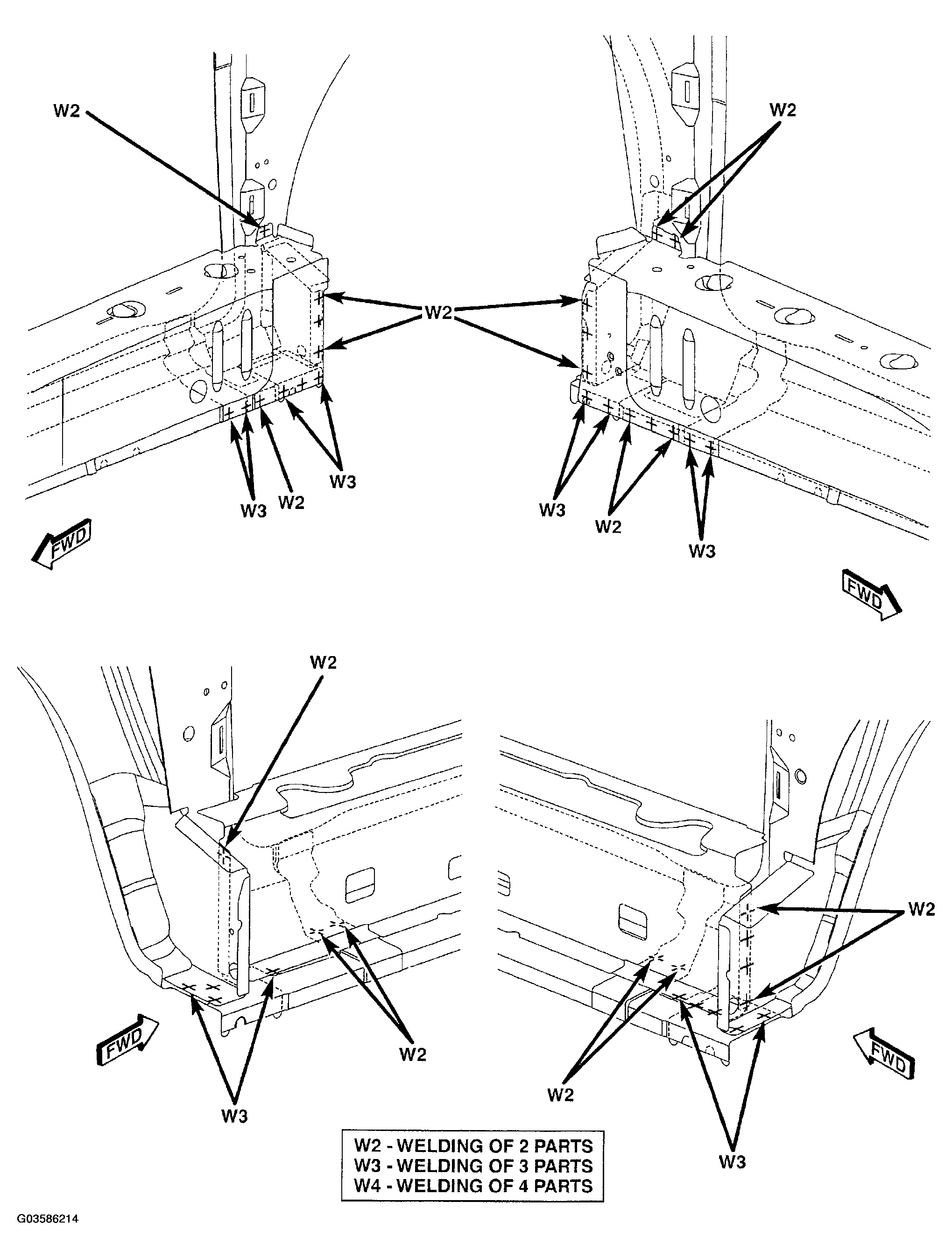

SILL BULKHEAD REINFORCEMENTS	Fig 16

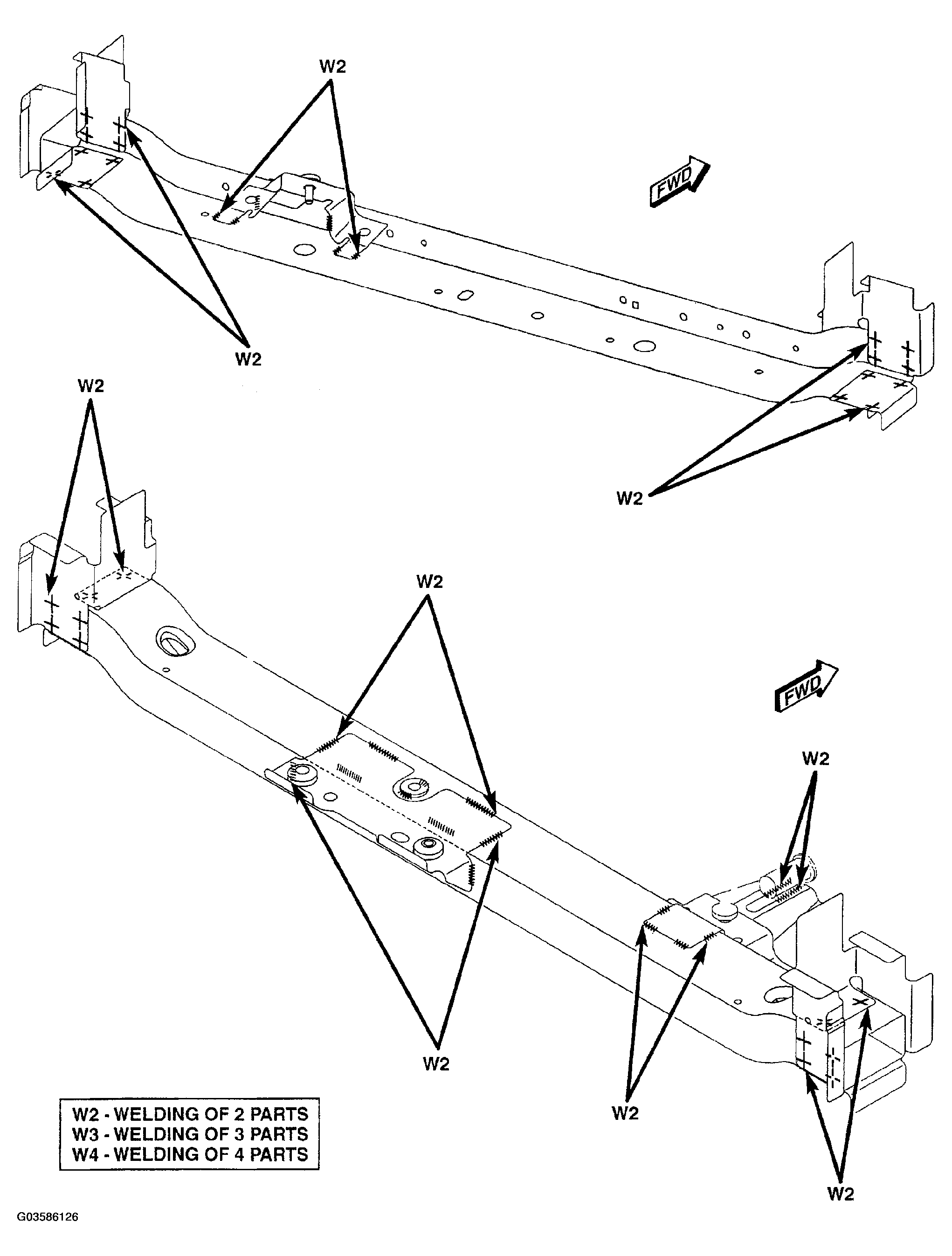

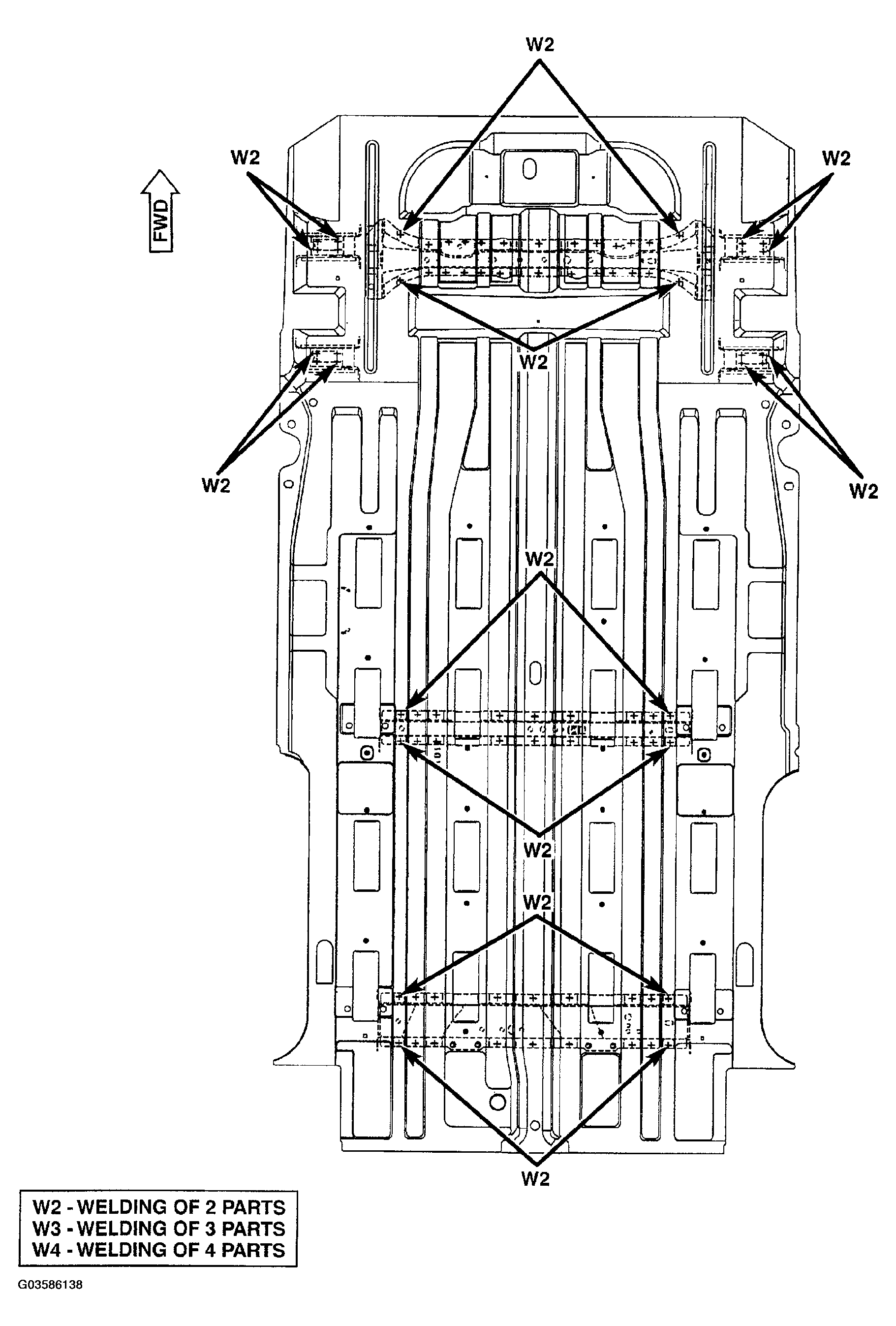

FLOOR PAN CROSS MEMBER REINFORCEMENTS	Fig 17
FRONT SEAT CROSS MEMBERS	Fig 18
SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE	Fig 19

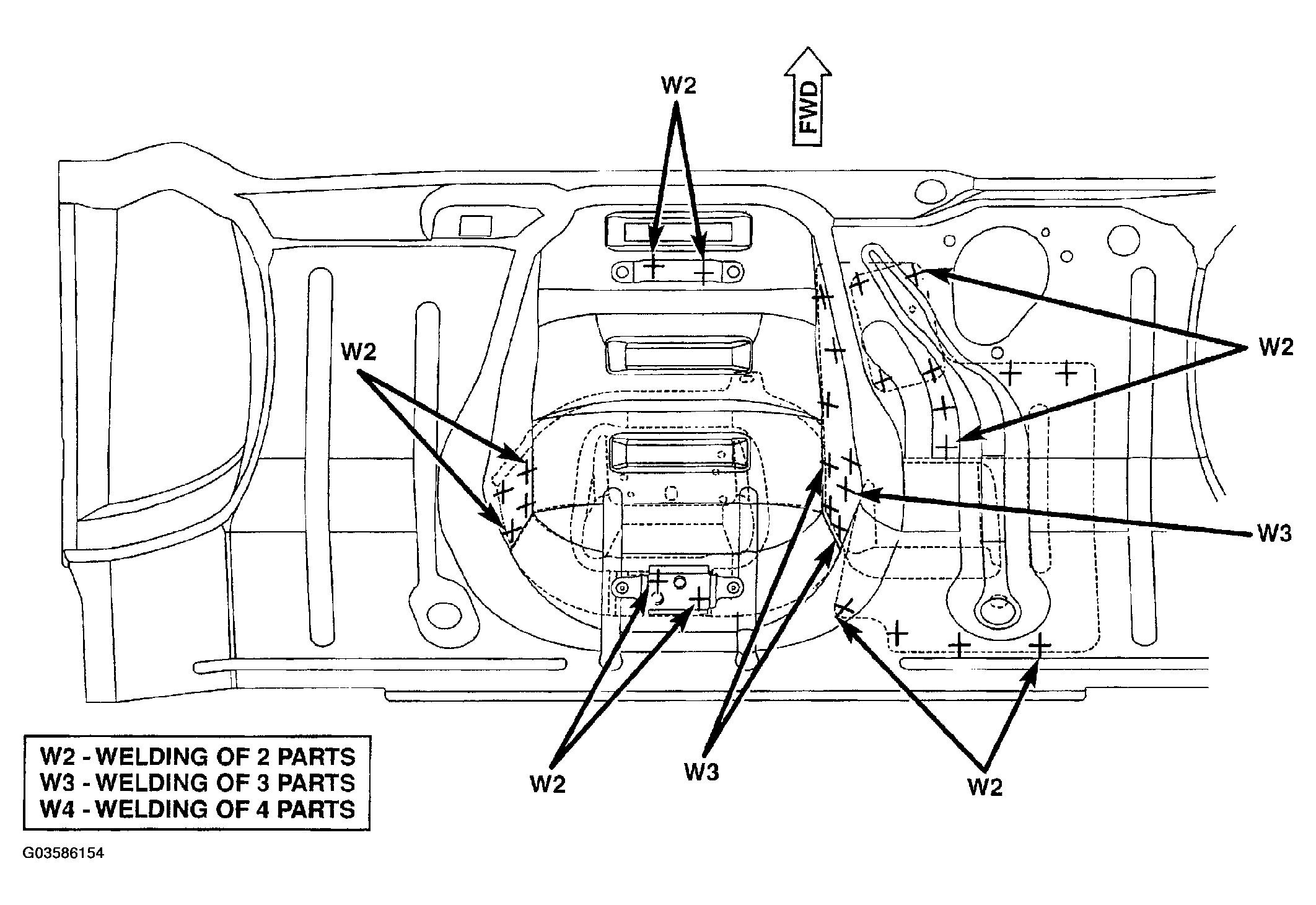

CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE	Fig 20
REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE	Fig 21
LOWER LIFTGATE PANEL LATCH REINFORCEMENT	Fig 22
ENGINE MOUNTING PLATE AND TOW BRACKET	Fig 23
HEADLAMP MOUNTING PLATE	Fig 24
LOWER RADIATOR CROSS MEMBER BRACKETS	Fig 25
CROSS MEMBER EXTENSIONS	Fig 26
JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR	Fig 27
FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY	Fig 28

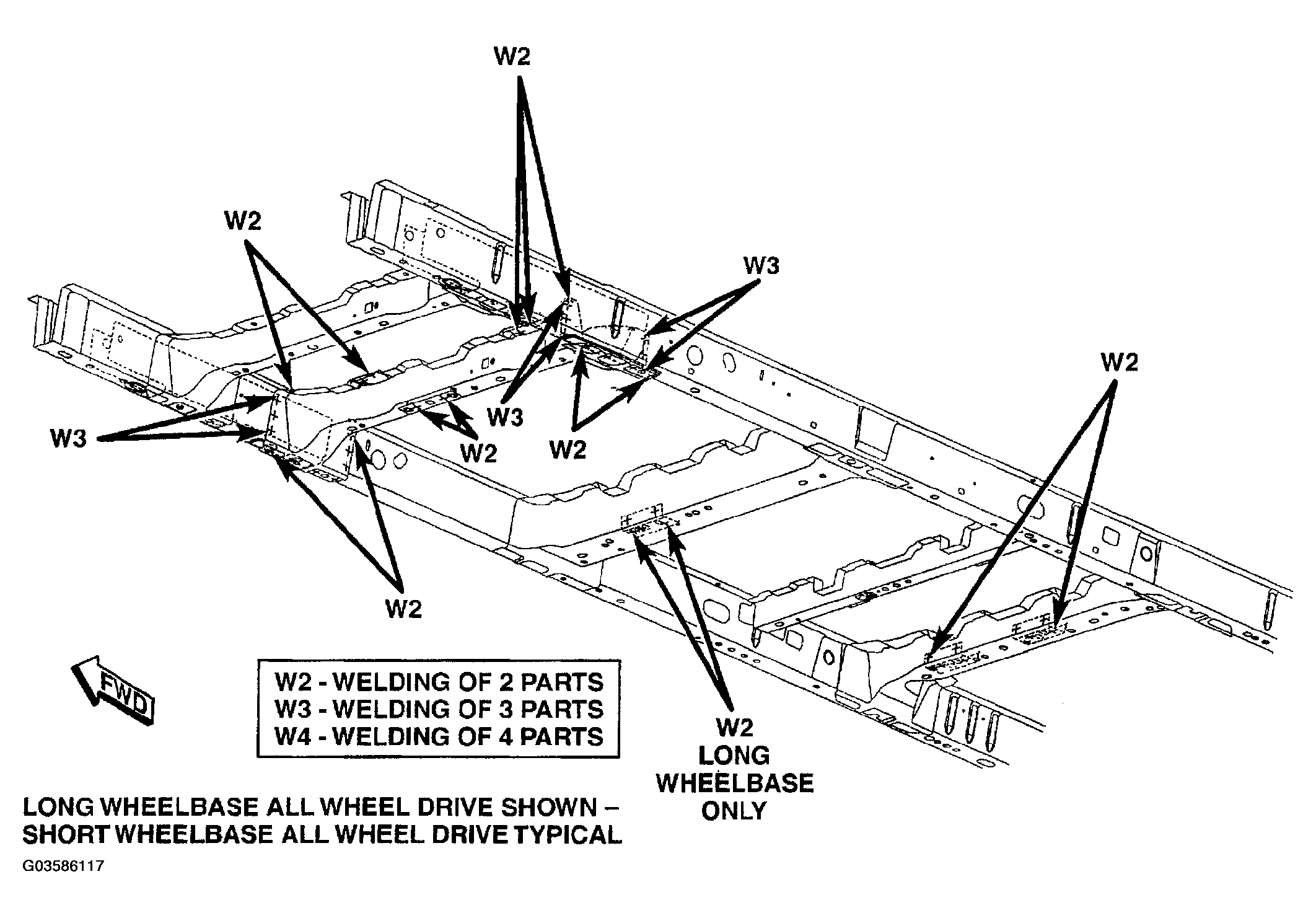

FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY	Fig 29
FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY	Fig 30

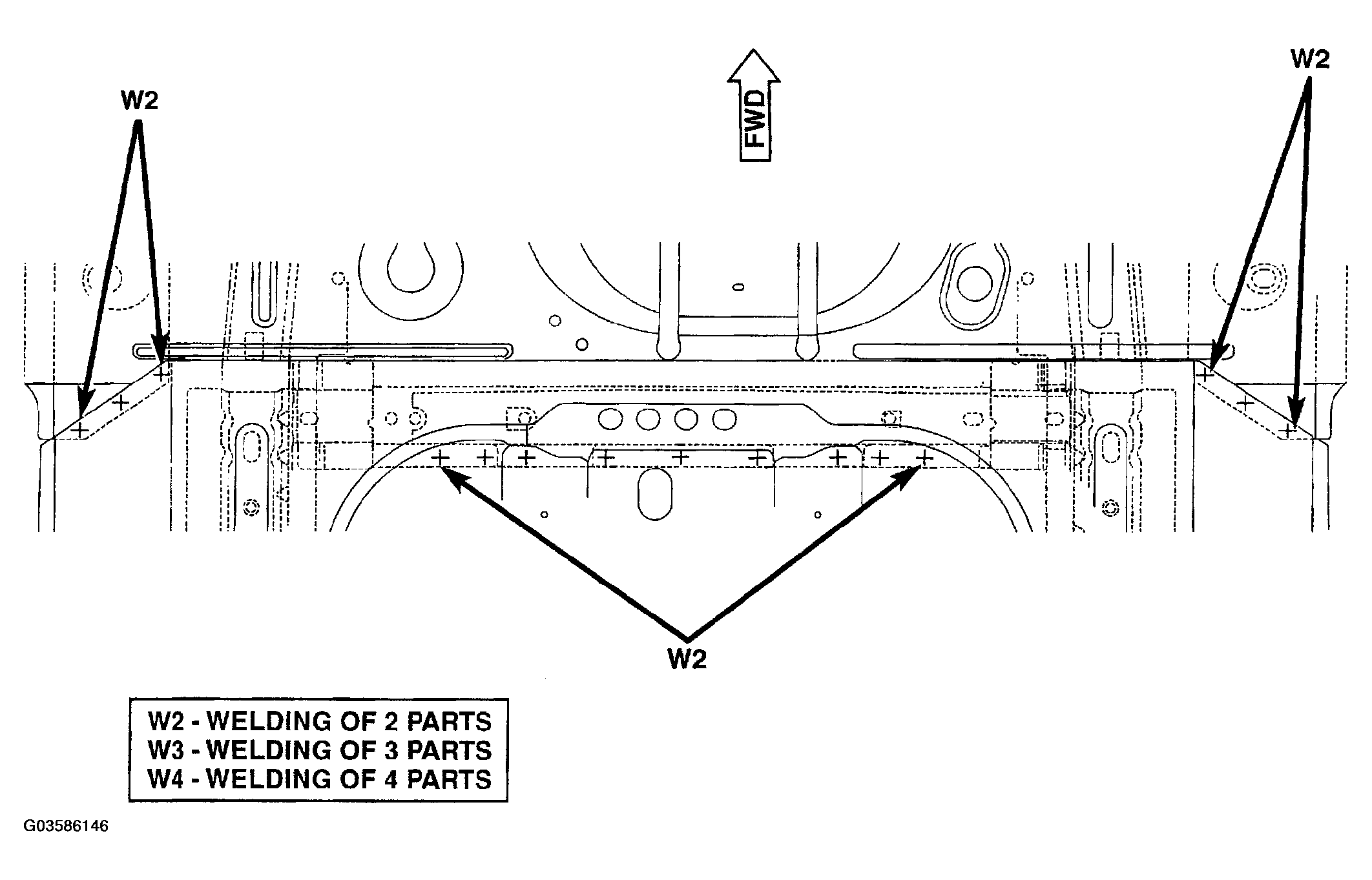

REAR SUPPORT AND TIRE STOWAGE CROSSMEMBERS - LONG WHEEL BASE ONLY	Fig 31

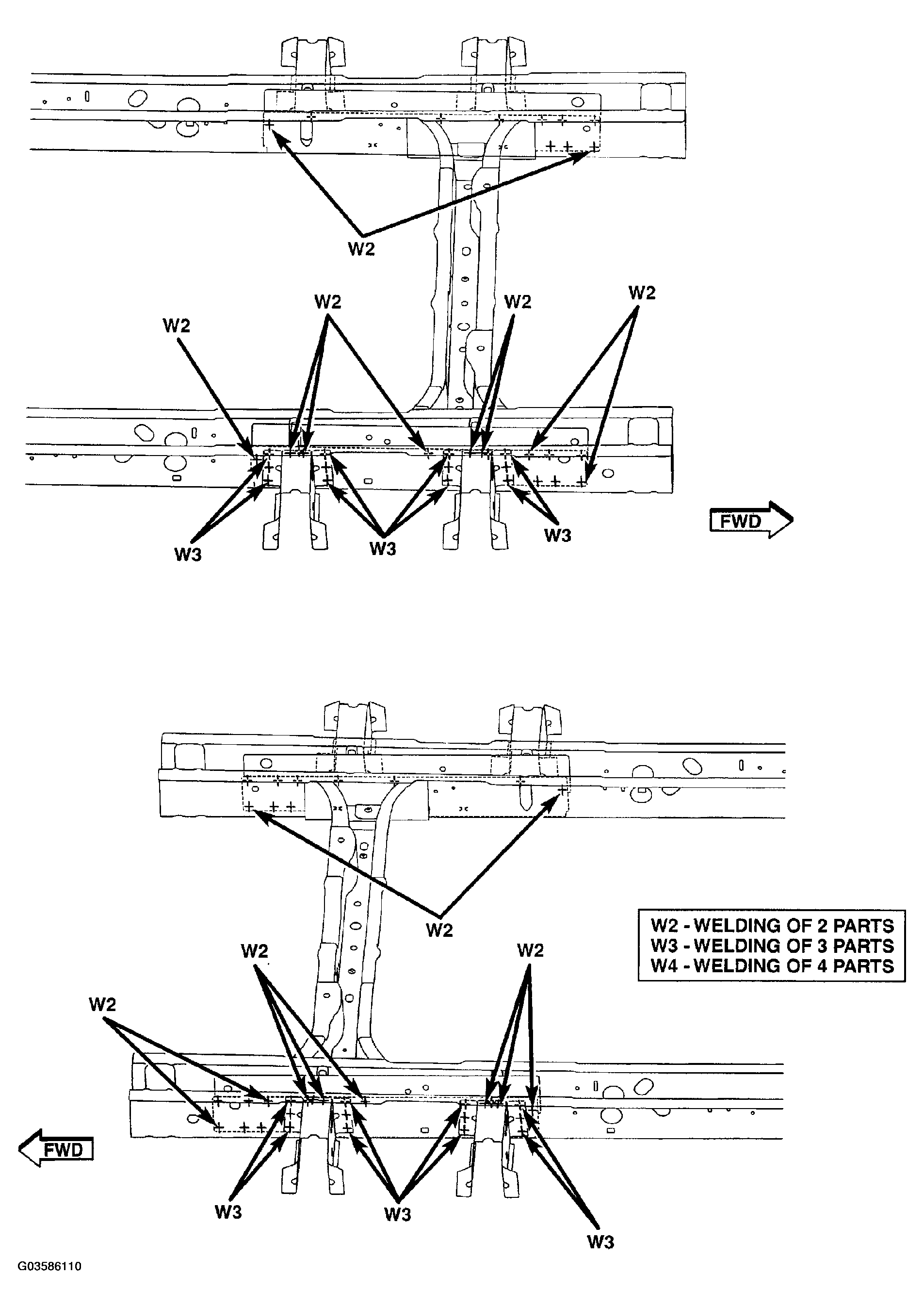

INNER SIDE SILLS - LONG WHEEL BASE ONLY	Fig 32

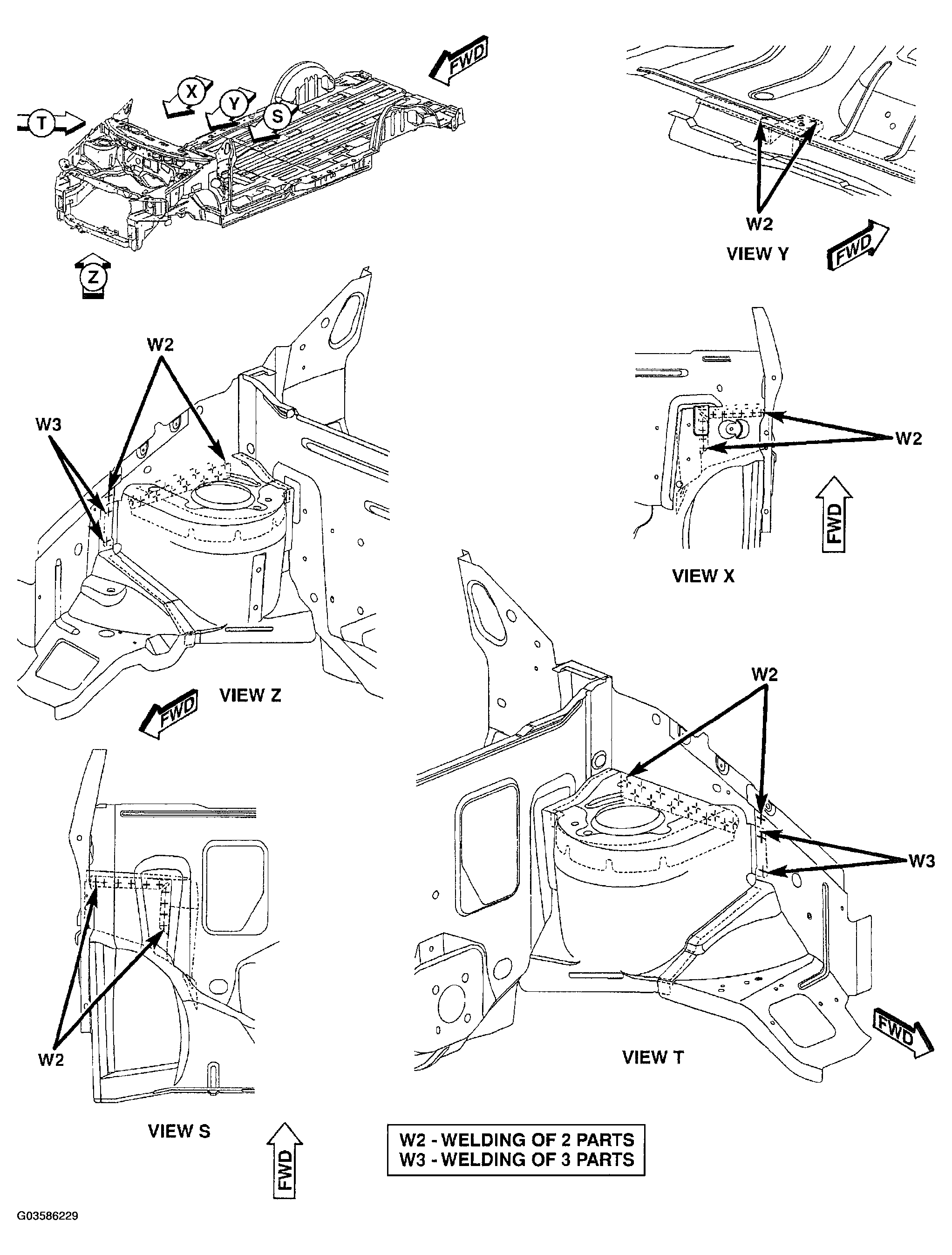

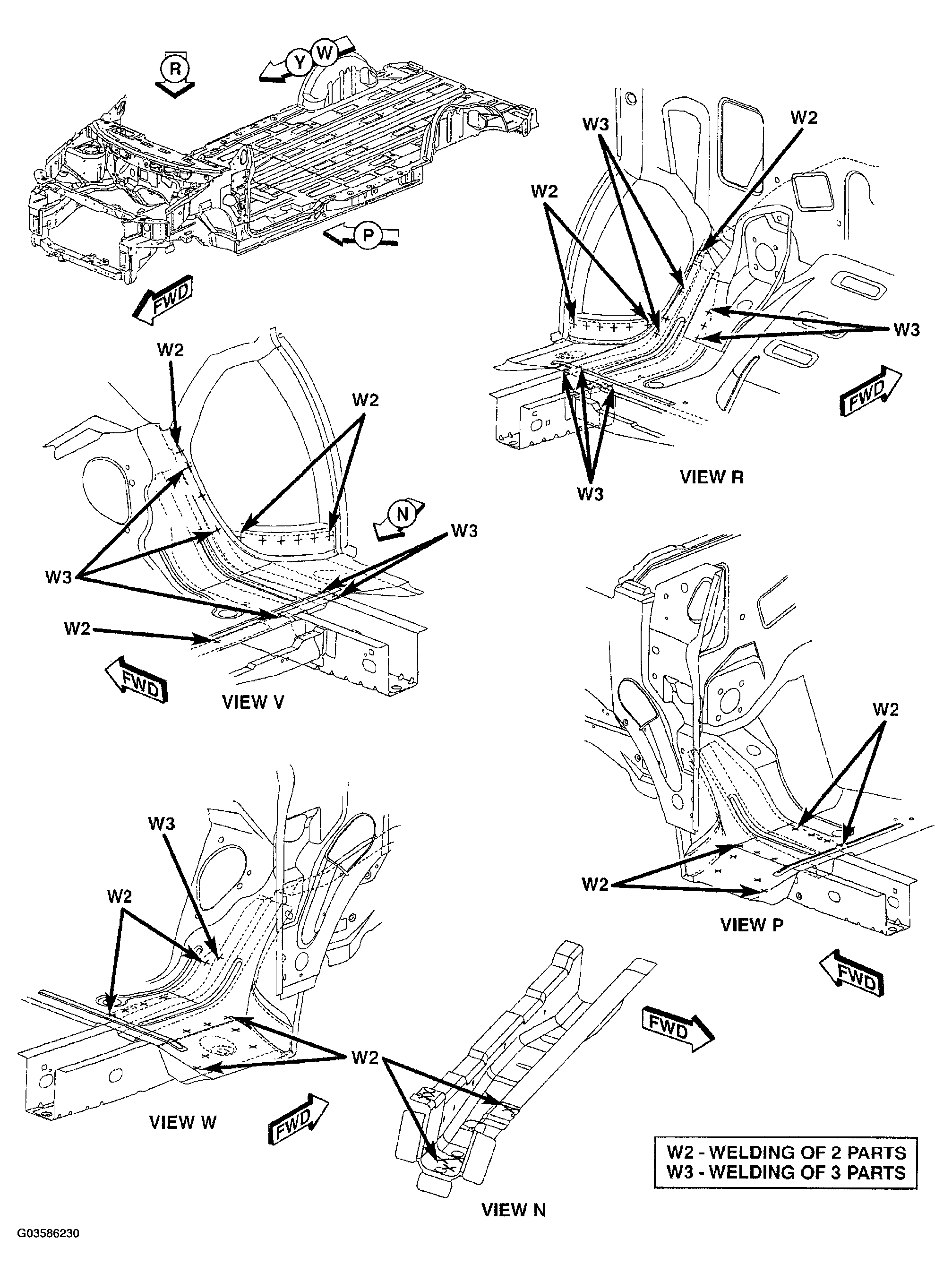

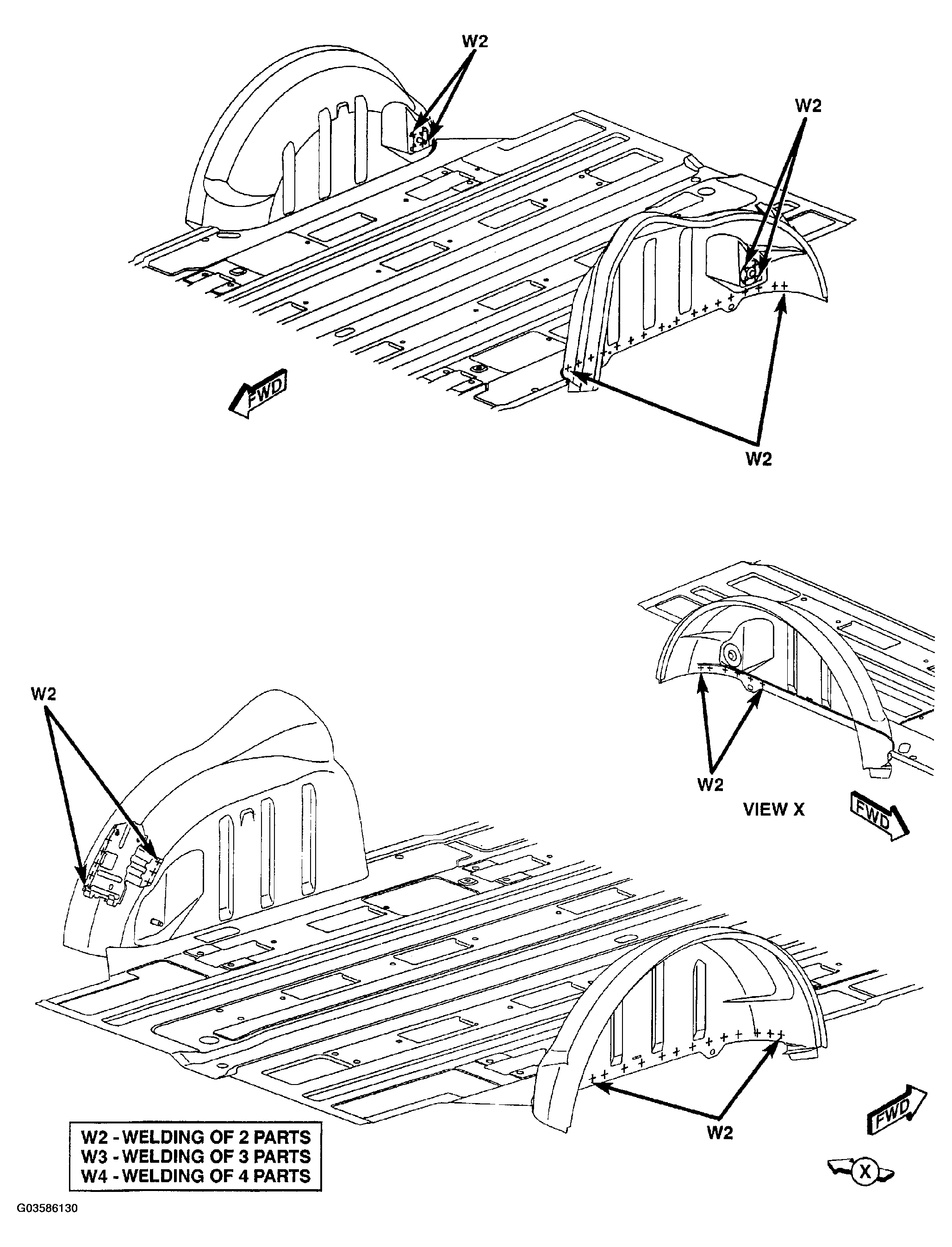

WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY	Fig 33
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY	Fig 34
FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY	Fig 35
INNER SIDE SILLS - SHORT WHEEL BASE ONLY	Fig 36
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY	Fig 37
CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 38

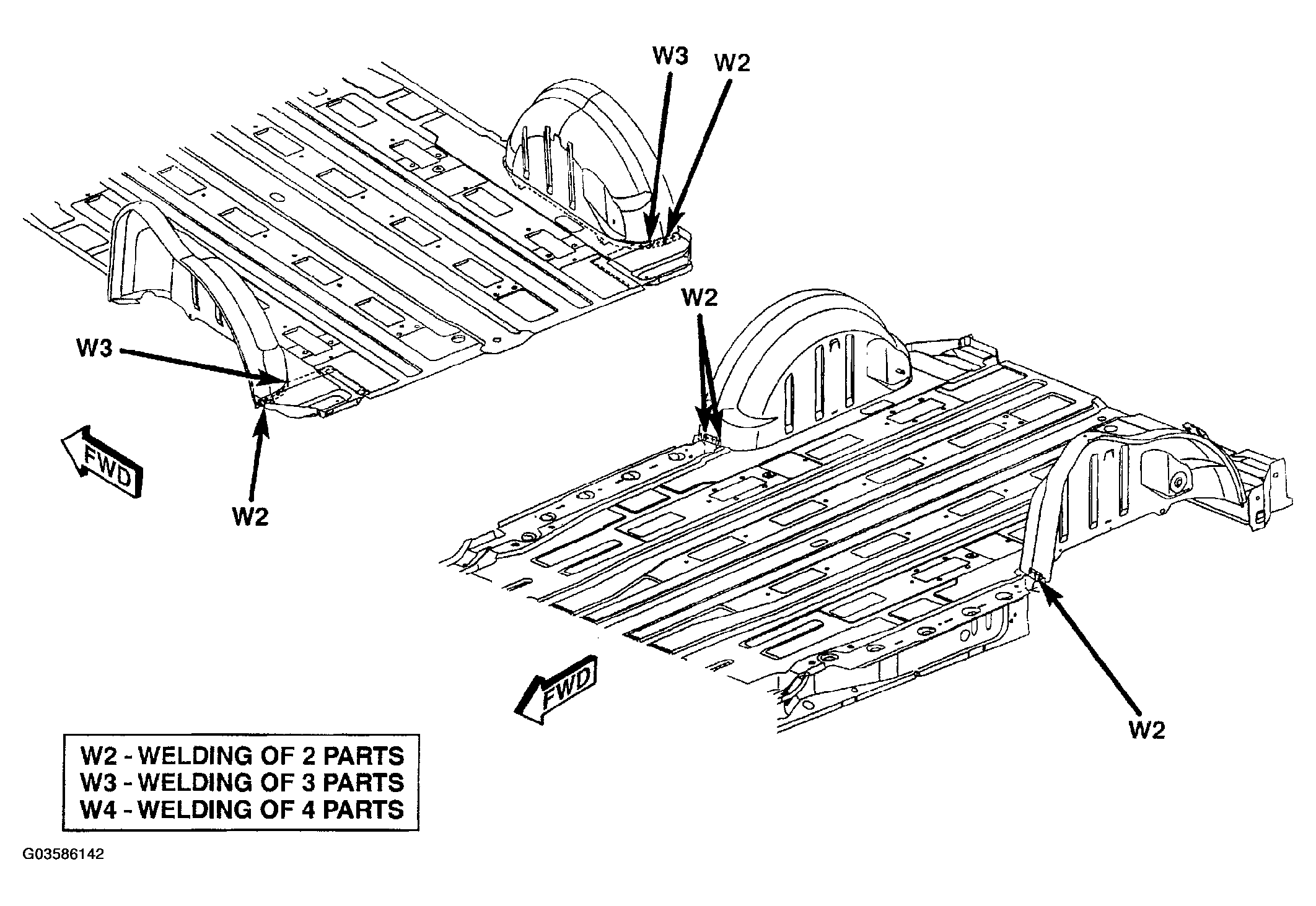

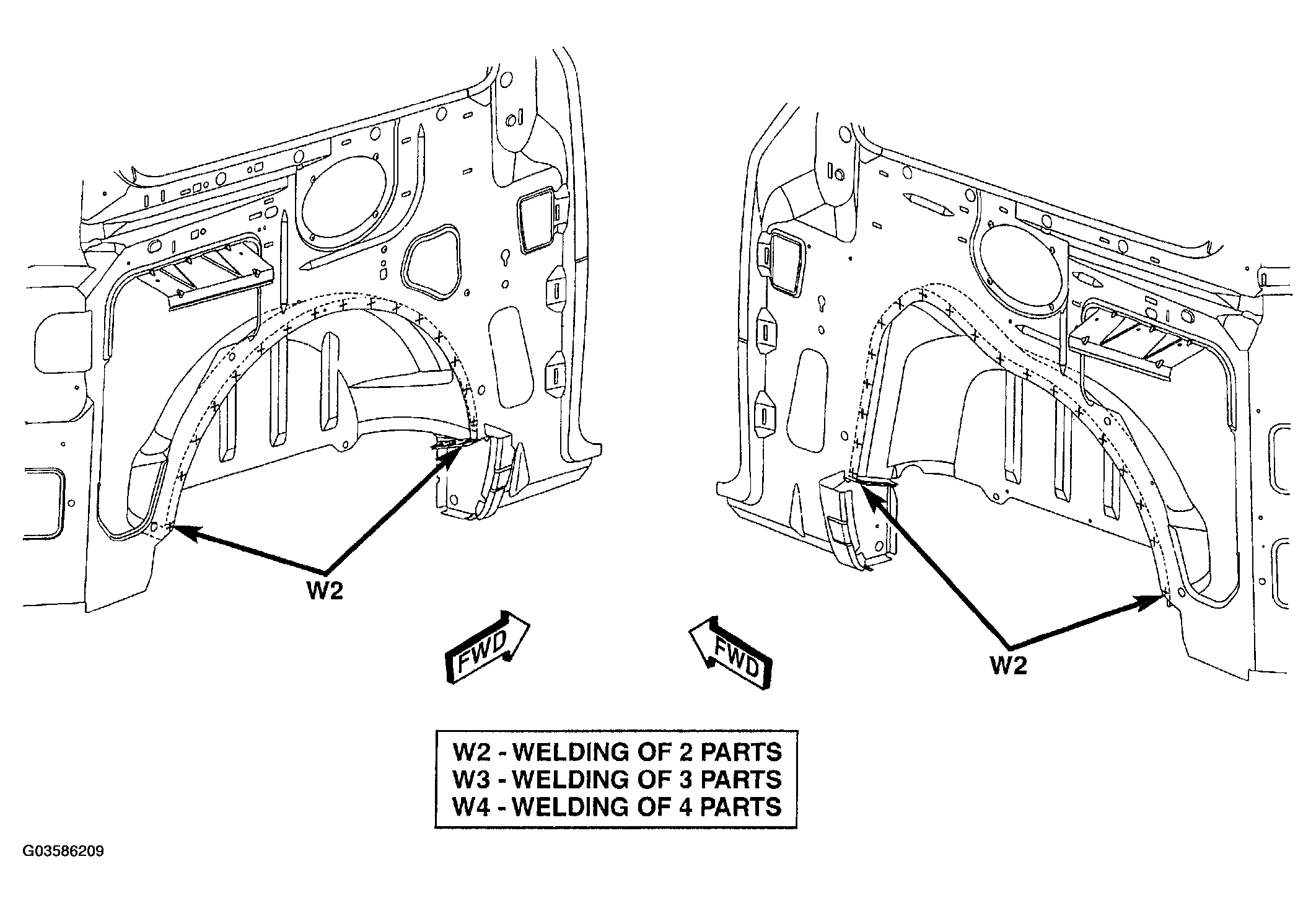

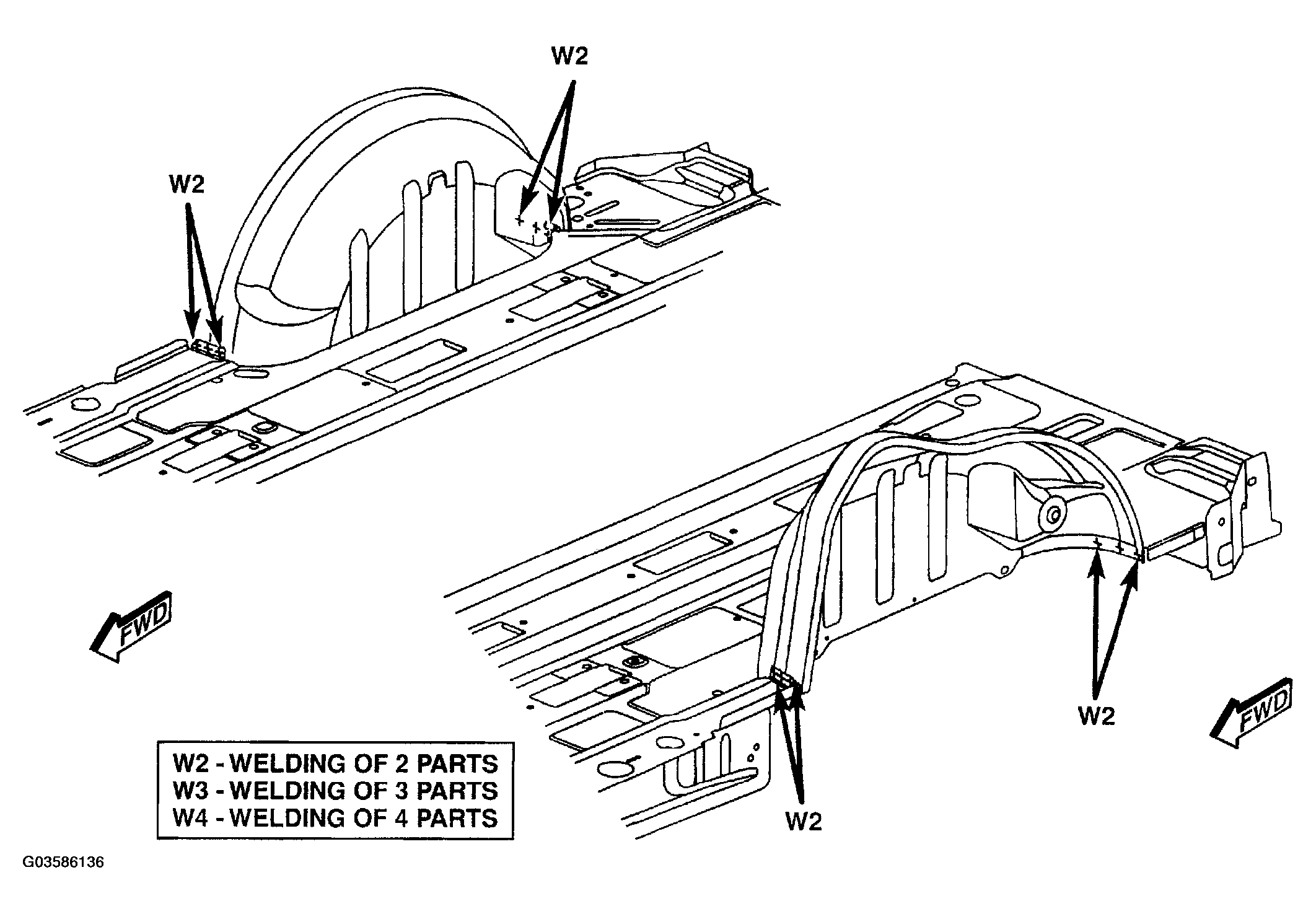

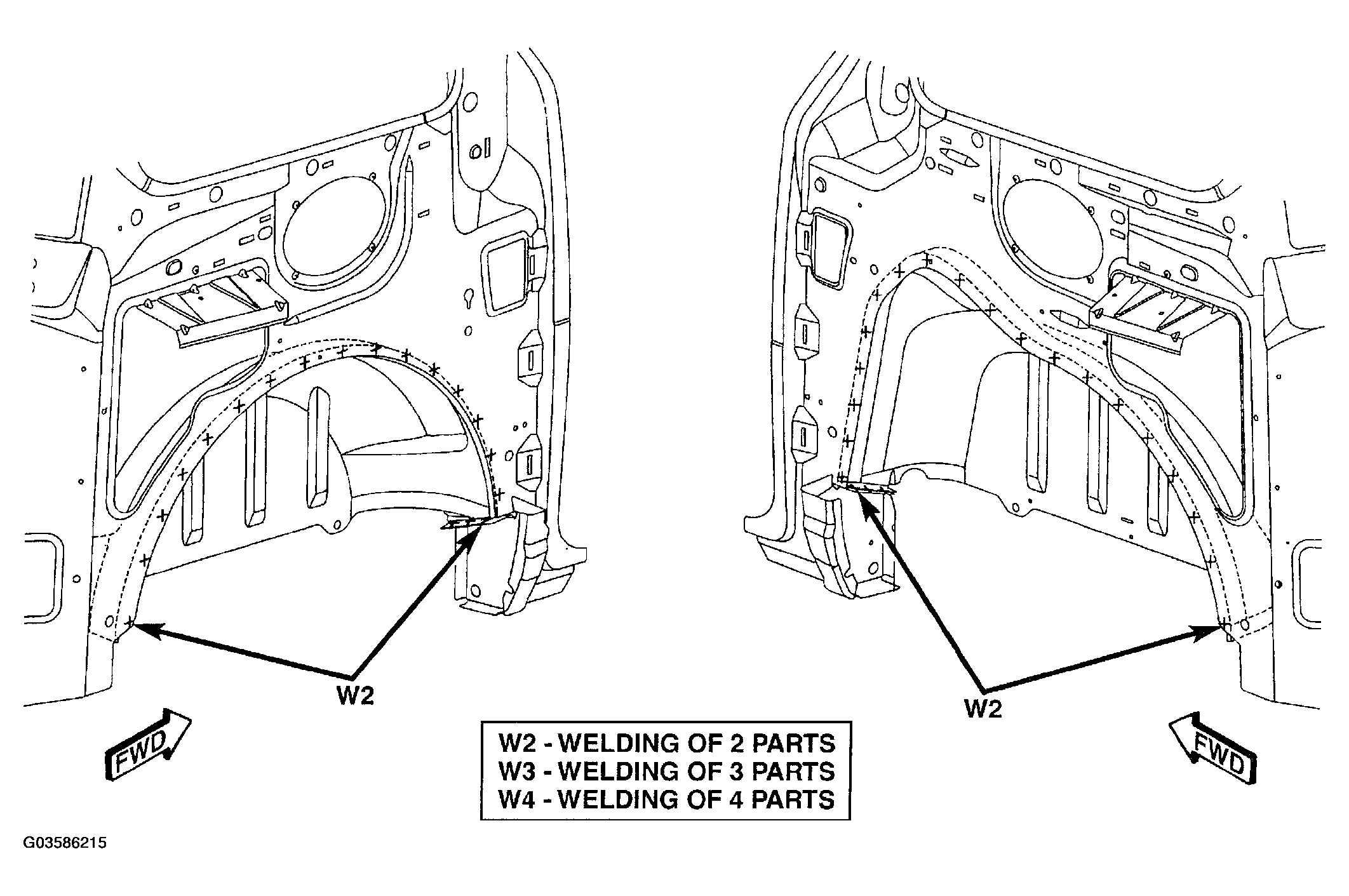

WHEELHOUSES - SHORT WHEEL BASE ONLY	Fig 39
FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY	Fig 40

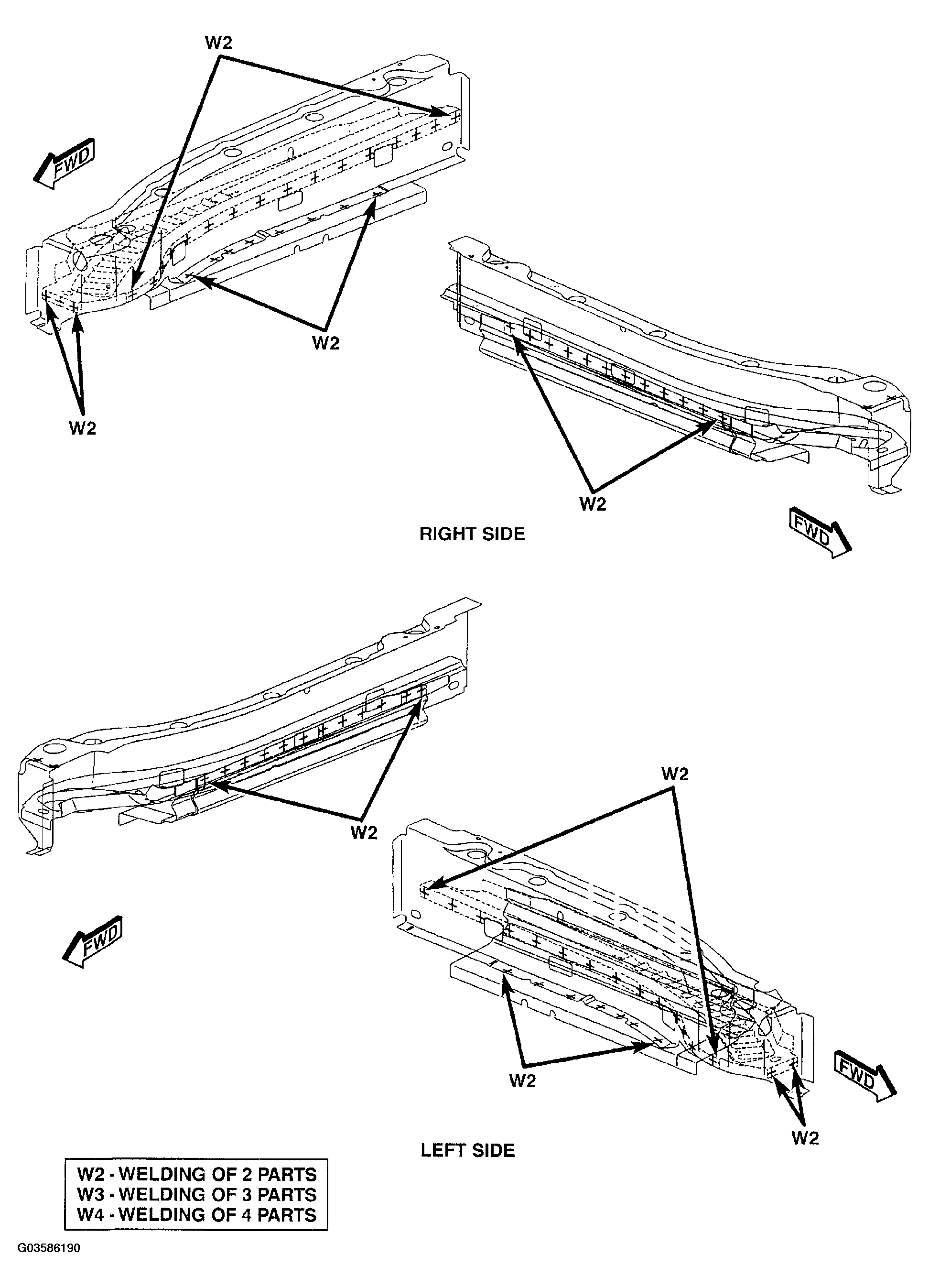

FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY	Fig 41

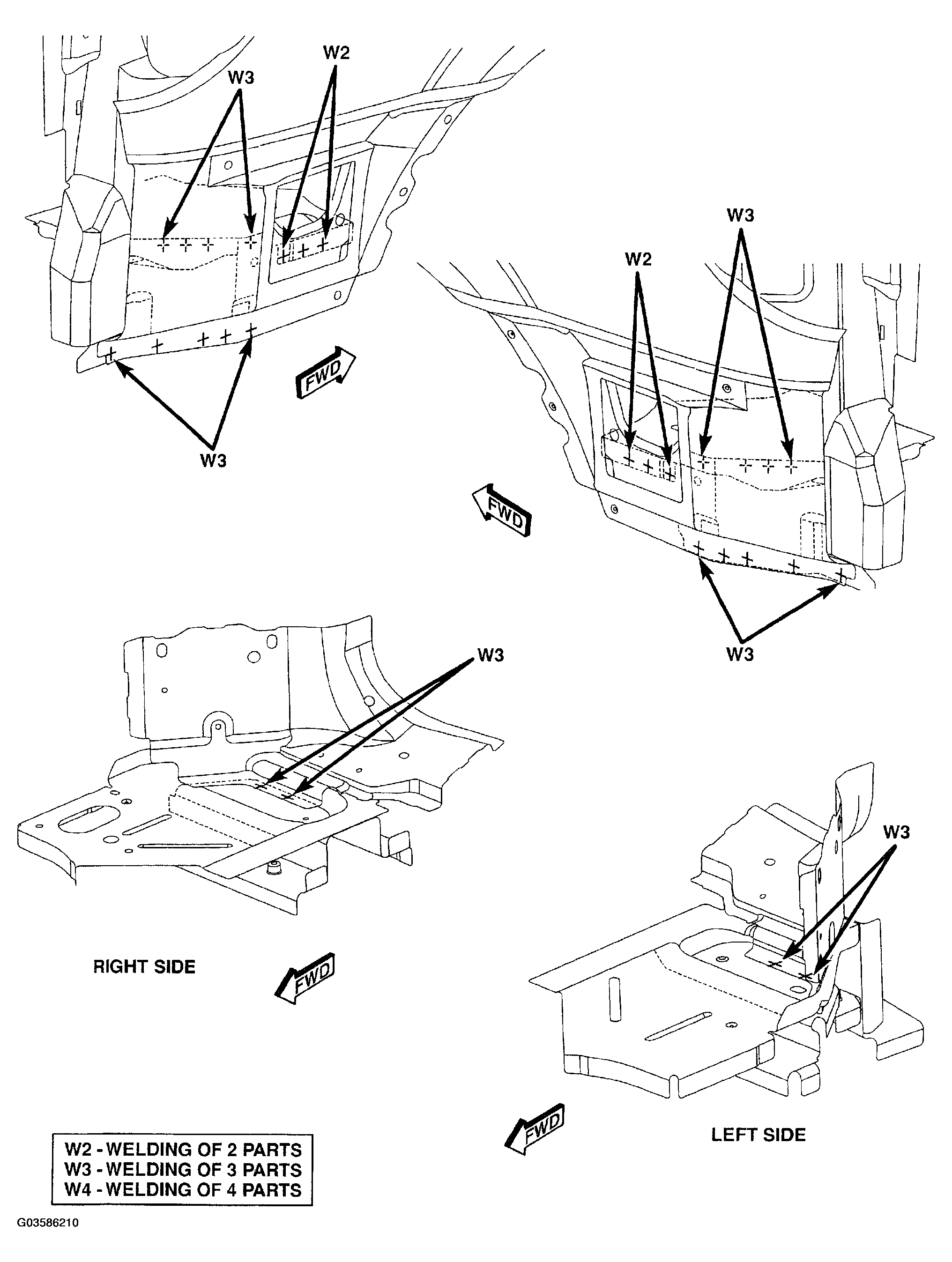

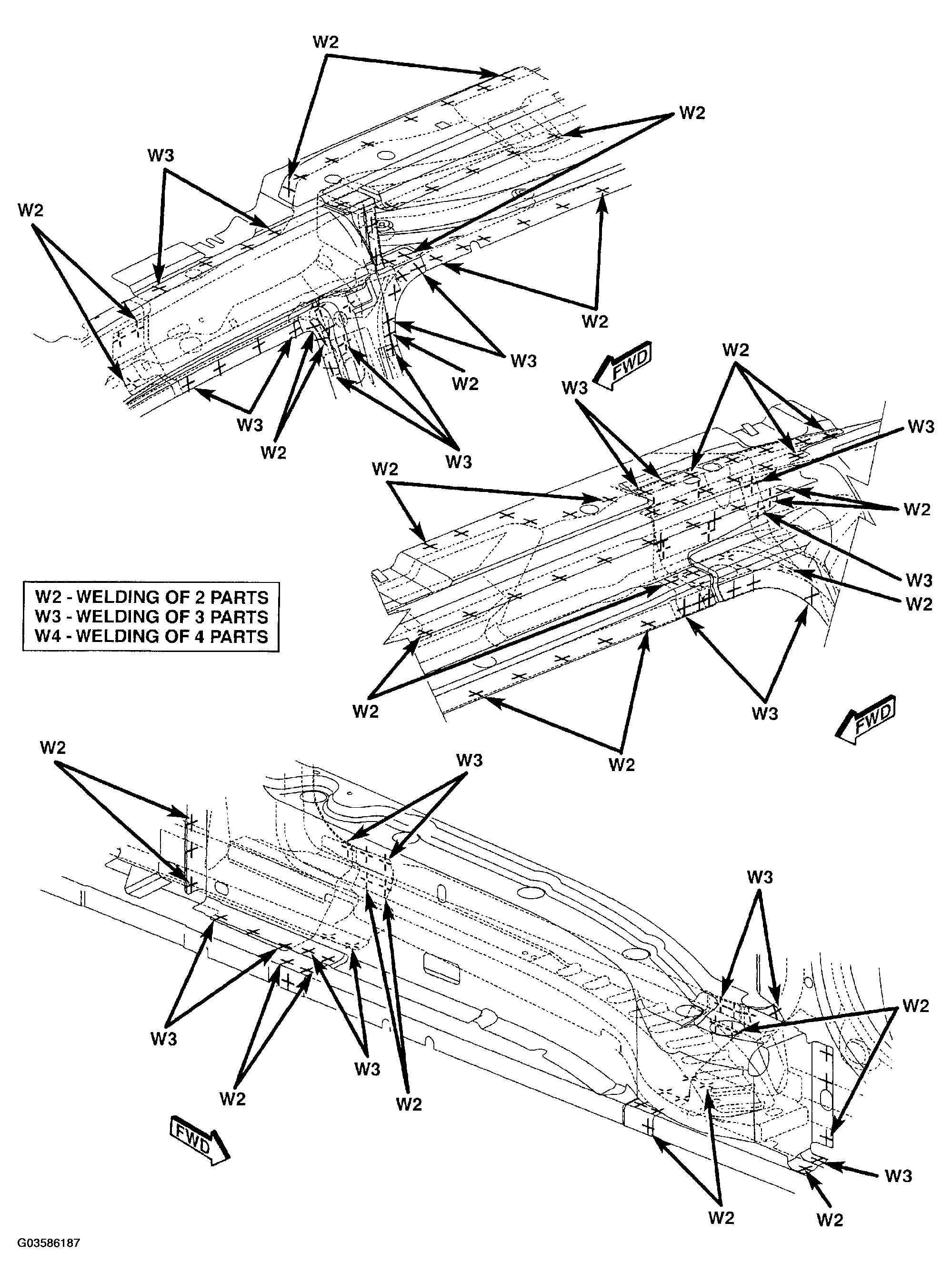

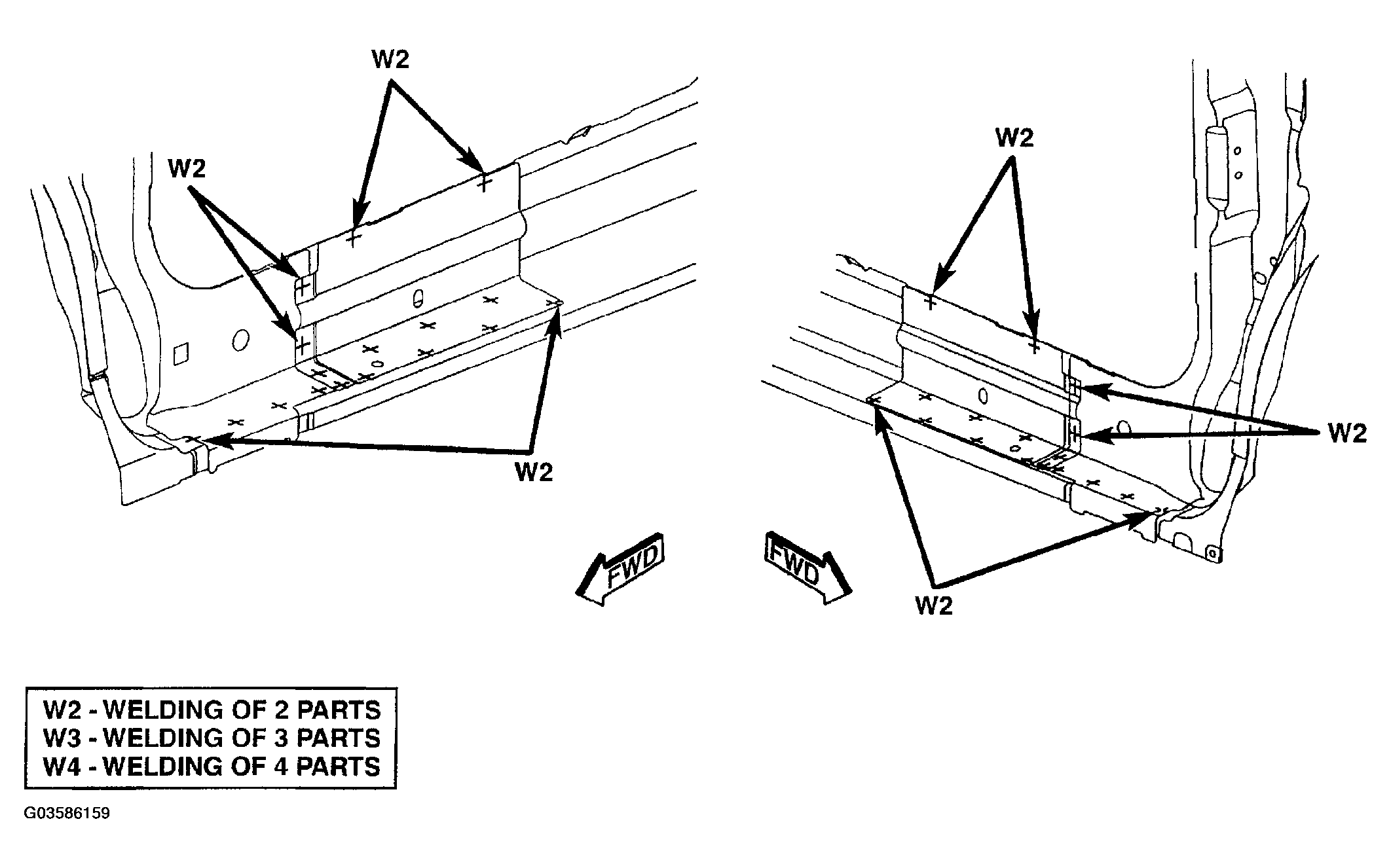

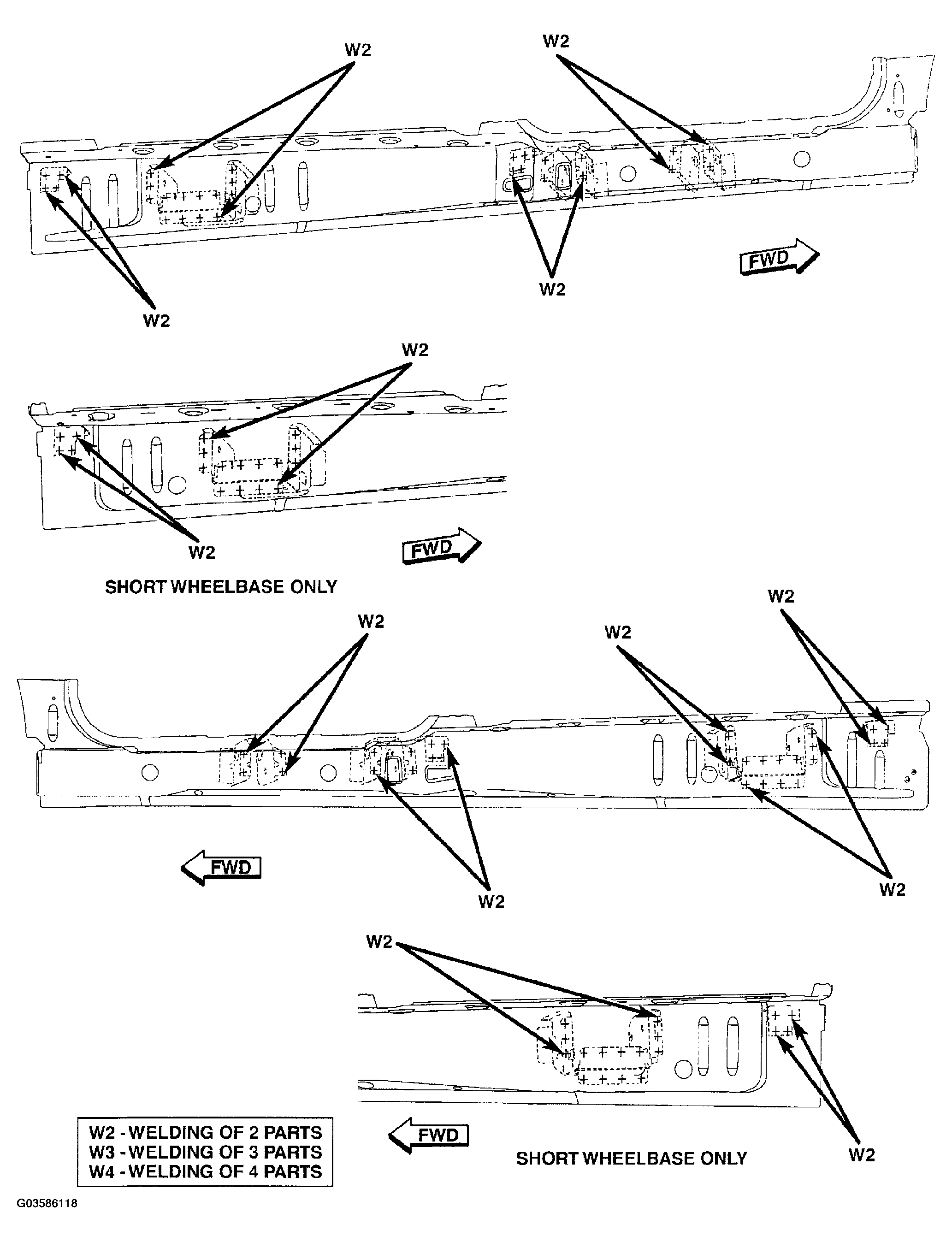

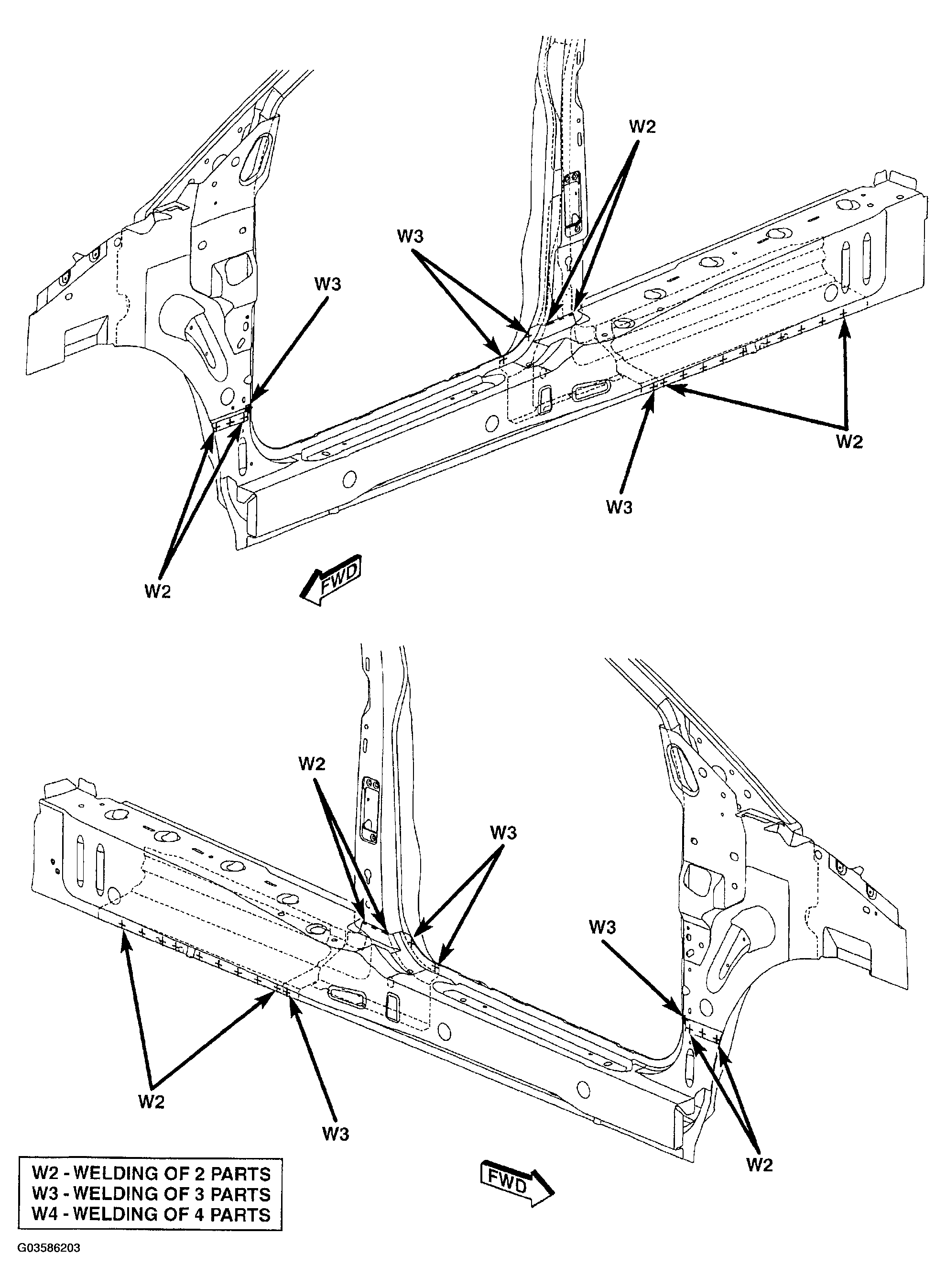

INNER BODY SIDE SILL REINFORCEMENTS	Fig 42

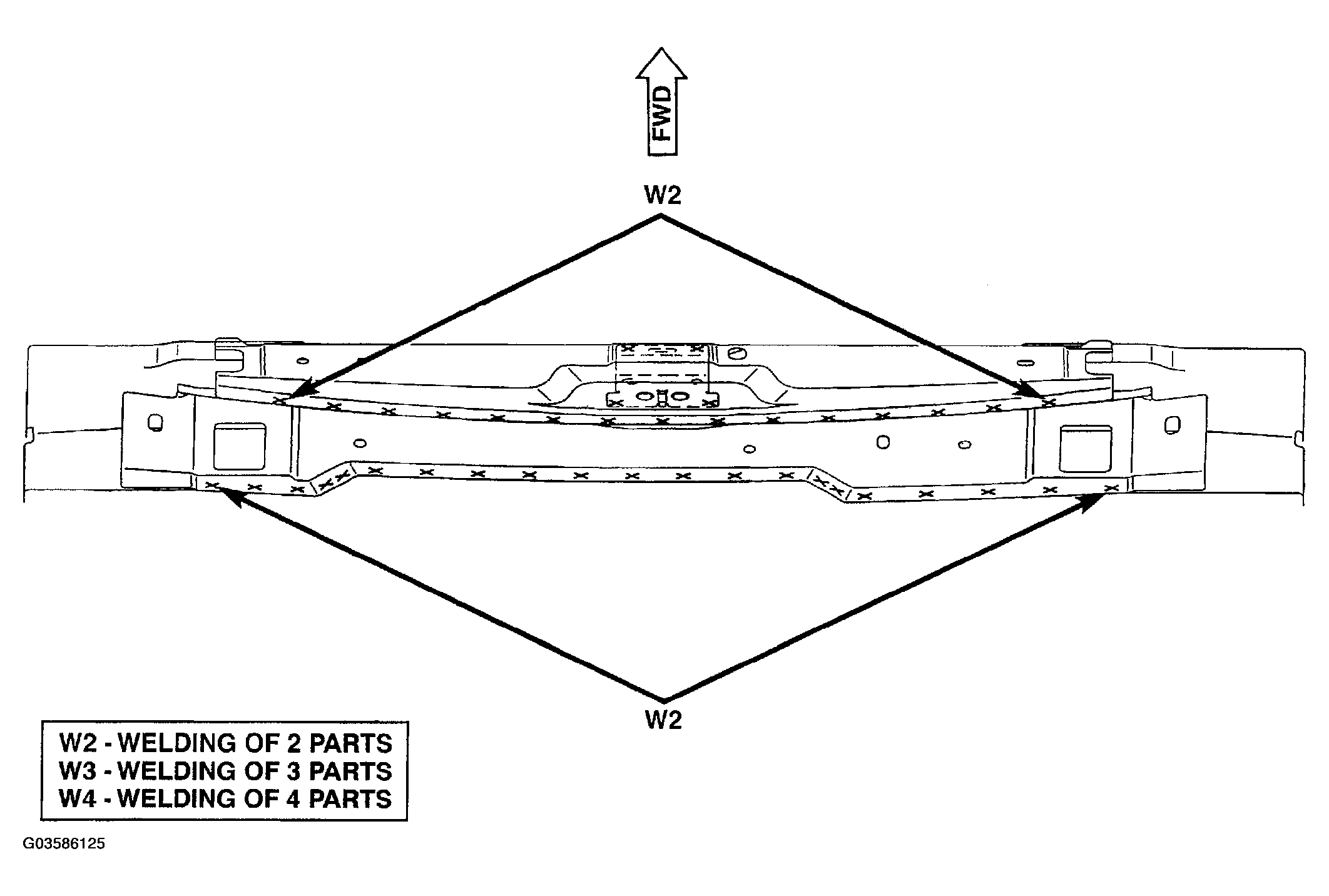

TOE BOARD CROSSMEMBER	Fig 43
FRONT SIDE RAIL - SHORT WHEEL BASE ONLY	Fig 44

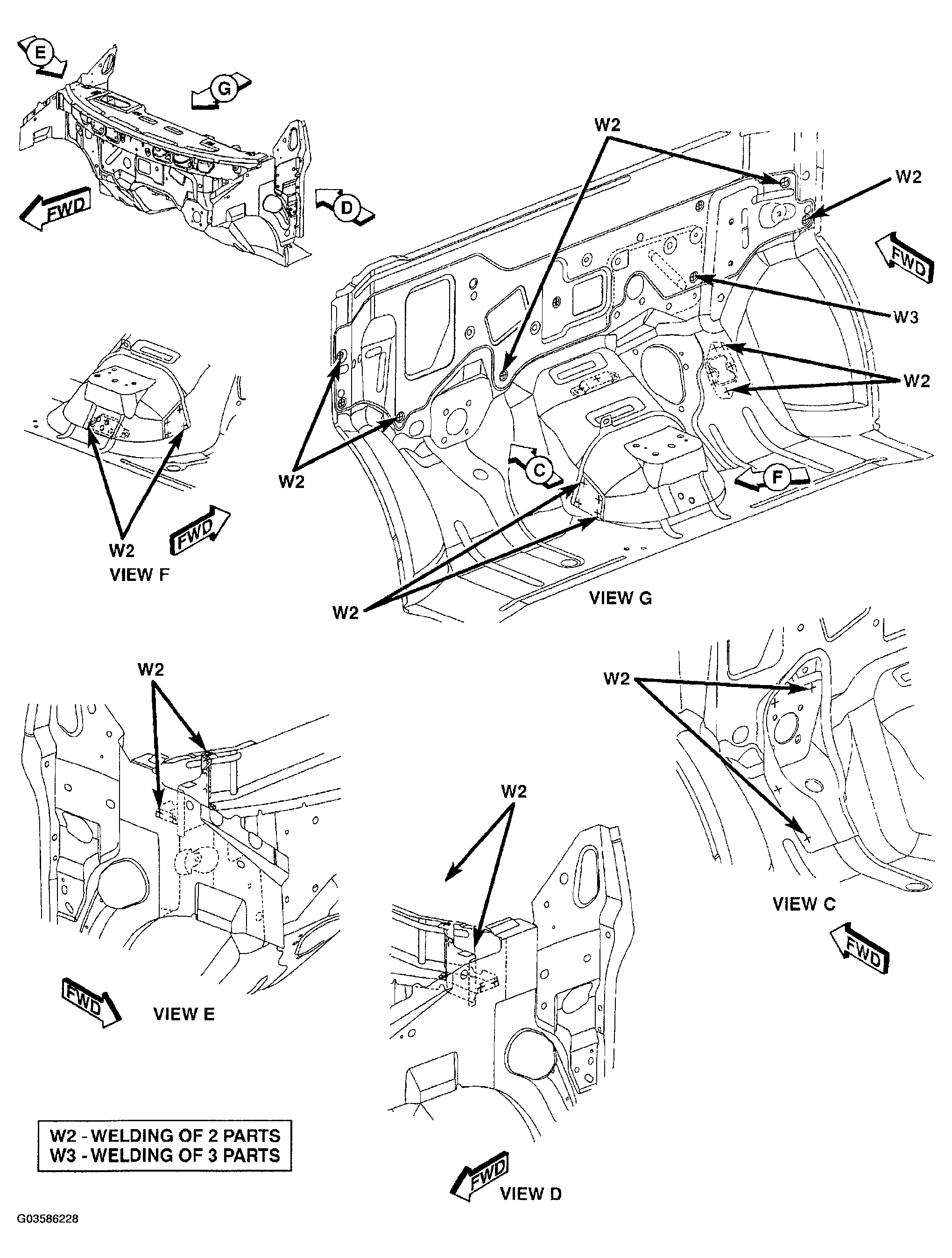

DASH PANEL REINFORCEMENT	Fig 45

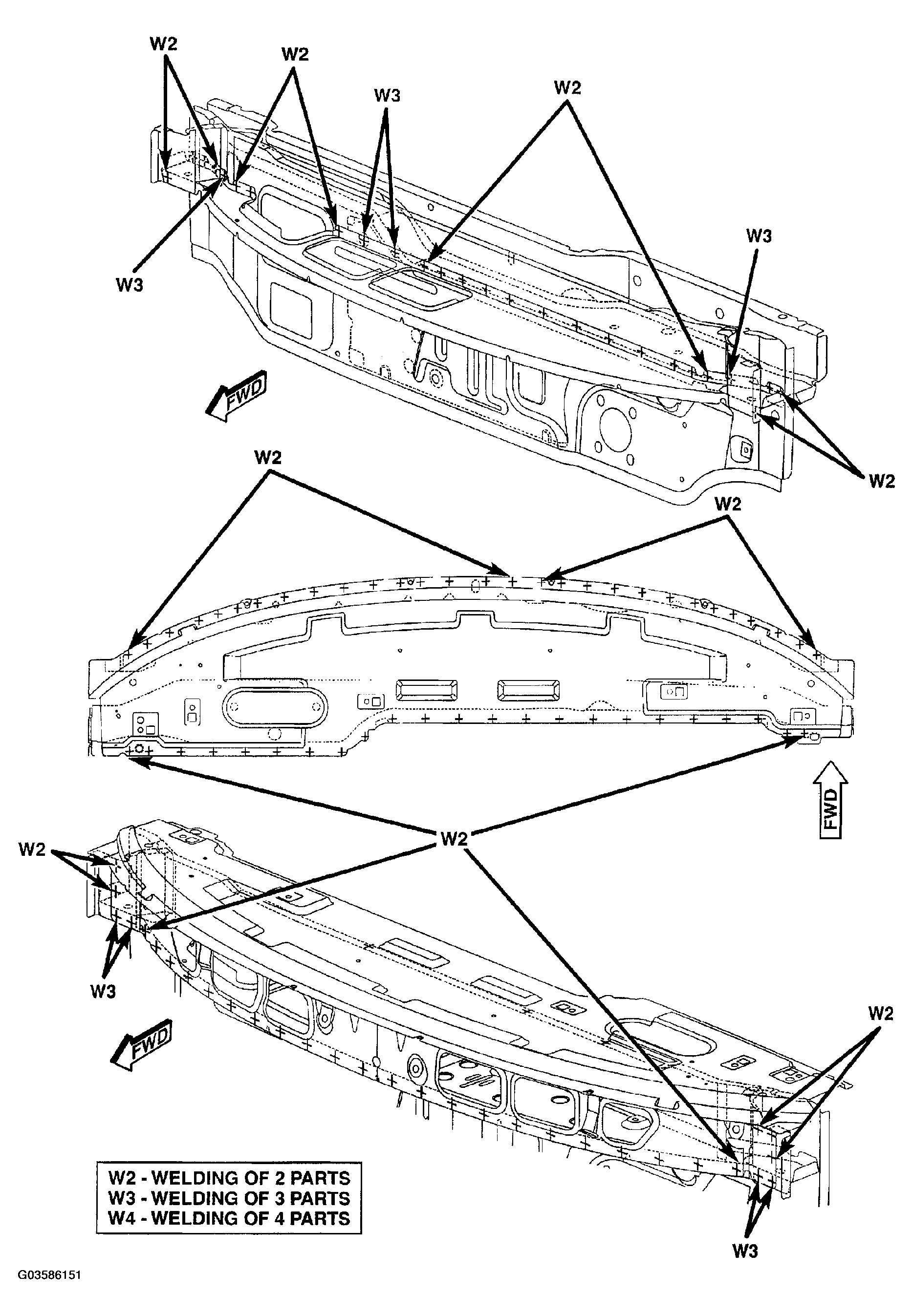

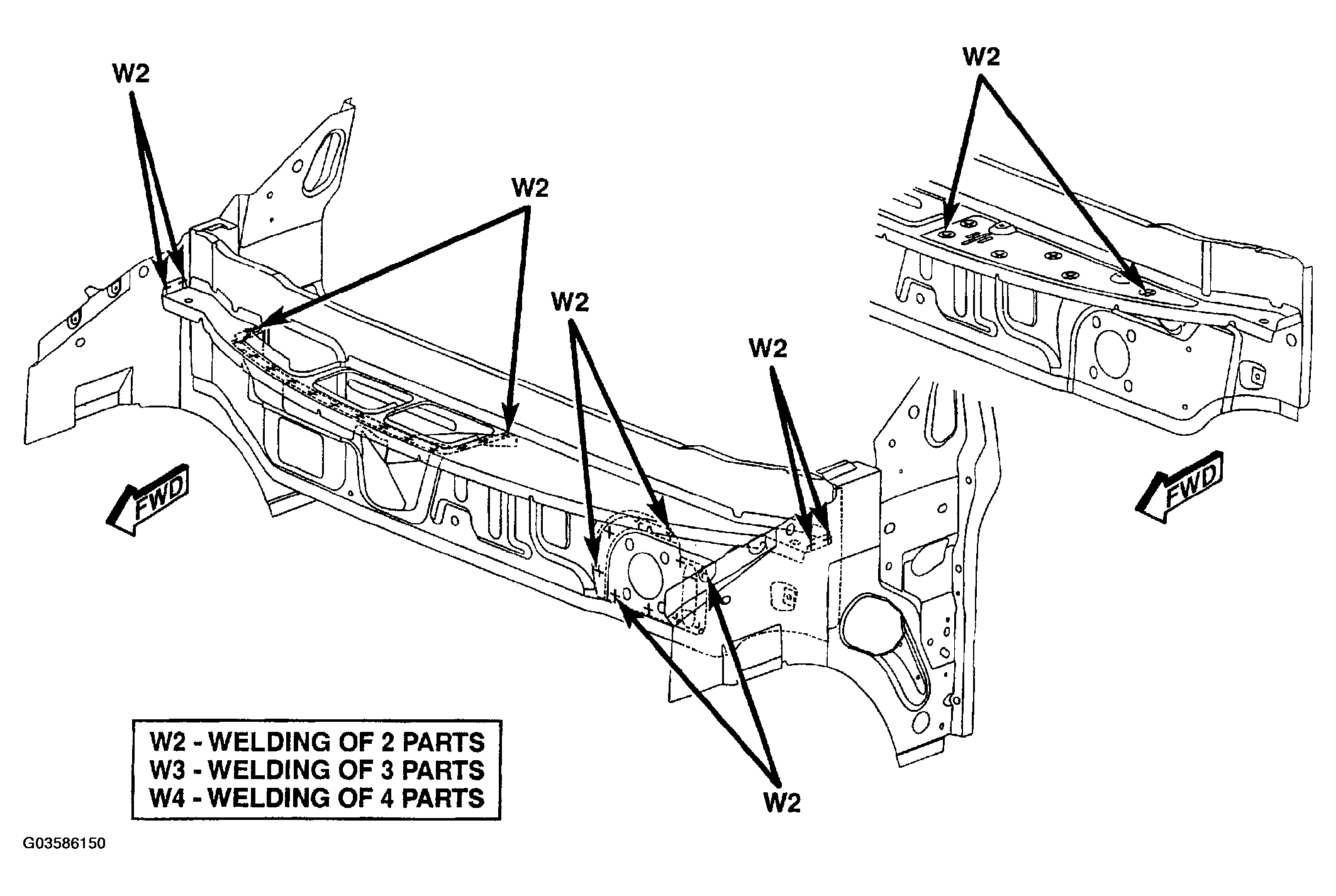

LOWER COWL PLENUM	Fig 46

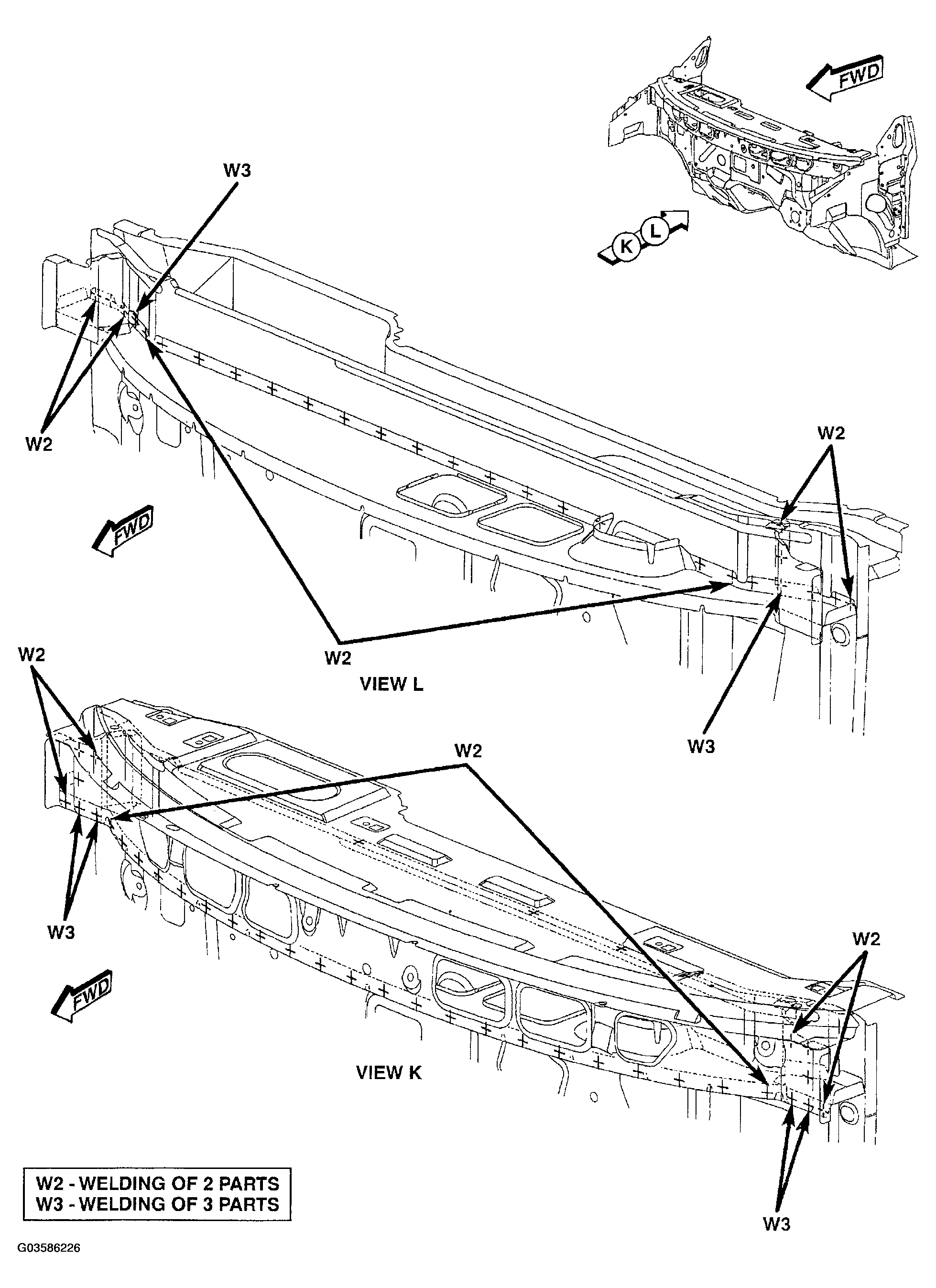

UPPER COWL PLENUM SUPPORT	Fig 47

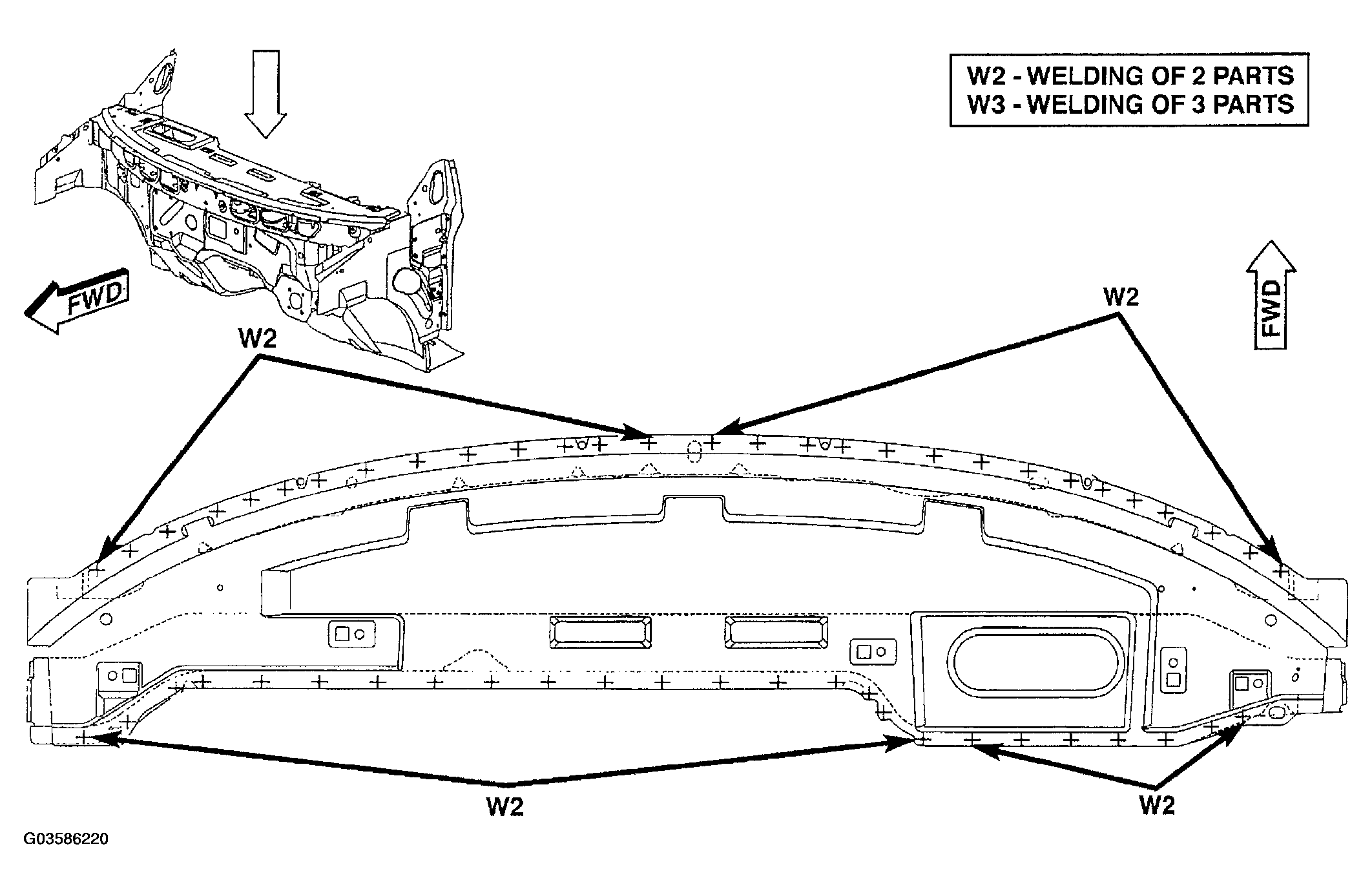

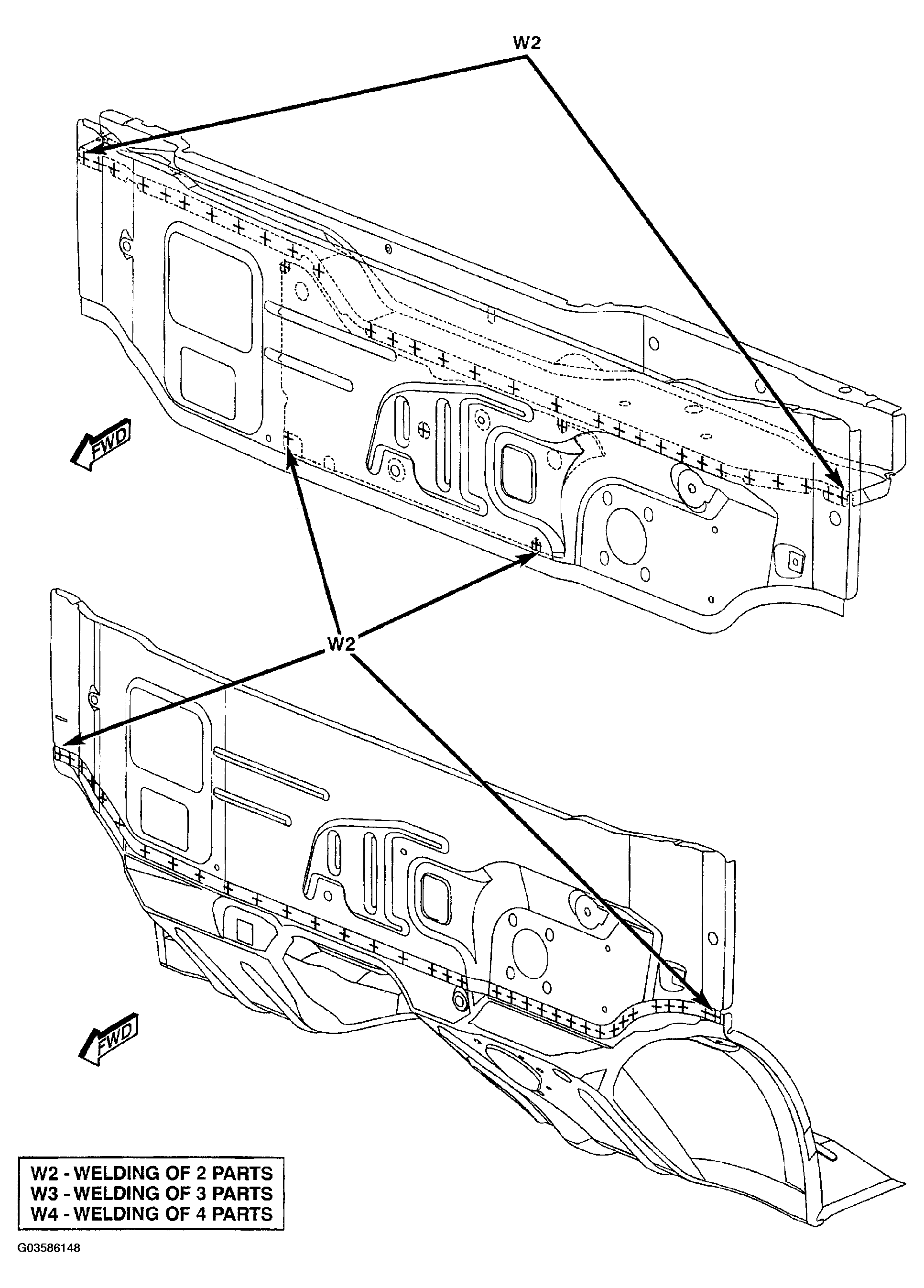

UPPER DASH PANEL	Fig 48

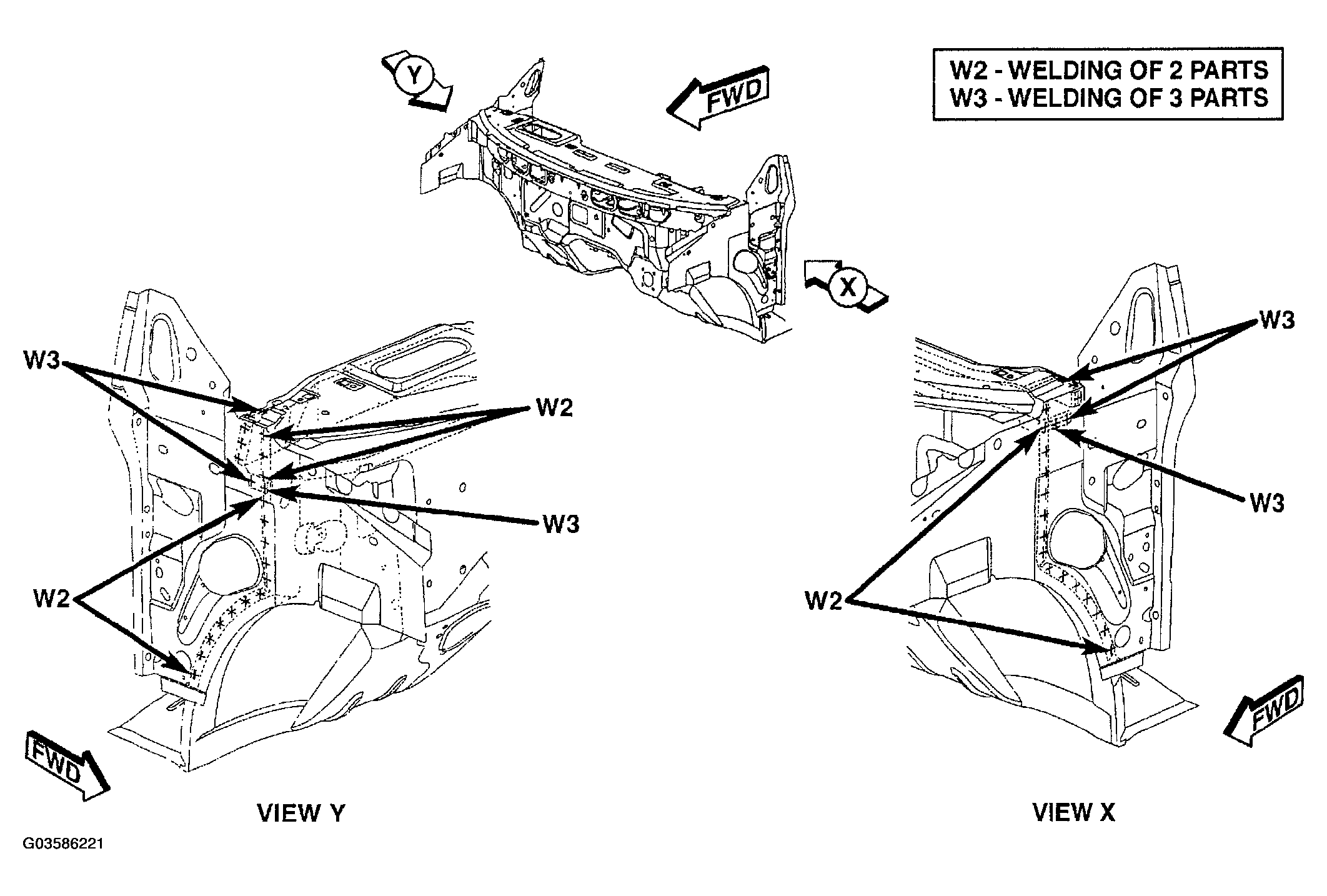

COWL SIDE PANELS	Fig 49

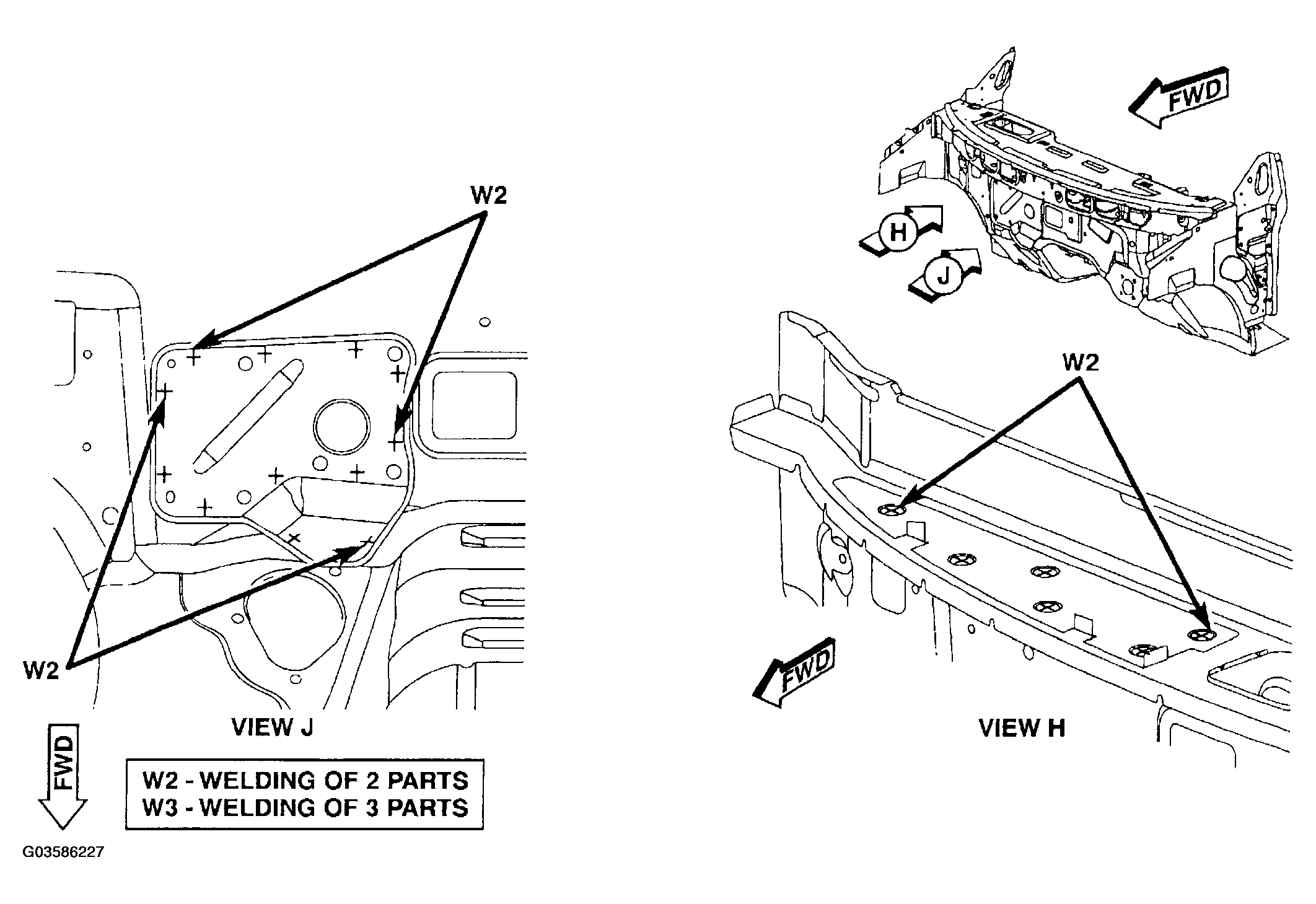

INSTRUMENT PANEL ATTACHMENT TAPPING PLATES	Fig 50
INSTRUMENT PANEL, DASH PANEL, ACM MODULE AND ACCELERATOR PEDAL	Fig 51

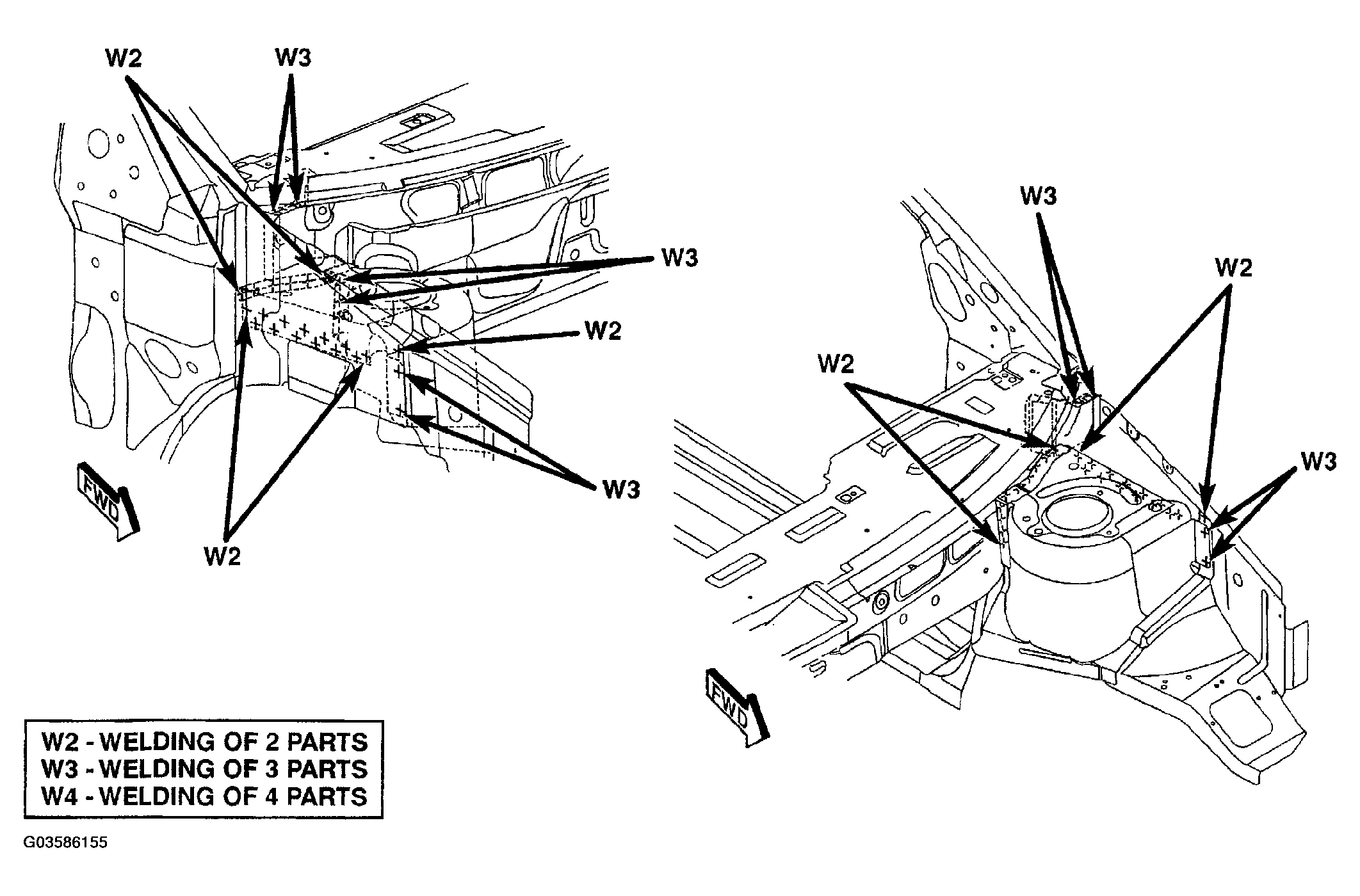

STRUT TOWER BRACKET AND COWL PLENUM	Fig 52

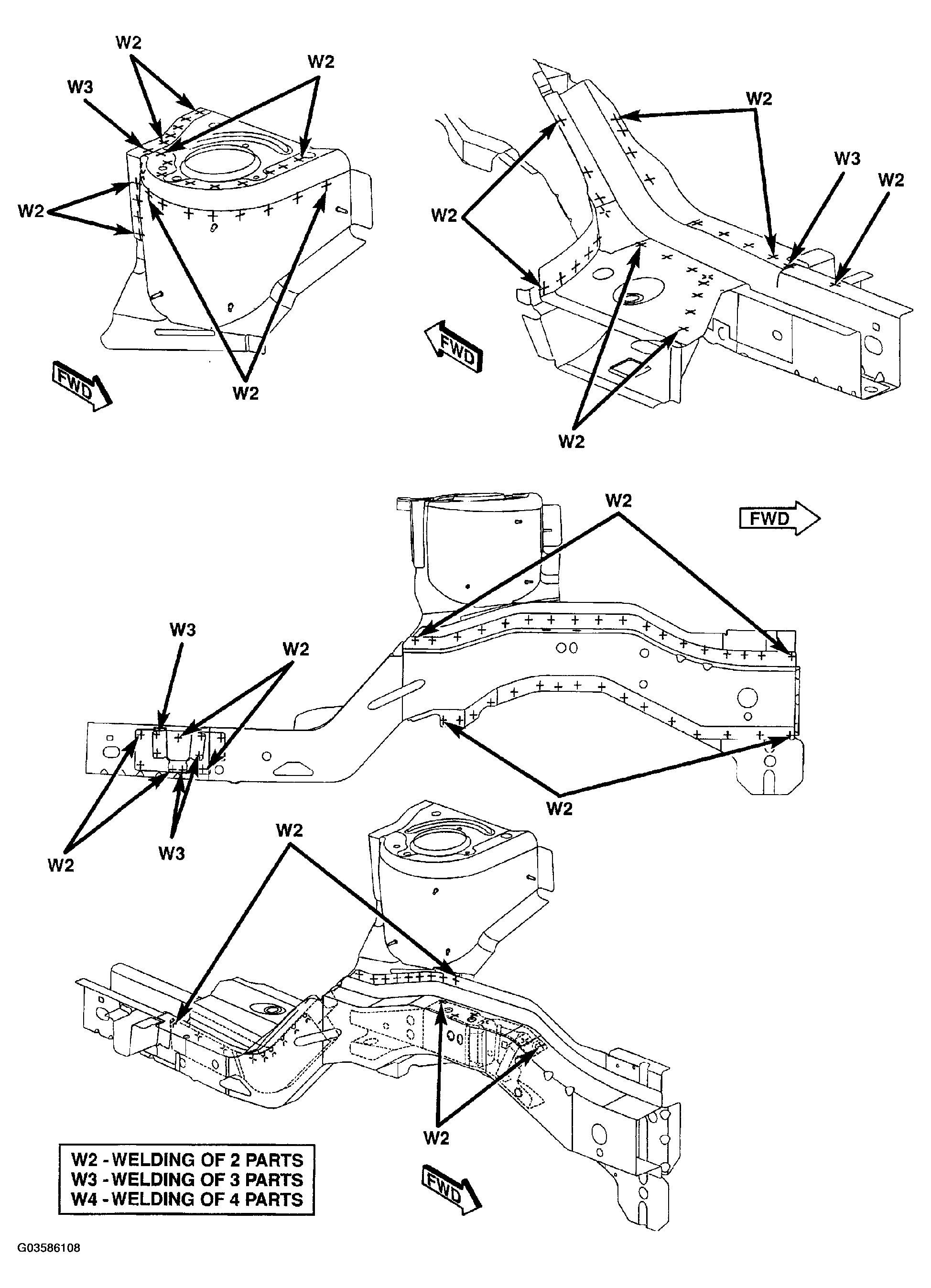

FRONT SIDE RAILS TO LOWER DASH PANEL	Fig 53

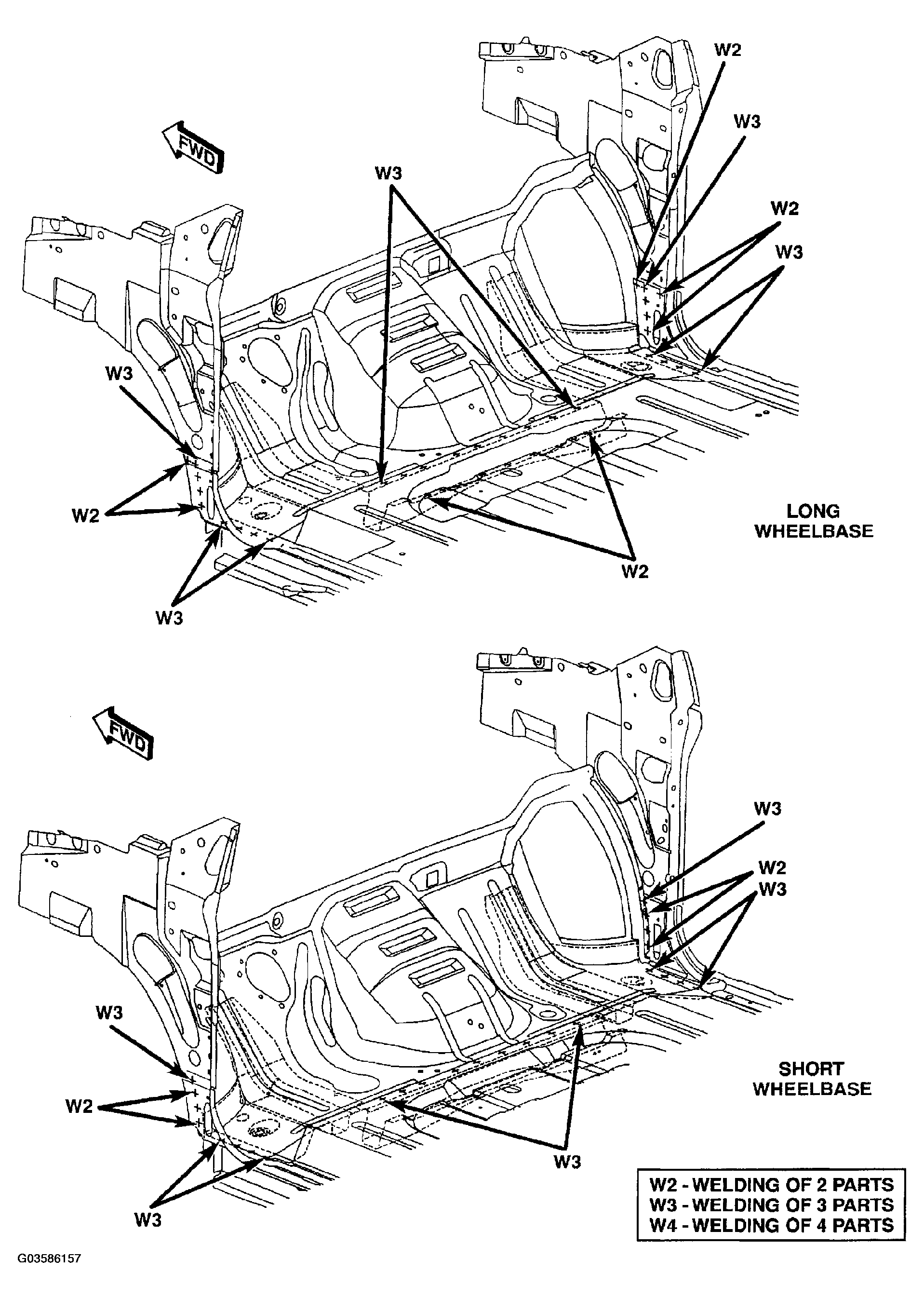

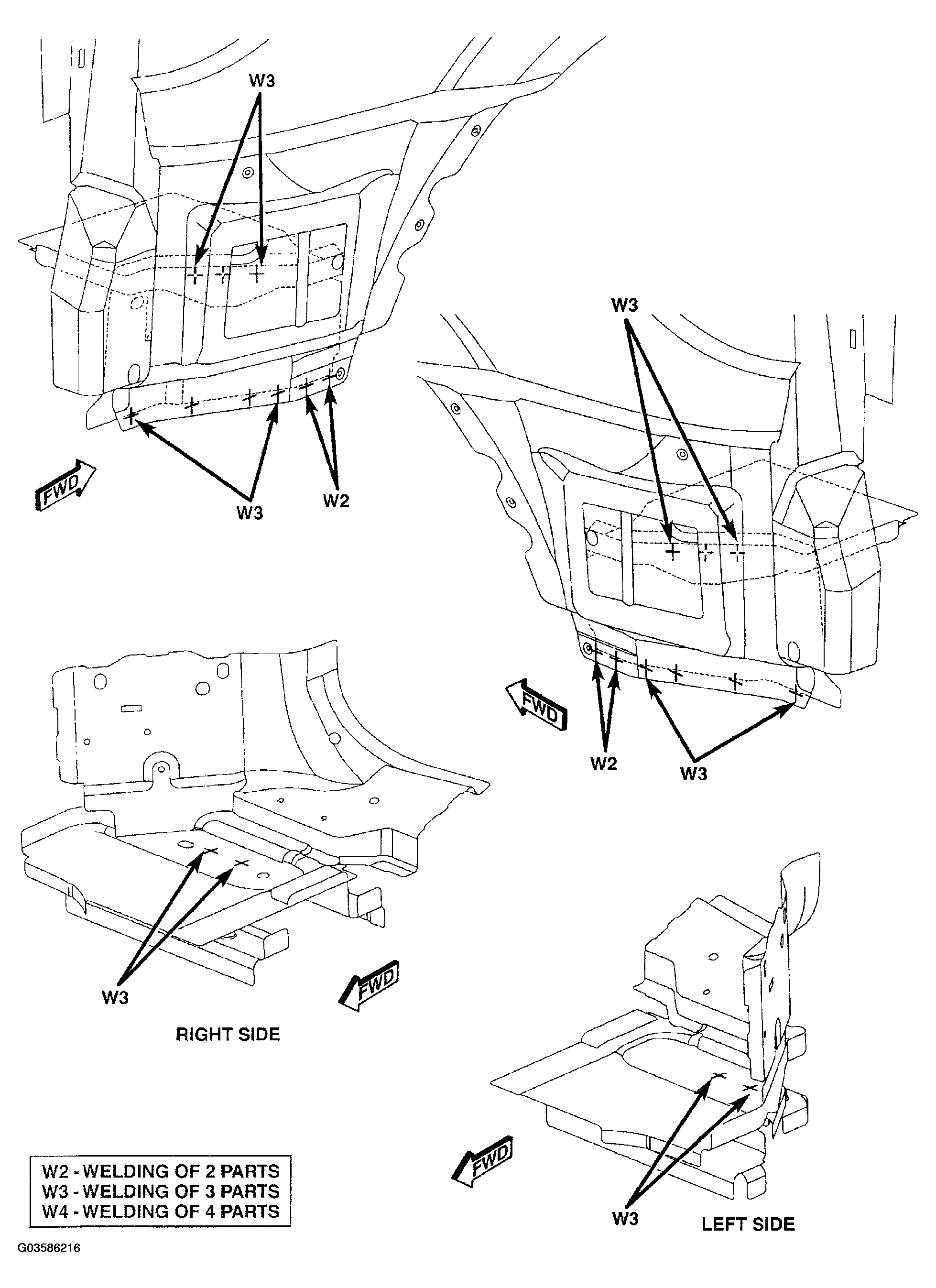

INNER BODY SIDE SILL TO LOWER DASH PANEL	Fig 54

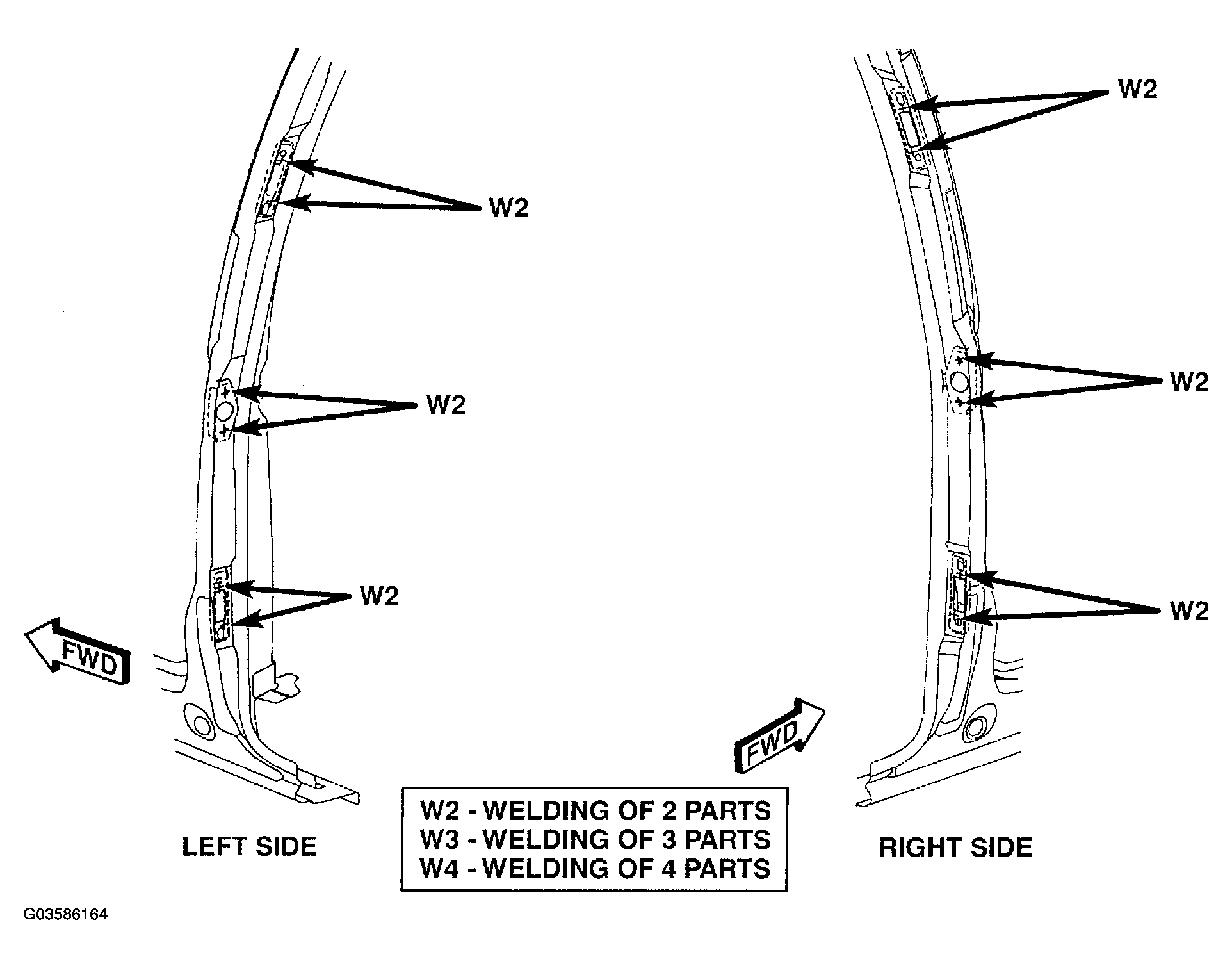

FRONT HINGE TAPPING PLATE	Fig 55

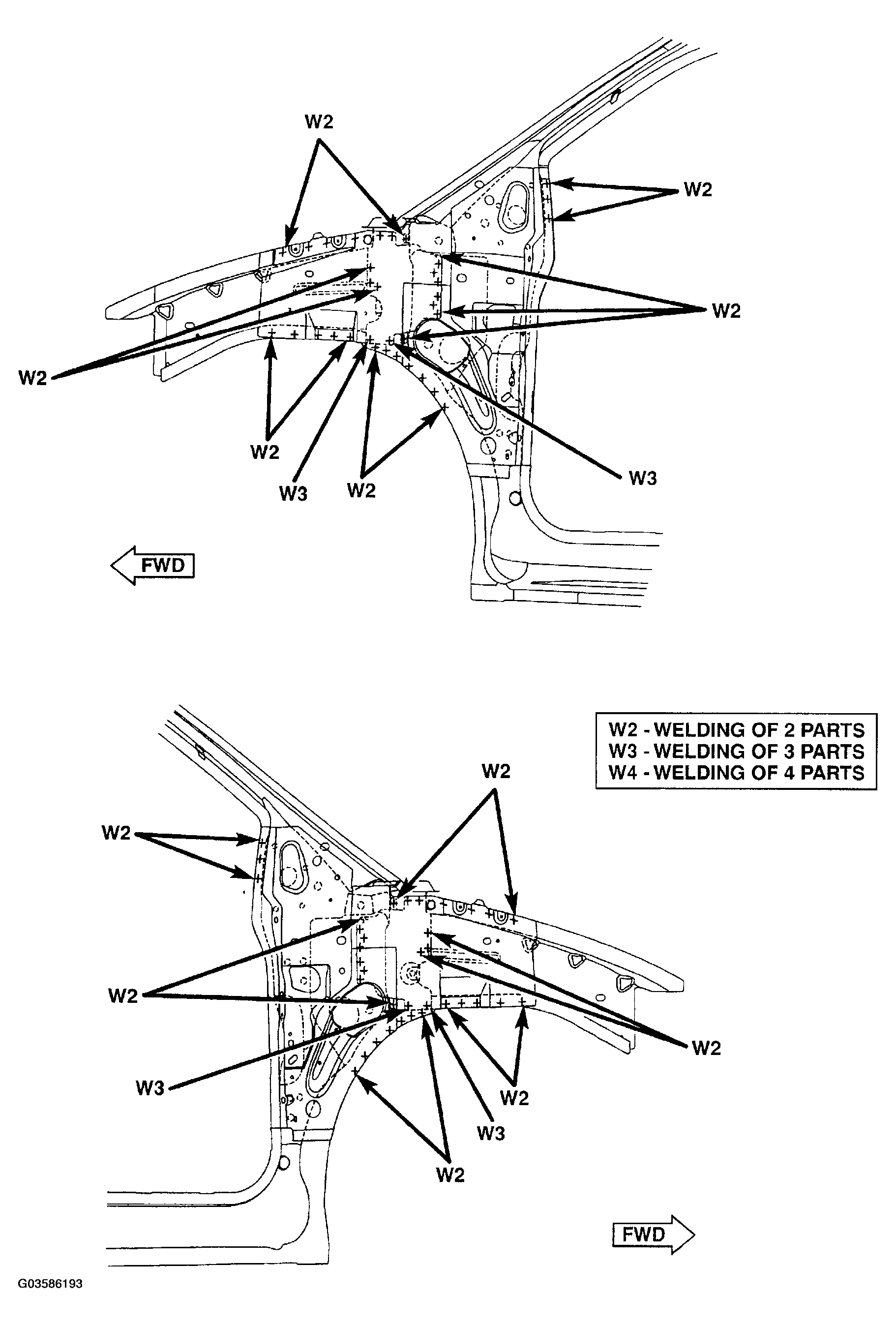

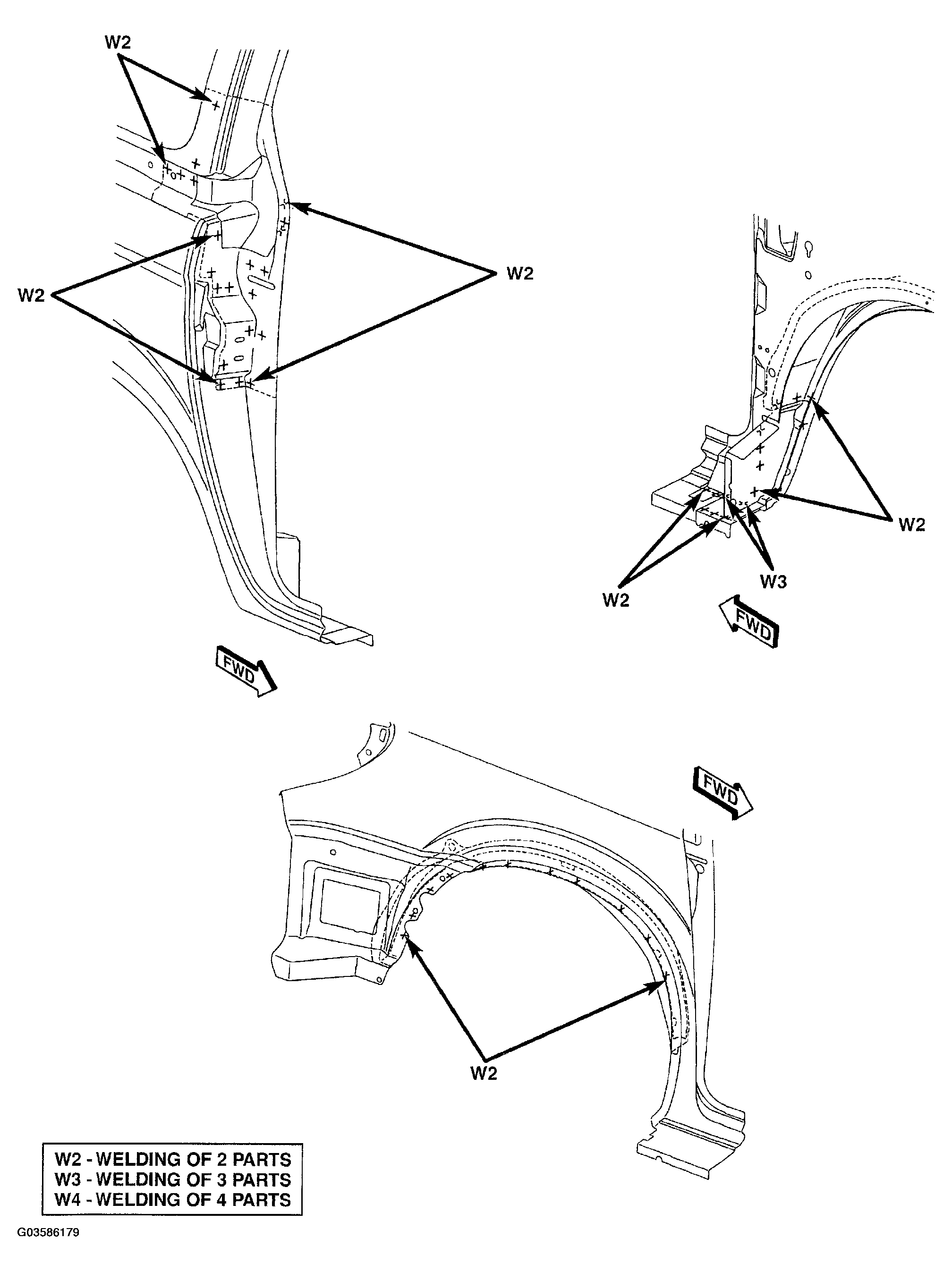

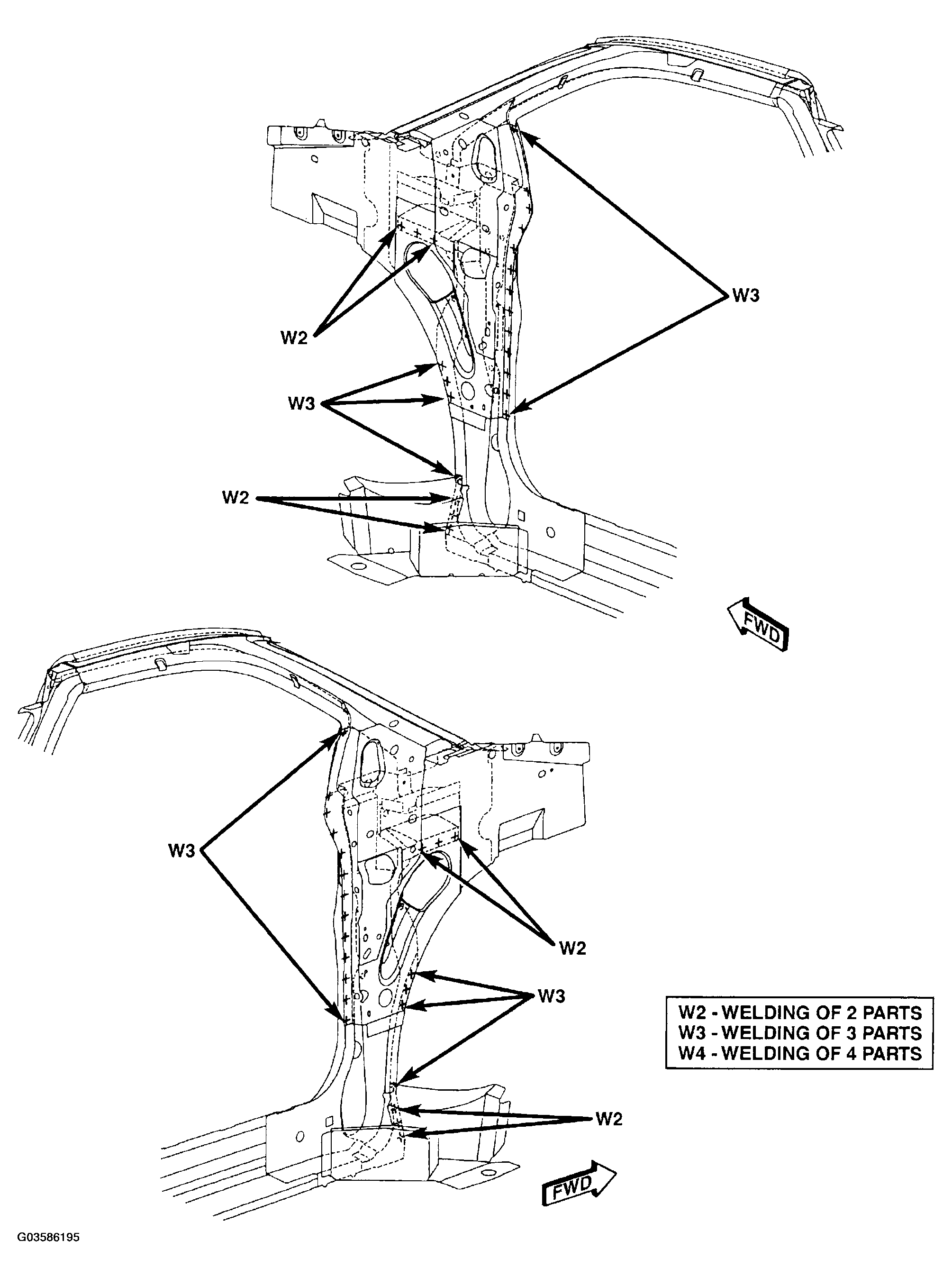

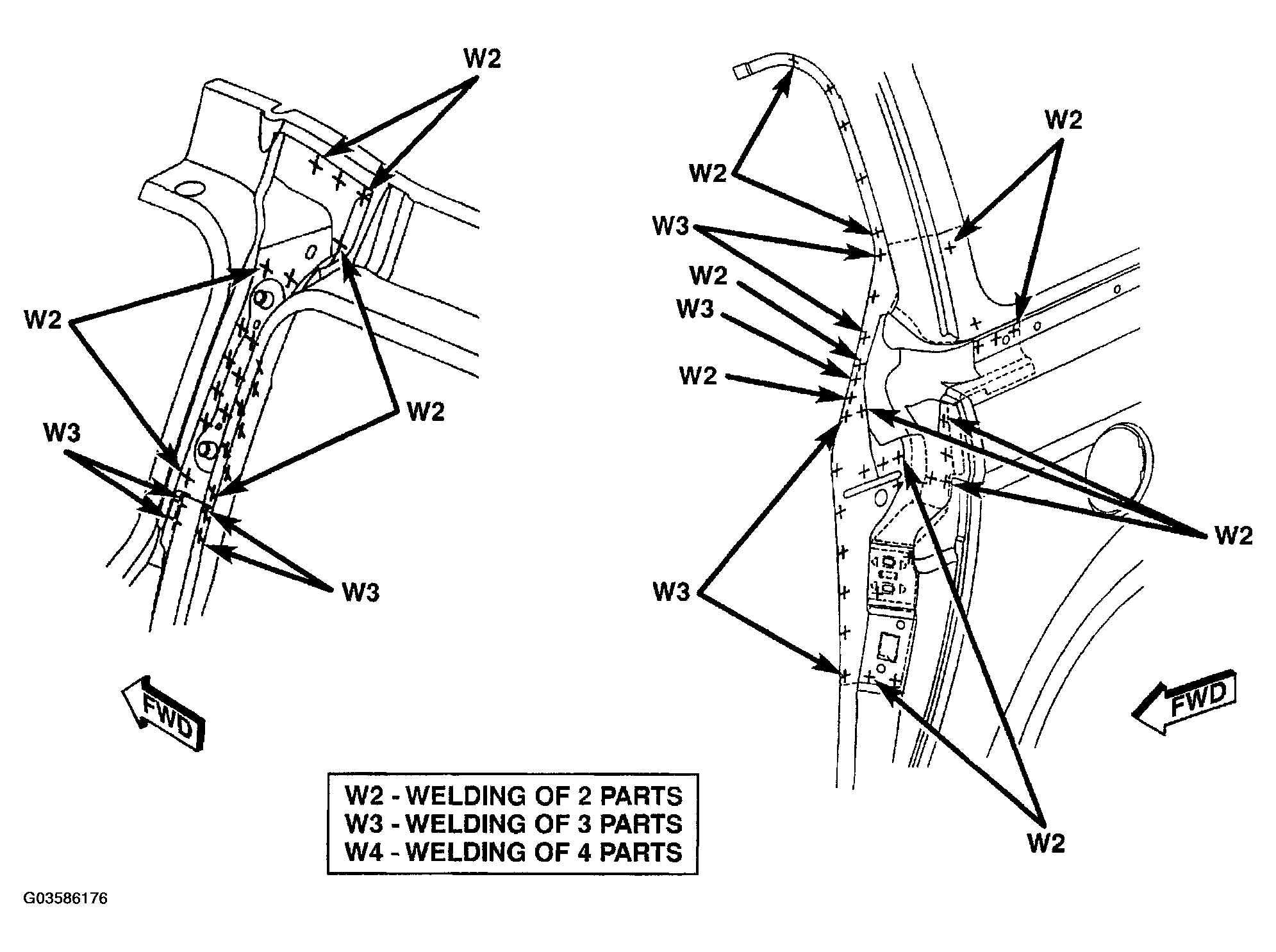

FRONT HINGE PILLAR	Fig 56
INNER WINDSHIELD FRAME	Fig 57

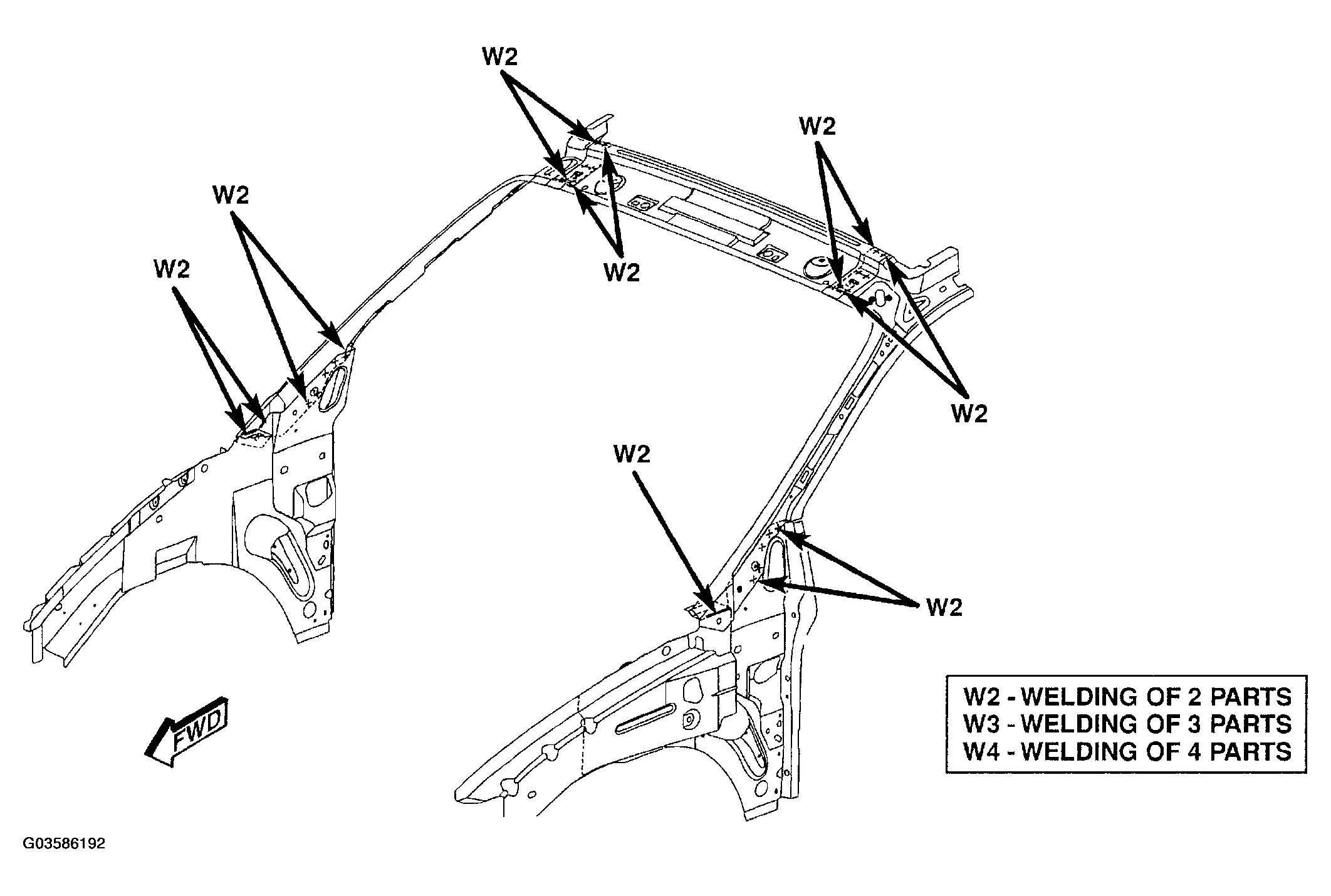

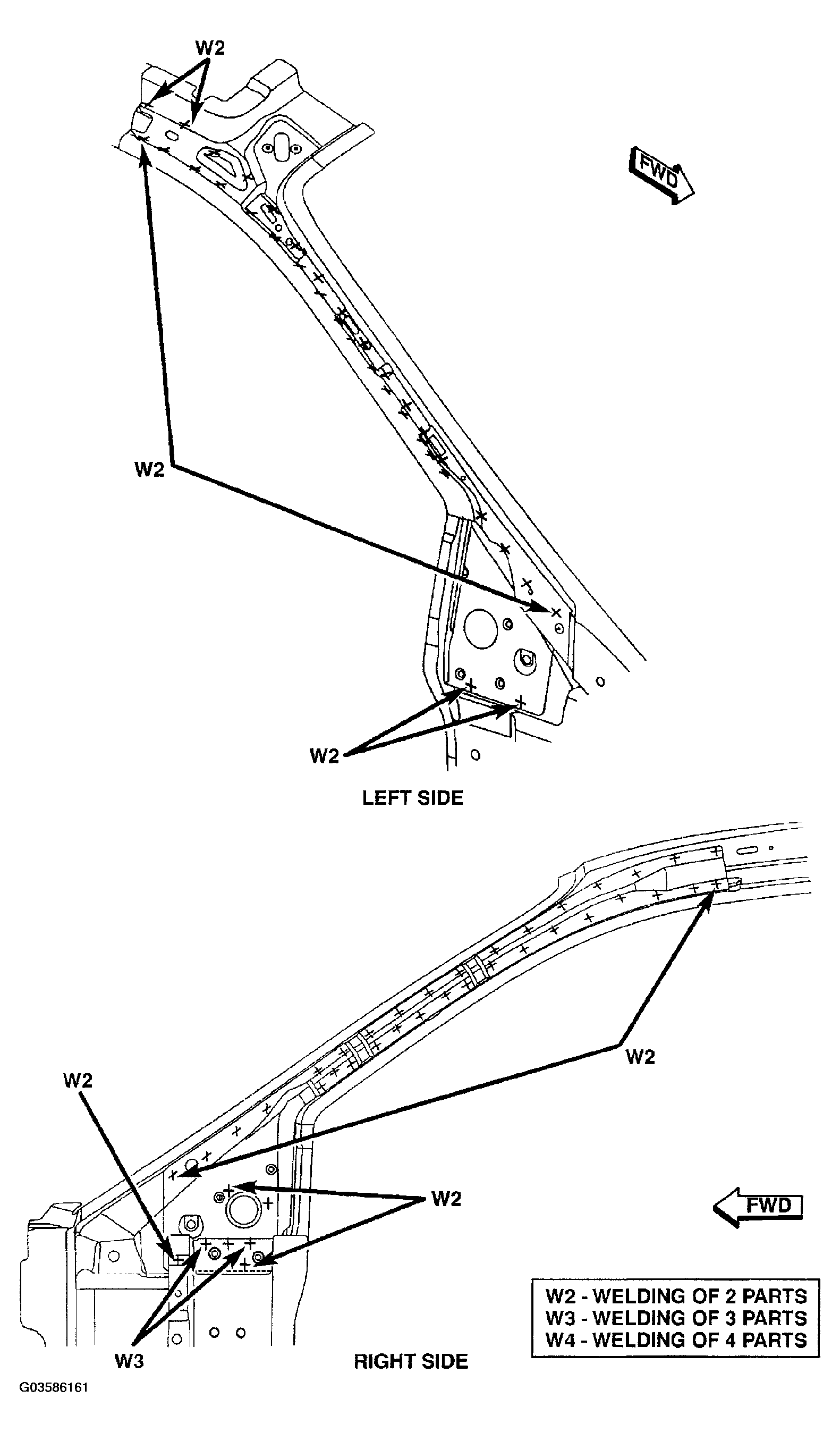

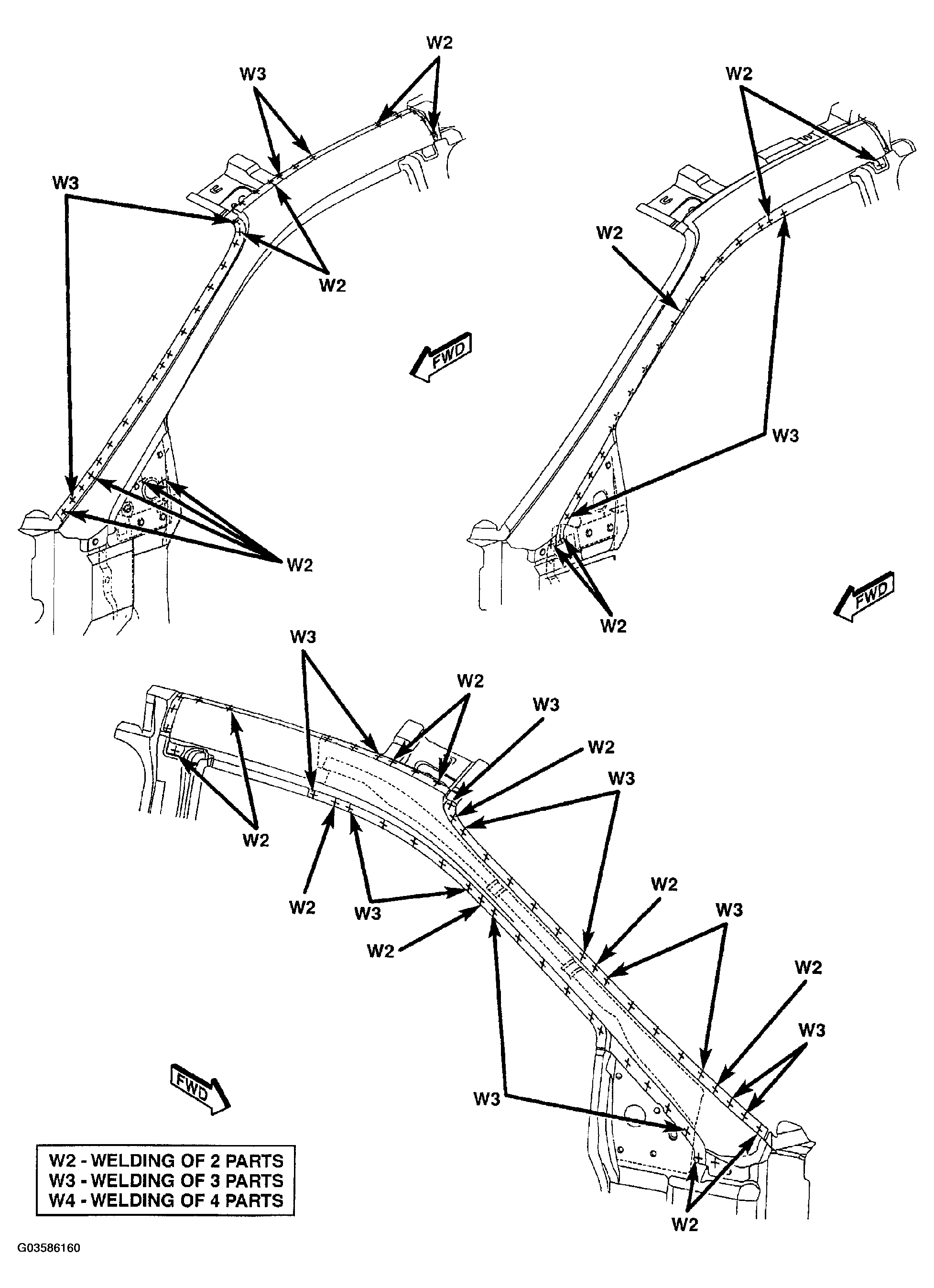

WINDSHIELD FRAME	Fig 58

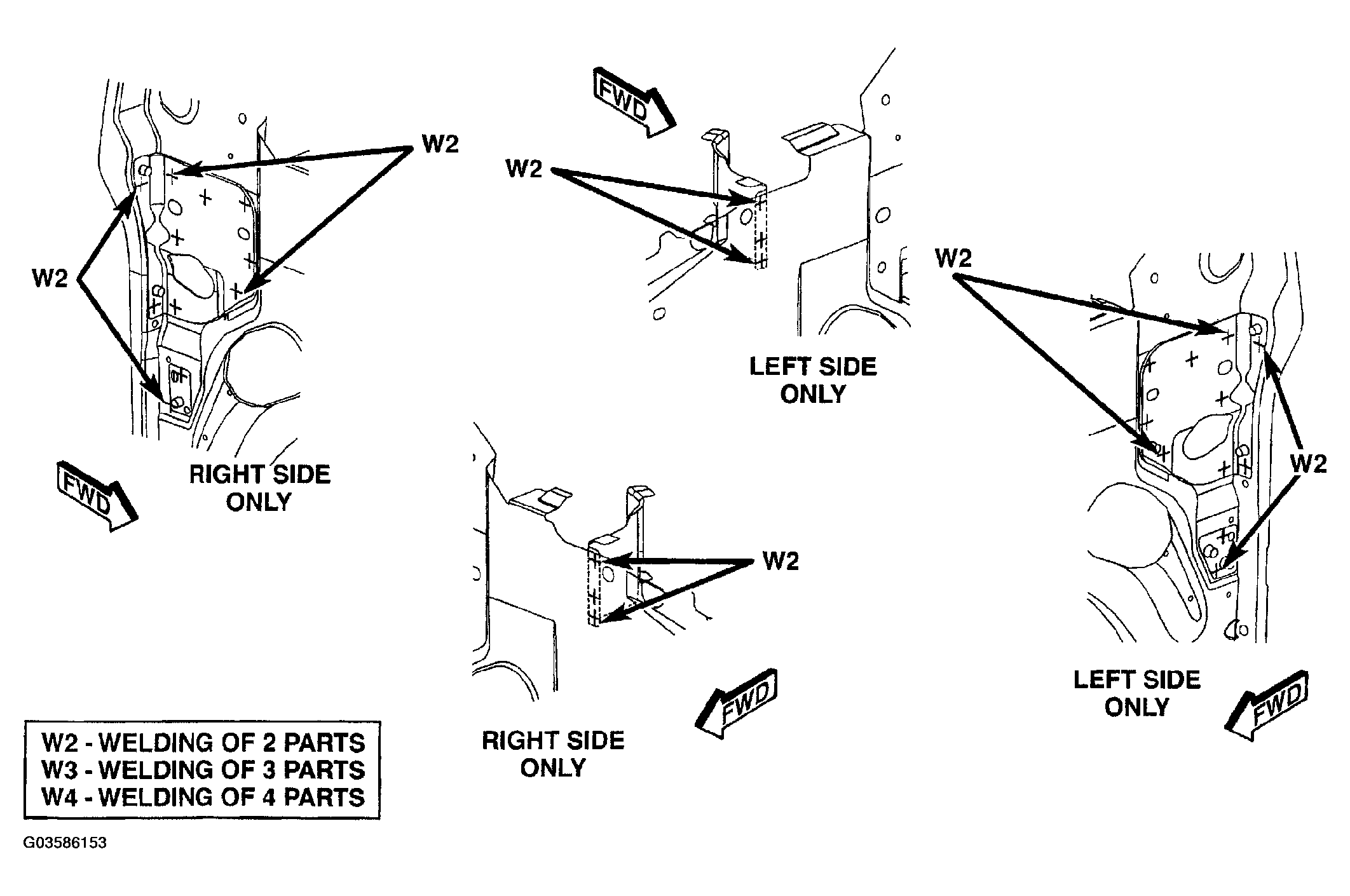

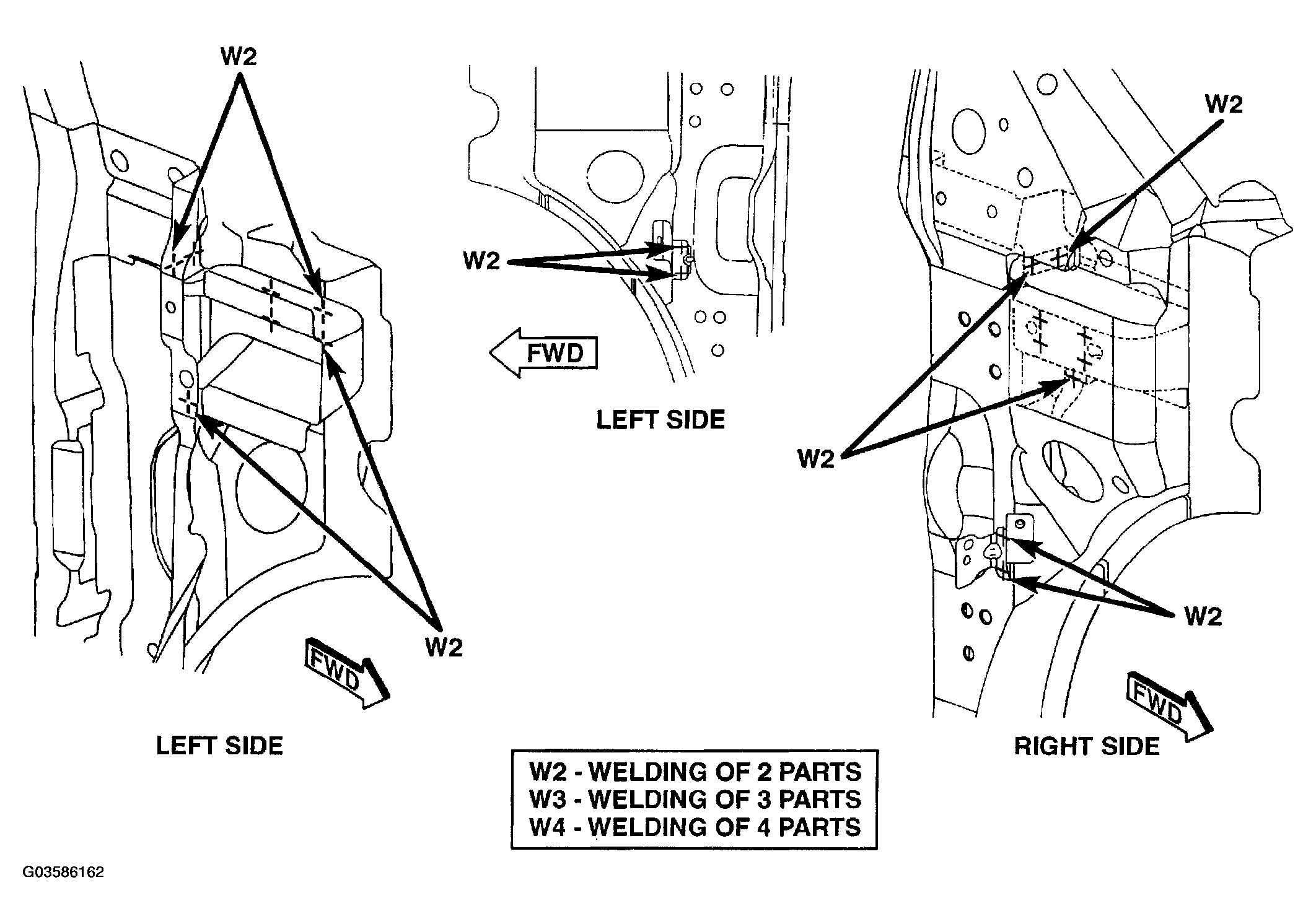

FENDER BRACKET	Fig 59

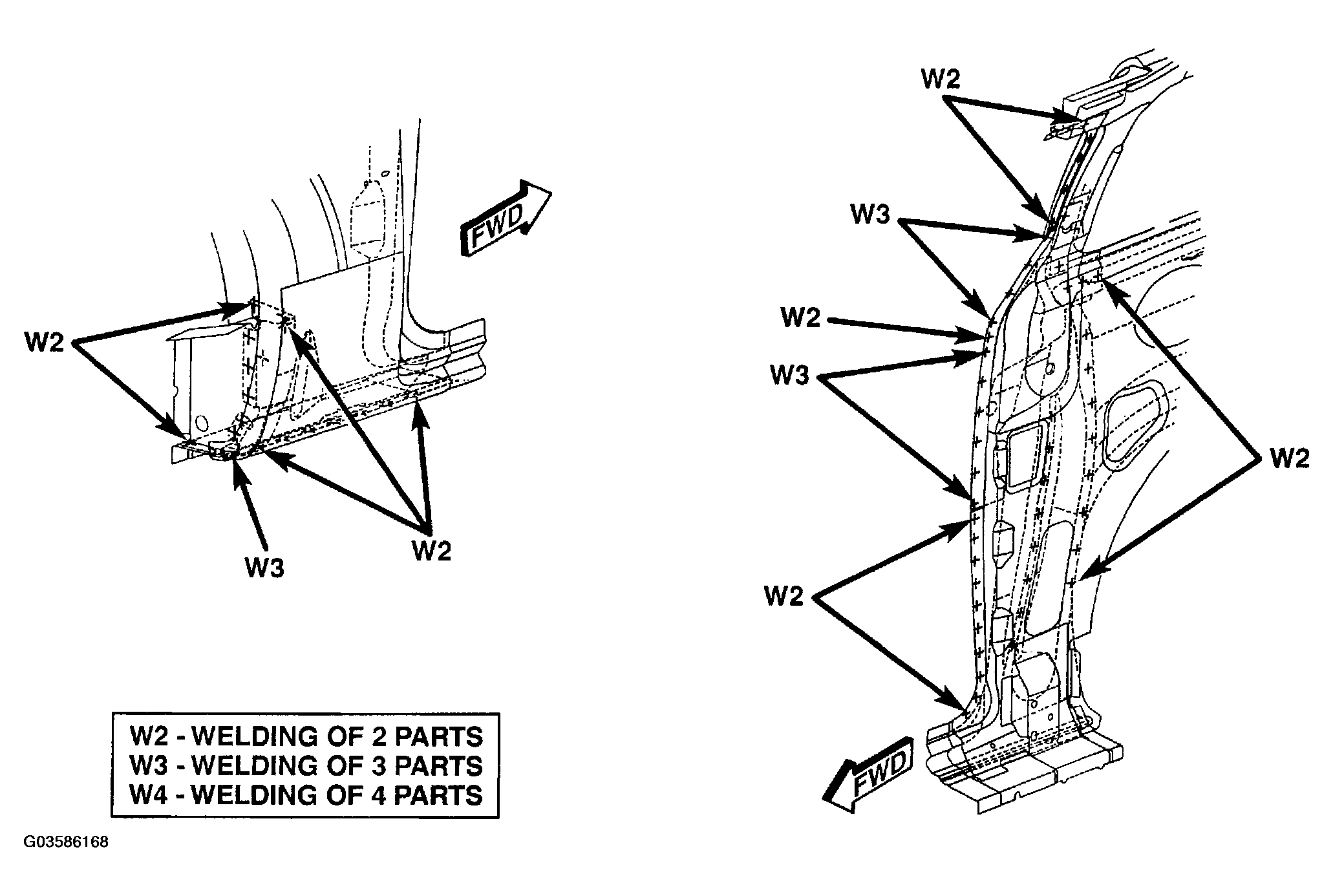

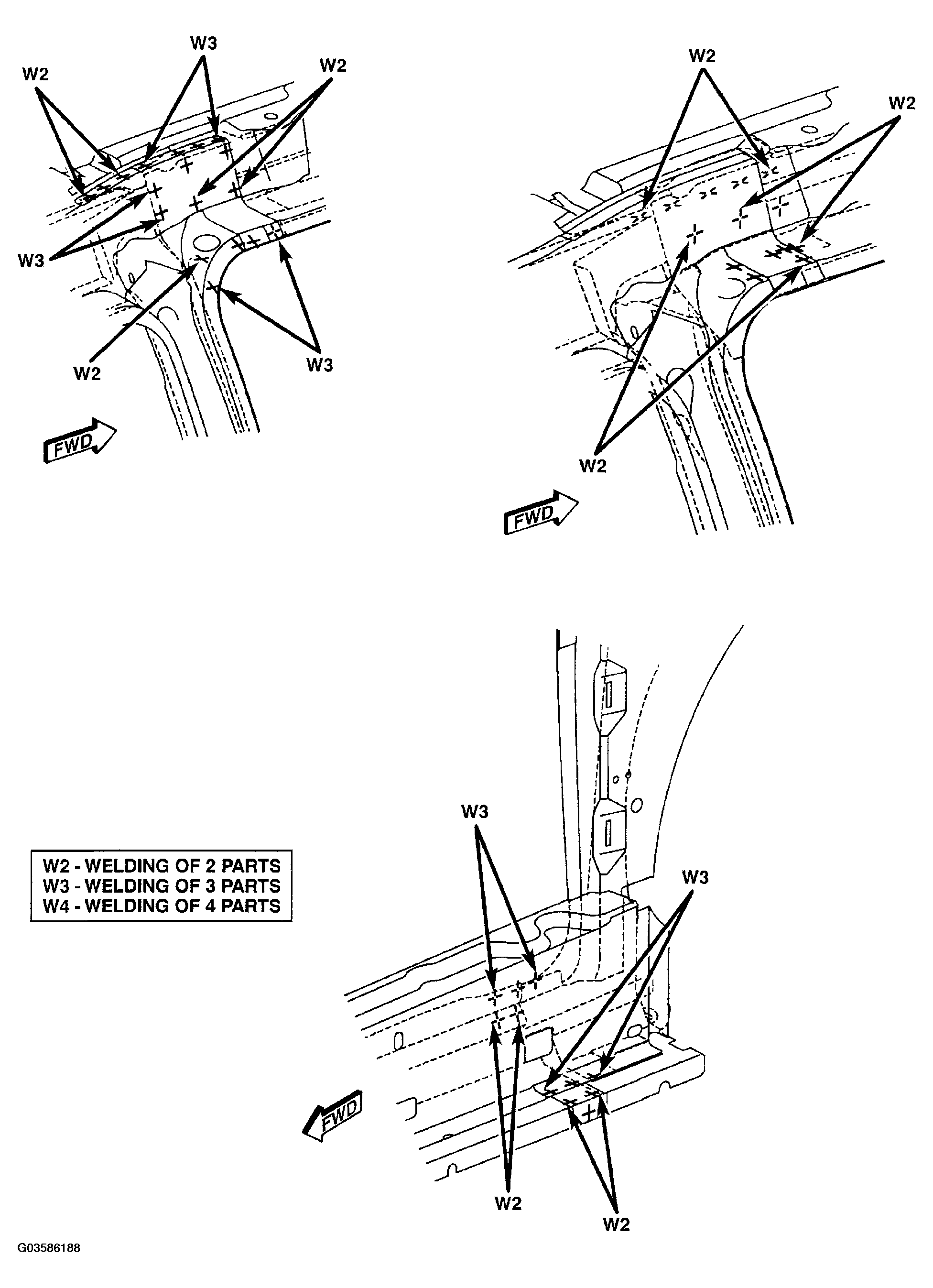

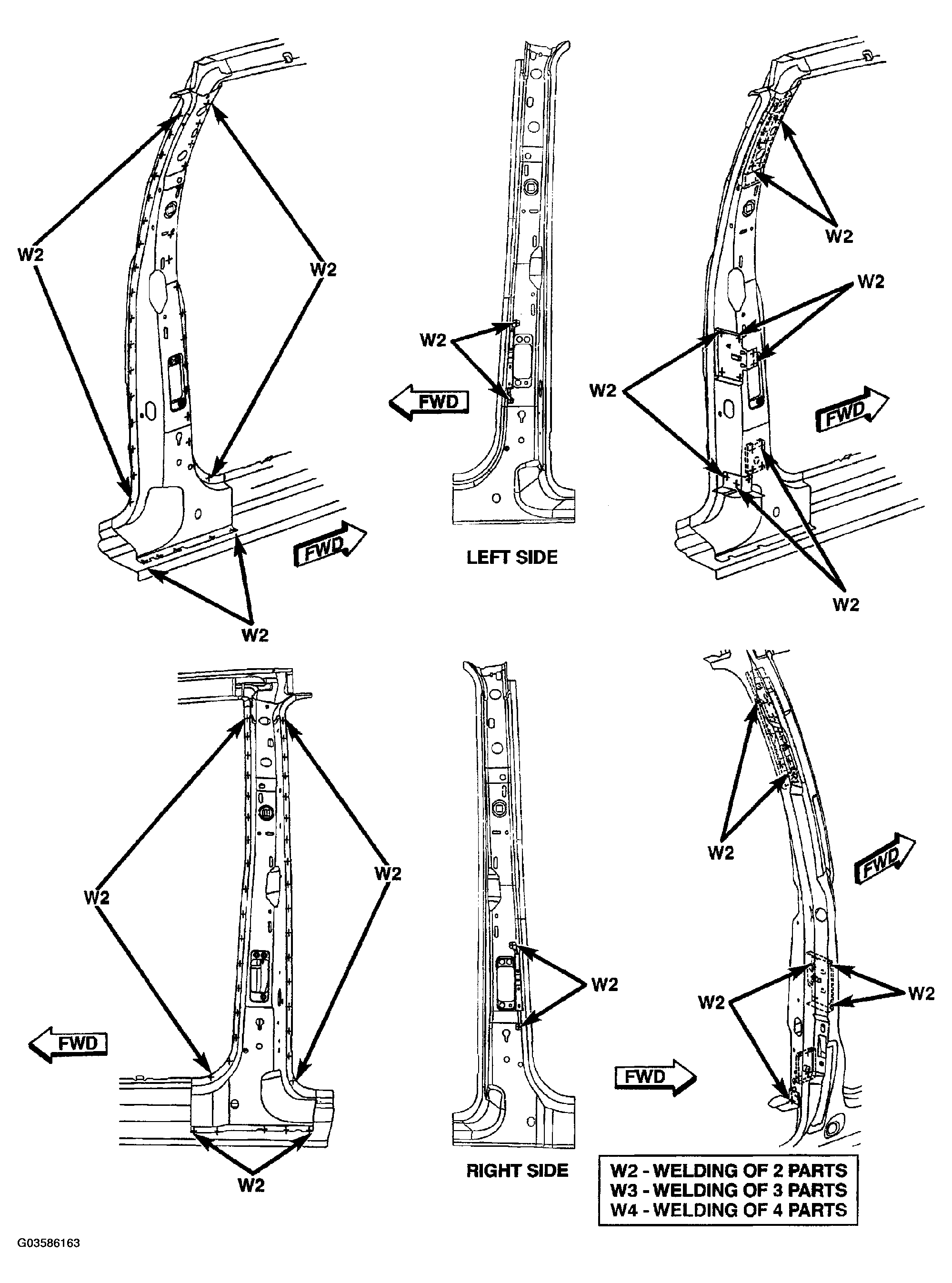

INNER B-PILLAR	Fig 60
STRIKER LATCH AND TAPPING PLATES	Fig 61

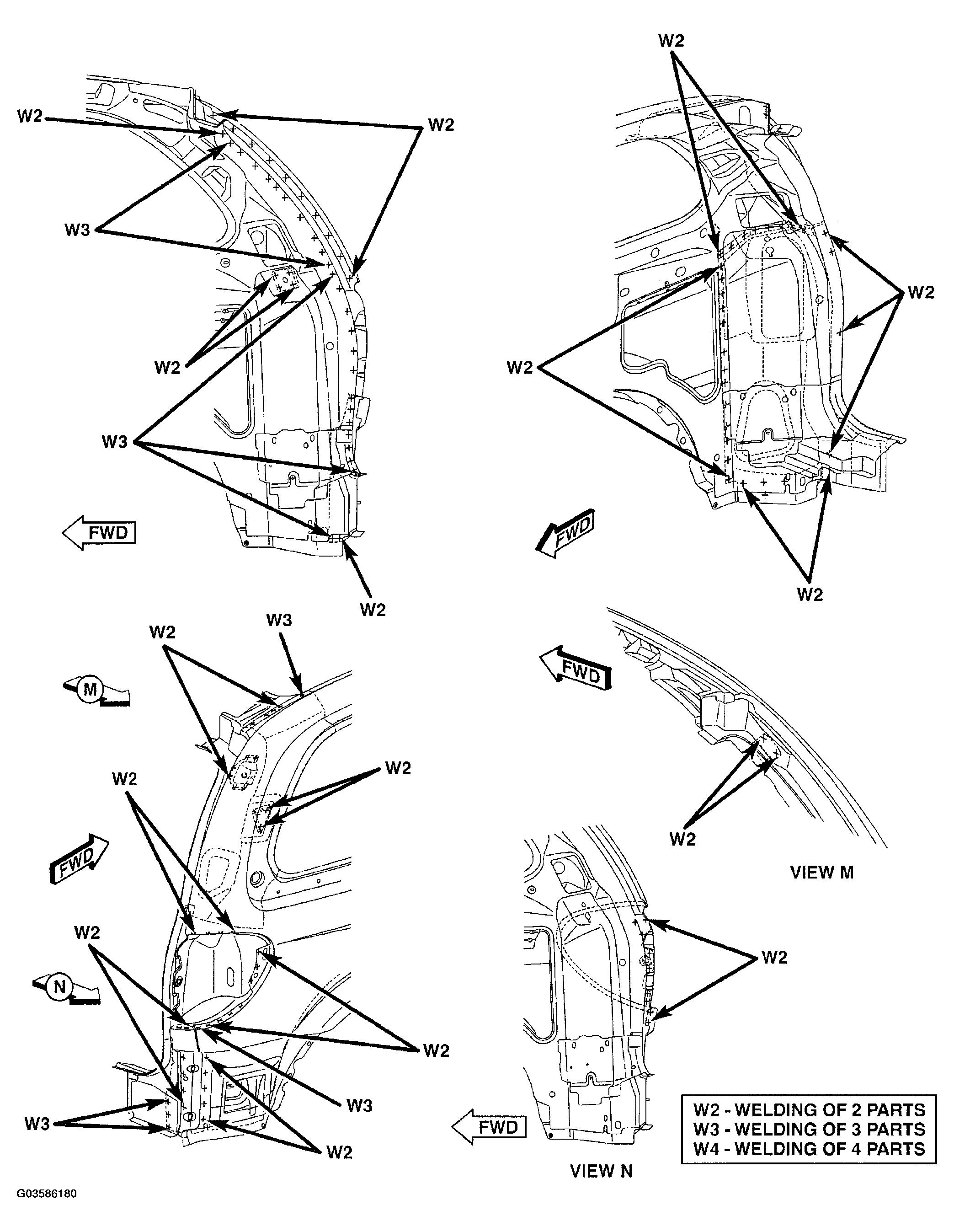

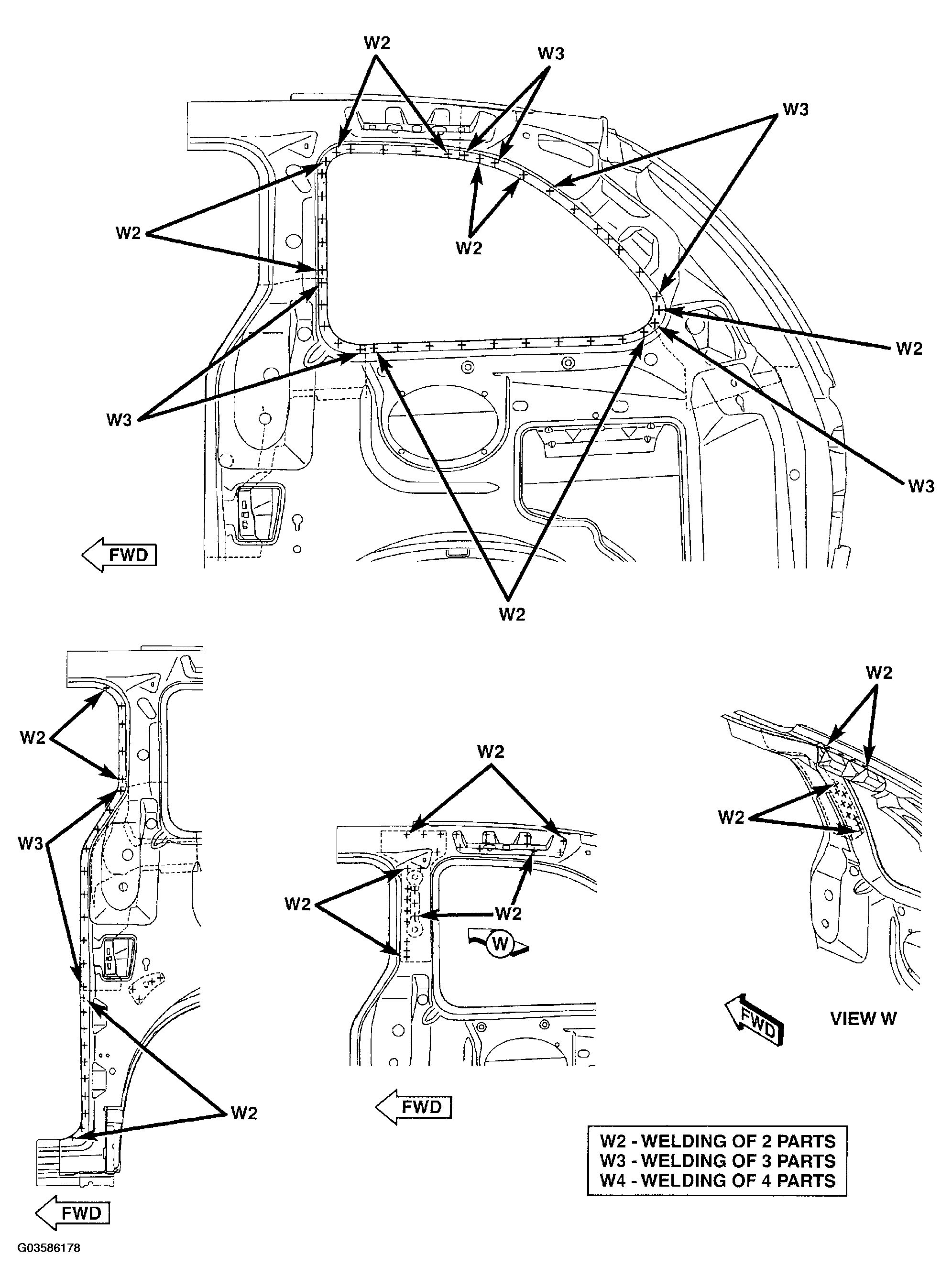

RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY	Fig 62
RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY	Fig 63

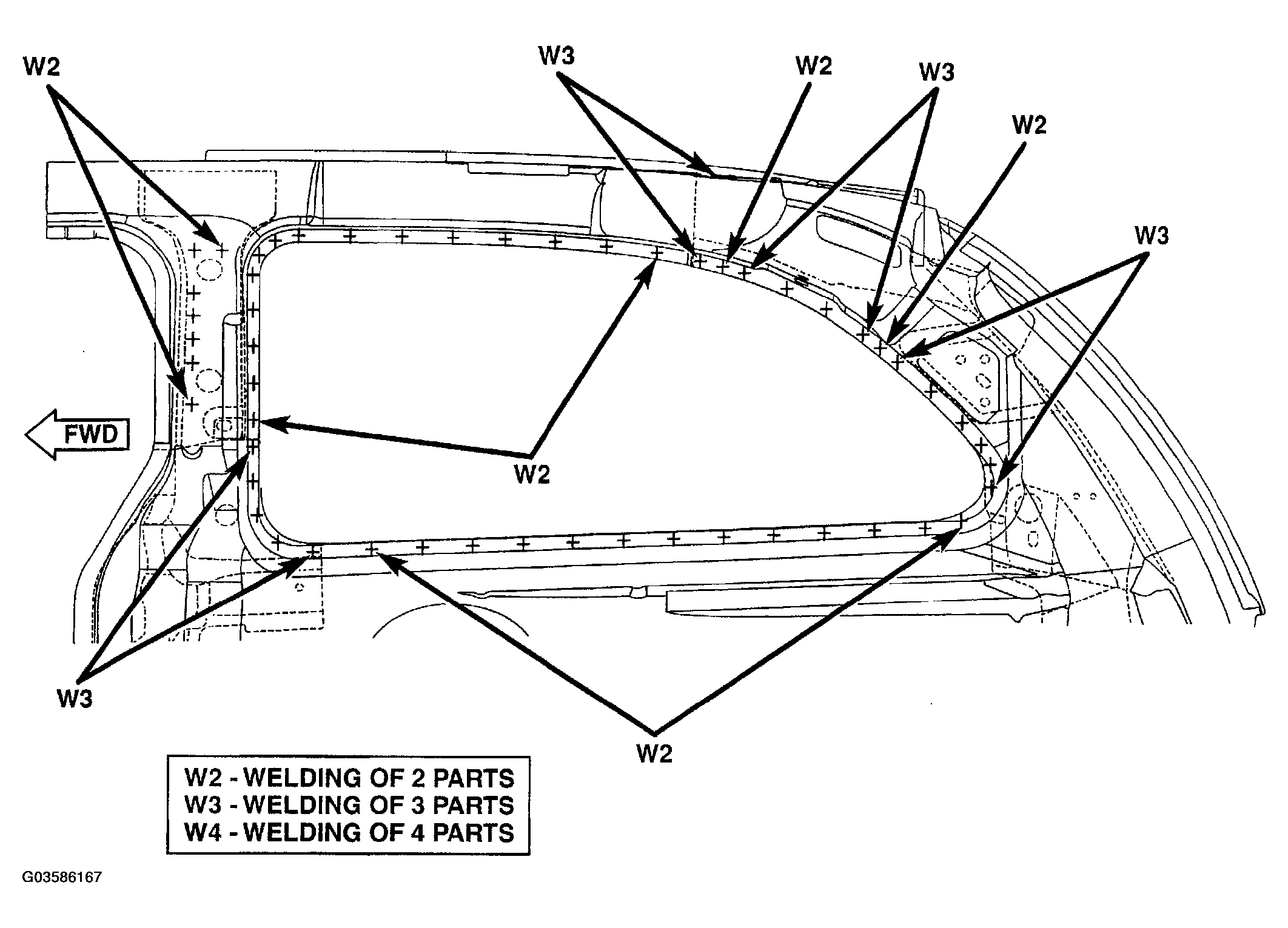

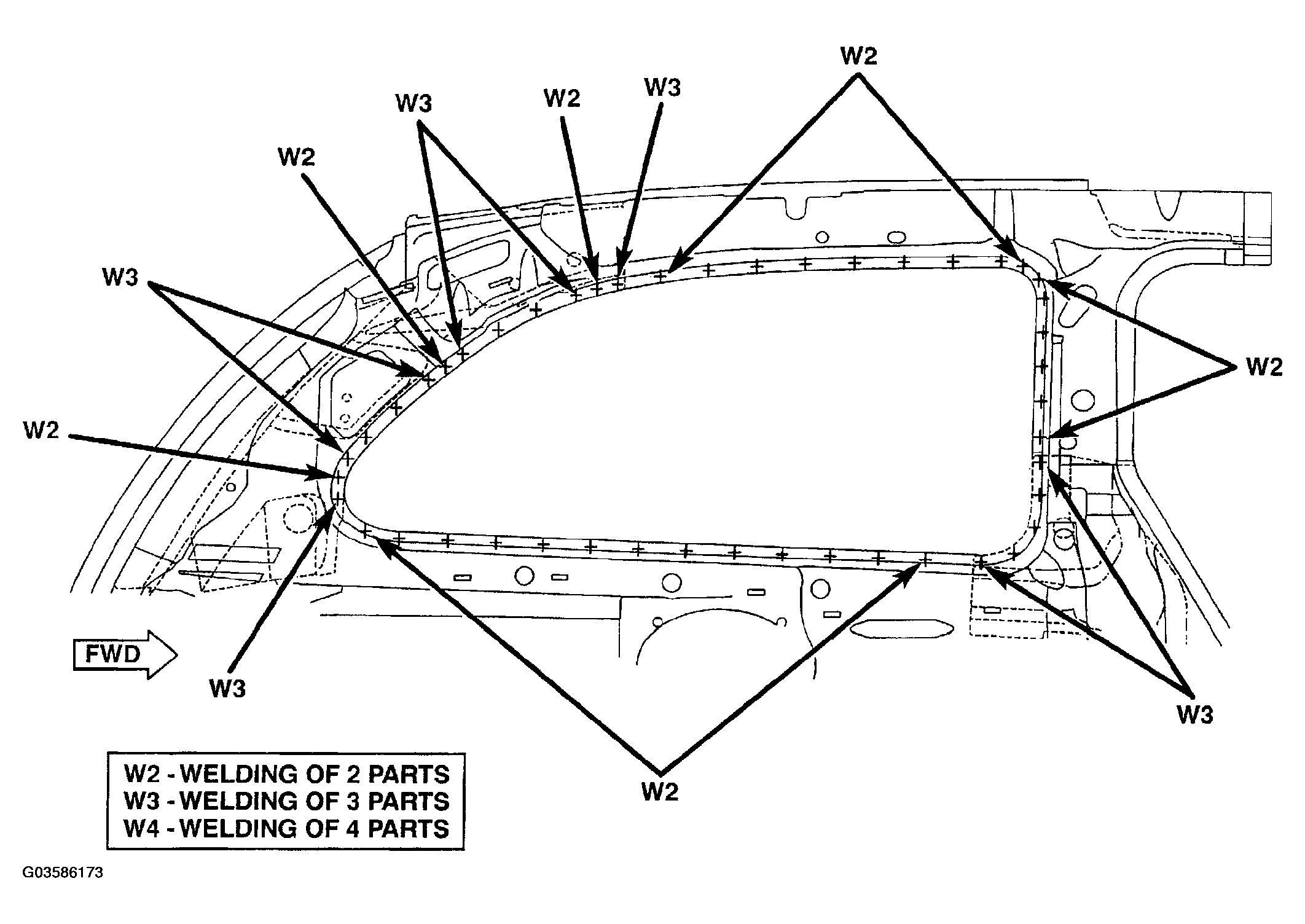

RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY	Fig 64
STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY	Fig 65
BELT TAPPING PLATE - LONG WHEEL BASE ONLY	Fig 66
C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY	Fig 67

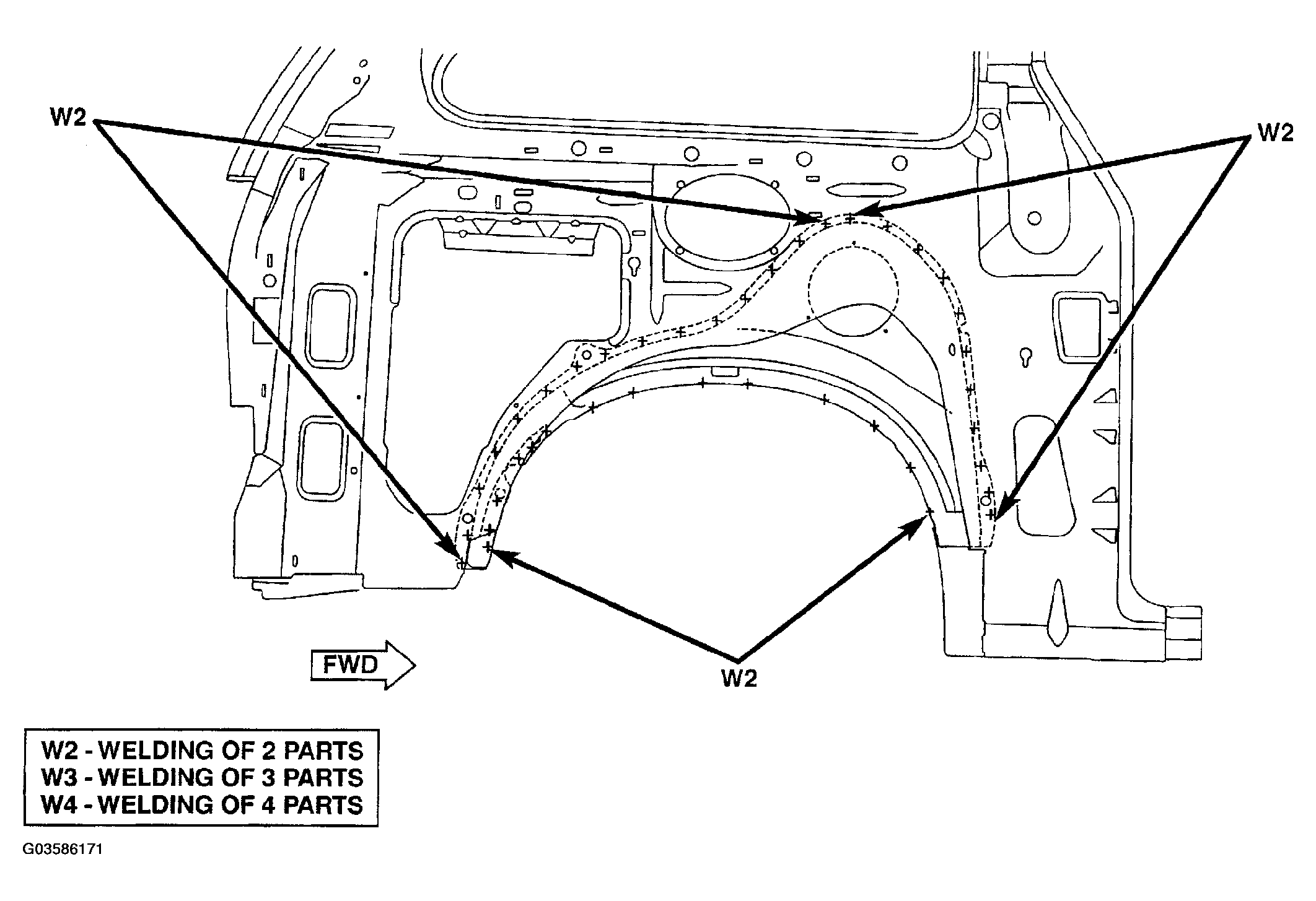

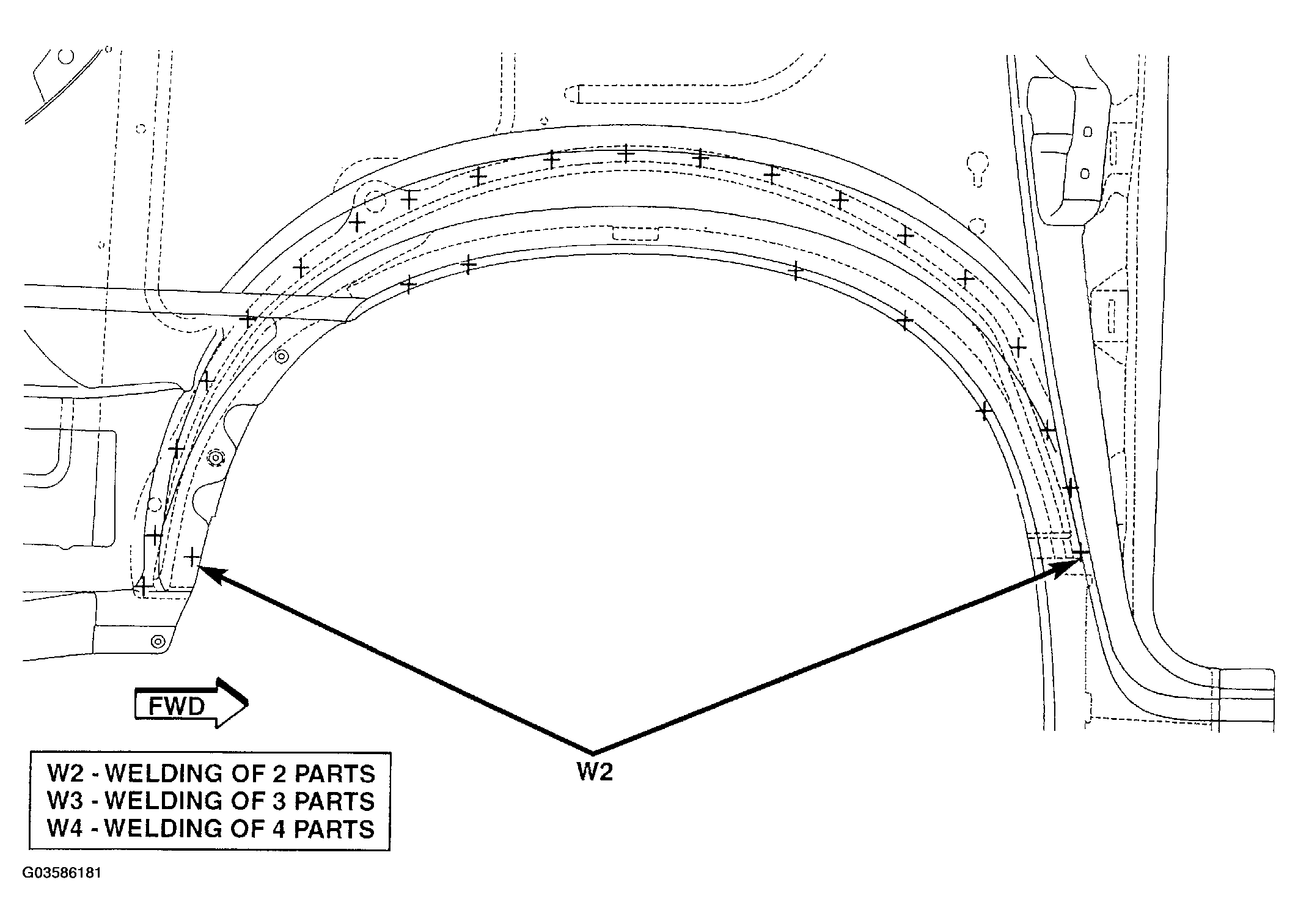

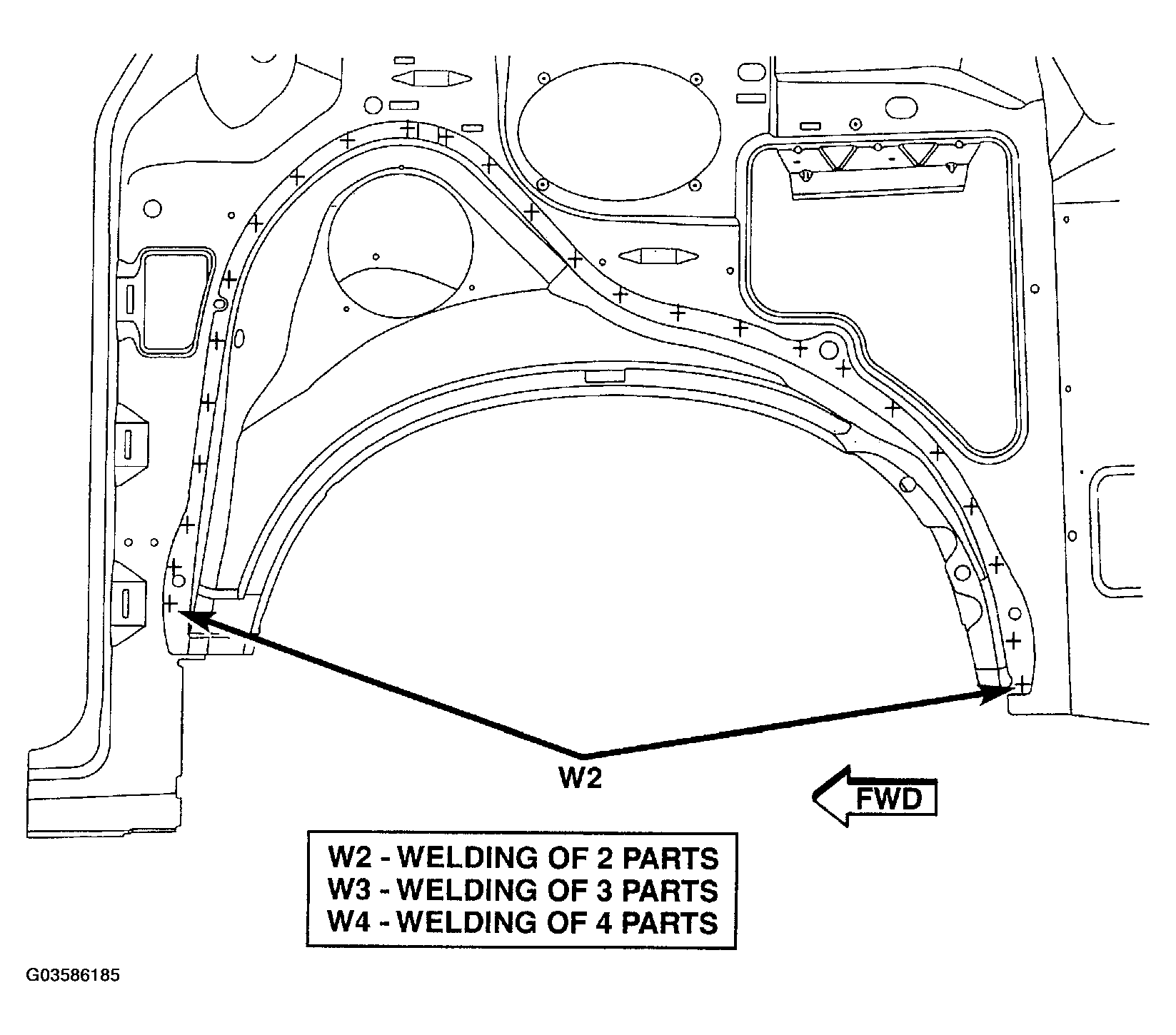

OUTER WHEELHOUSE - LONG WHEEL BASE ONLY	Fig 68

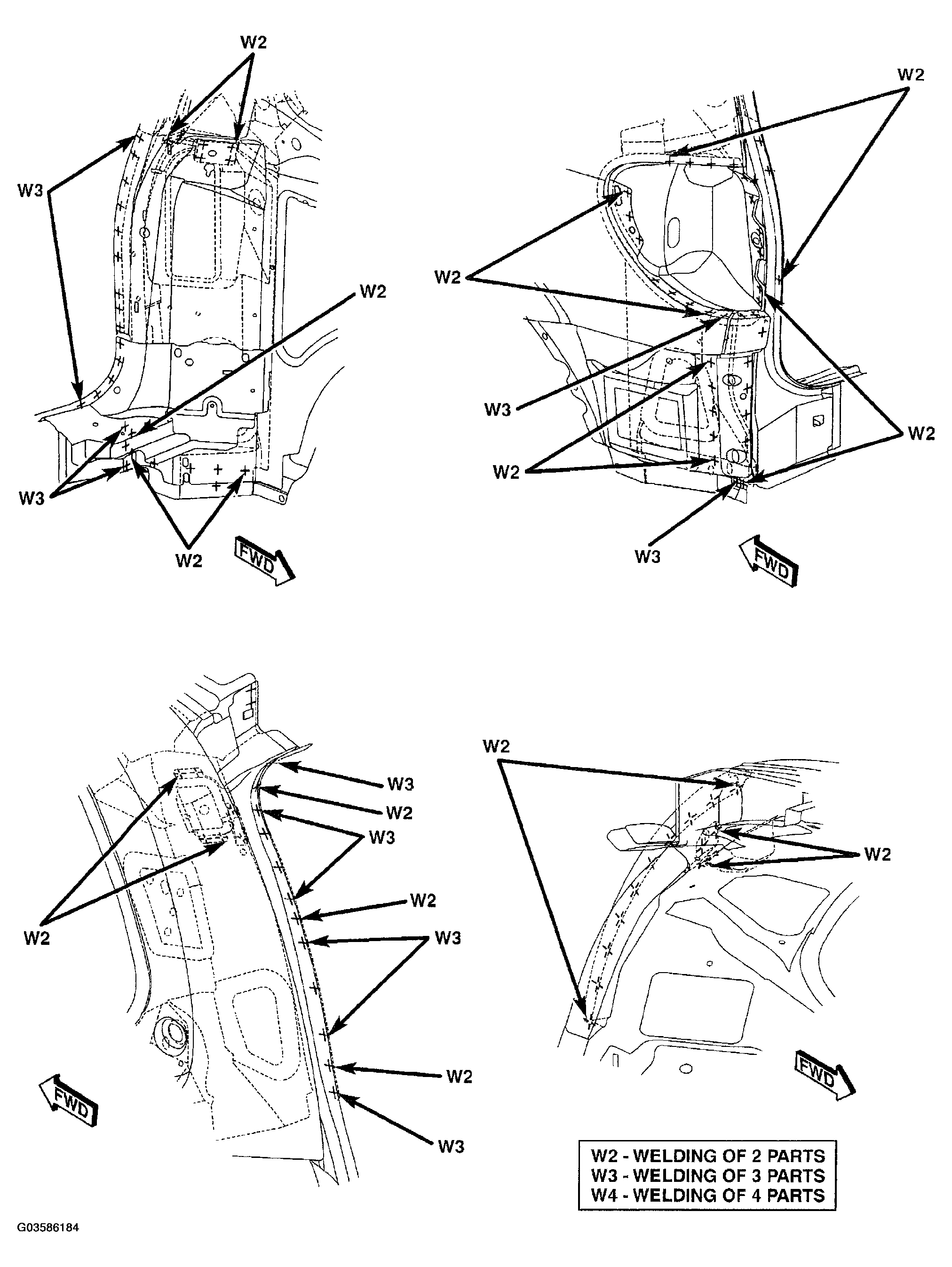

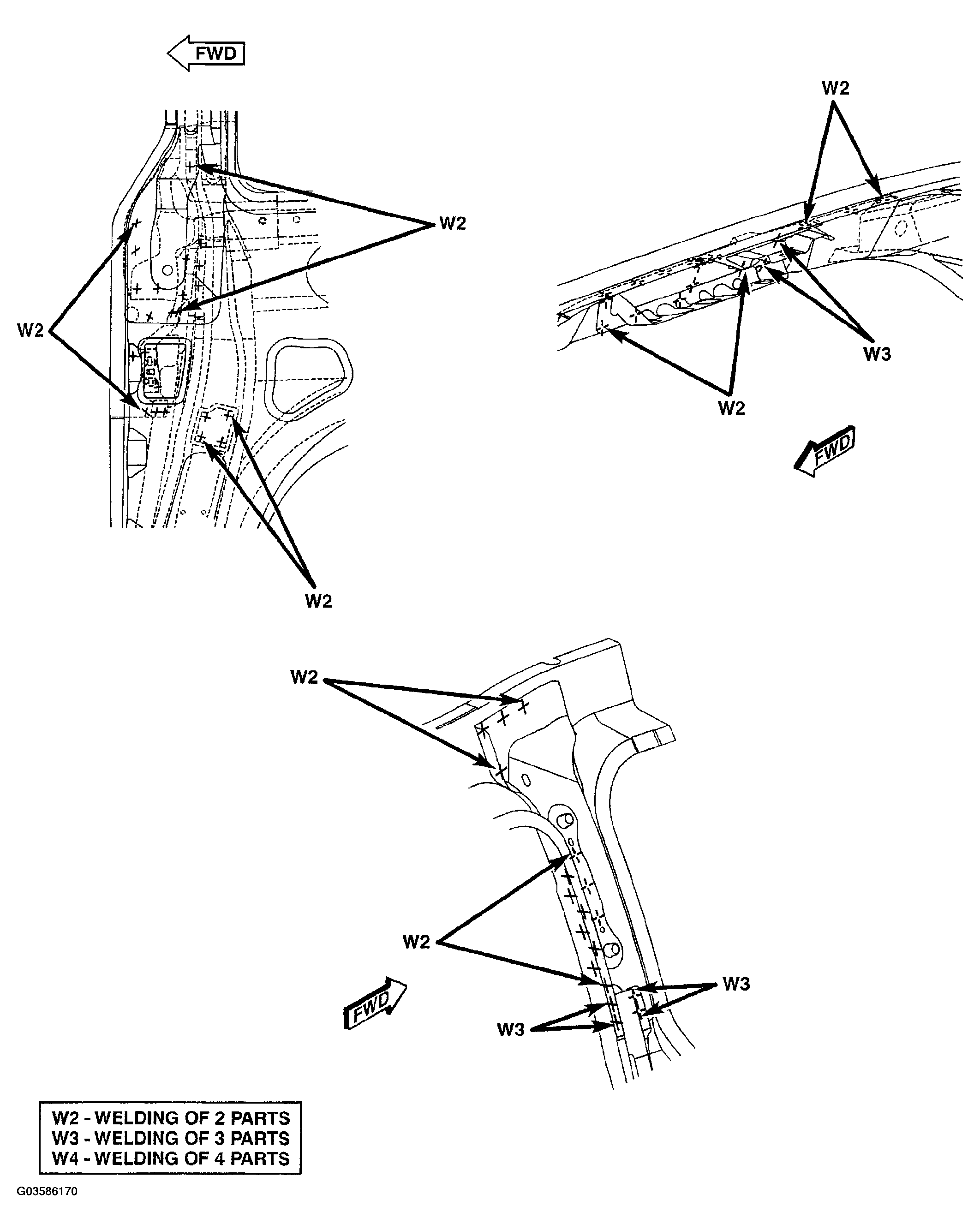

C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY	Fig 69
LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY	Fig 70
OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY	Fig 71
TAIL LAMP - LONG WHEEL BASE ONLY	Fig 72
SLIDING DOOR LATCH - LONG WHEEL BASE ONLY	Fig 73
ROOF BOW EXTENSION - LONG WHEEL BASE ONLY	Fig 74
RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY	Fig 75

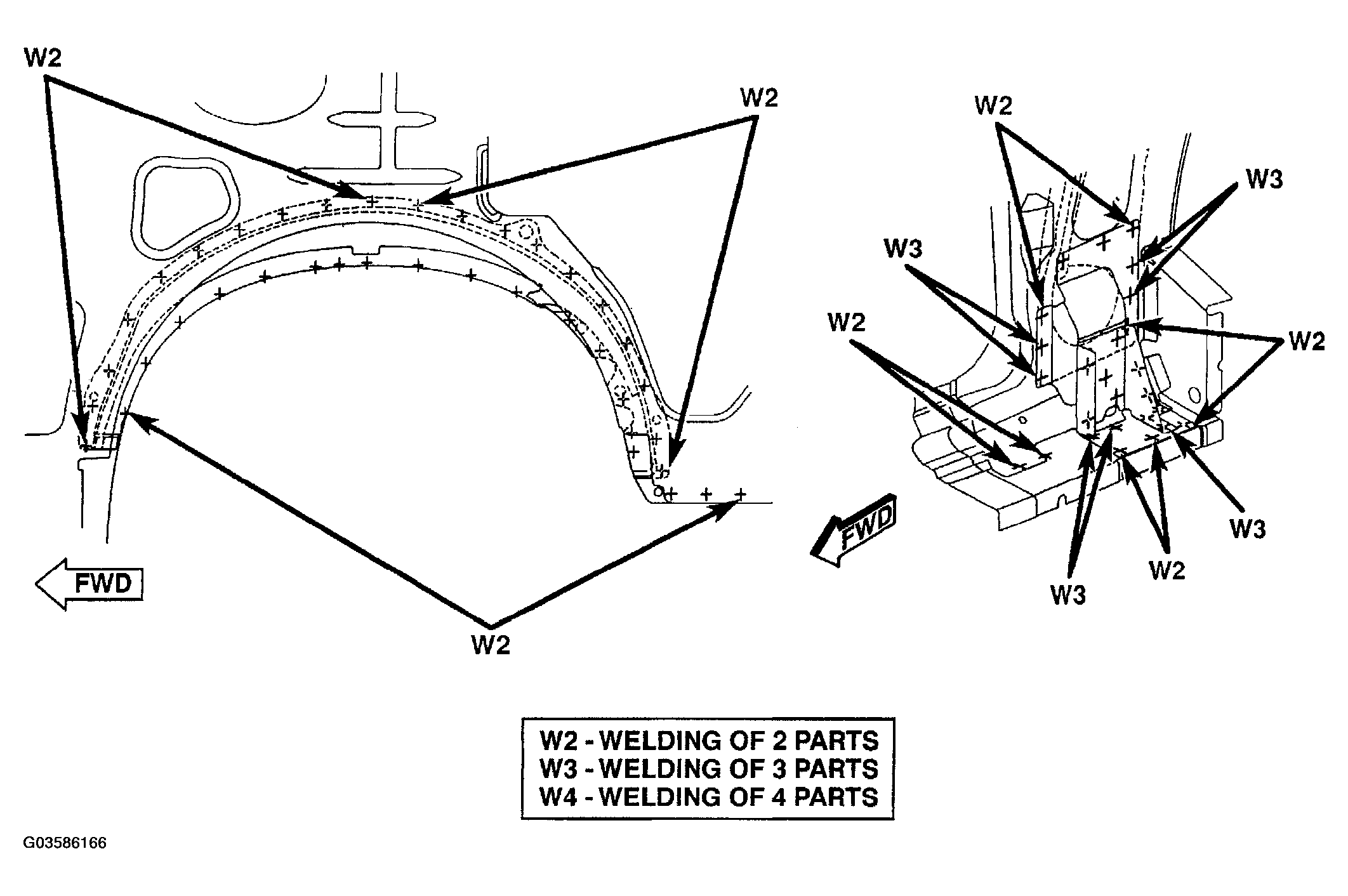

LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY	Fig 76

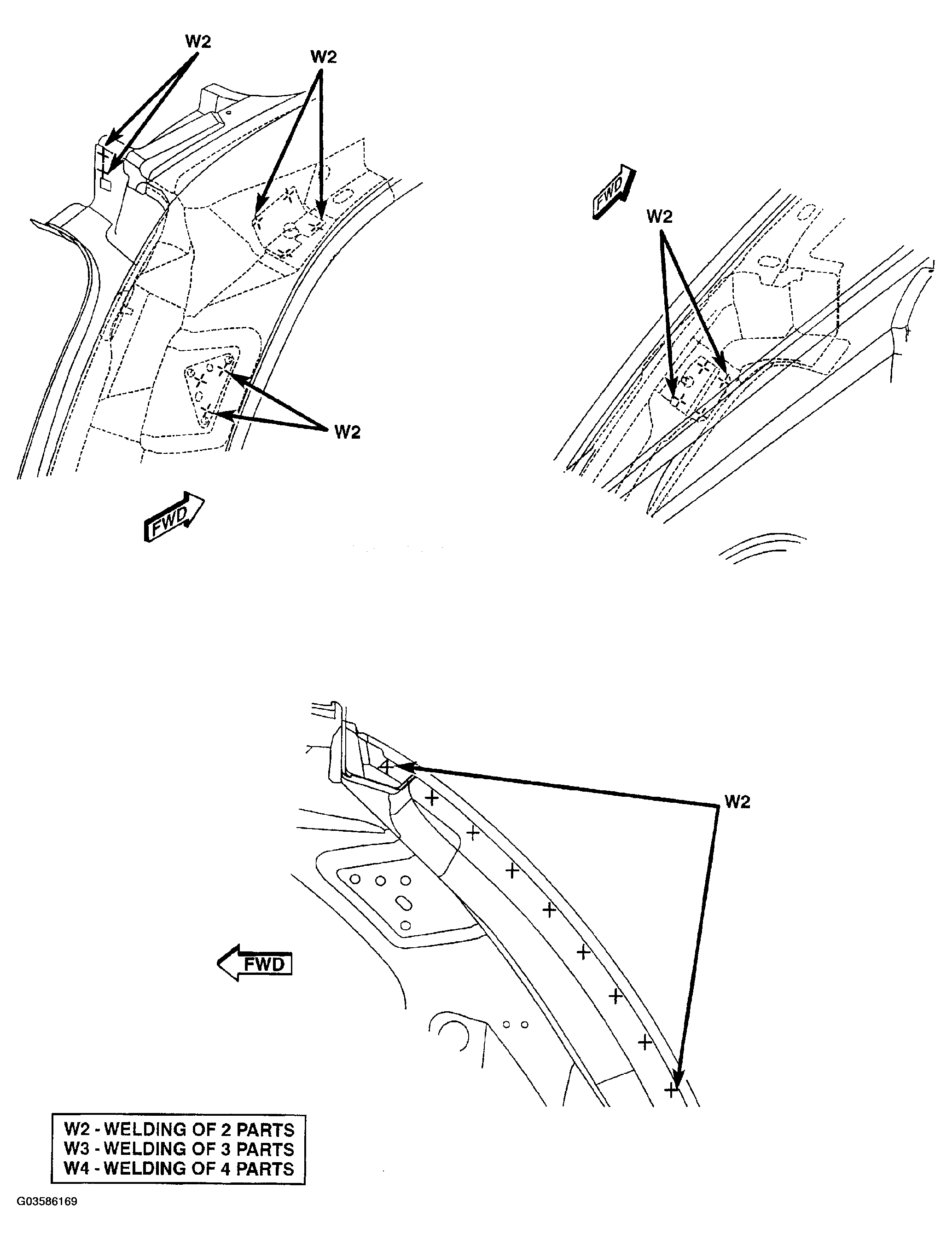

D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 77

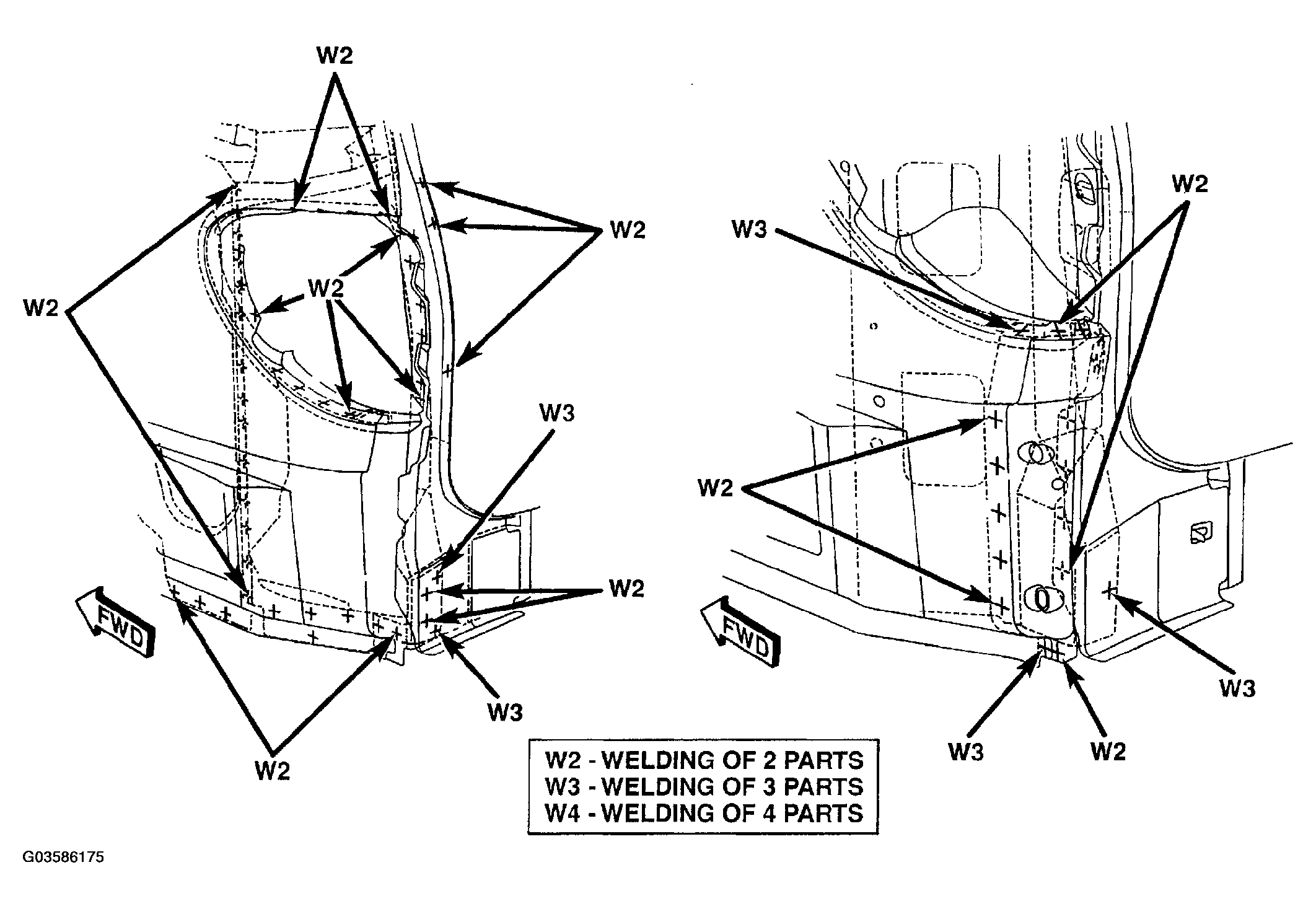

OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY	Fig 78
LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY	Fig 79
LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 80
D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 81
OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY	Fig 82

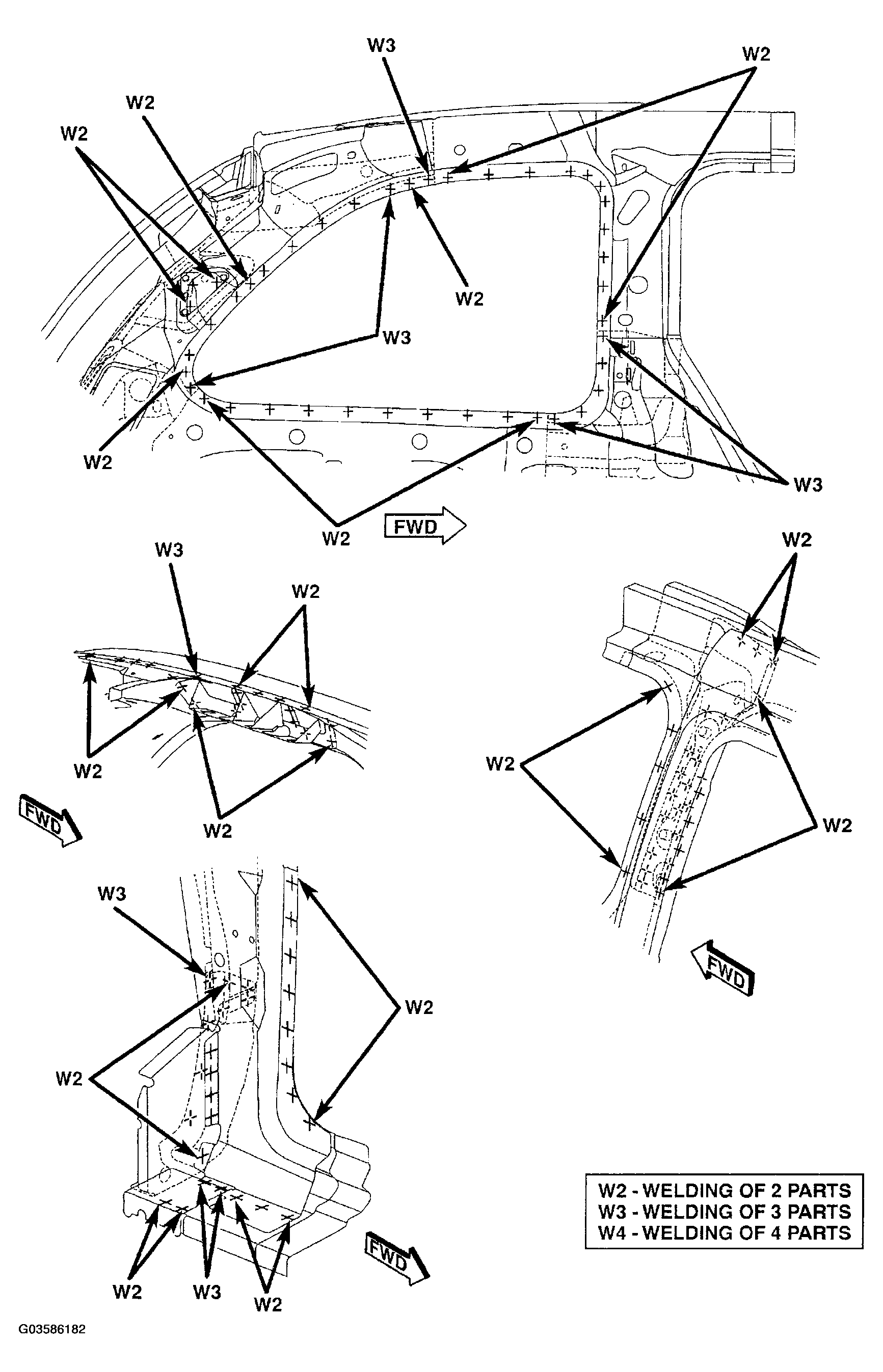

BODY SIDE APERTURE RIGHT SIDE - LONG WHEEL BASE ONLY	Fig 83
BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY	Fig 84
BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY	Fig 85
BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY	Fig 86
LOWER SLIDING DOOR TRACK	Fig 87

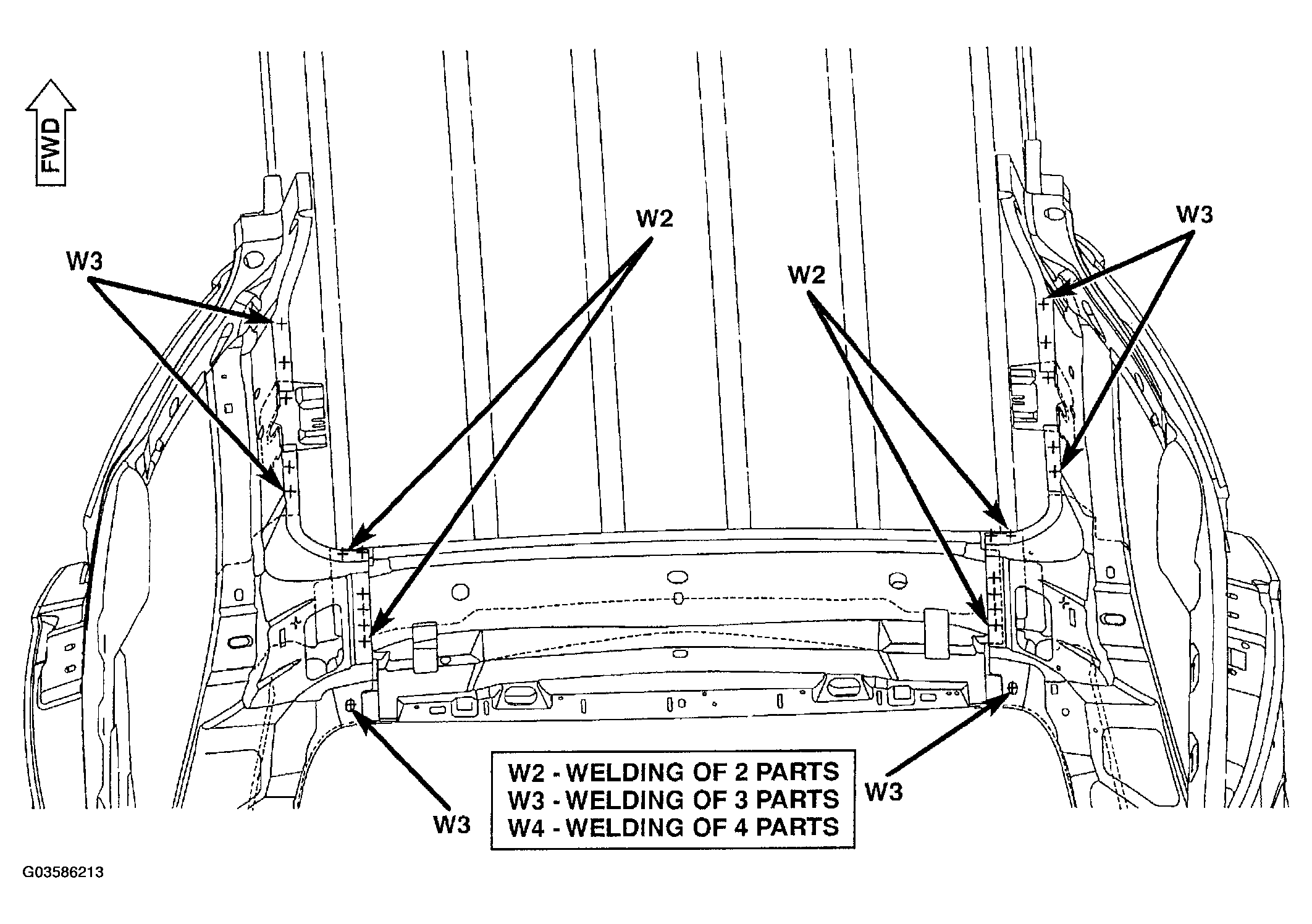

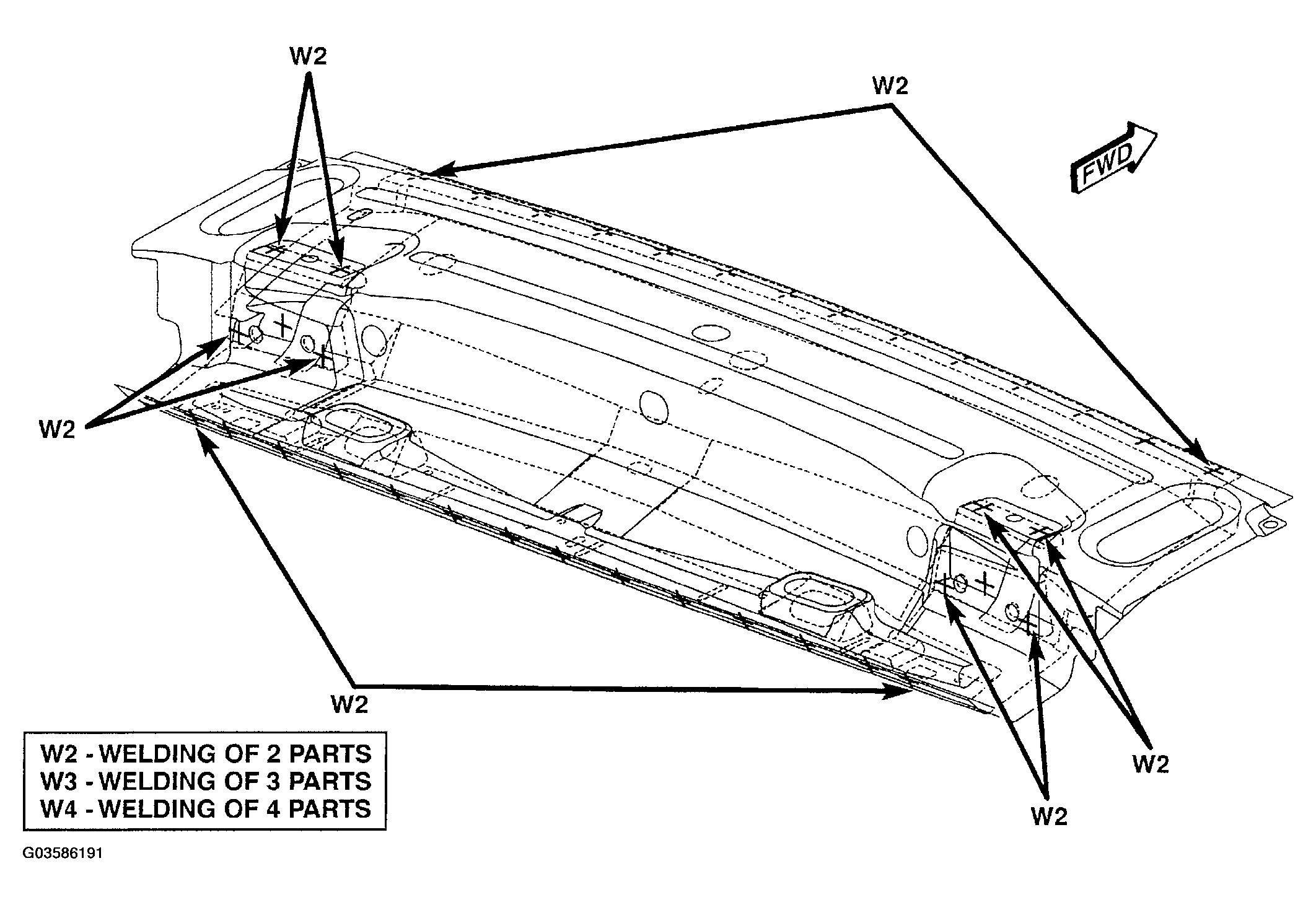

LIFTGATE UPPER FRAME	Fig 88

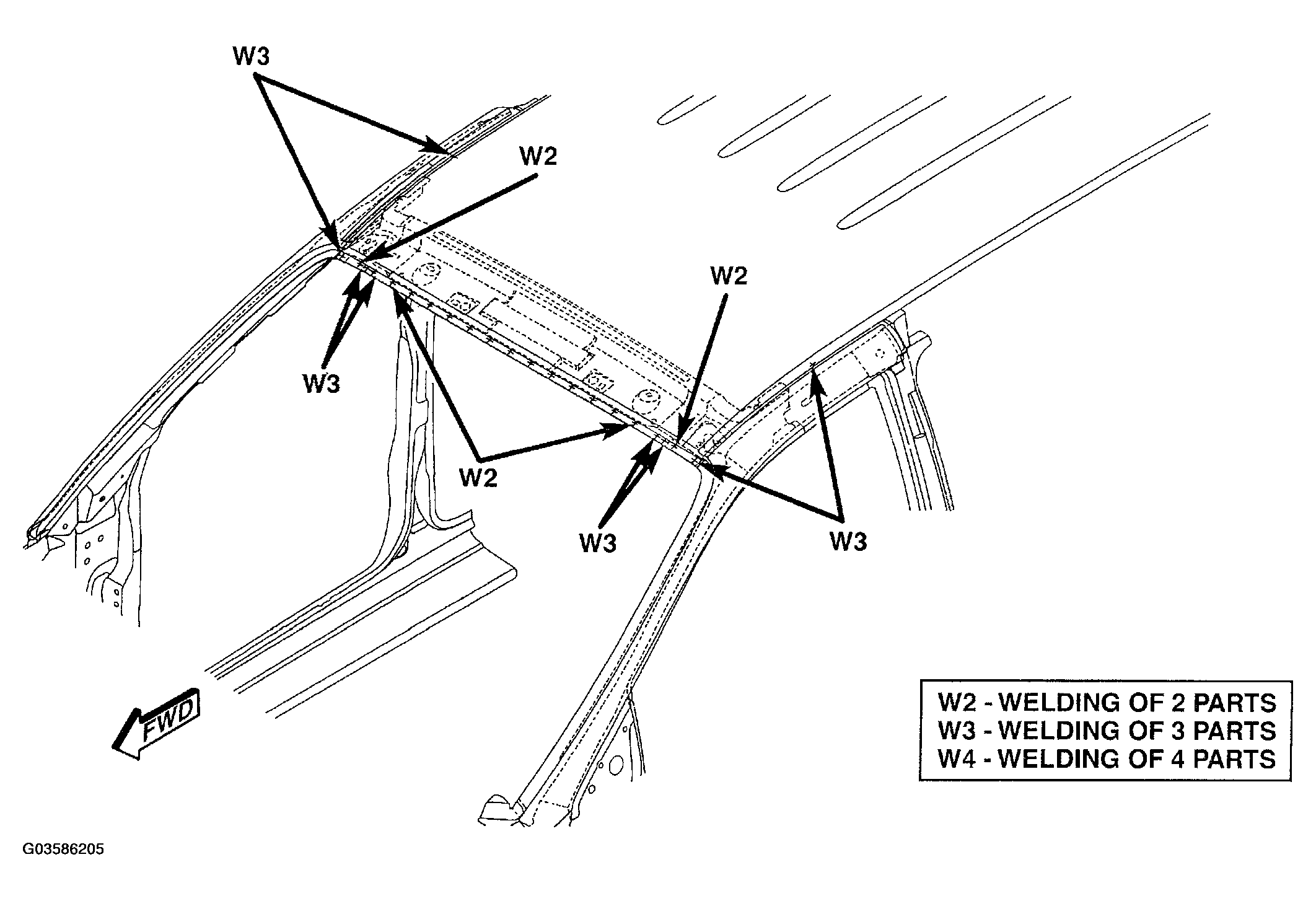

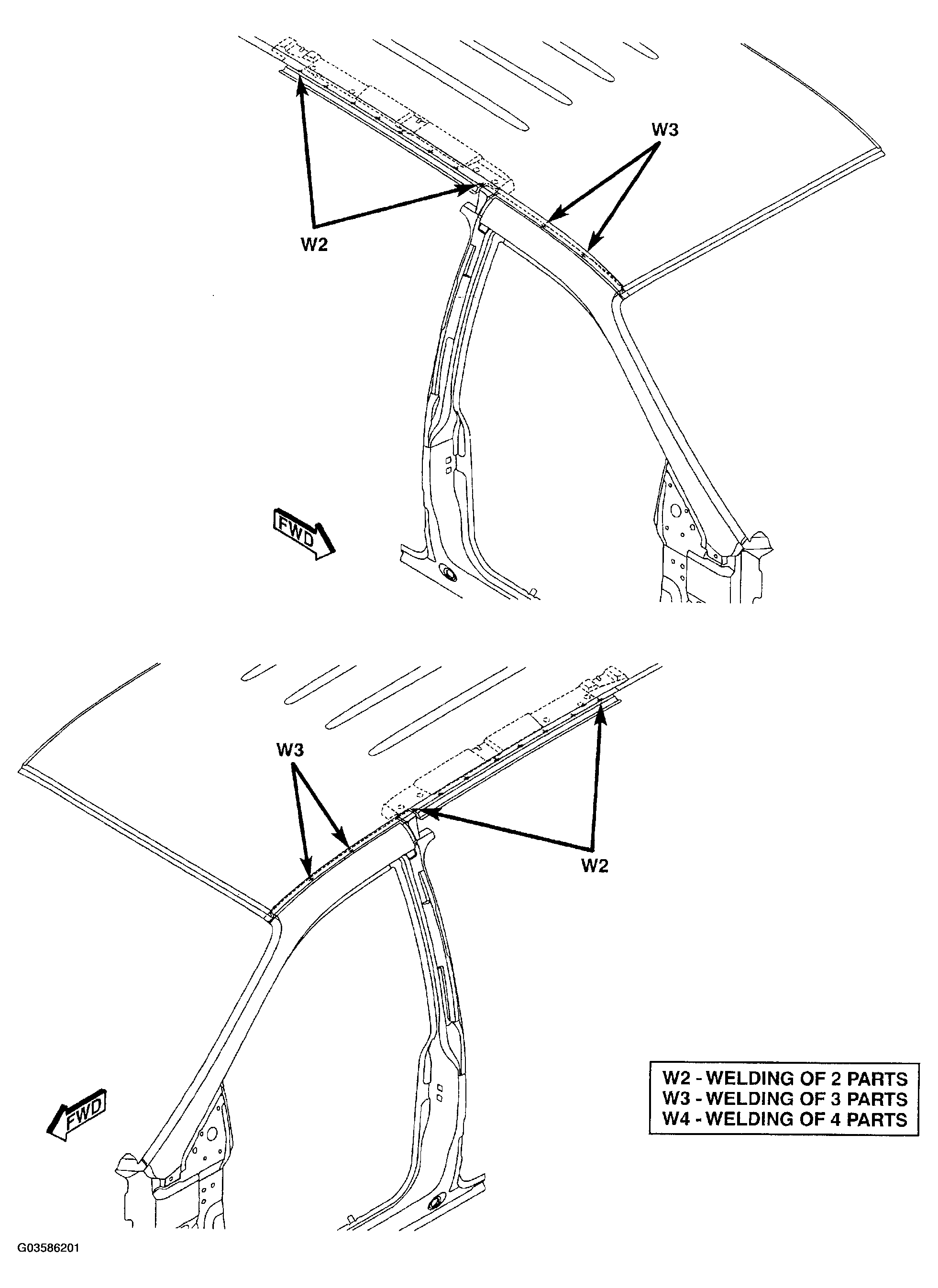

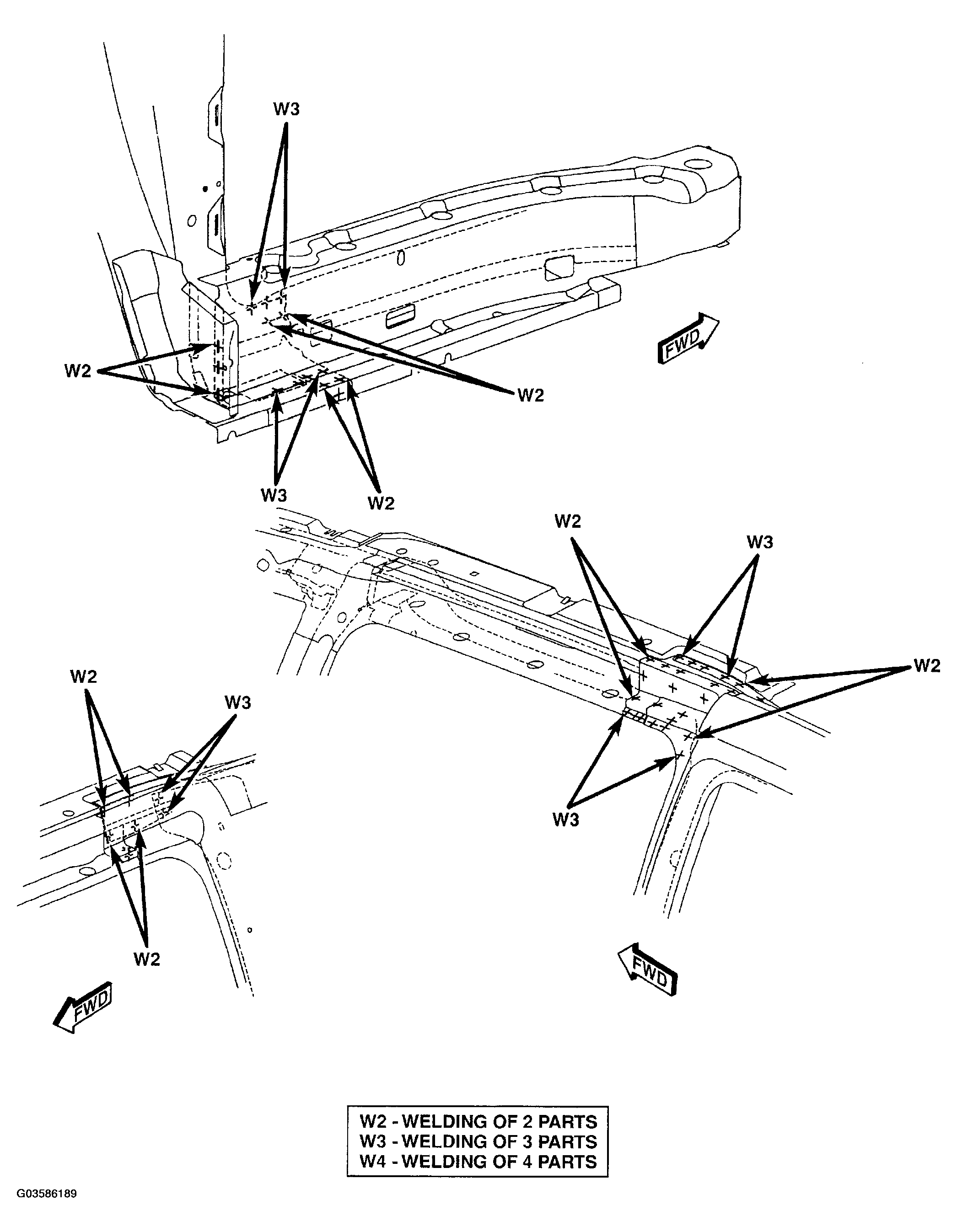

UPPER WINDSHIELD FRAME	Fig 89

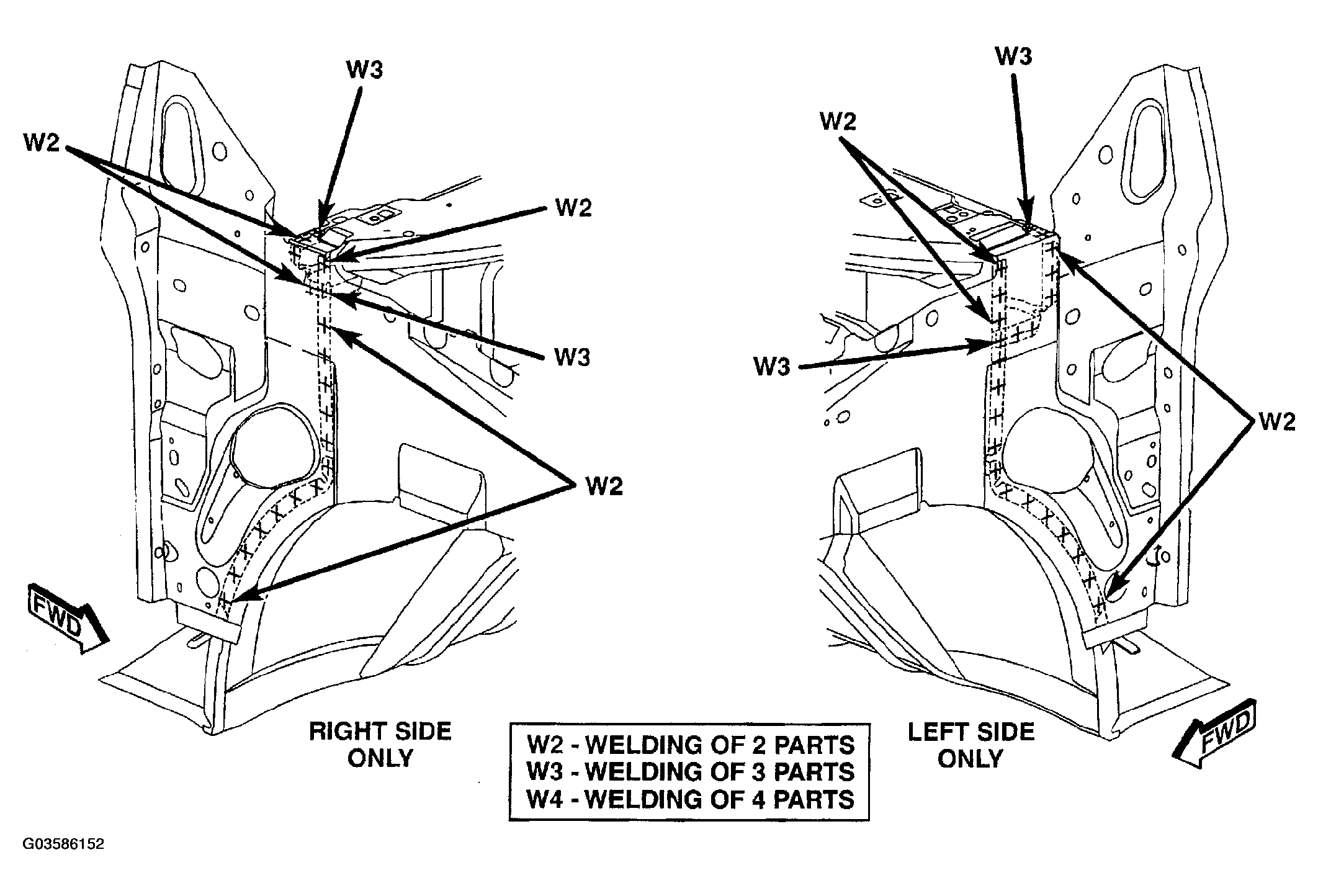

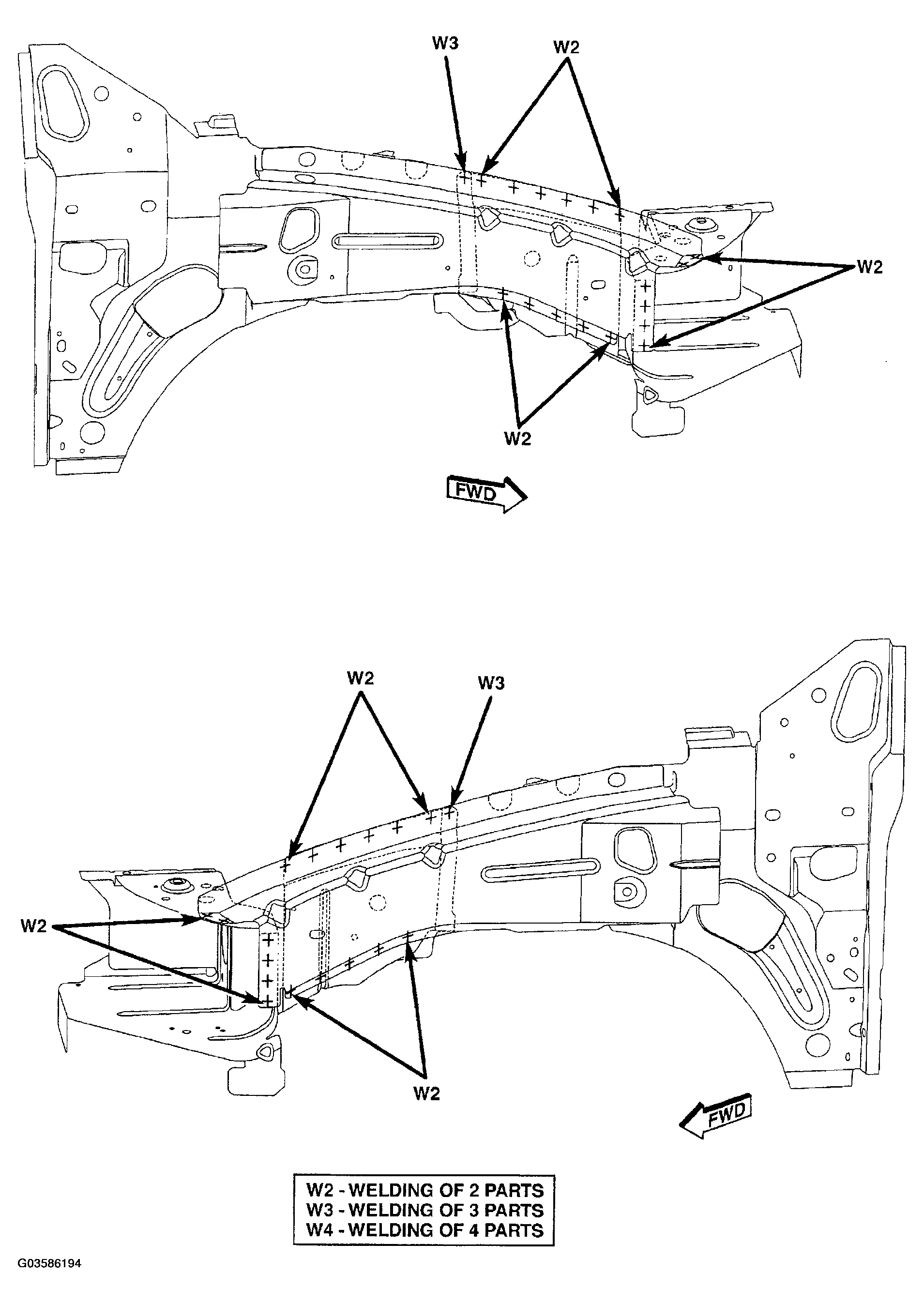

FRONT FENDER SHIELD BEAM	Fig 90
FRONT FENDER SHIELD BEAM/COWL SIDE PANEL	Fig 91

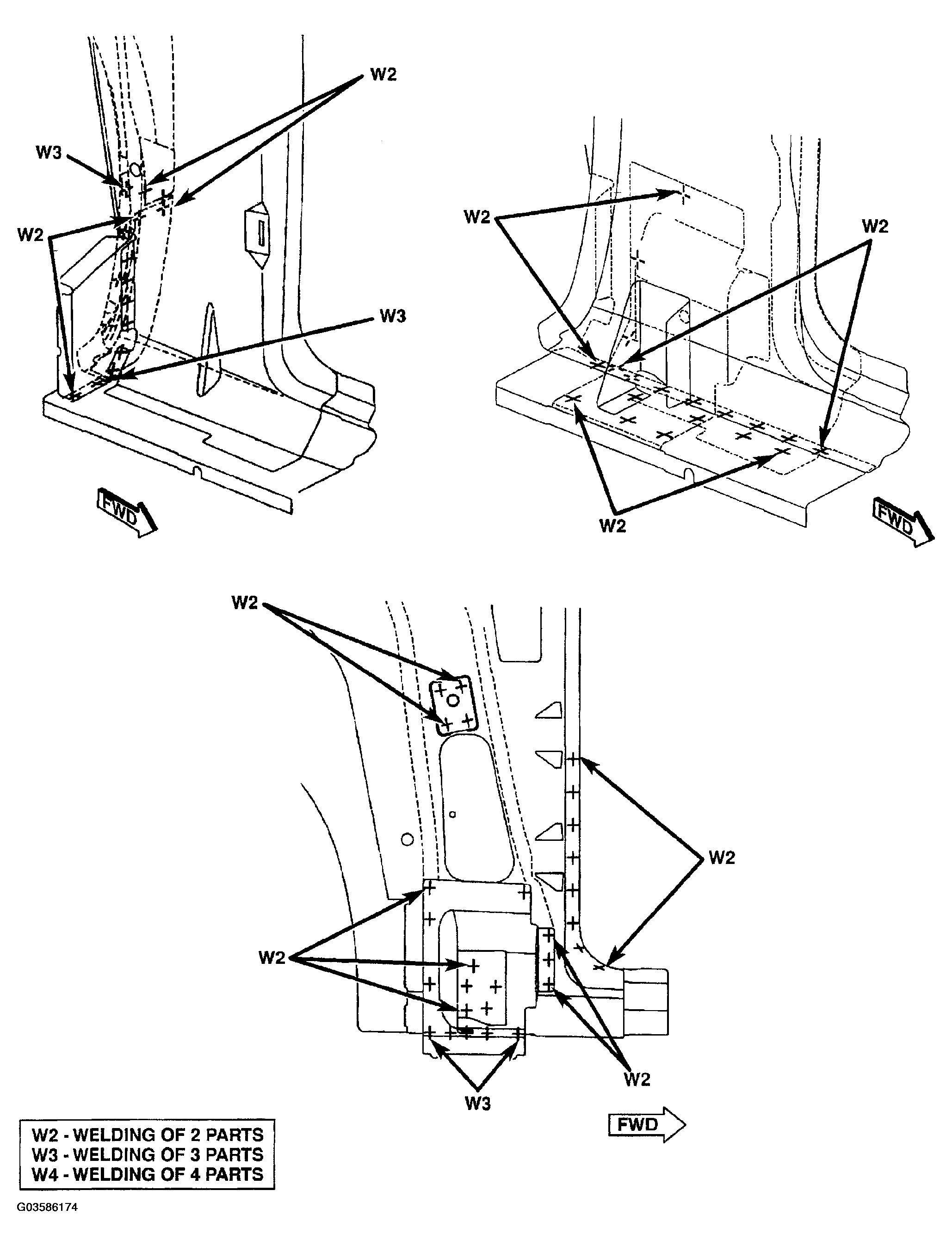

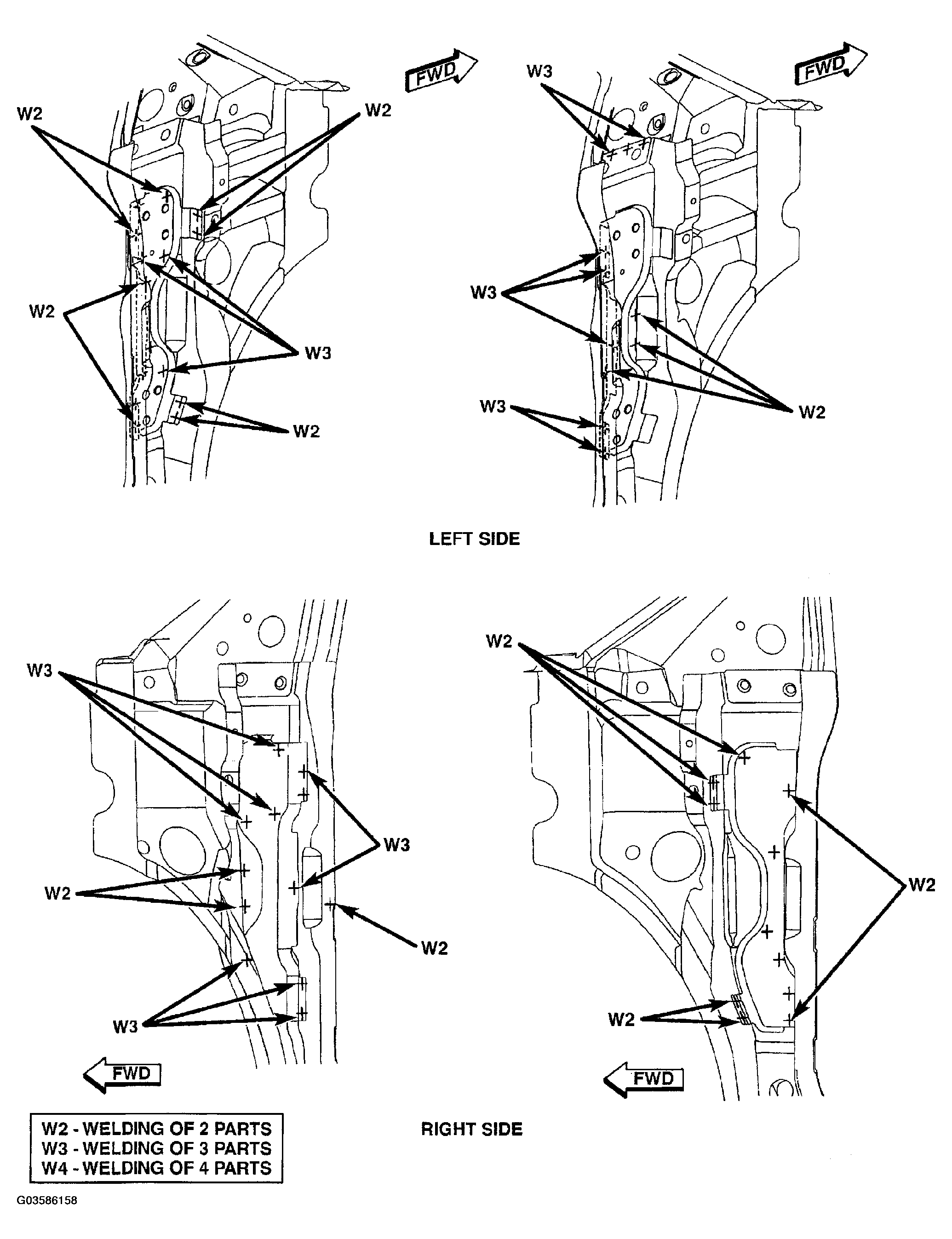

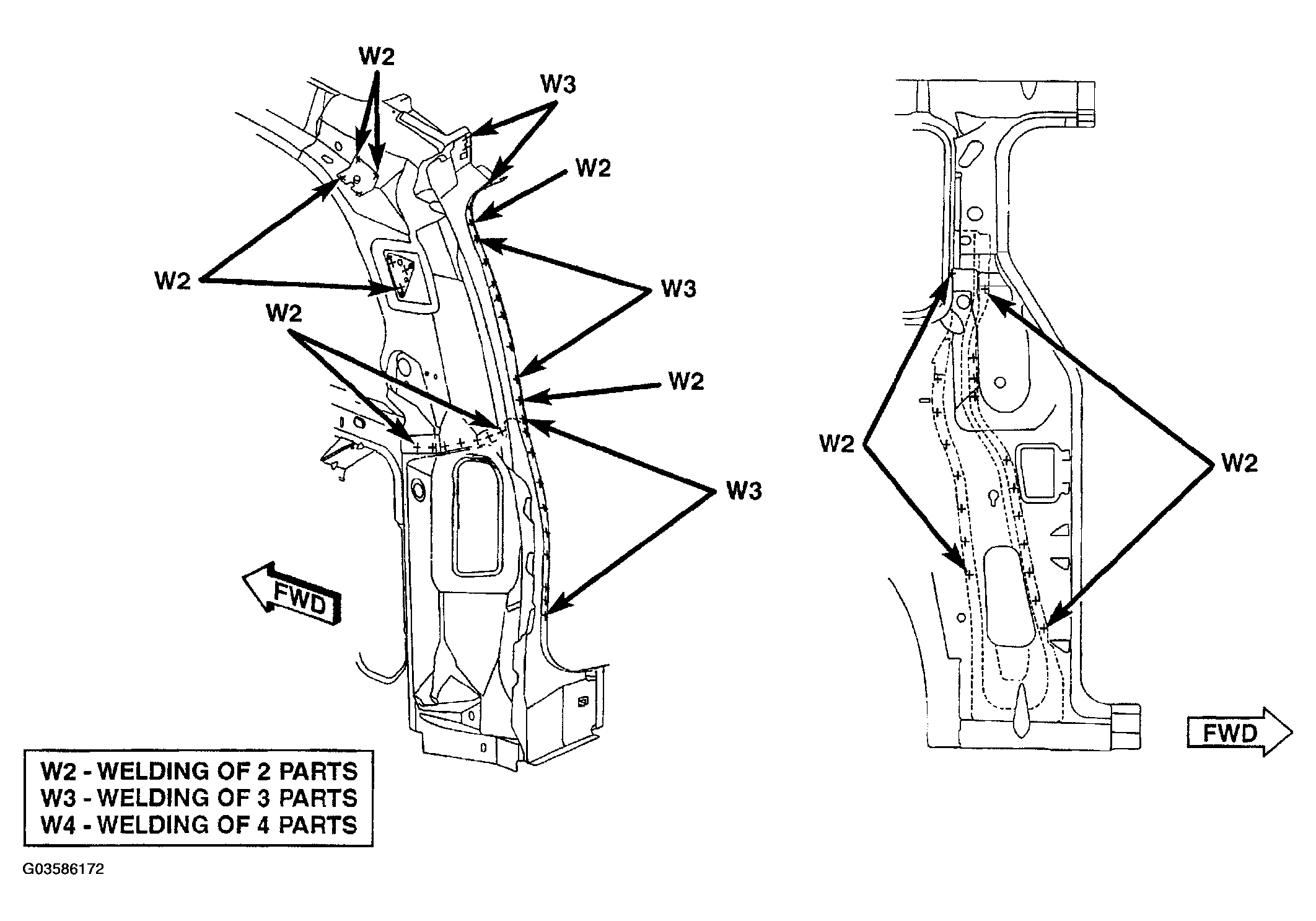

HINGE PILLAR REINFORCEMENT	Fig 92
INNER SIDE SILL - LONG WHEEL BASE ONLY	Fig 93

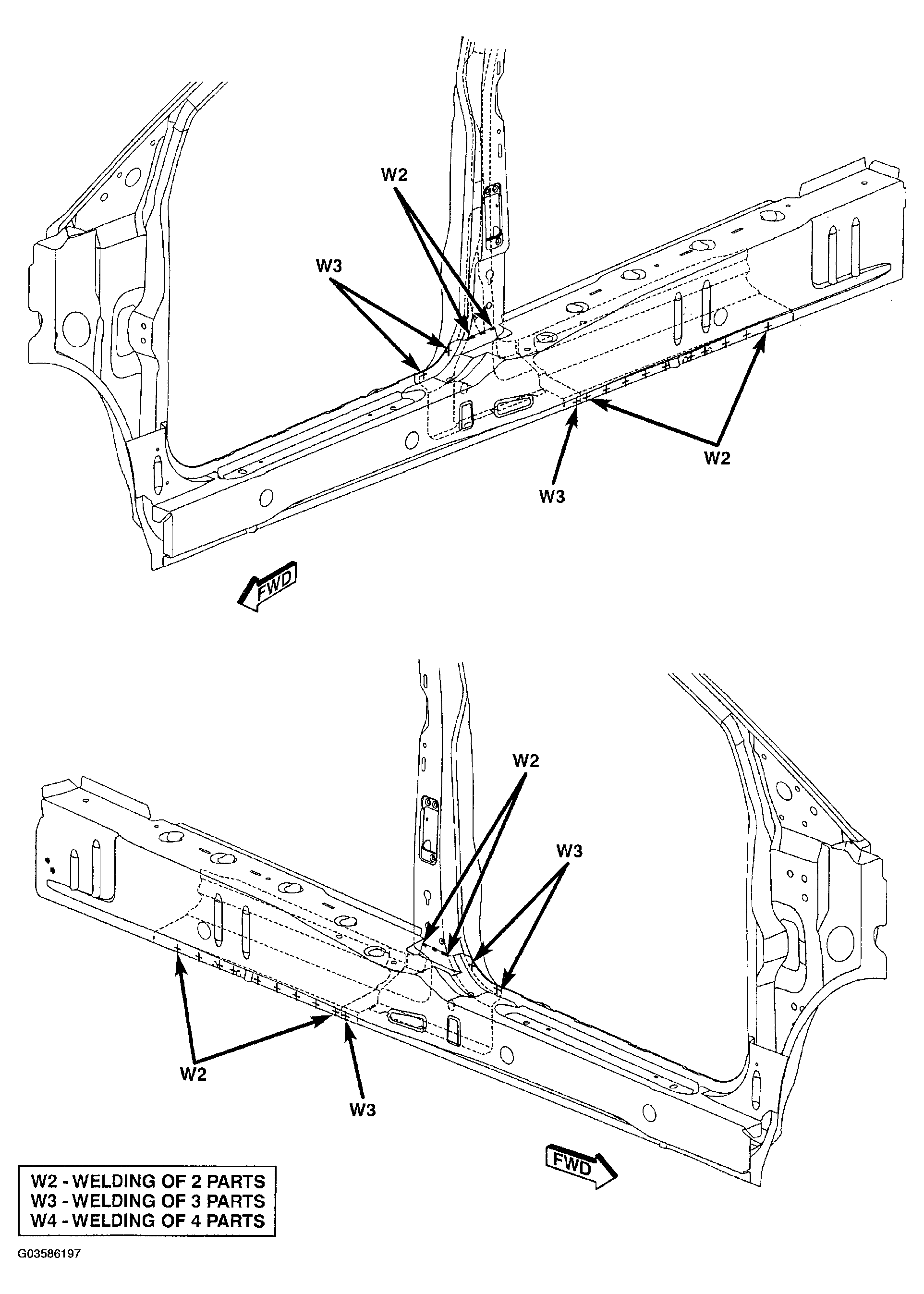

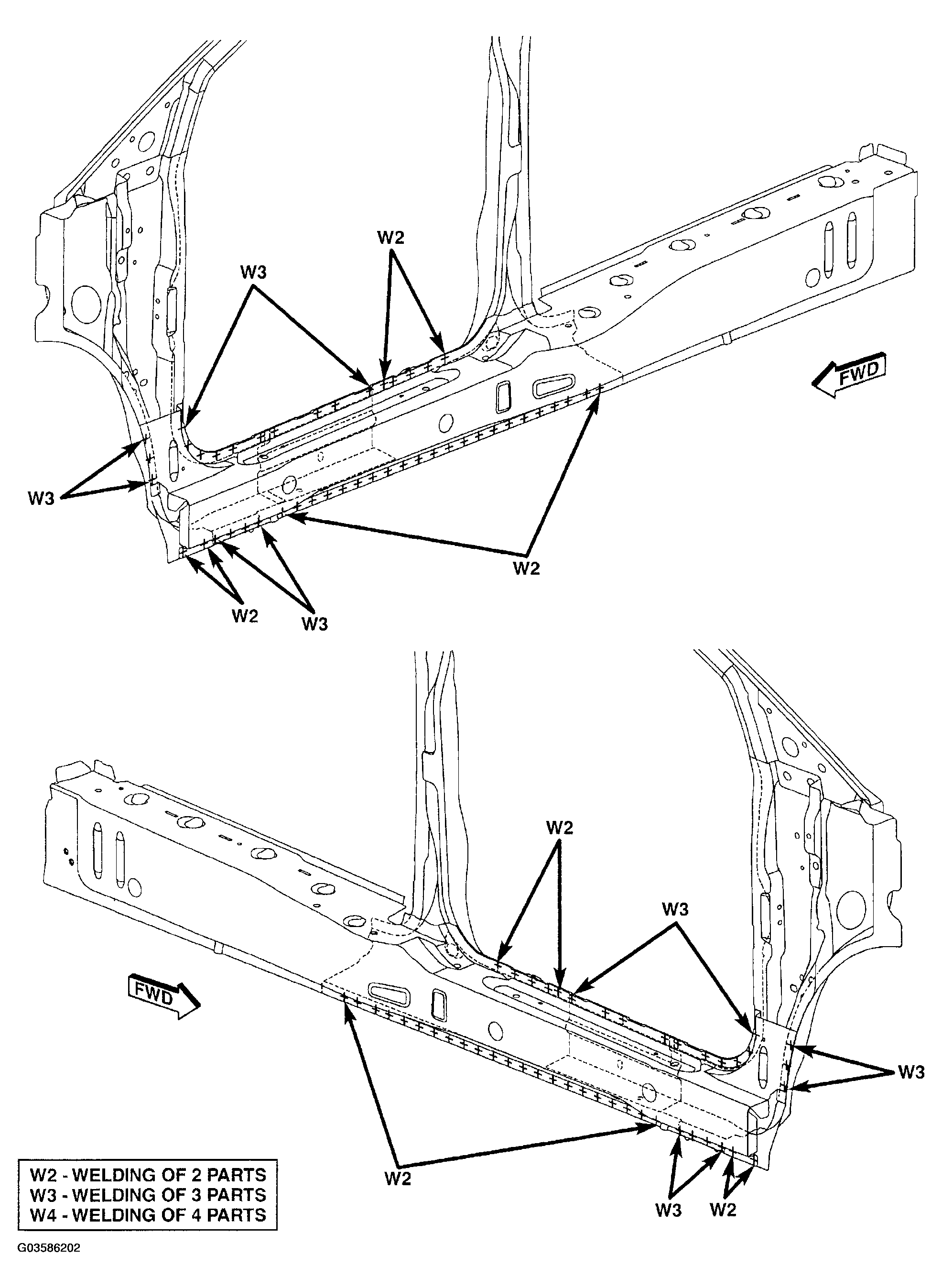

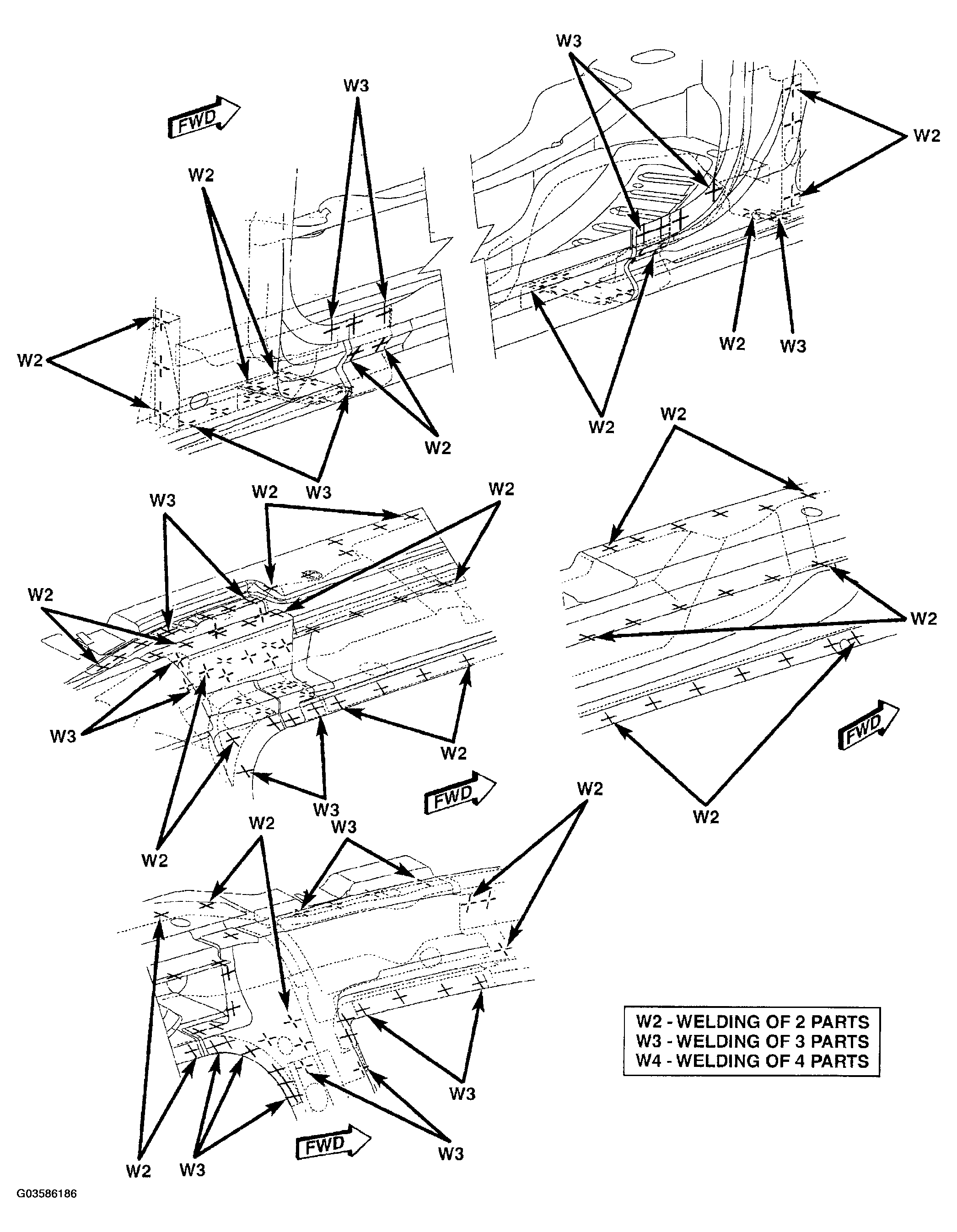

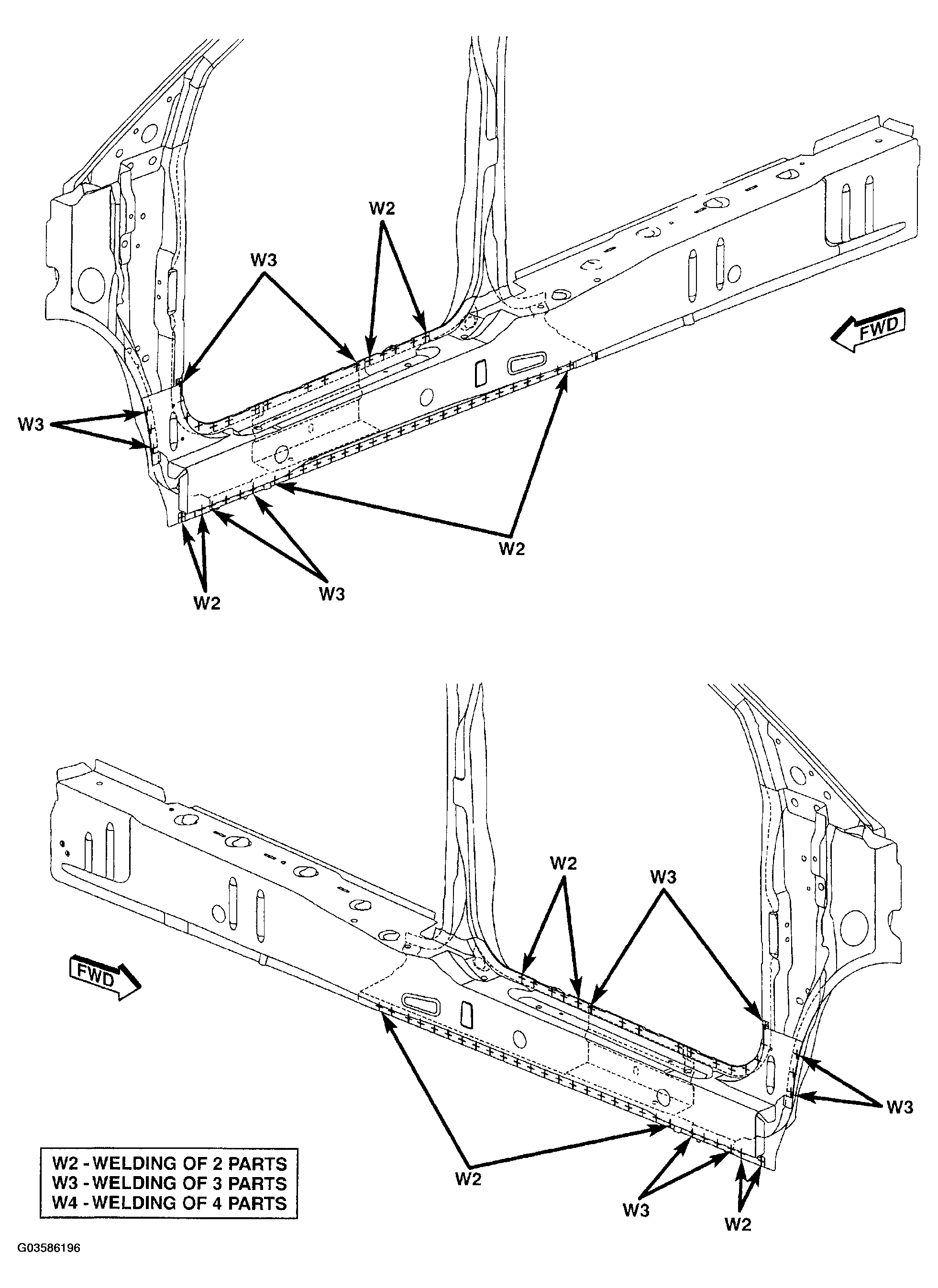

INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY	Fig 94
LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY	Fig 95
UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY	Fig 96

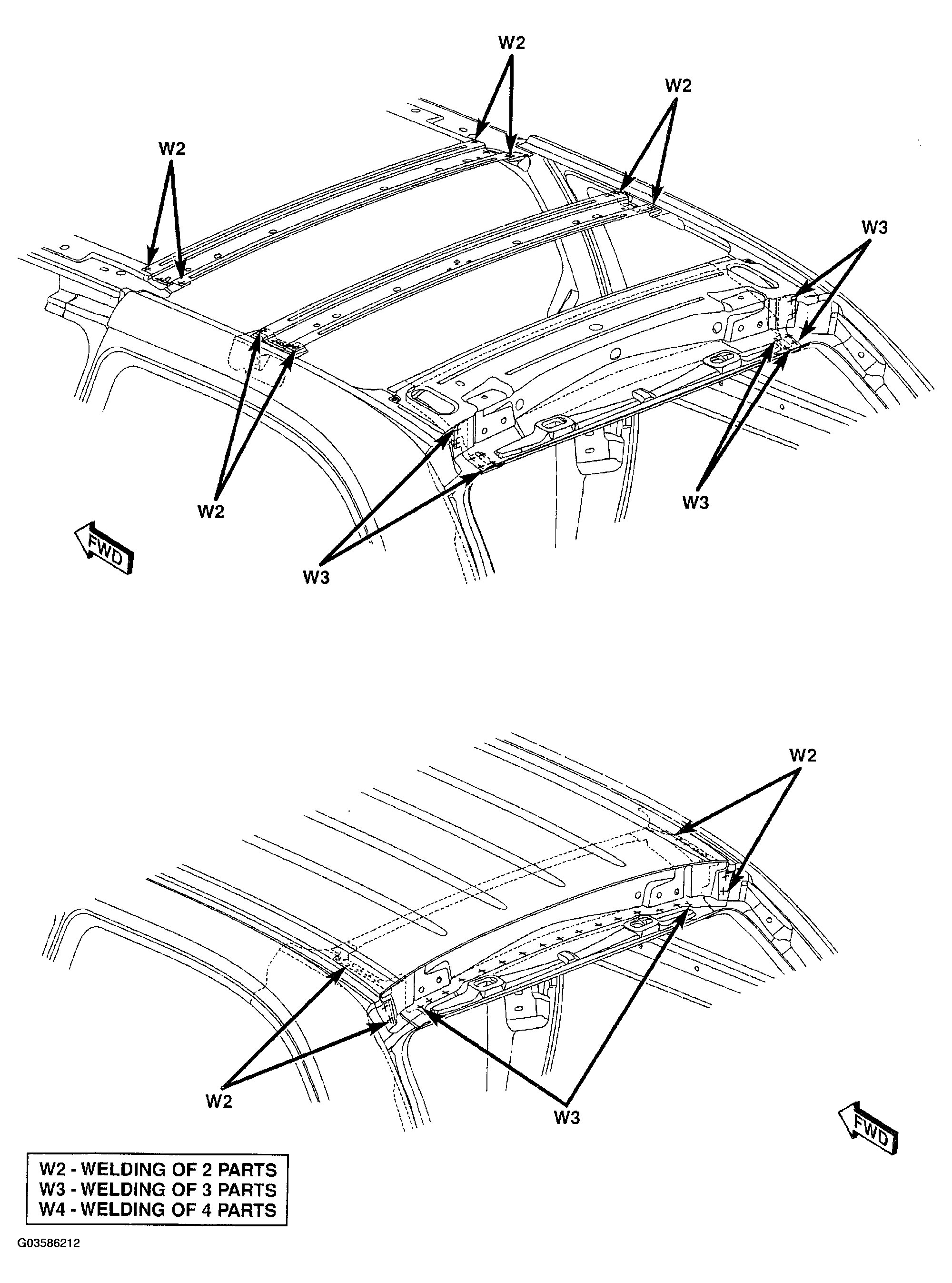

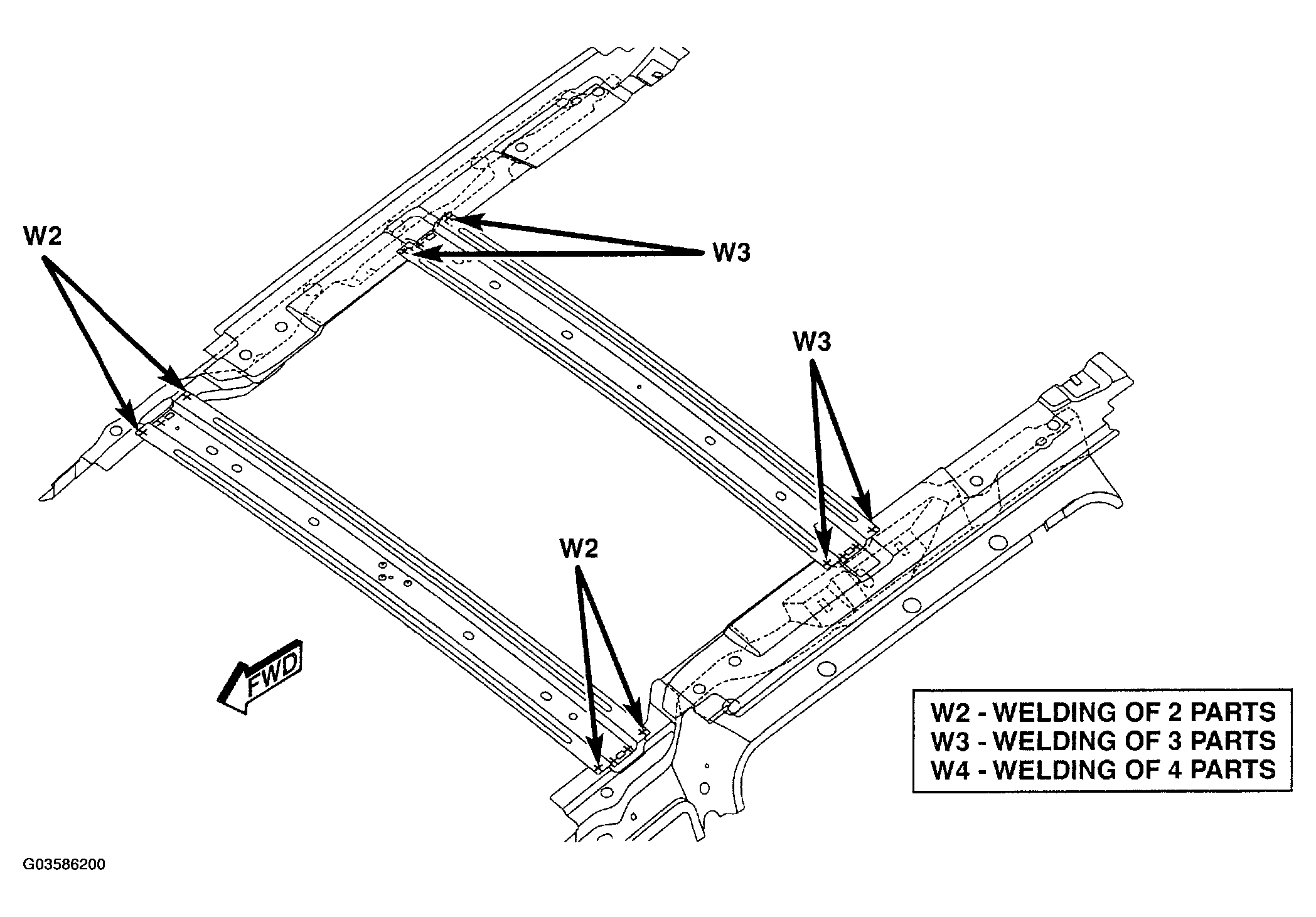

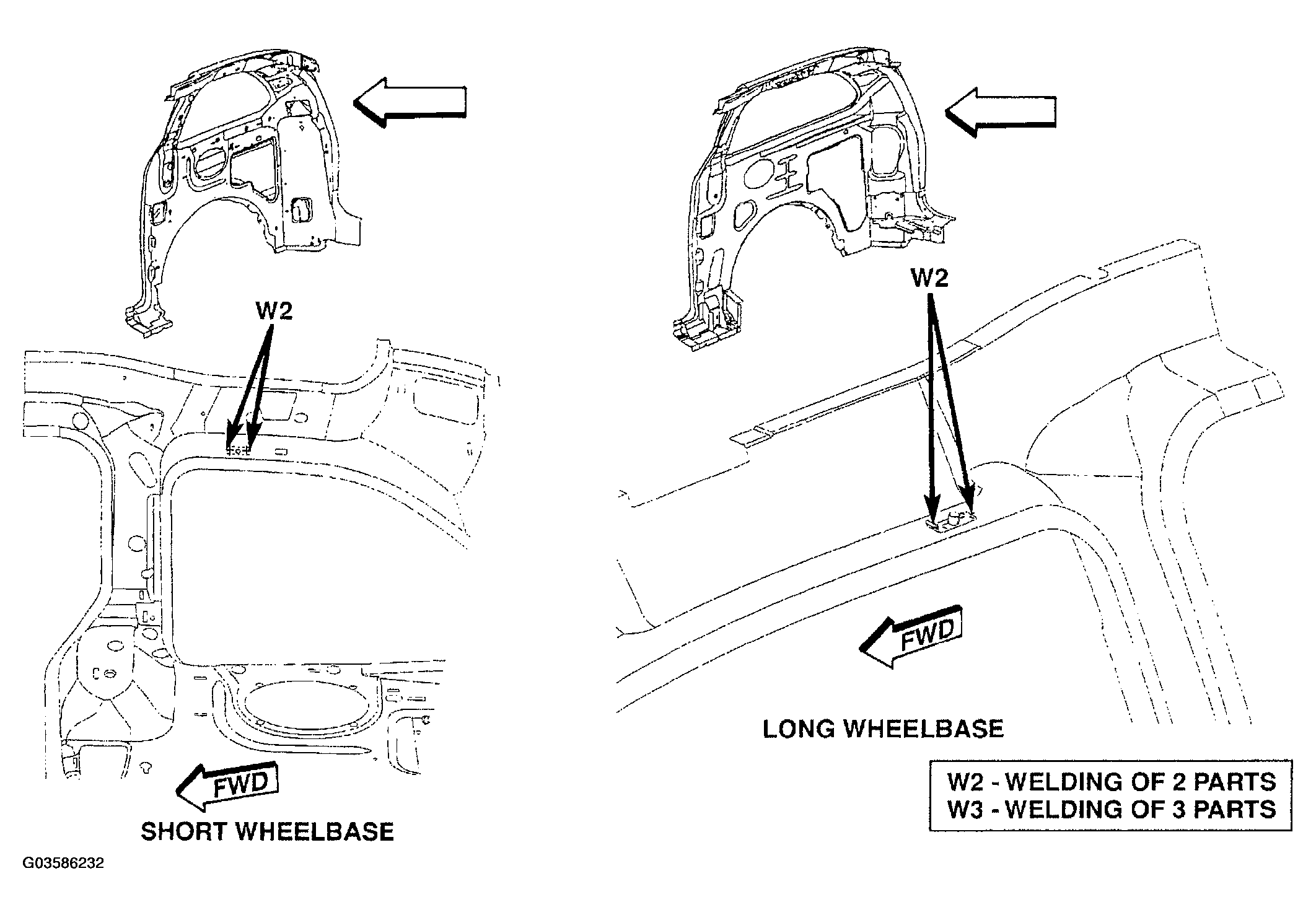

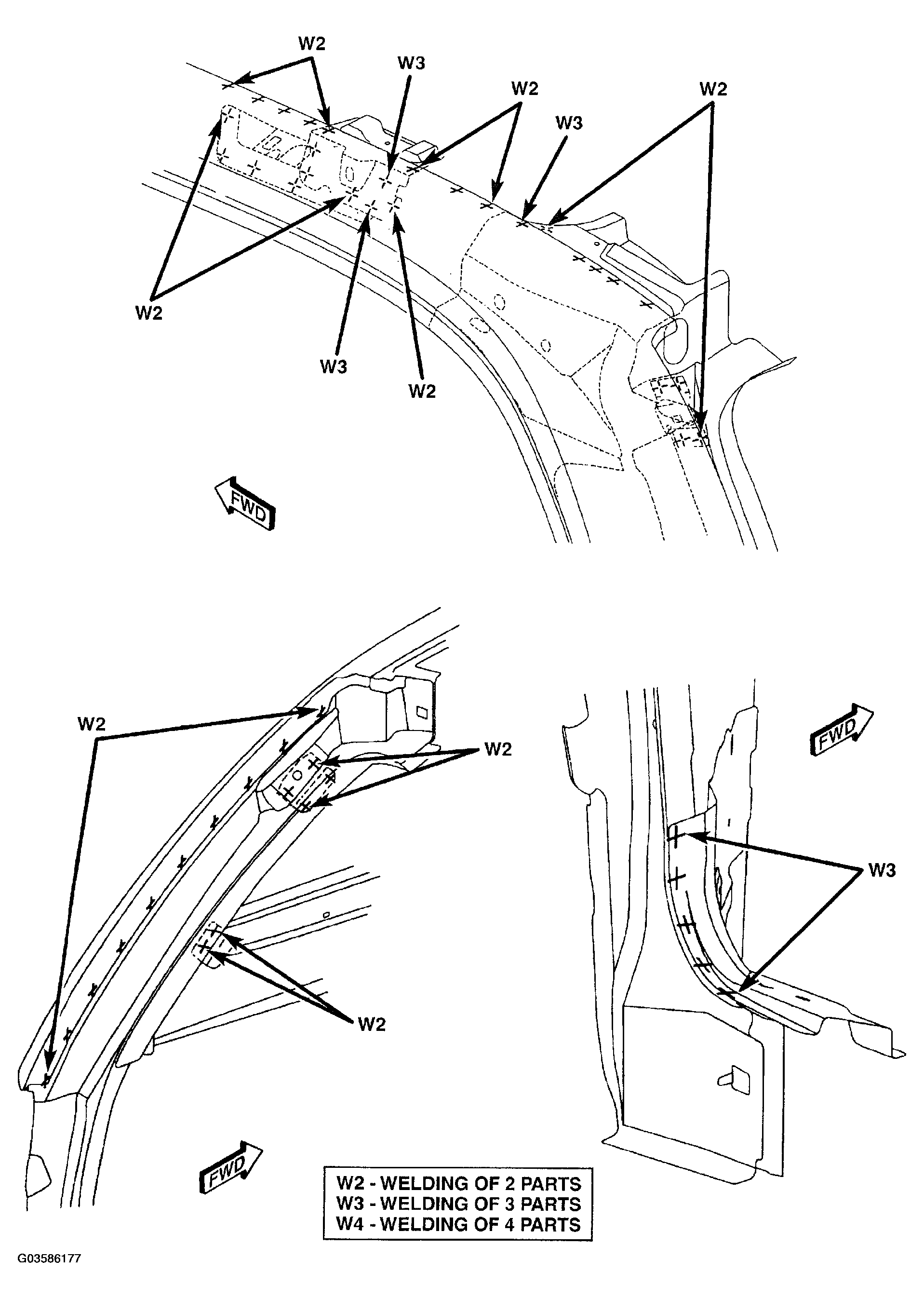

ROOF BOWS/INNER ROOF SIDE RAILS	Fig 97
OUTER ROOF PANEL - LONG WHEEL BASE ONLY	Fig 98
INNER SIDE SILL - SHORT WHEEL BASE ONLY	Fig 99
INNER/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY	Fig 100
LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY	Fig 101

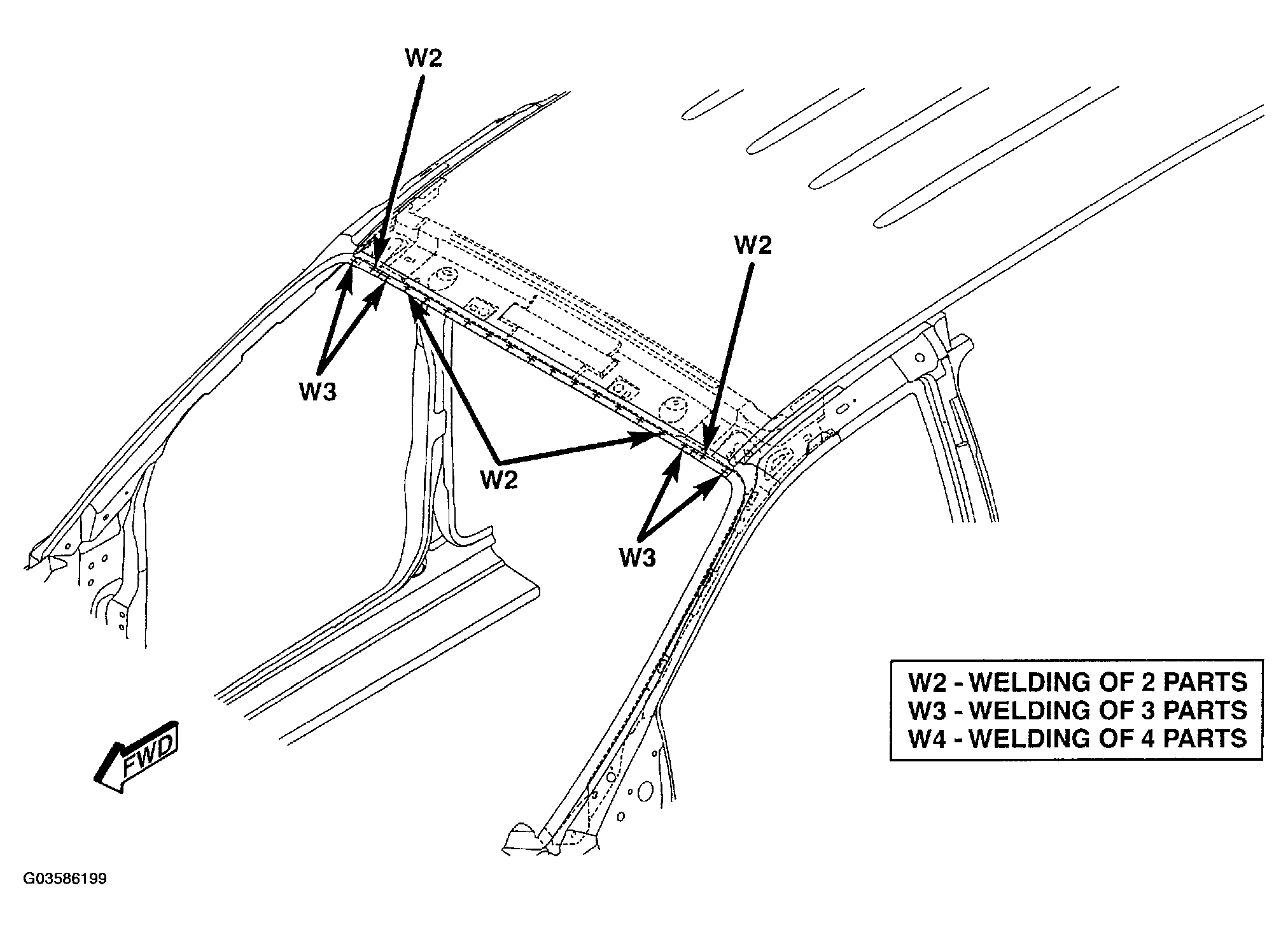

UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY	Fig 102

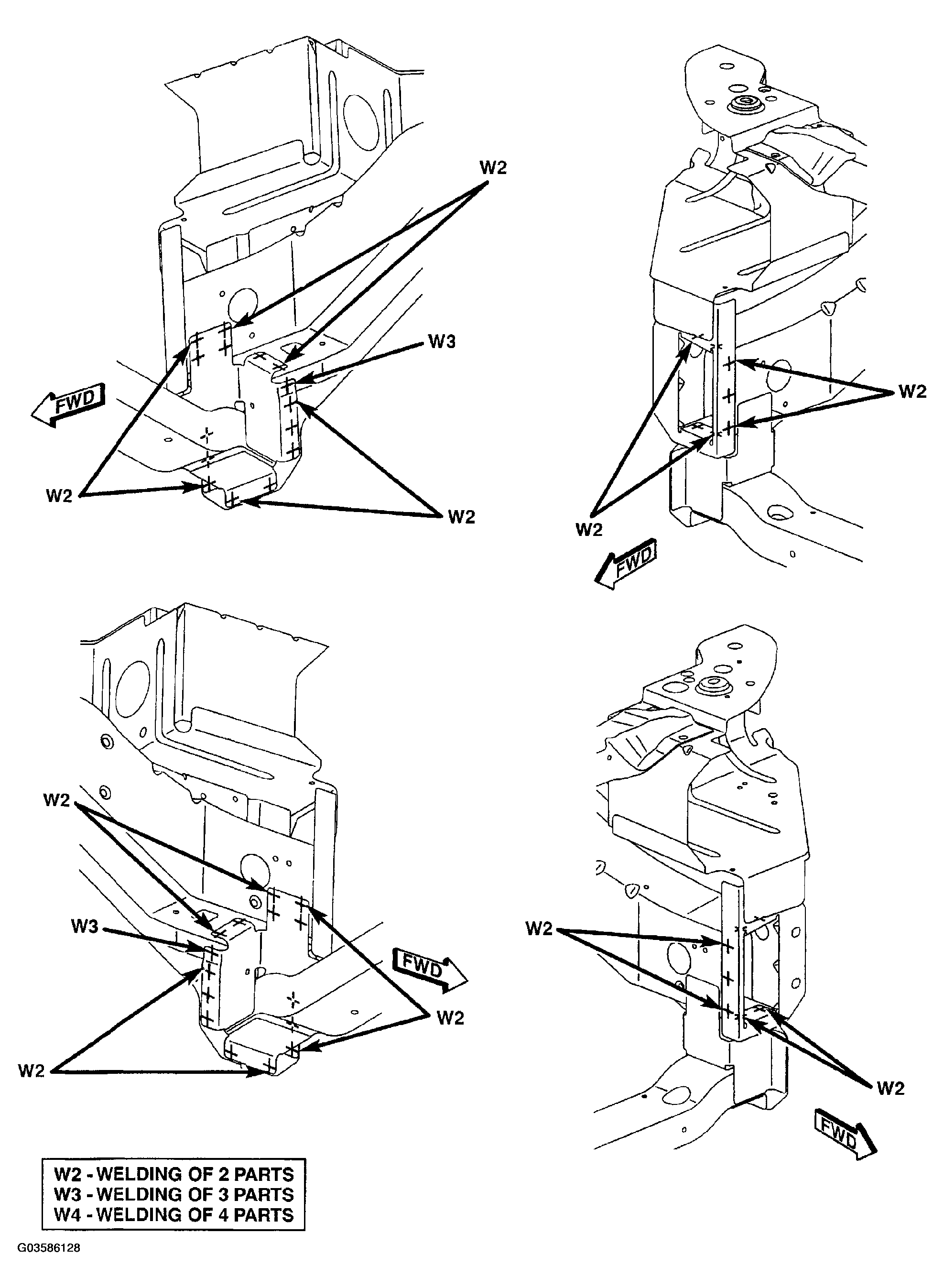

REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL	Fig 103

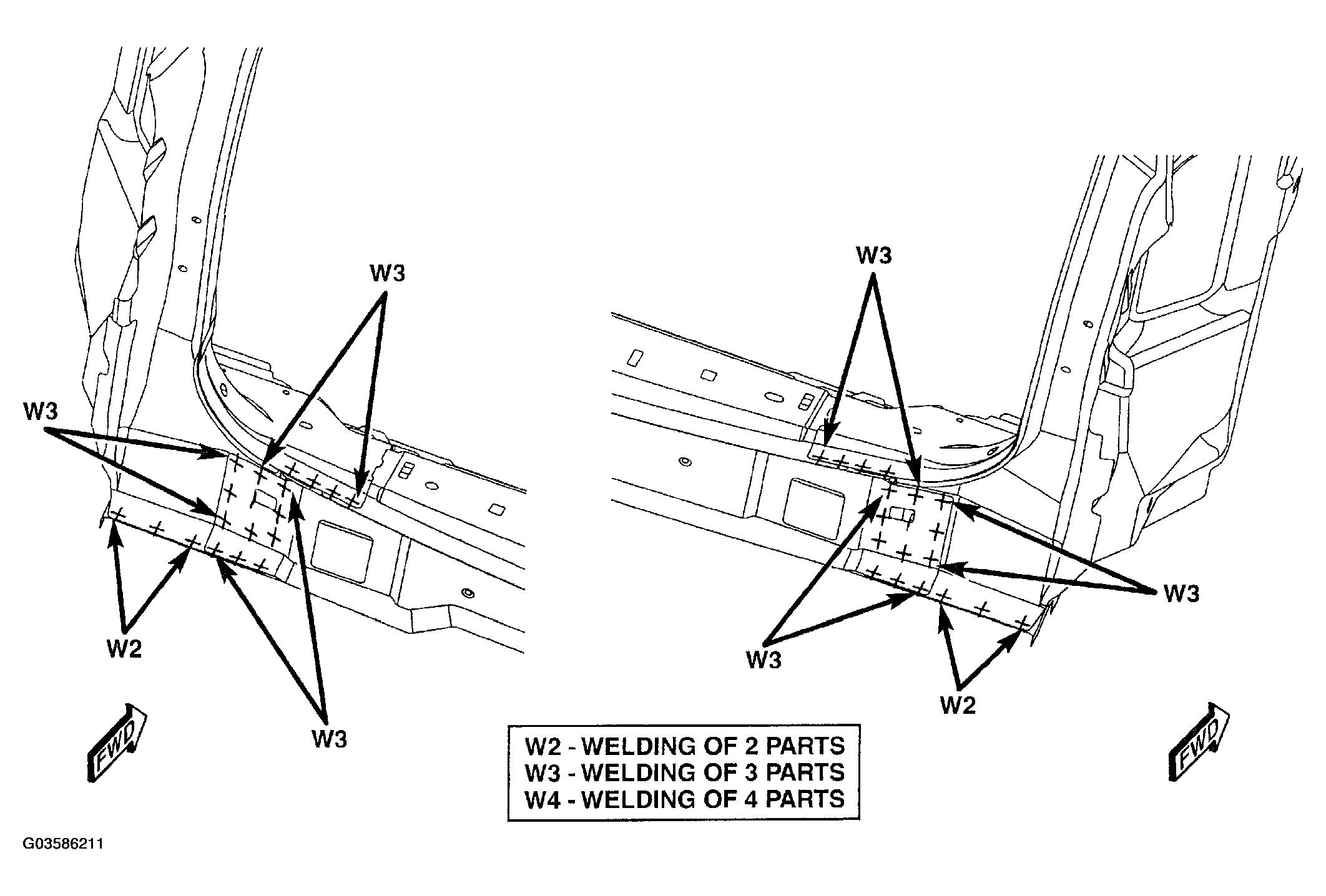

FRONT LOWER LIFTGATE OPENING	Fig 104
REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY	Fig 105
INNER WHEELHOUSE - LONG WHEEL BASE ONLY	Fig 106
SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY	Fig 107

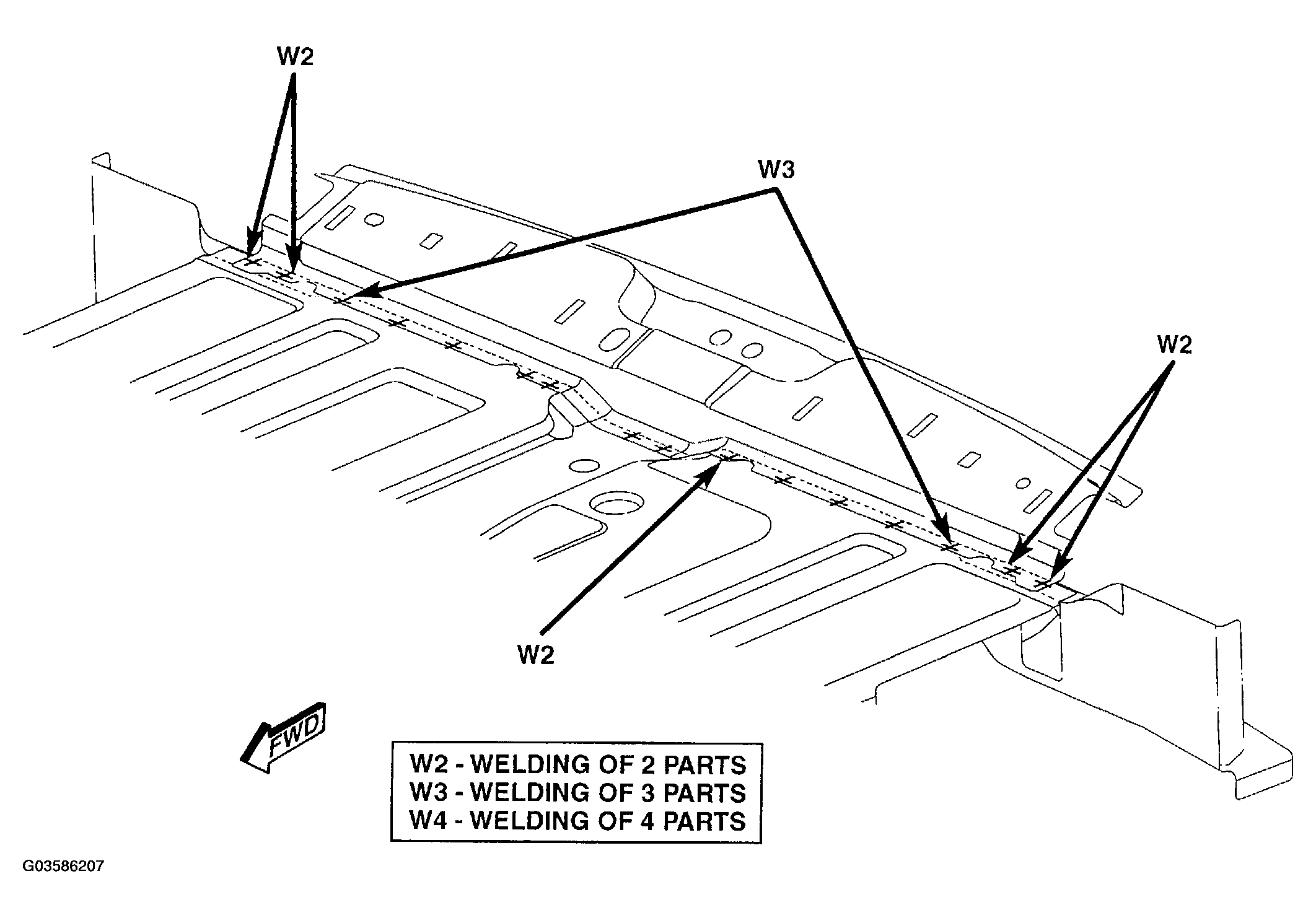

LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY	Fig 108

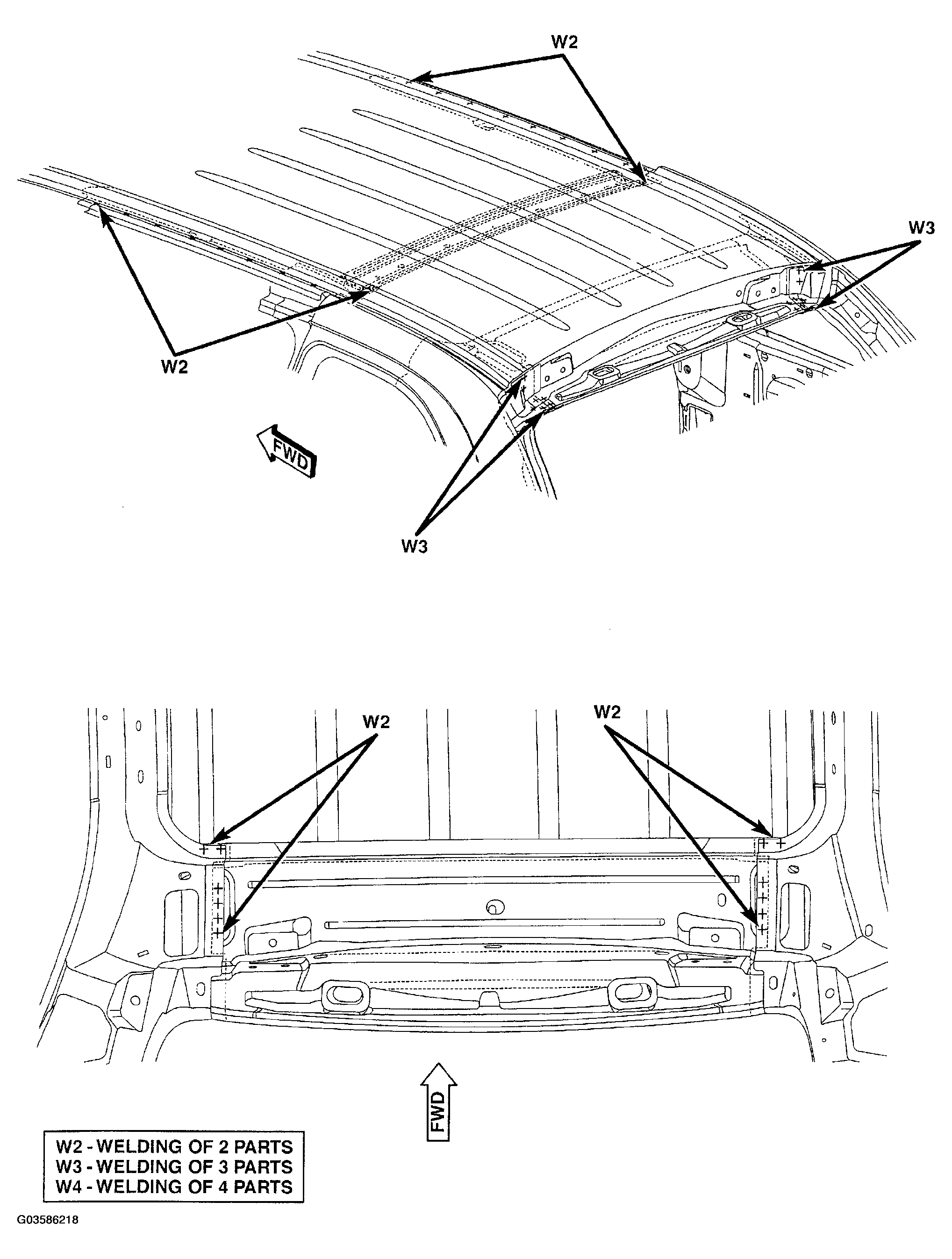

ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY	Fig 109
BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY	Fig 110
REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 111
INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY	Fig 112
SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY	Fig 113
LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY	Fig 114
ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY	Fig 115

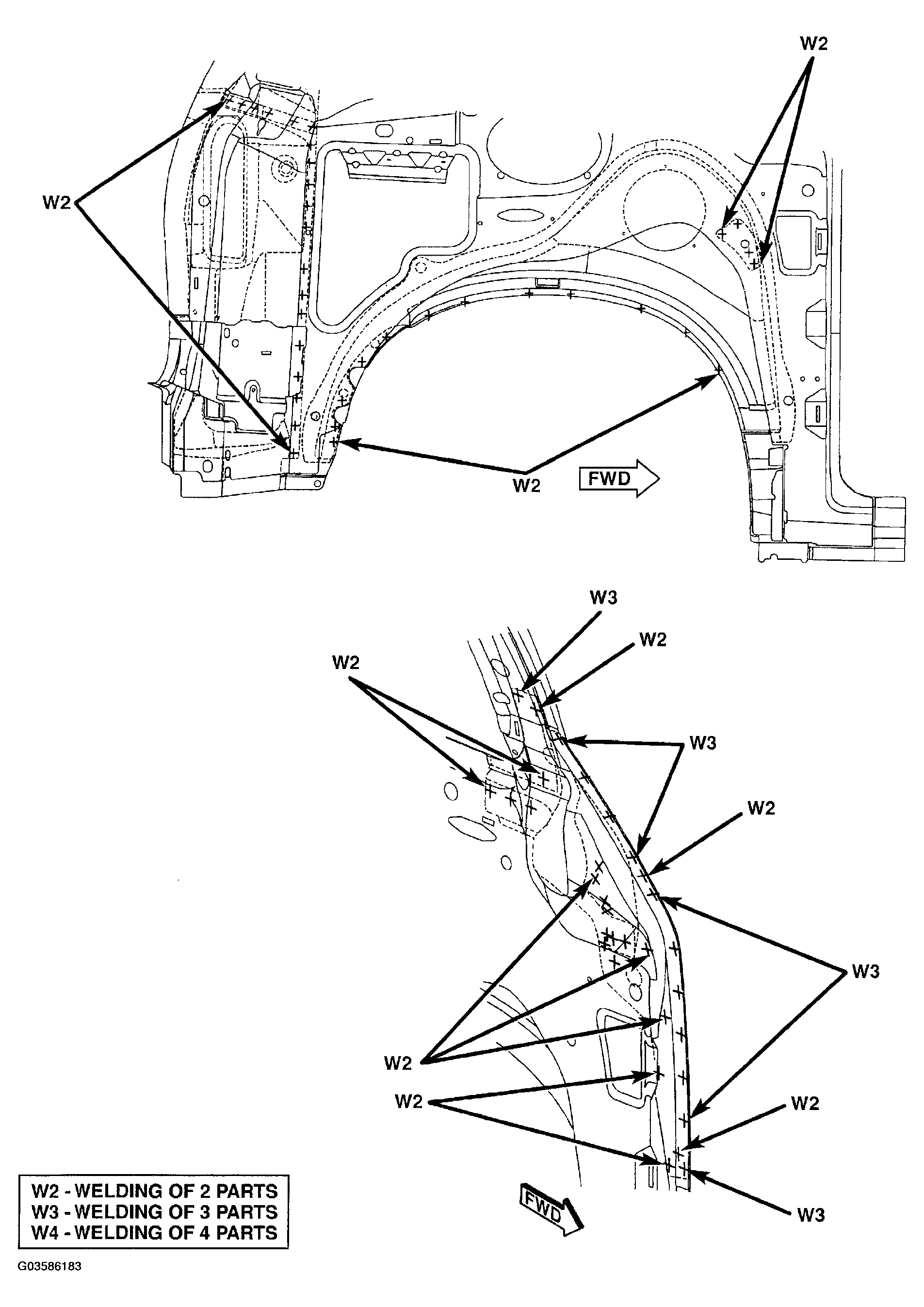

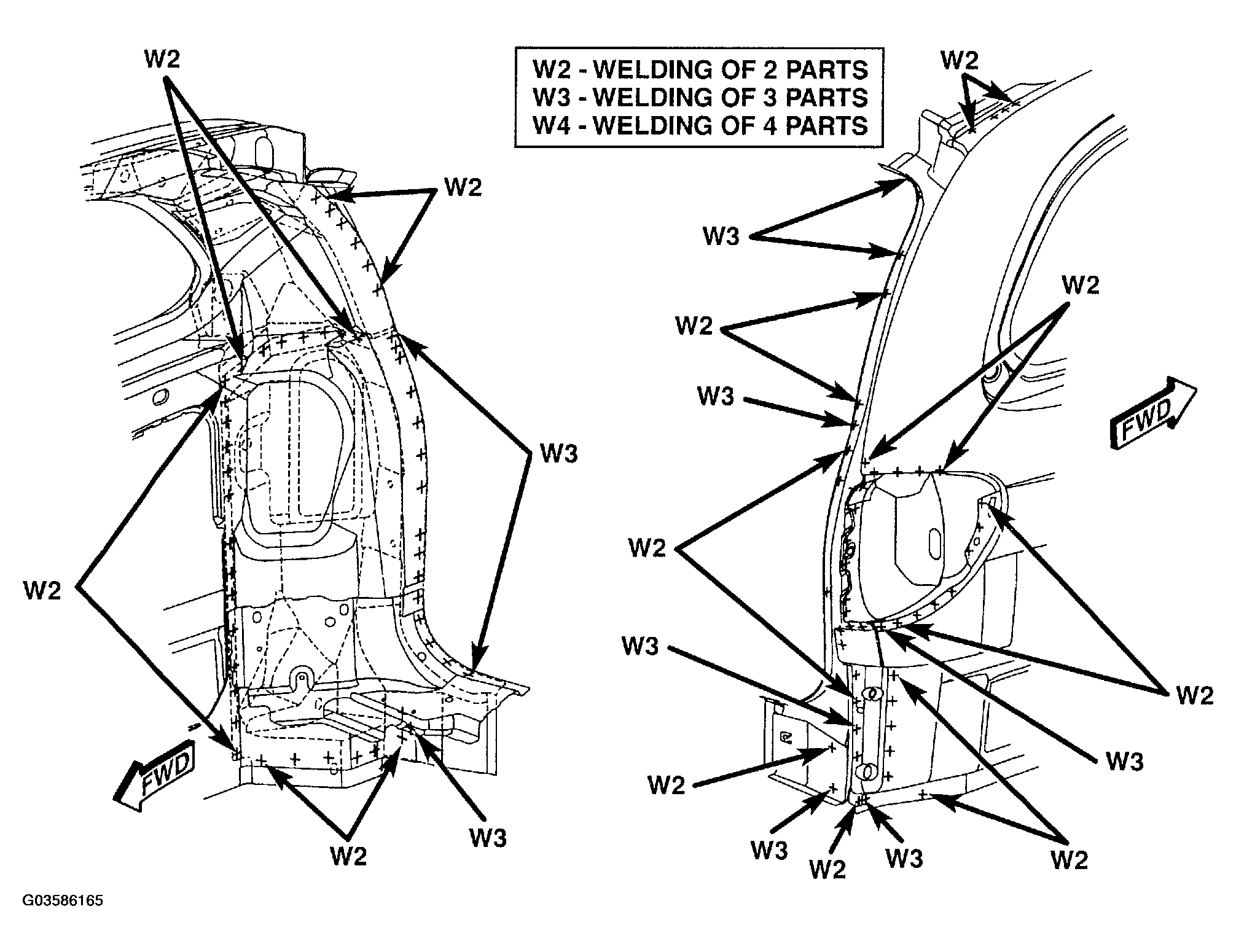

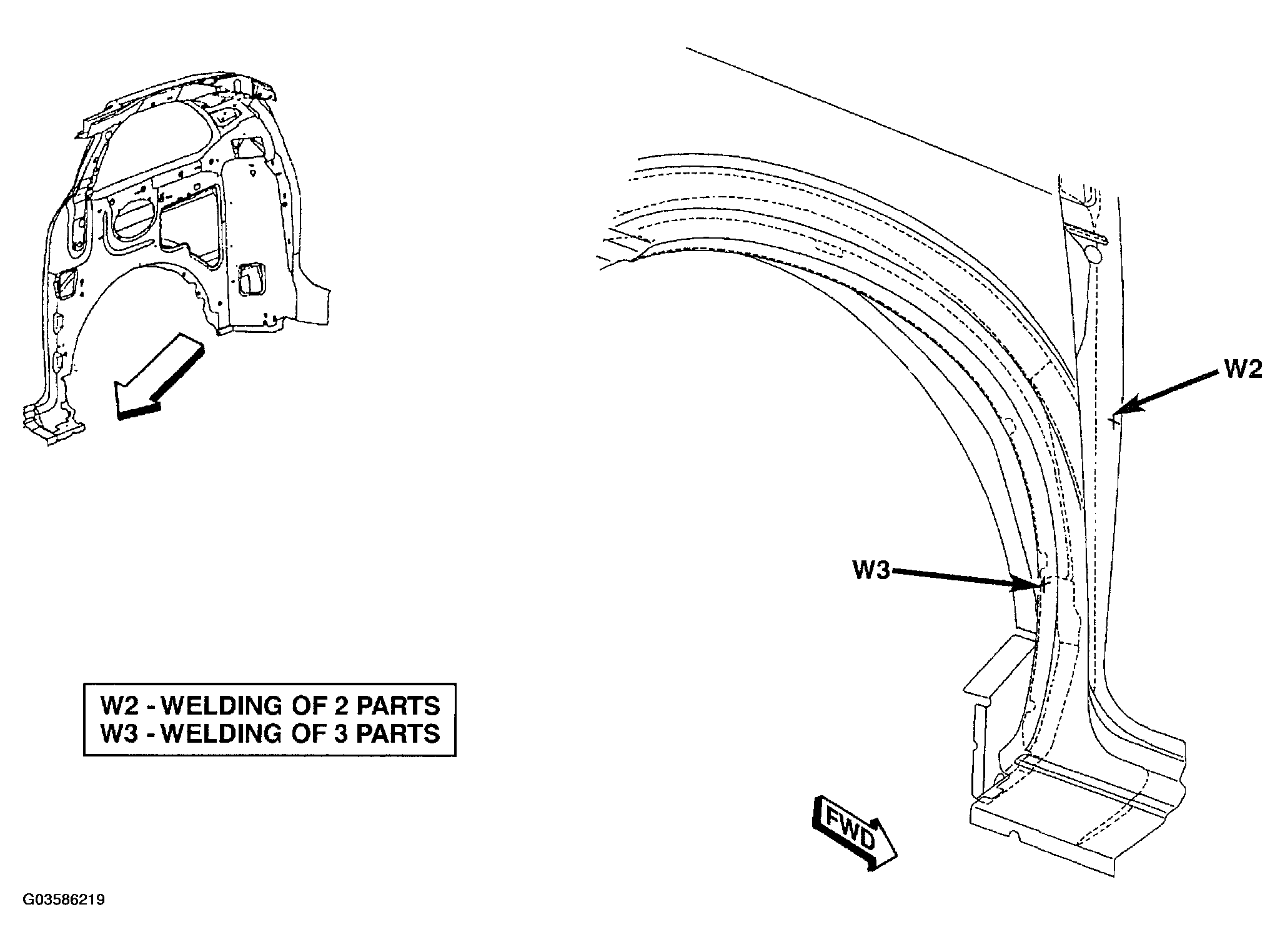

RIGHT SIDE OUTER REAR WHEELHOUSE, EXTENSION AND BODY SIDE APERTURE - SHORT WHEEL BASE ONLY	Fig 116

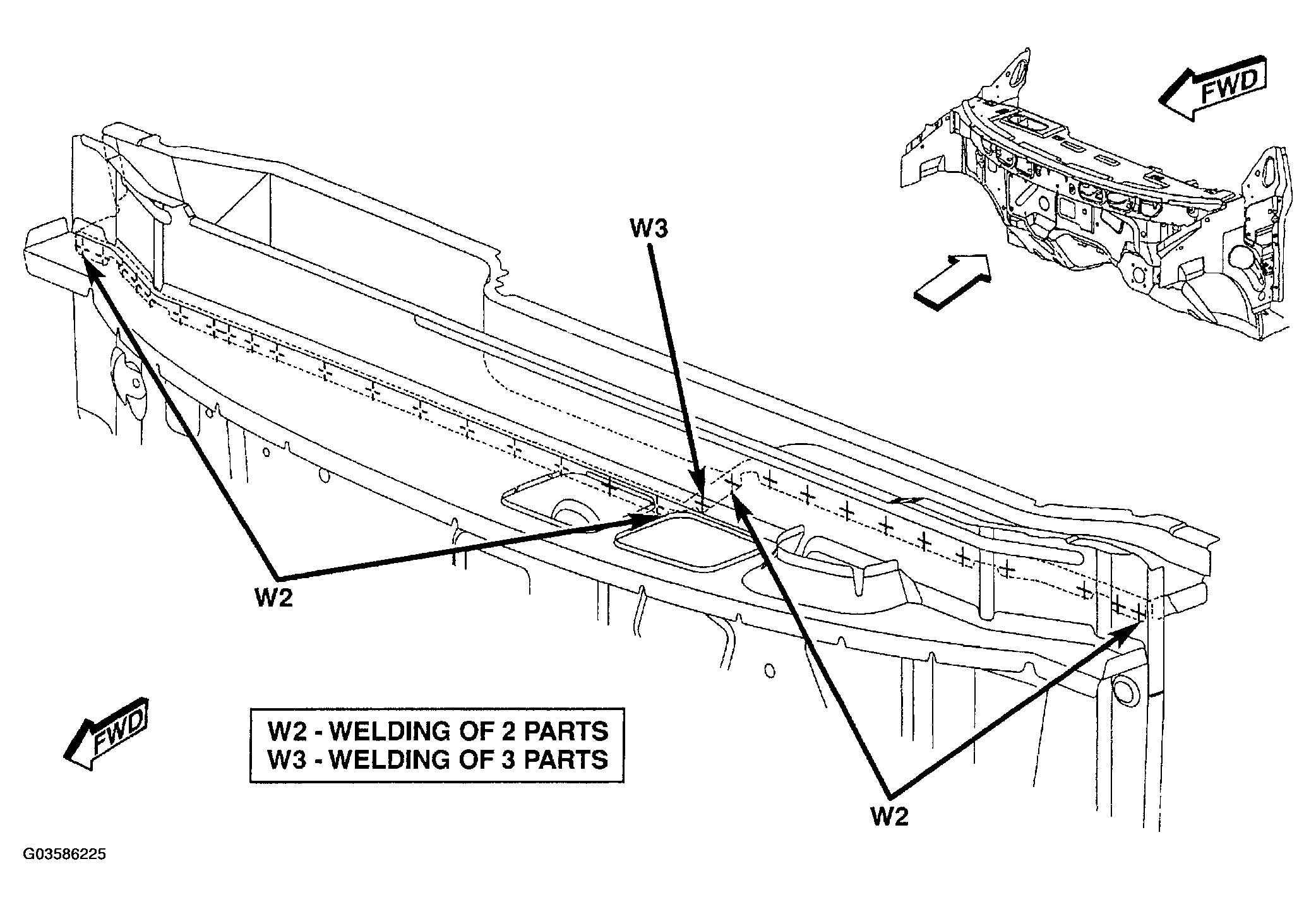

UPPER COWL PLENUM AND REINFORCEMENT - RIGHT HAND DRIVE	Fig 117

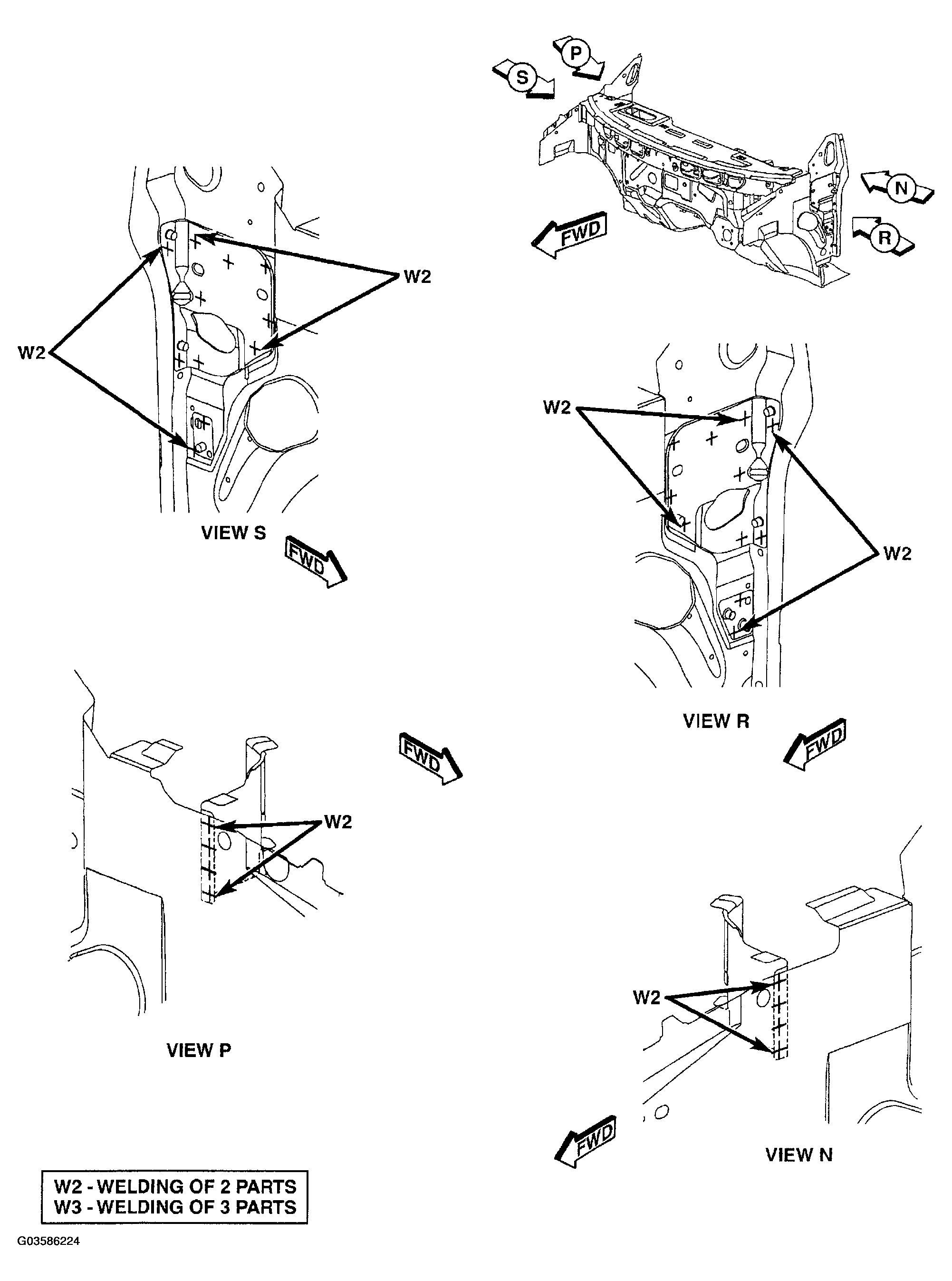

COWL SIDE PANEL AND DASH PANEL - RIGHT HAND DRIVE	Fig 118
LOWER COWL PLENUM, SUPPORT AND DASH PANEL - RIGHT HAND DRIVE	Fig 119
STEERING COLUMN REINFORCEMENT/BELT REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE	Fig 120
INSTRUMENT PANEL TAPPING PLATE AND COWL SIDE PANEL - RIGHT HAND DRIVE	Fig 121

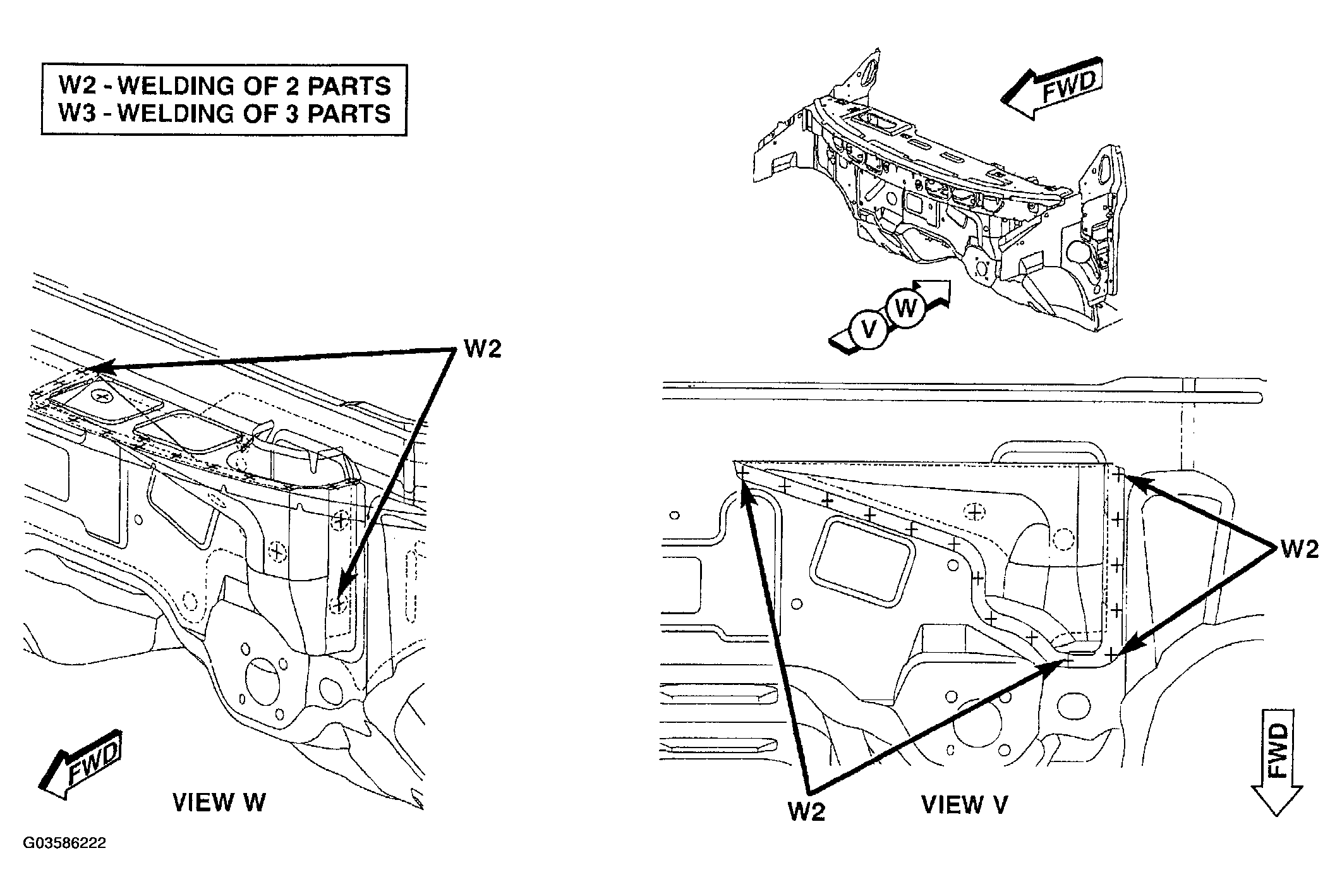

DASH PANEL AND BELT-REINFORCEMENT - RIGHT HAND DRIVE	Fig 122
UPPER SUPPORT, UPPER REINFORCEMENT AND UPPER COWL PLENUM - RIGHT HAND DRIVE	Fig 123
UPPER SUPPORT, BRAKE PEDAL BRACKET REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE	Fig 124

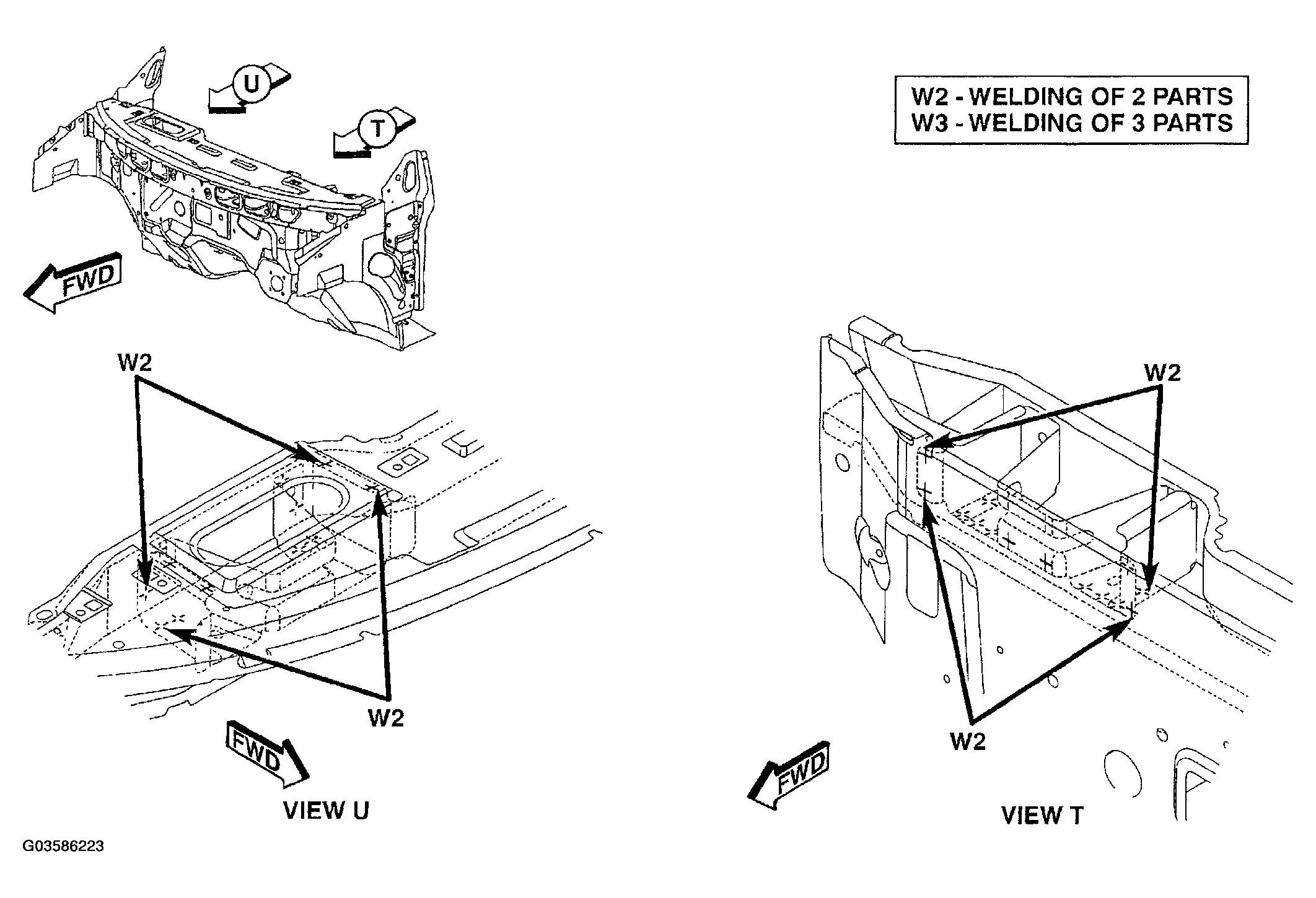

REINFORCEMENT, MOUNTING BRACKETS AND DASH PANEL - RIGHT HAND DRIVE	Fig 125
STRUT TOWER, COWL SIDE PANEL - RIGHT HAND DRIVE	Fig 126
REINFORCEMENTS, SIDE RAILS, COWL SIDE PANELS AND DASH PANEL - RIGHT HAND DRIVE	Fig 127

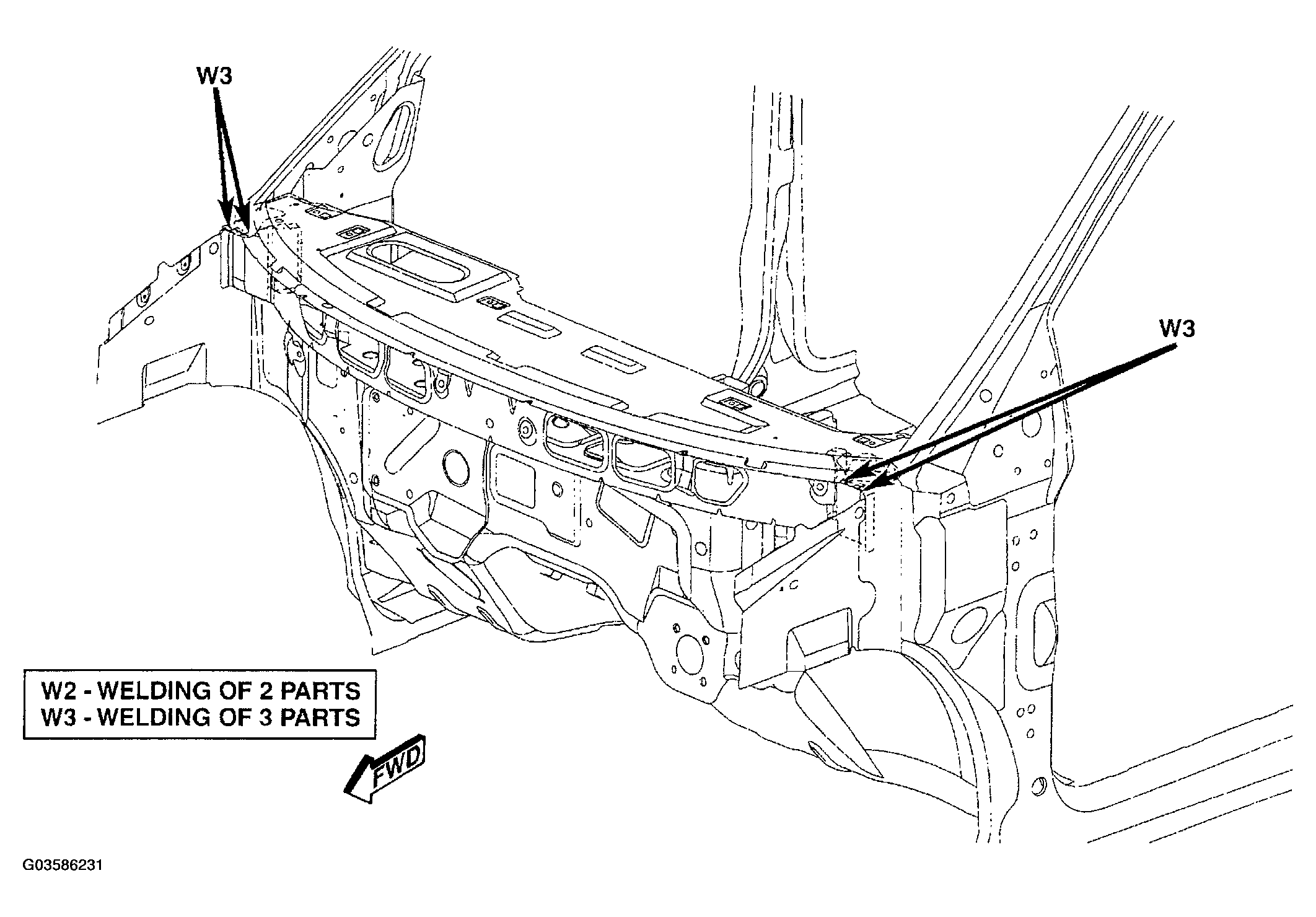

UPPER COWL PLENUM, GUSSETS, SIDE SHIELDS AND BODY SIDE APERTURE - RIGHT HAND DRIVE	Fig 128
SIDE GLASS ANTENNA TAPPING PLATE AND INNER BODY SIDE APERTURE - RIGHT HAND DRIVE	Fig 129
