Windshield Opening

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

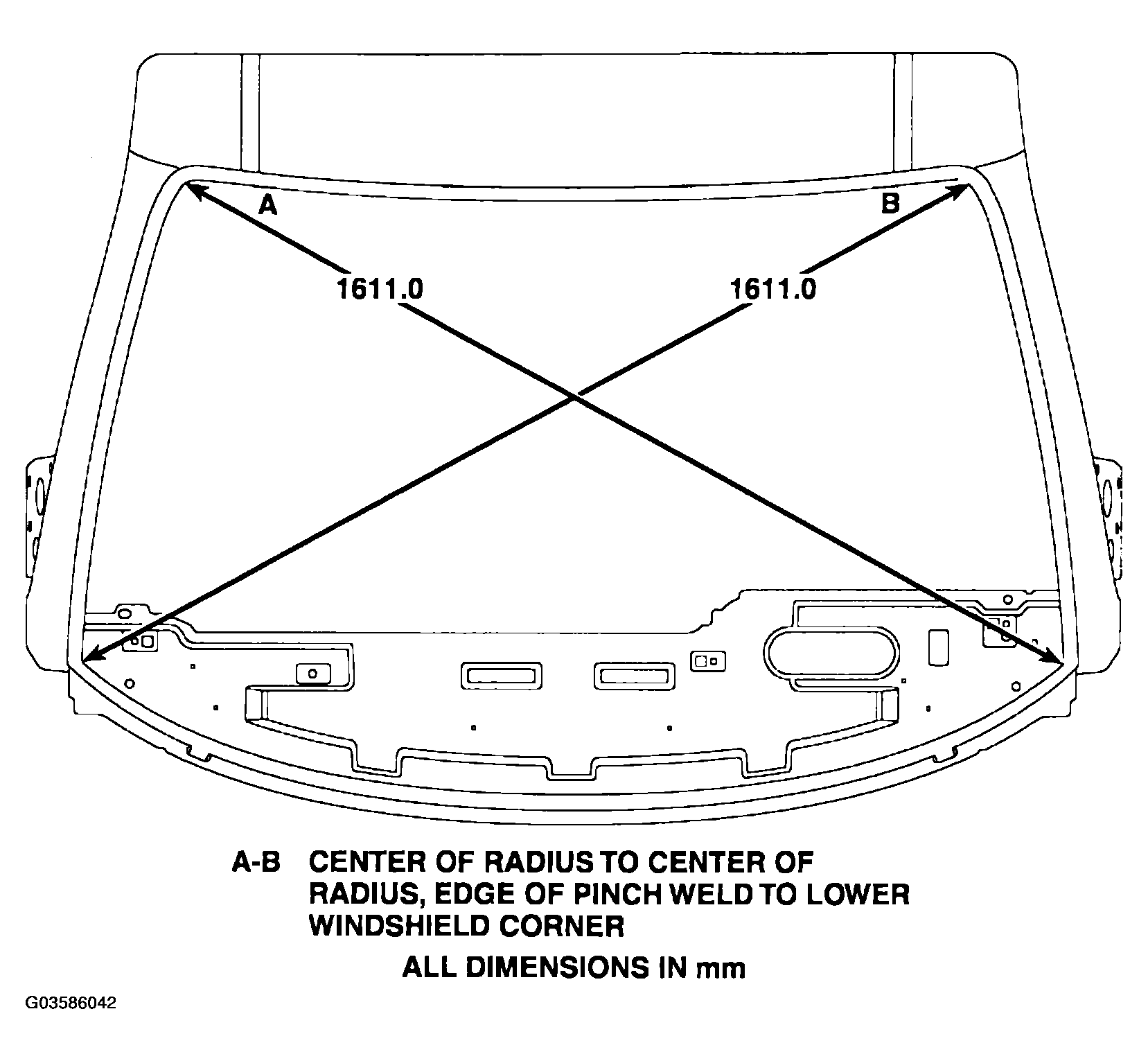

Fig 1: Identifying Windshield Opening

Courtesy of DAIMLERCHRYSLER CORP.

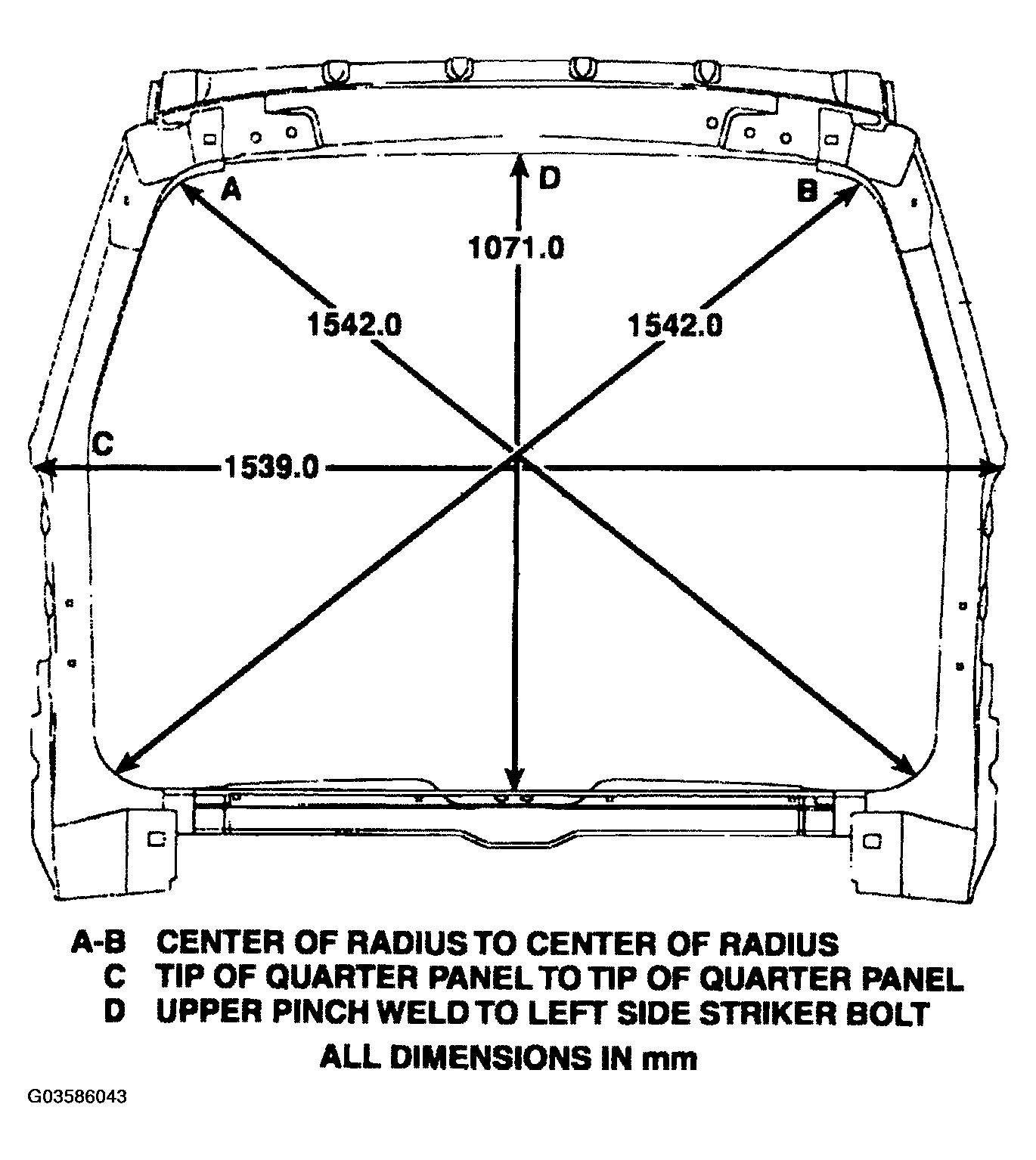

Fig 2: Identifying Liftgate Opening

Courtesy of DAIMLERCHRYSLER CORP.

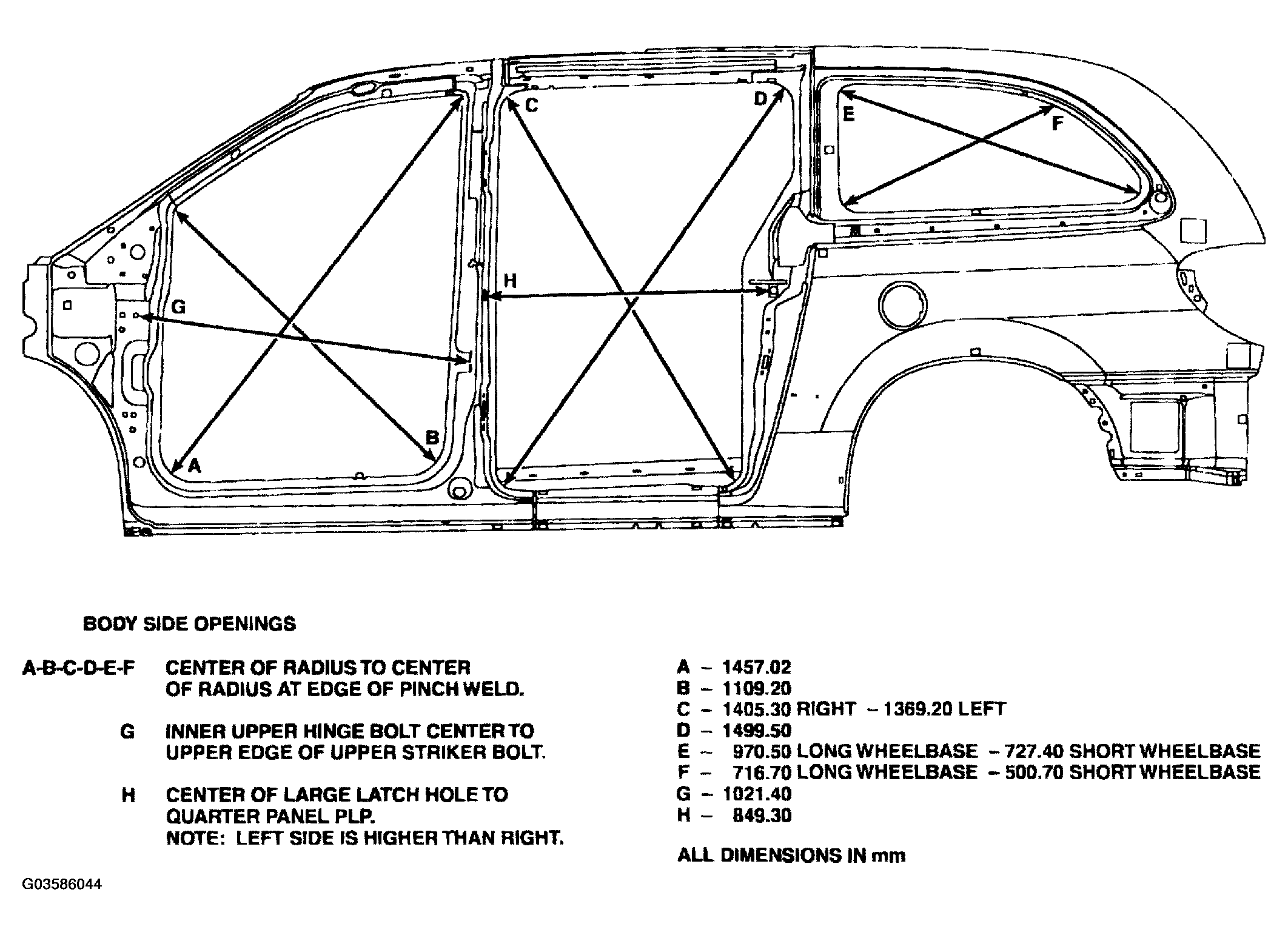

Fig 3: Identifying Body Side Openings

Courtesy of DAIMLERCHRYSLER CORP.
