Crankshaft Position Sensor: Removal: 2.4L

The Crankshaft Position (CKP) sensor is mounted into the right front side of the cylinder block. It is positioned and bolted into a machined hole. See Fig 1.

Disconnect sensor electrical connector.
Remove sensor bolt.
Carefully twist sensor from cylinder block.
Check condition of sensor o-ring. See Fig 2.

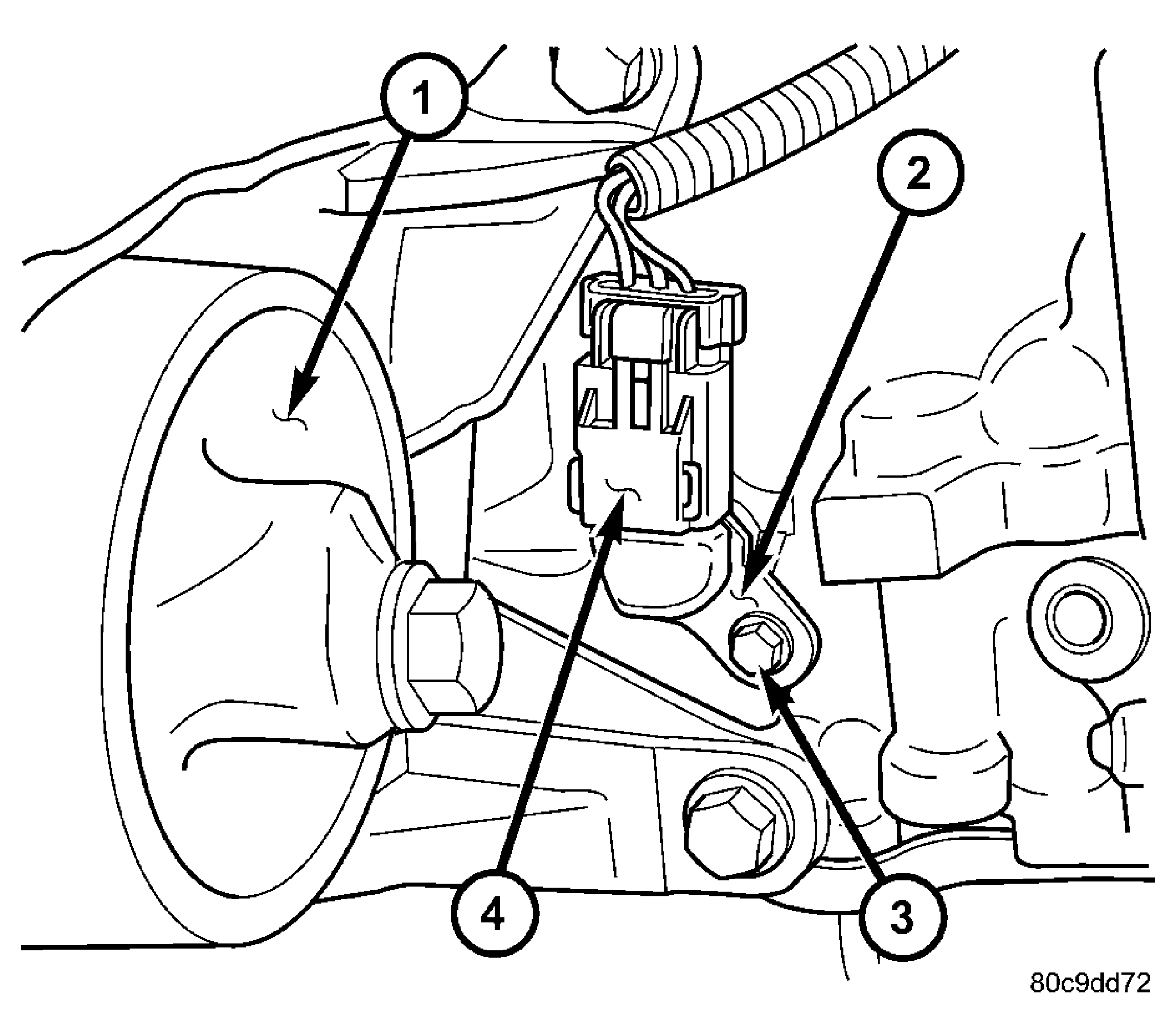

Fig 1: CKP Sensor Location-2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT FRONT ENGINE MOUNT

2 - CKP SENSOR

3 - MOUNTING BOLT

4 - ELECTRICAL CONNECTOR

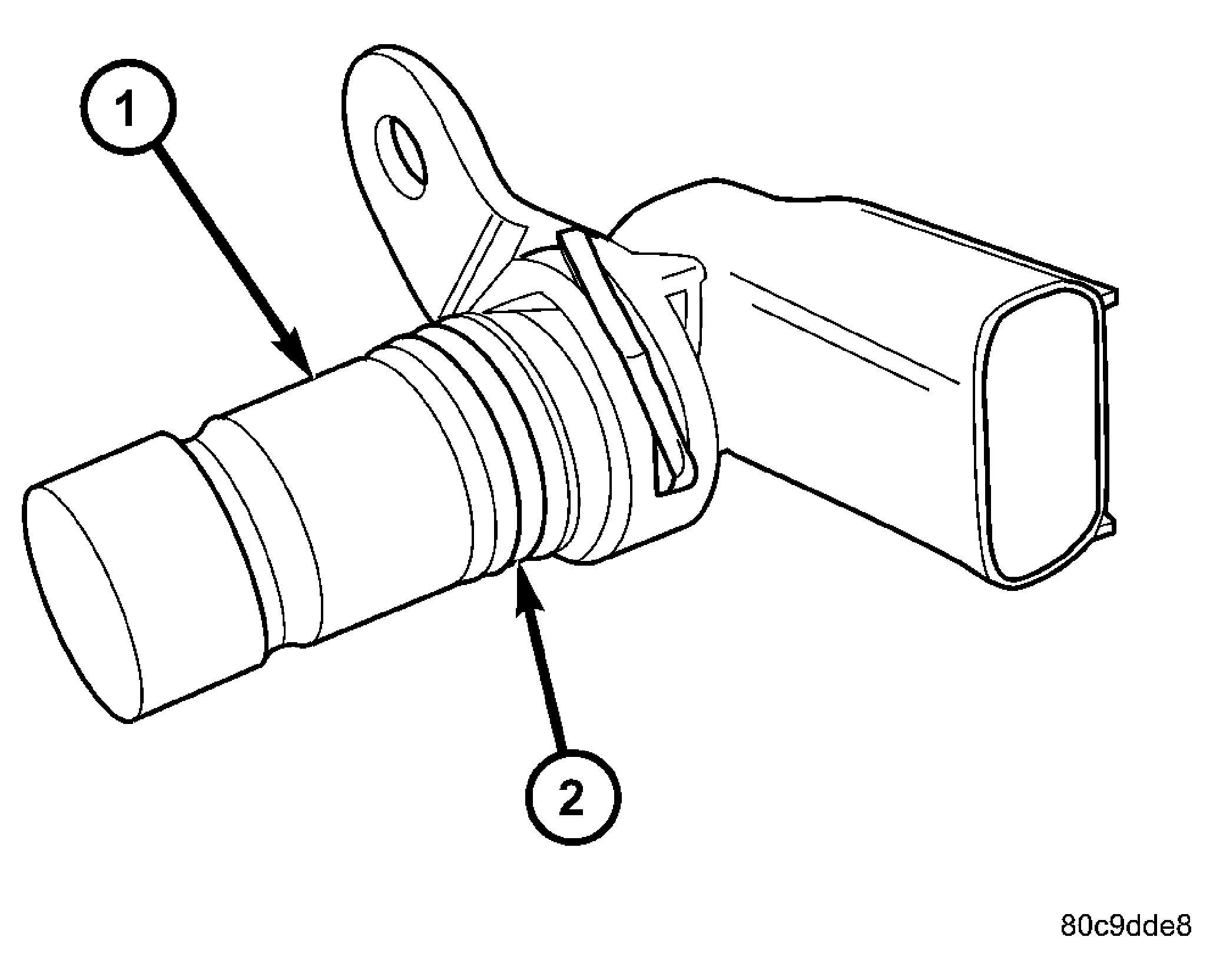

Fig 2: CKP And O-Ring-2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CKP SENSOR

2 - O-RING
