Upper Control Arm: Removal

  1. Raise and support the vehicle.
  2. Remove the parking brake cable/bracket and ABS wiring bracket from the arm if equipped. See Fig 1.

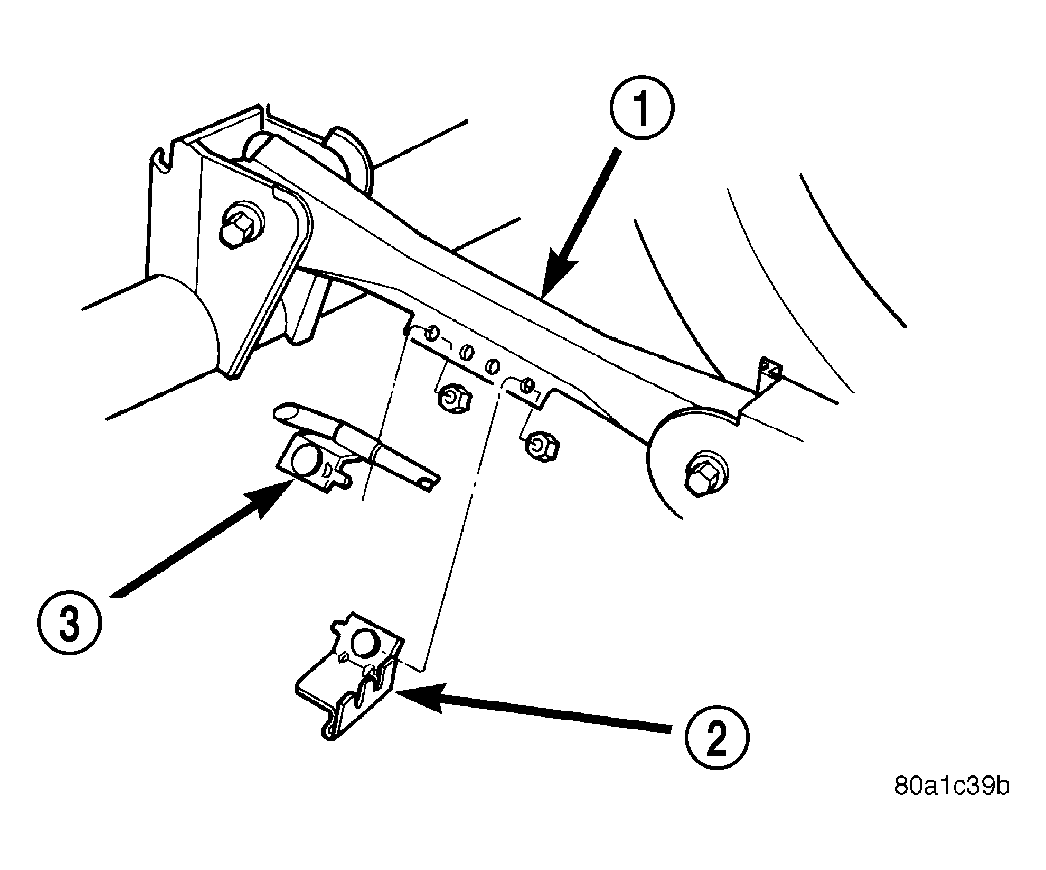

    Fig 1: Parking Brake Cable/Bracket And Wiring Bracket
    GC0029927Courtesy of DAIMLERCHRYSLER CORP.
    1 - UPPER SUSPENSION ARM
    2 - WIRING BRACKET
    3 - PARKING BRAKE CABLE BRACKET
  3. Remove the upper suspension arm nut and bolt from the axle bracket. See Figure.
  4. Remove the nut and bolt from the frame rail bracket and remove the upper suspension arm. See Figure.
