Track Bar: Removal

Raise and support the vehicle.
Remove the cotter pin and nut from the ball stud end at the frame rail bracket. See Fig 1.
Use a universal puller tool to separate the track bar ball stud from the frame rail bracket.
Remove the bolt and flag nut from the axle bracket. See Fig 1. Remove the track bar.

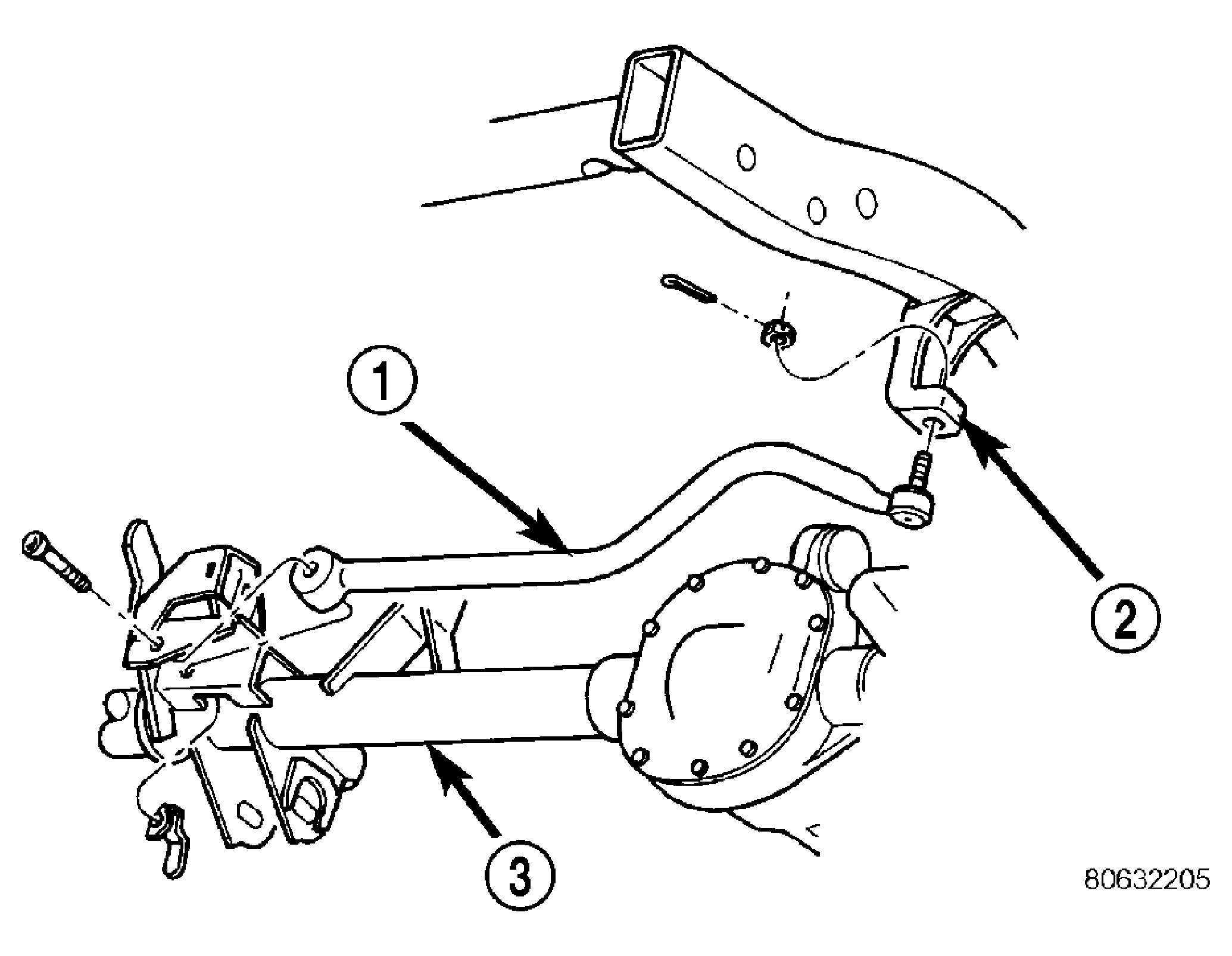

Fig 1: Track Bar

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRACK BAR

2 - FRAME BRACKET

3 - FRONT AXLE
