Power Steering System: Pump: Pulley: Removal

CAUTION: On vehicles equipped with the 4.0L, Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.

1. Remove pump assembly.
2. Remove pulley from pump with Puller C-4333 or equivalent puller. See Fig 1.

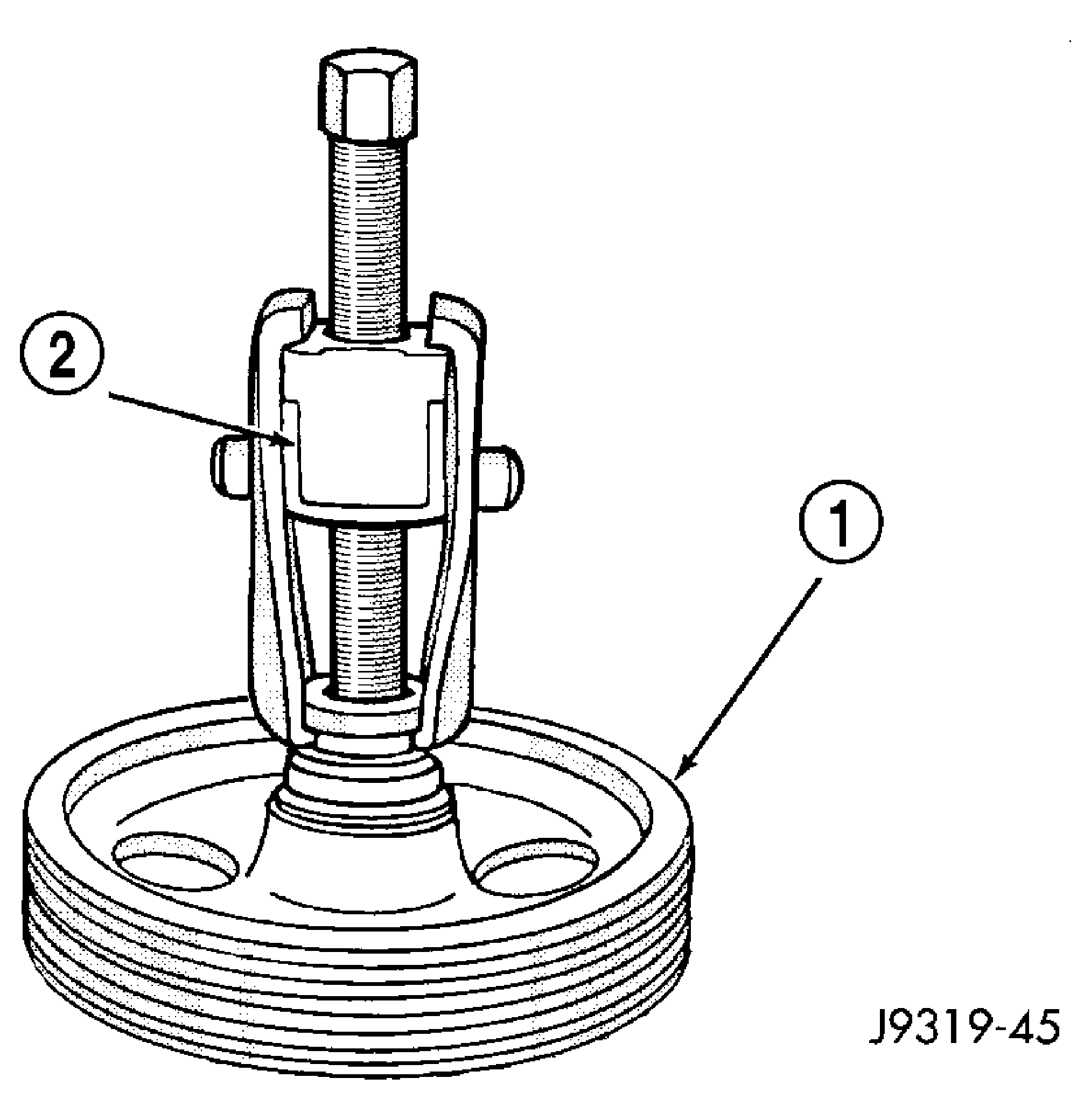

Fig 1: Pulley Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - POWER STEERING PUMP DRIVE PULLEY

2 - SPECIAL TOOL C-4333
