Pitman Arm: Removal

Remove the cotter pin and nut from the drag link at the pitman arm.
Remove the drag link ball stud from the pitman arm with a puller.
Remove the nut and washer from the steering gear shaft. Mark the pitman shaft and pitman arm for installation reference. Remove the pitman arm from steering gear with Puller C-4150A. See Fig 1.

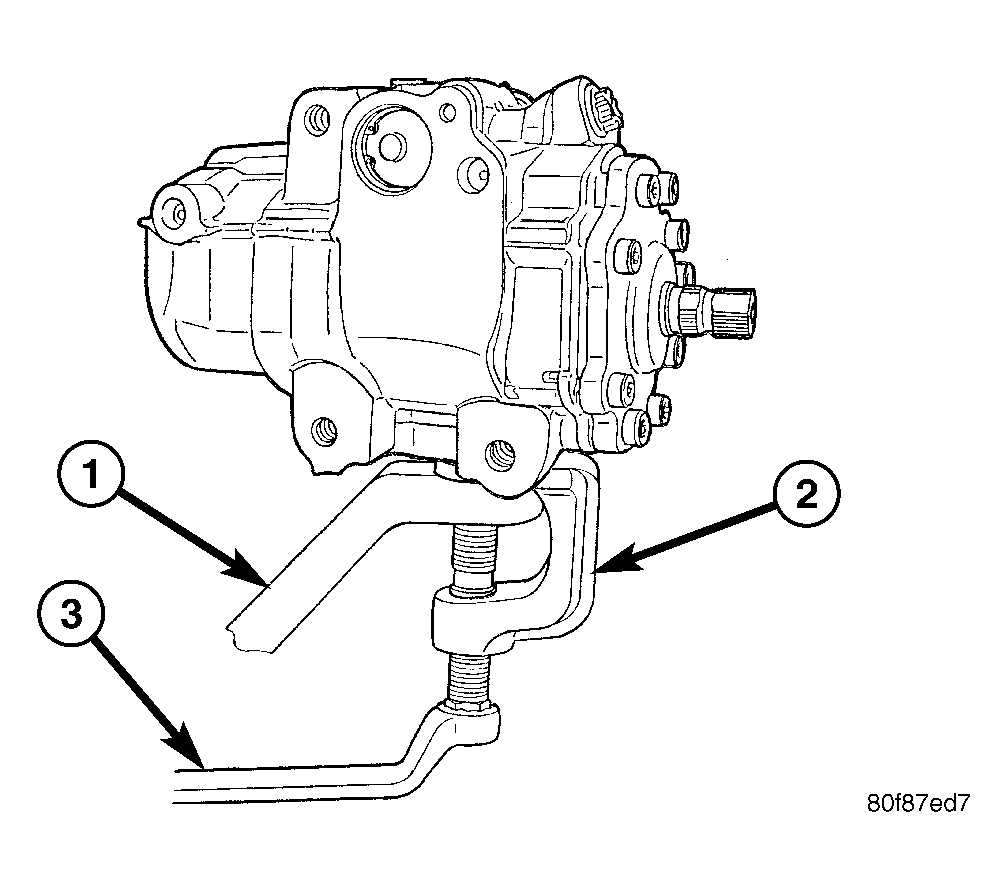

Fig 1: PITMAN ARM PULLER

Courtesy of DAIMLERCHRYSLER CORP.

1 - PITMAN ARM

2 - SPECIAL TOOL C-4150-A

3 - WRENCH
