Section 307 (Steering System): Pump: Operation
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

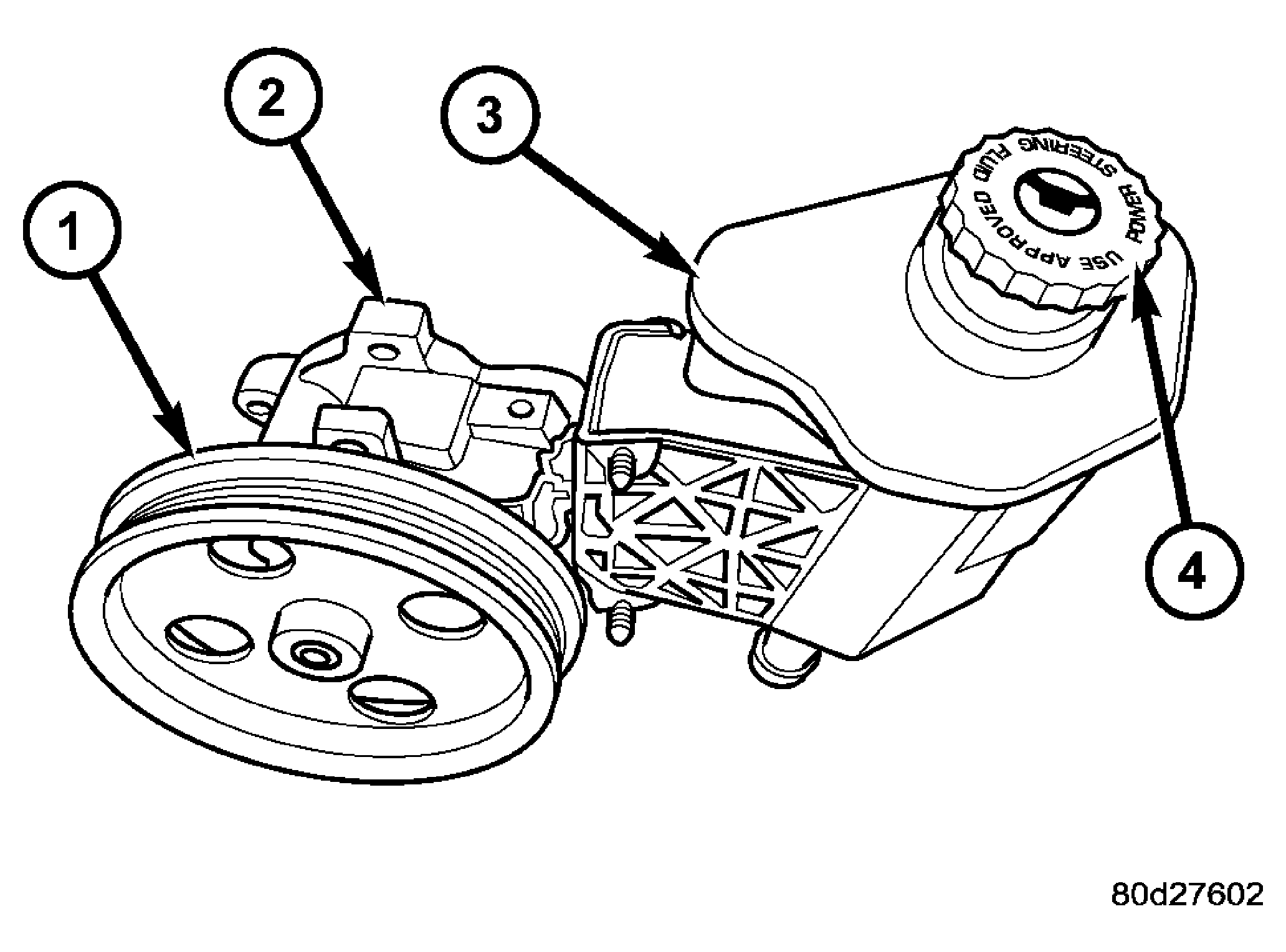

| 1 - 3.7L & 4.7L (6 GROOVE) PHENOLIC (PLASTIC TYPE) PULLEY |
| 1 - 5.7L, 5.9L & 8.0L (7 GROOVE) PHENOLIC (PLASTIC TYPE) PULLEY |
| 1 - 5.9L DIESEL (8 GROOVE) STEEL PULLEY |
| 2 - PUMP ASSEMBLY |
| 3 - RESERVOIR |
| 4 - CAP |
Hydraulic pressure is provided for the power steering gear by the belt driven power steering pump (2). See Fig 1. The power steering pumps are constant flow rate and displacement, vane-type pumps.
