Evaporative Emissions System Locations

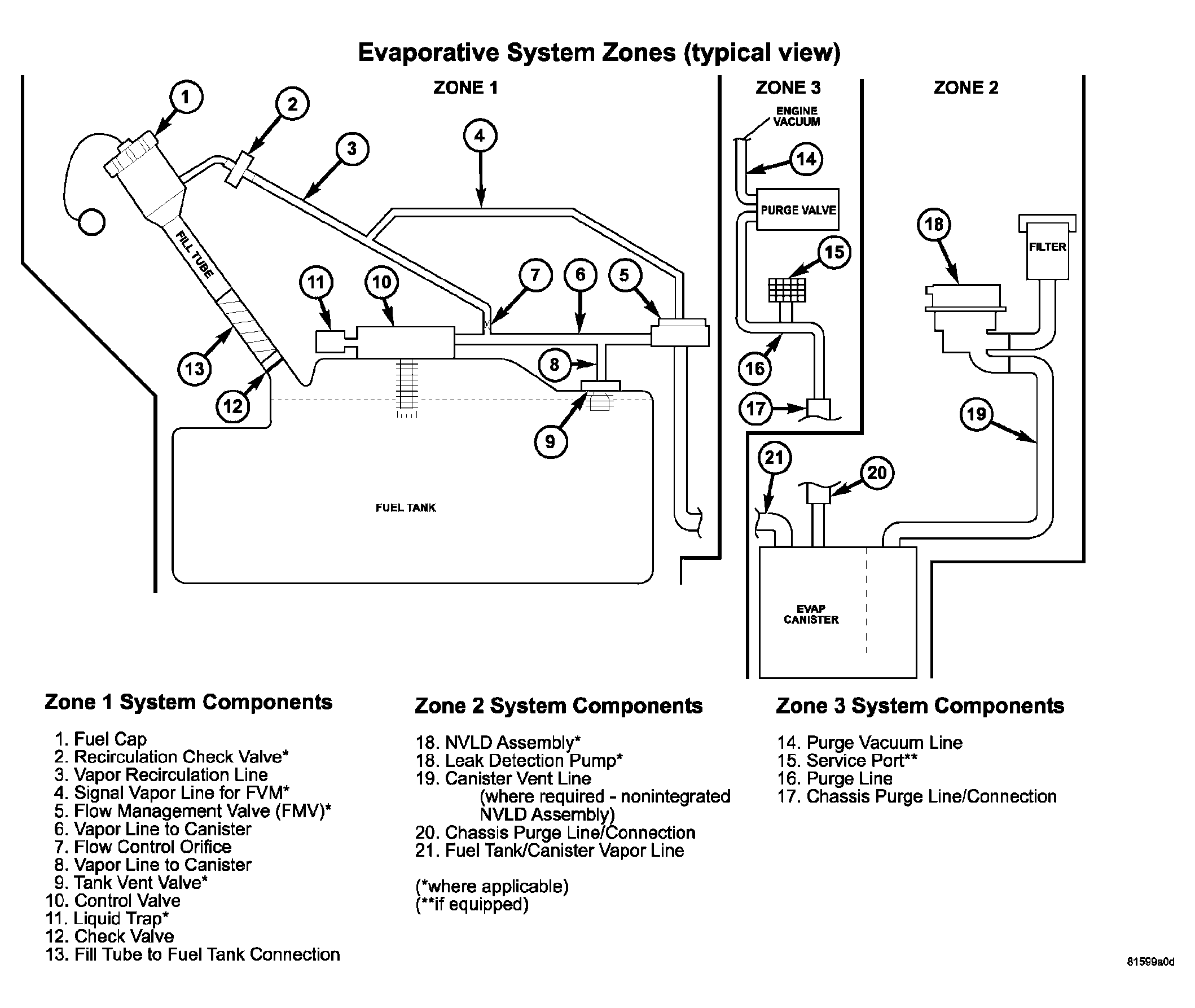

Fig 1: Evaporative System Diagram

G04550650

Courtesy of DAIMLERCHRYSLER CORP.
