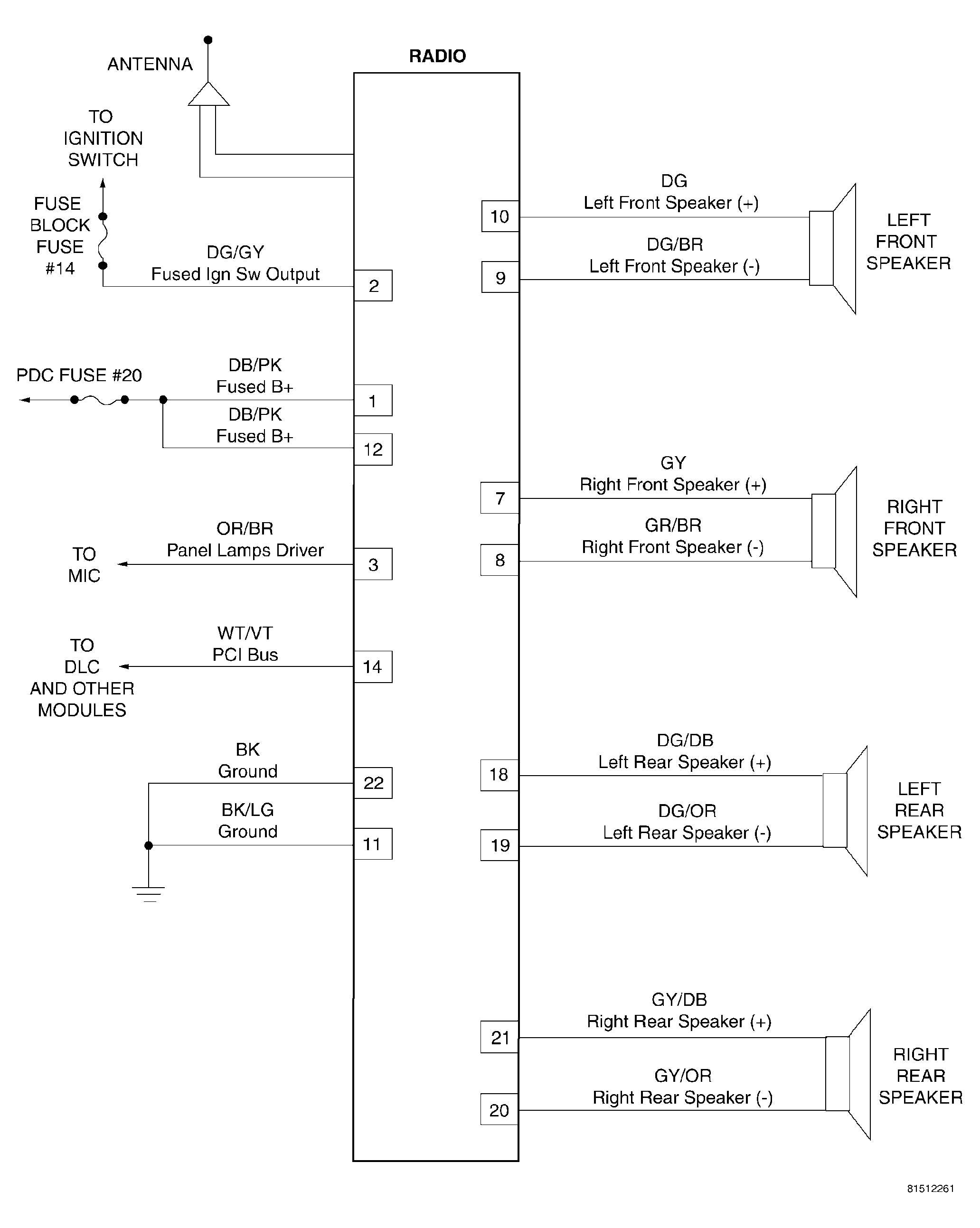

Home >> Jeep >> 2005 >> Wrangler X, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Audio System >> Base Audio System
