Fuse Block

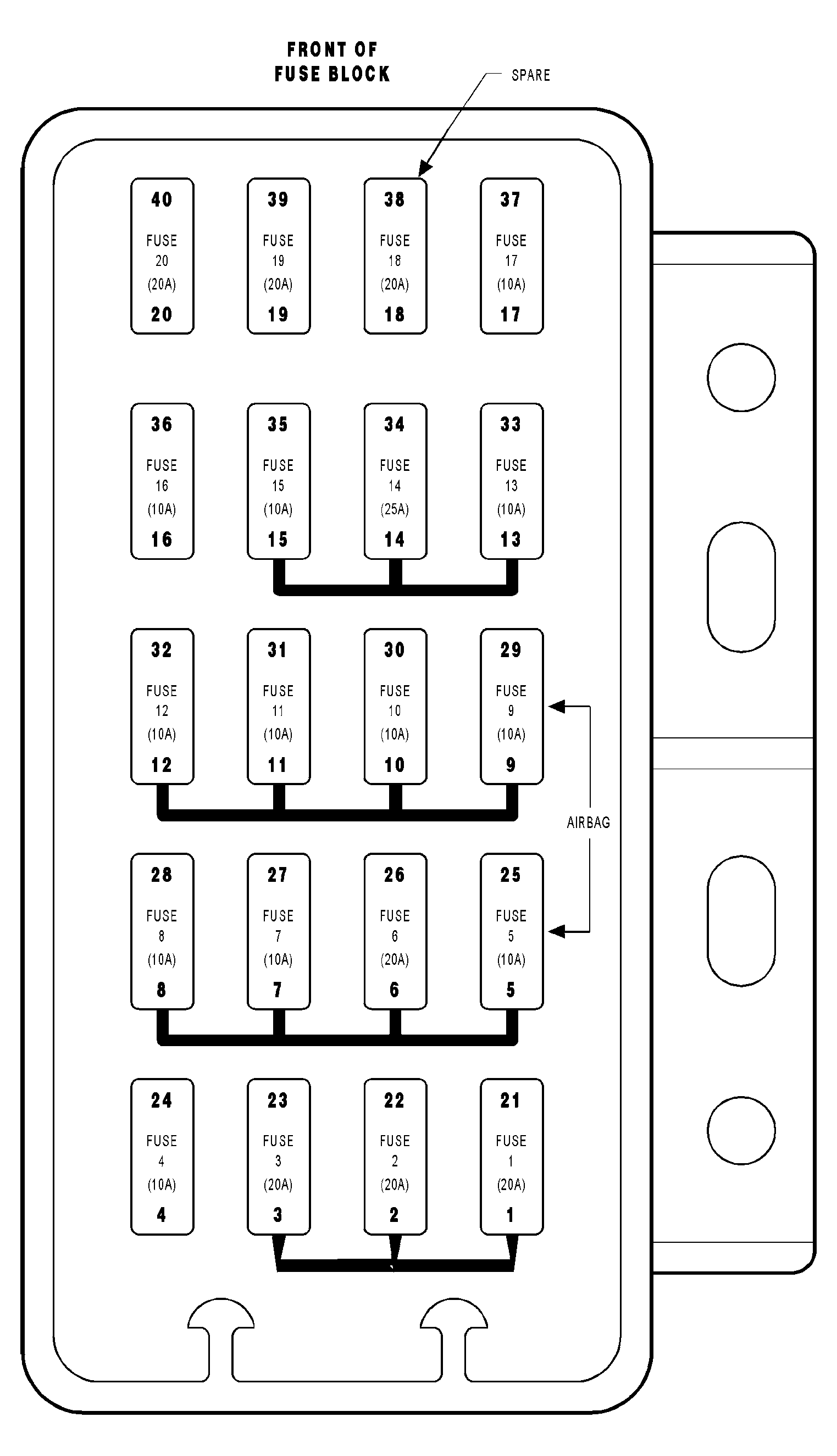

Fig 1: Identifying Fuse Block

G04550680

Courtesy of DAIMLERCHRYSLER CORP.

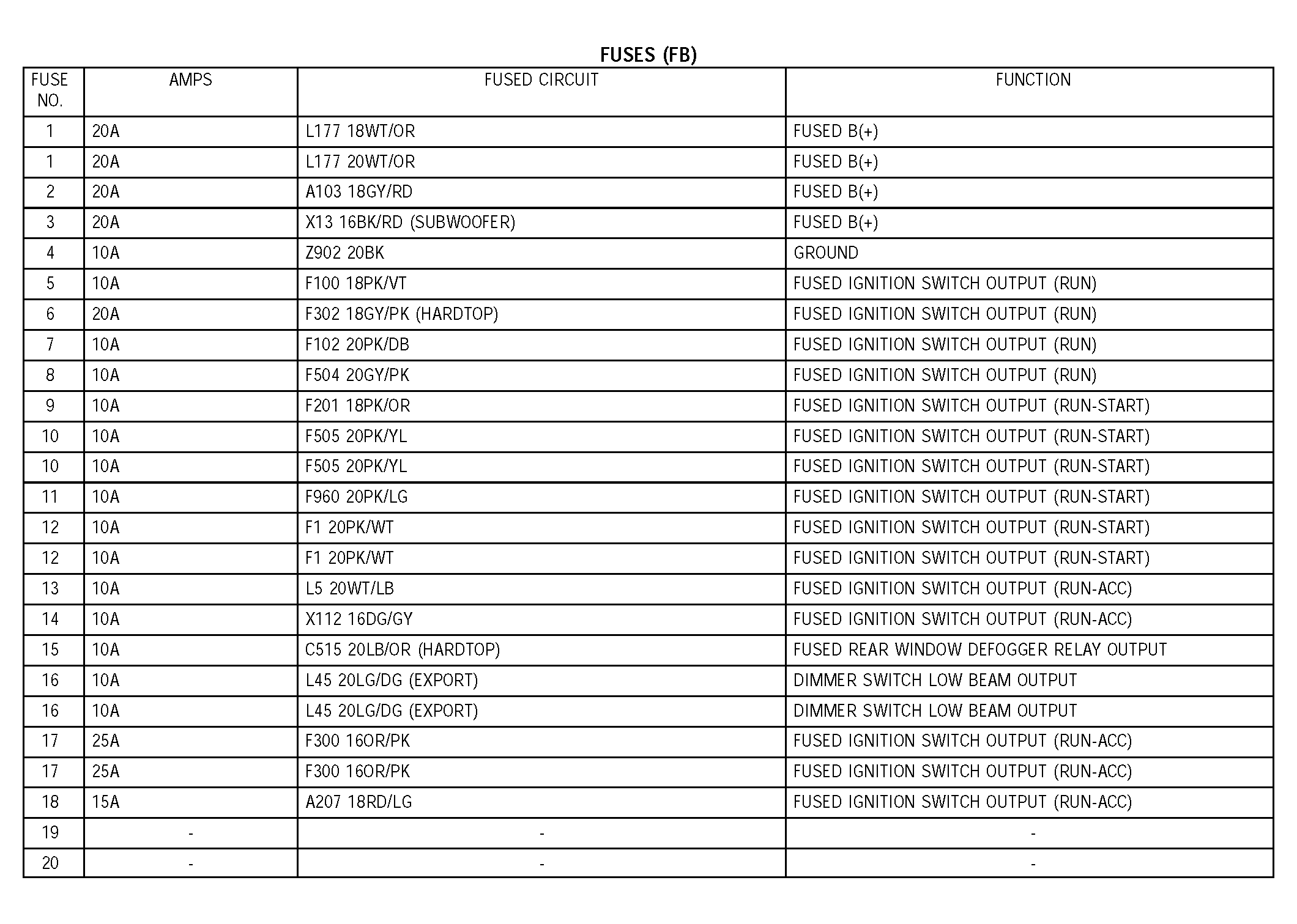

Fig 2: Fuse Block Fuses Chart

G04550681

Courtesy of DAIMLERCHRYSLER CORP.
