INA Decoupler

Thread decoupler pulley onto generator shaft by hand (right-hand threads).
Position Special Tool #8823 (VM.1048) into decoupler. See Figure.
Determine if end of generator shaft is hex shaped or is splined. See Figure and Figure. If hex is used, insert a 10MM deep socket into tool #8823 (VM.1048). See Fig 1. If splined, insert a 5/16" 6-point hex driver, or a 10MM 12-point triple square driver into tool #8823 (VM.1048). See Fig 2.
Do not use an adjustable, ratcheting "click type" torque wrench. Most "click type" wrenches will only allow torque to be applied in a clockwise rotation. Use a dial-type or beam-type wrench. Tighten in counter-clockwise rotation. See Fig 1 or Fig 2. Refer to TORQUE specifications.
Install accessory drive belt, and generator. Refer to Generator INSTALLATION .
Connect negative battery cable.

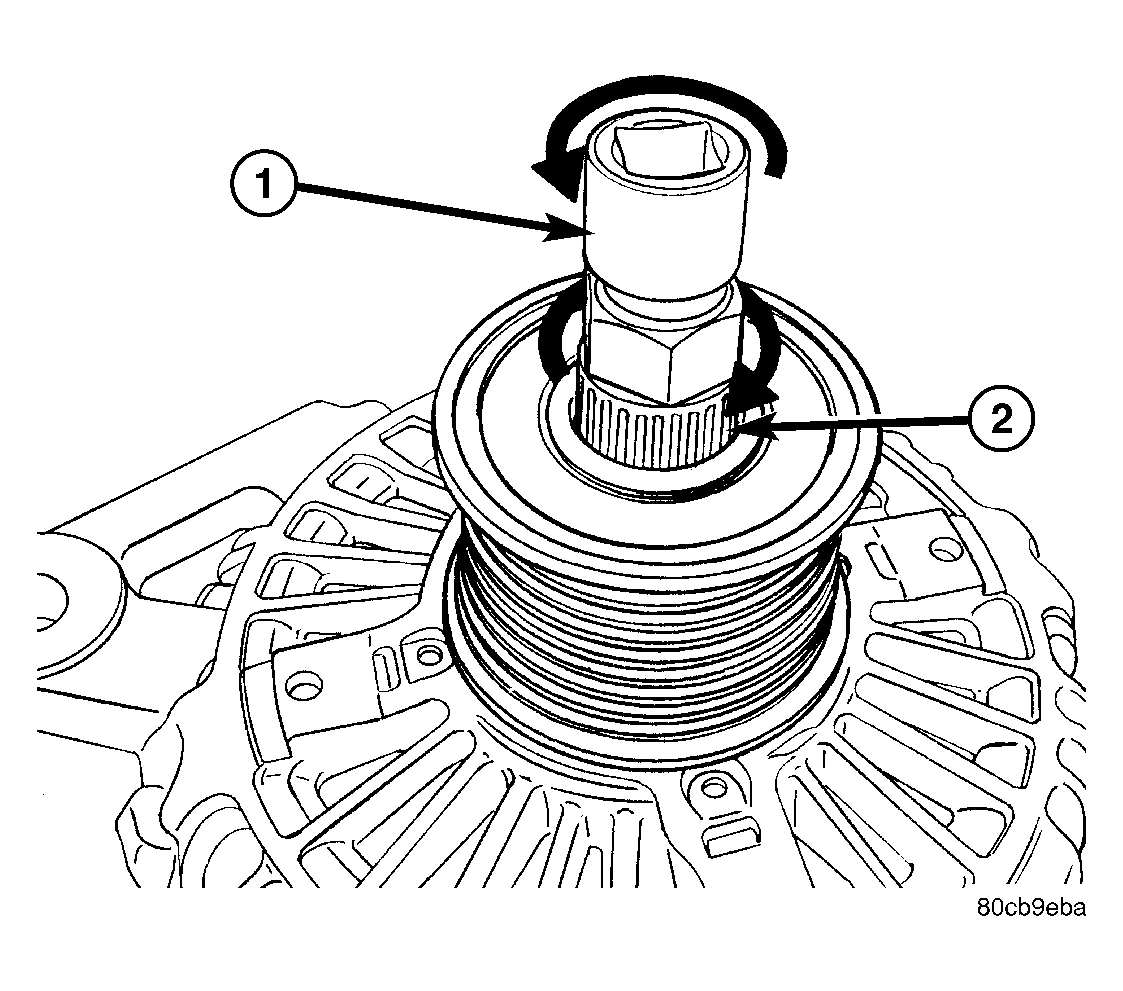

Fig 1: Decoupler Installation (INA-Hex)

Courtesy of DAIMLERCHRYSLER CORP.

1 - 10MM DEEP SOCKET

2 - TOOL #8823 (VM.1048)

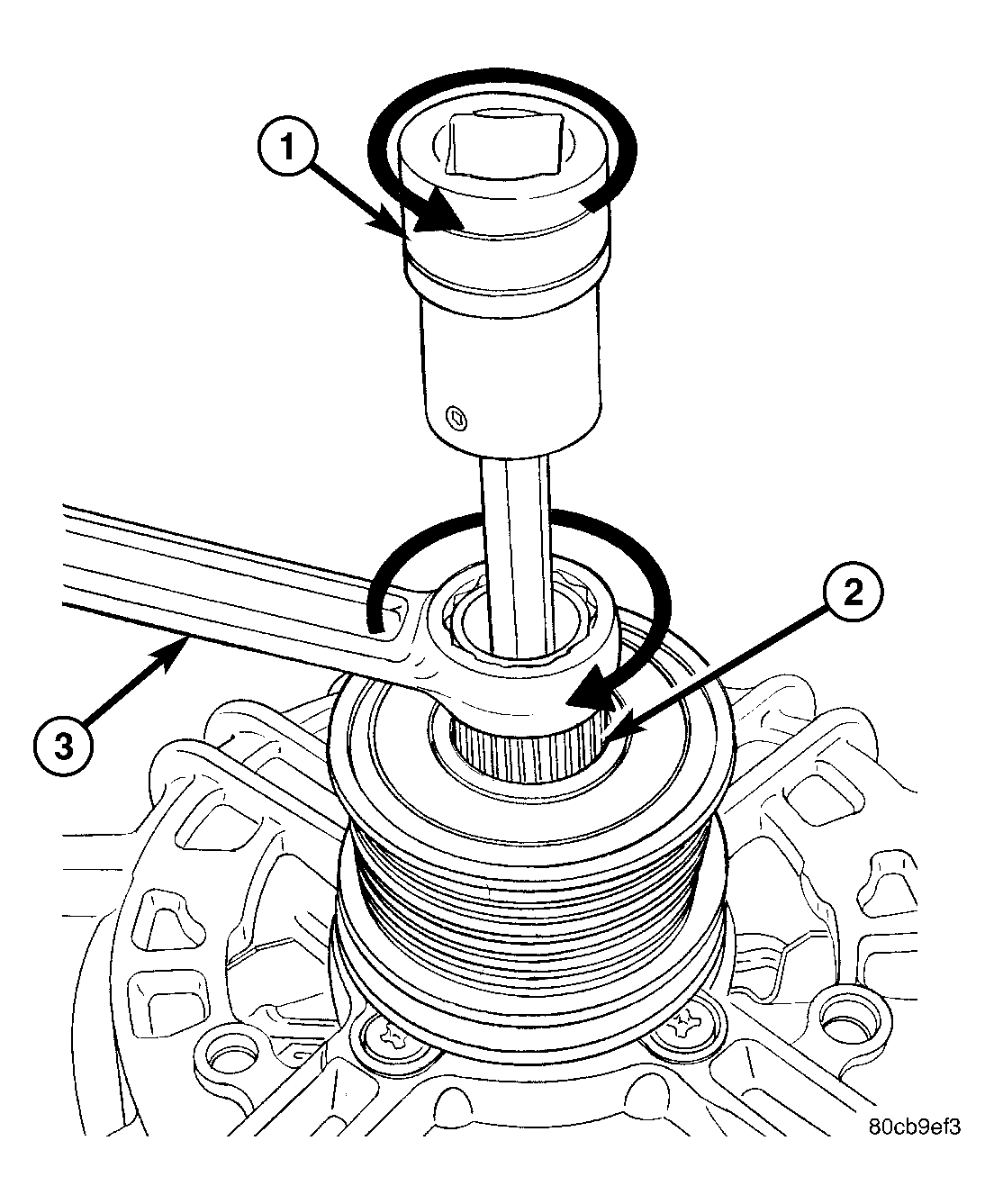

Fig 2: Decoupler Installation (INA Splined)

Courtesy of DAIMLERCHRYSLER CORP.

1 - DRIVER

2 - TOOL # 8823 (VM.1048)

3 - 17 MM WRENCH
