Body, Cab Control Systems
>>
Body Diagnostic Procedures
>>
Connector PINOUTS
>>
Power Distribution Center
Power Distribution Center

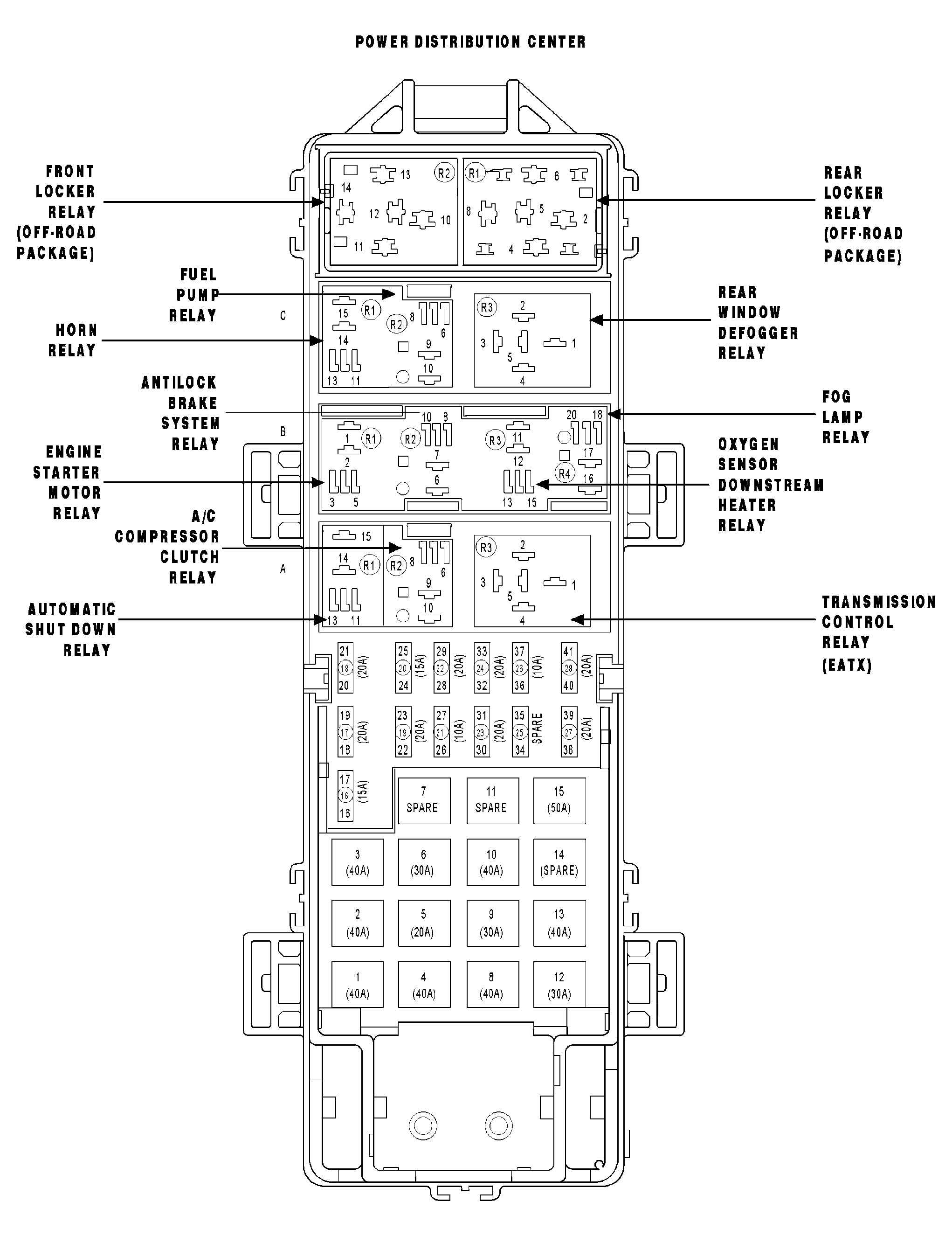

Fig 1: Identifying Power Distribution Center Relays
Courtesy of DAIMLERCHRYSLER CORP.

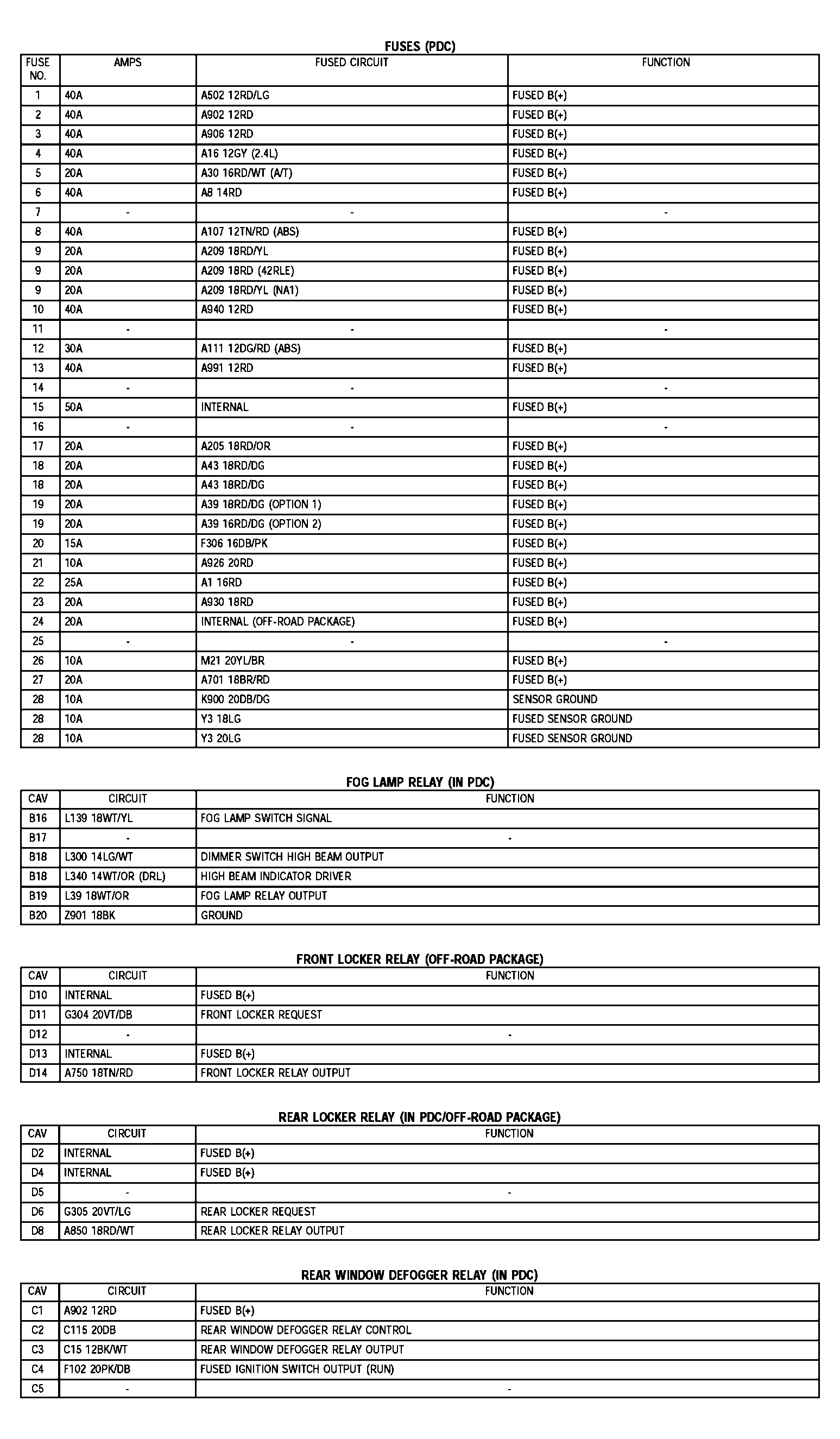

Fig 2: Power Distribution Center Relays Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
