Throttle Position Sensor (2.4L) - 3 Way

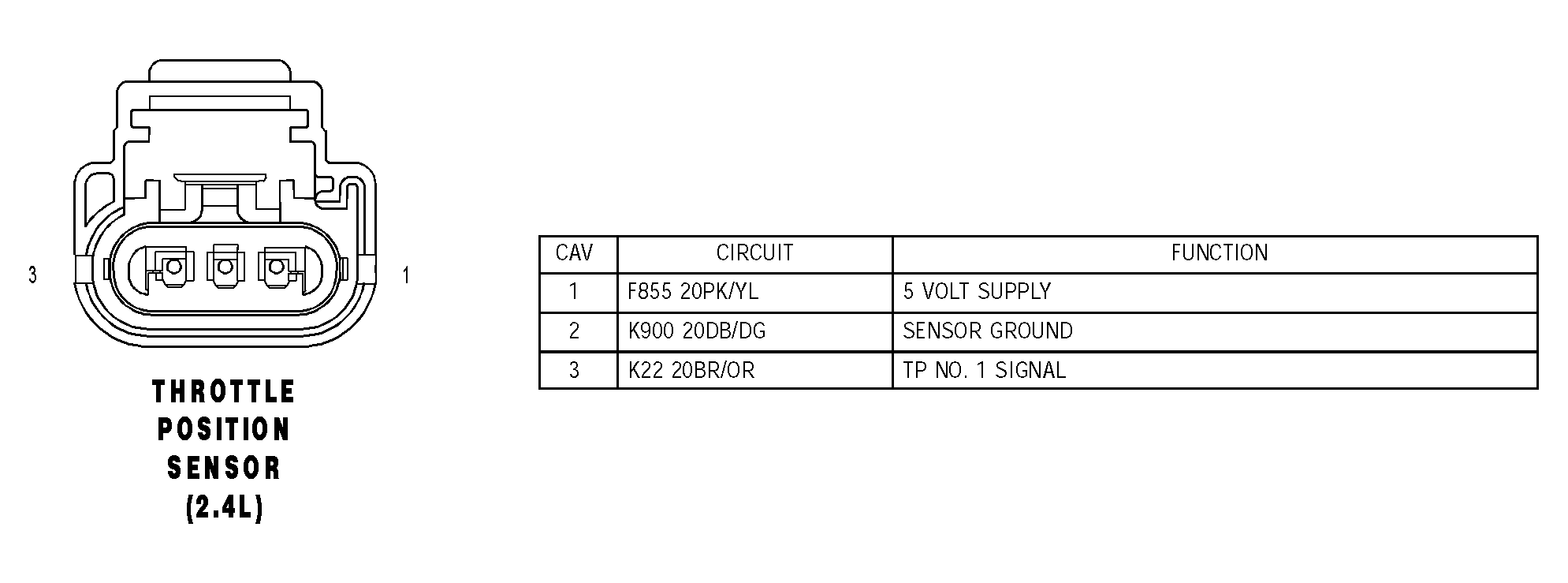

Fig 1: Identifying Throttle Position Sensor Connector Terminal (2.4L) - 3 Way

G04550633

Courtesy of DAIMLERCHRYSLER CORP.
