Intake Air Temperature Sensor (2.4L) - 2 Way

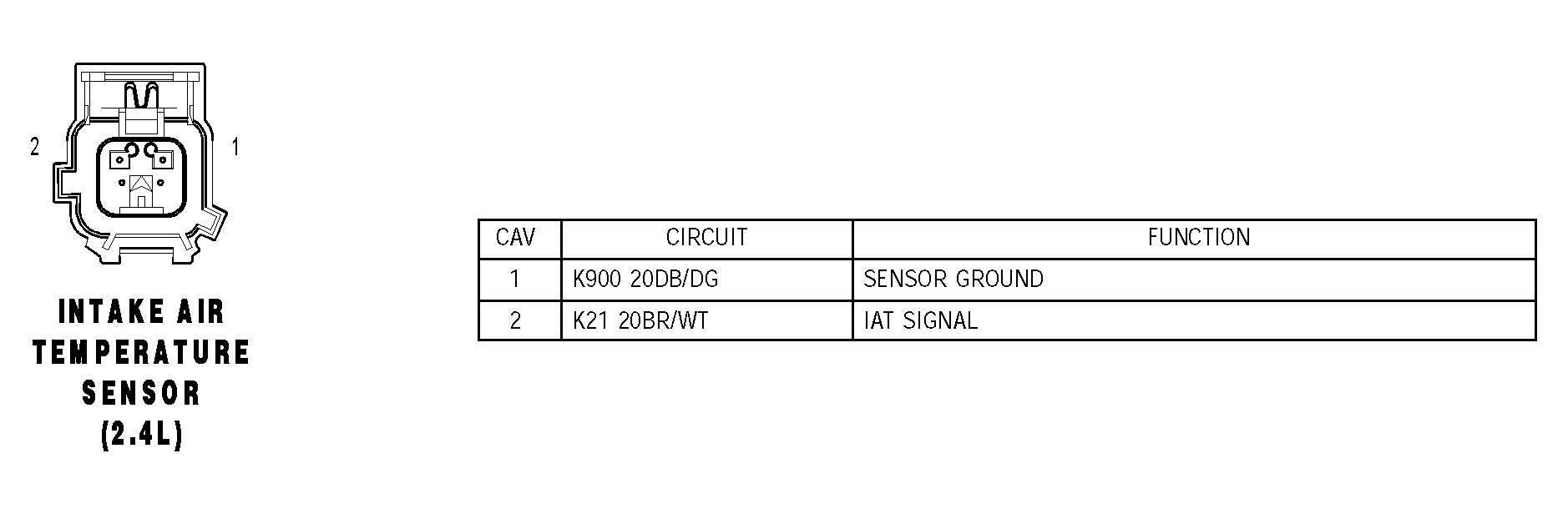

Fig 1: Identifying Intake Air Temperature Sensor Connector Terminal (2.4L) - 2 Way

G04550611

Courtesy of DAIMLERCHRYSLER CORP.
