Engine Firing Order - 4.0L 6-Cylinder Engine

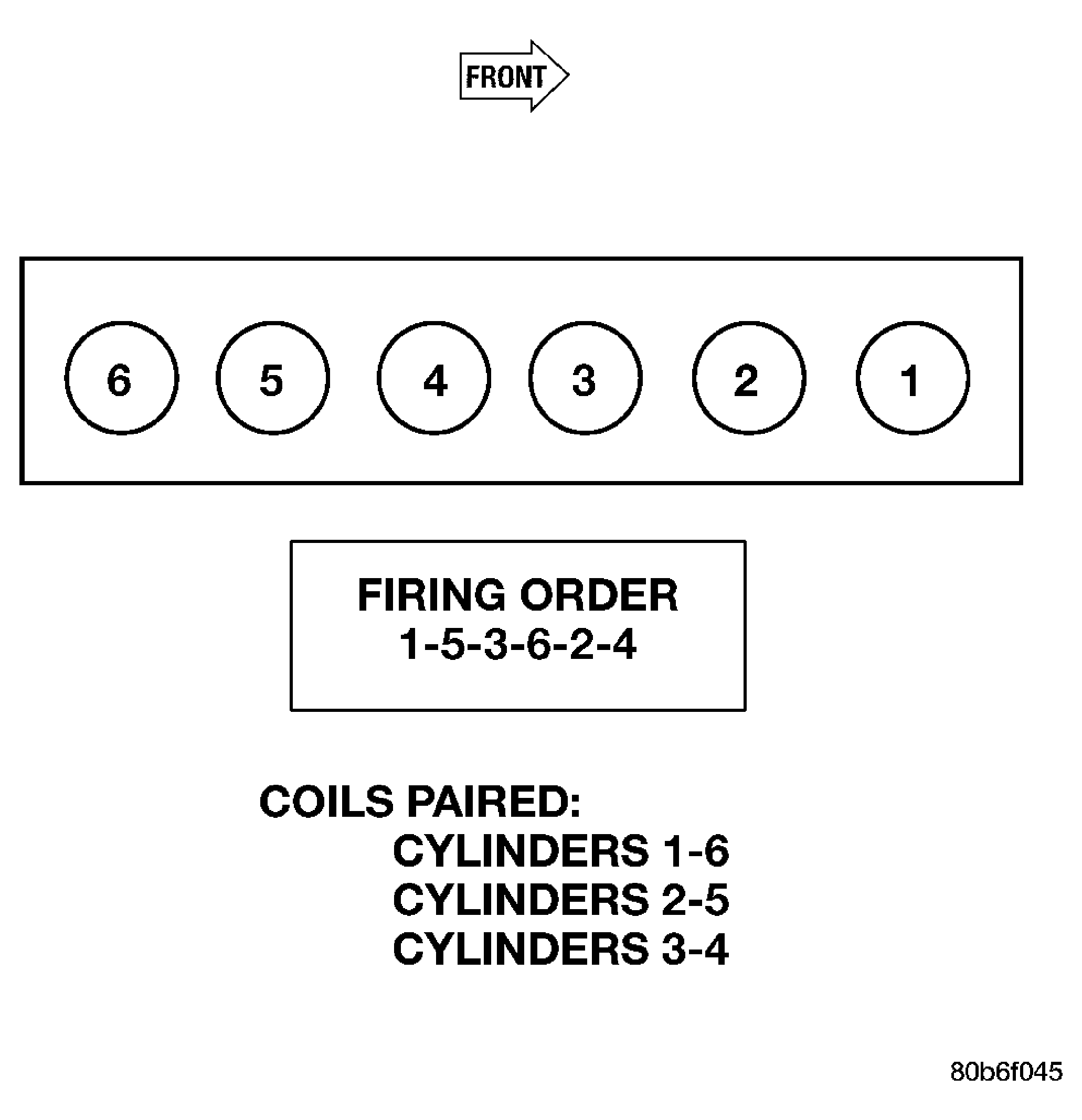

Fig 1: FIRING ORDER - 4.0L

GC0030861

Courtesy of DAIMLERCHRYSLER CORP.
