Transmission Control Module - Diesel Engine

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Transmission Control Module (TCM) is located in the engine compartment on the left (driver) side and is mounted to the dash panel. See Fig 1.

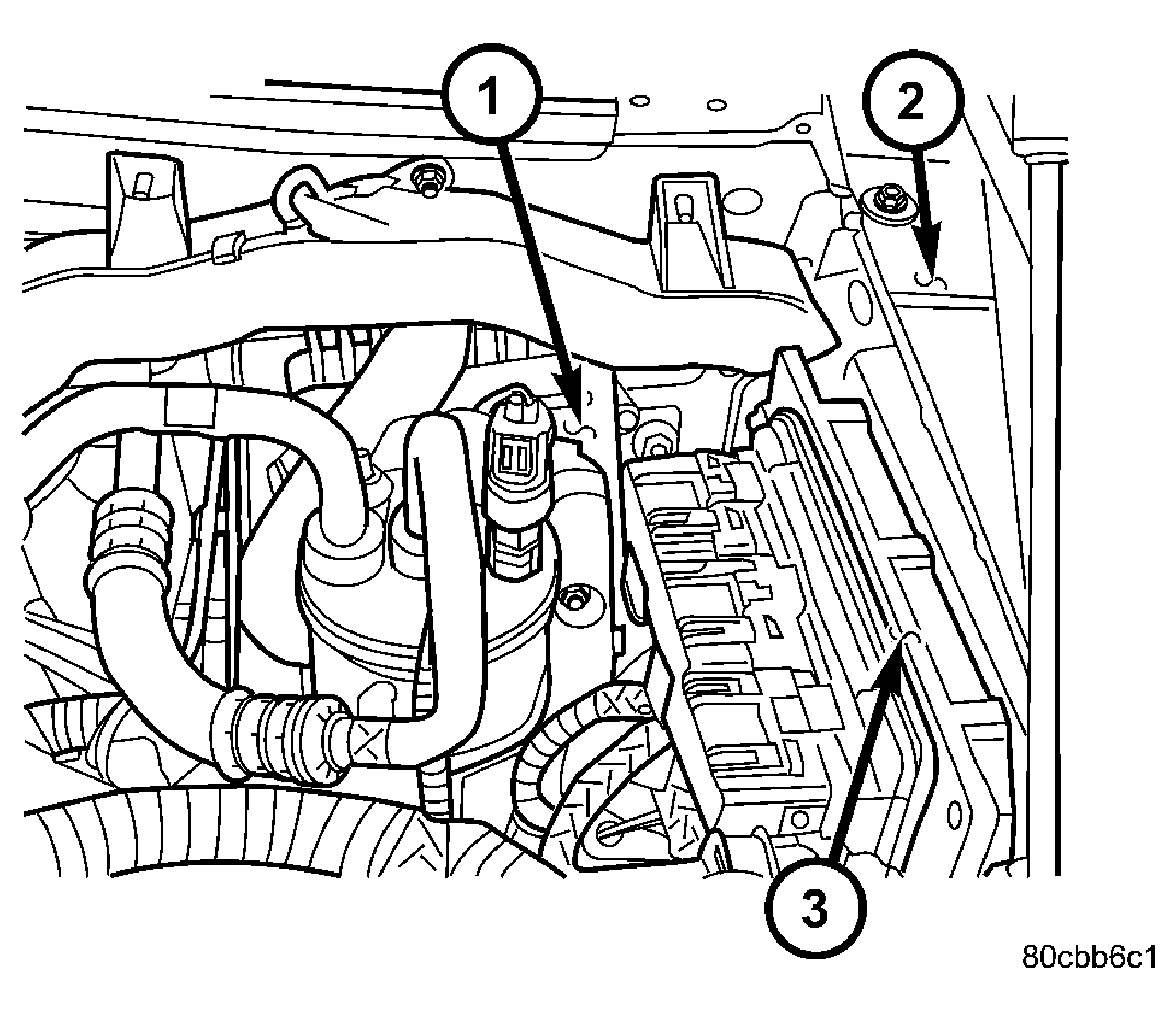

Fig 1: Transmission Control Module Location
GC0026399Courtesy of DAIMLERCHRYSLER CORP.
