Power Distribution Center Support Bracket: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the Power Distribution Center (PDC) from the PDC bracket (Refer to ELECTRICAL/POWER DISTRIBUTION/POWER DISTRIBUTION CENTER - REMOVAL) .
  3. Remove the three screws that secure the PDC bracket to the right front inner fender. See Fig 1.

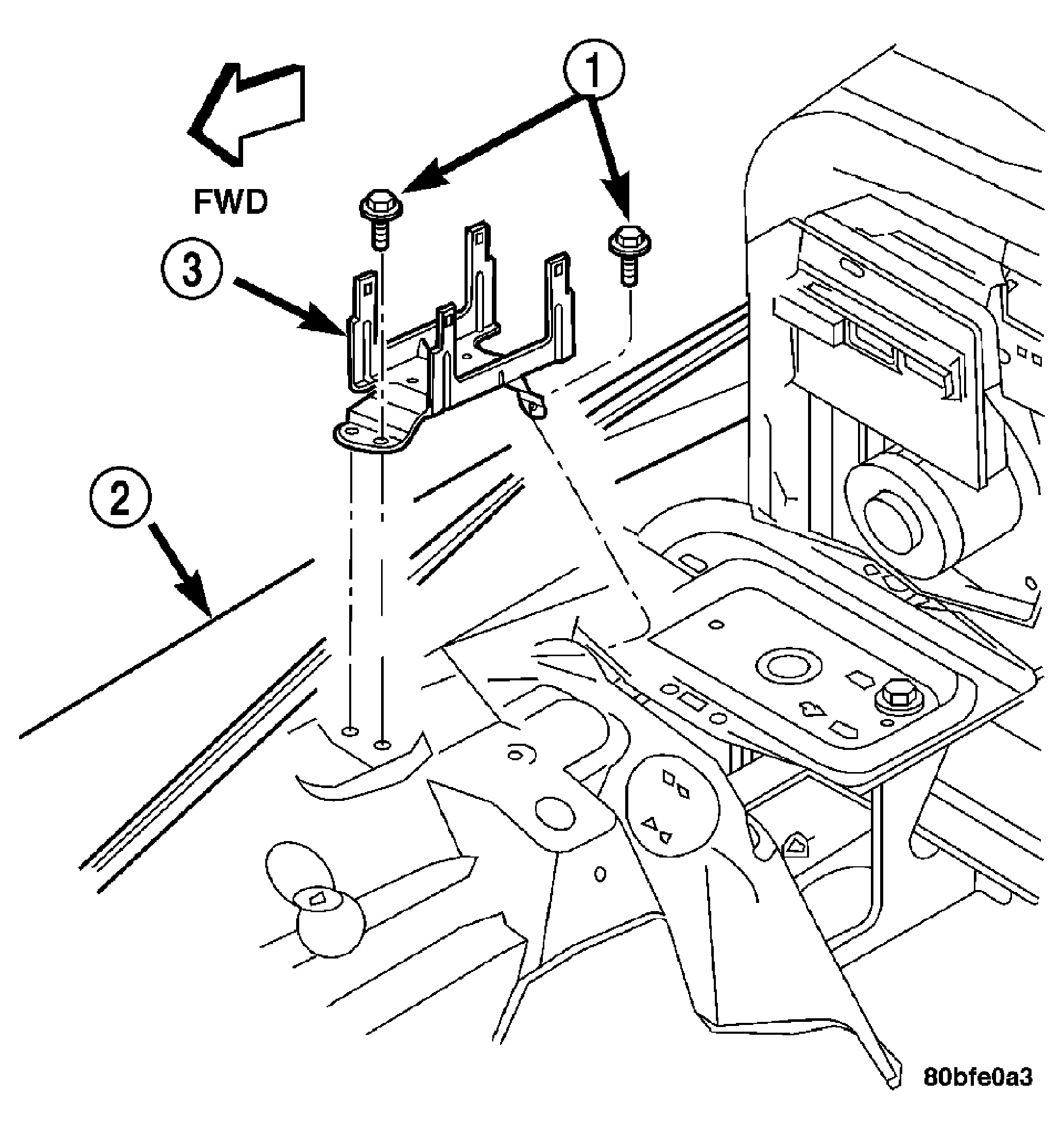

    Fig 1: PDC Bracket
    GC0031008Courtesy of DAIMLERCHRYSLER CORP.
    1 - SCREWS (3)
    2 - RIGHT FRONT FENDER
    3 - PDC BRACKET
  4. Remove the PDC bracket from the right front inner fender.
