Transmission Range Sensor - 10 Way

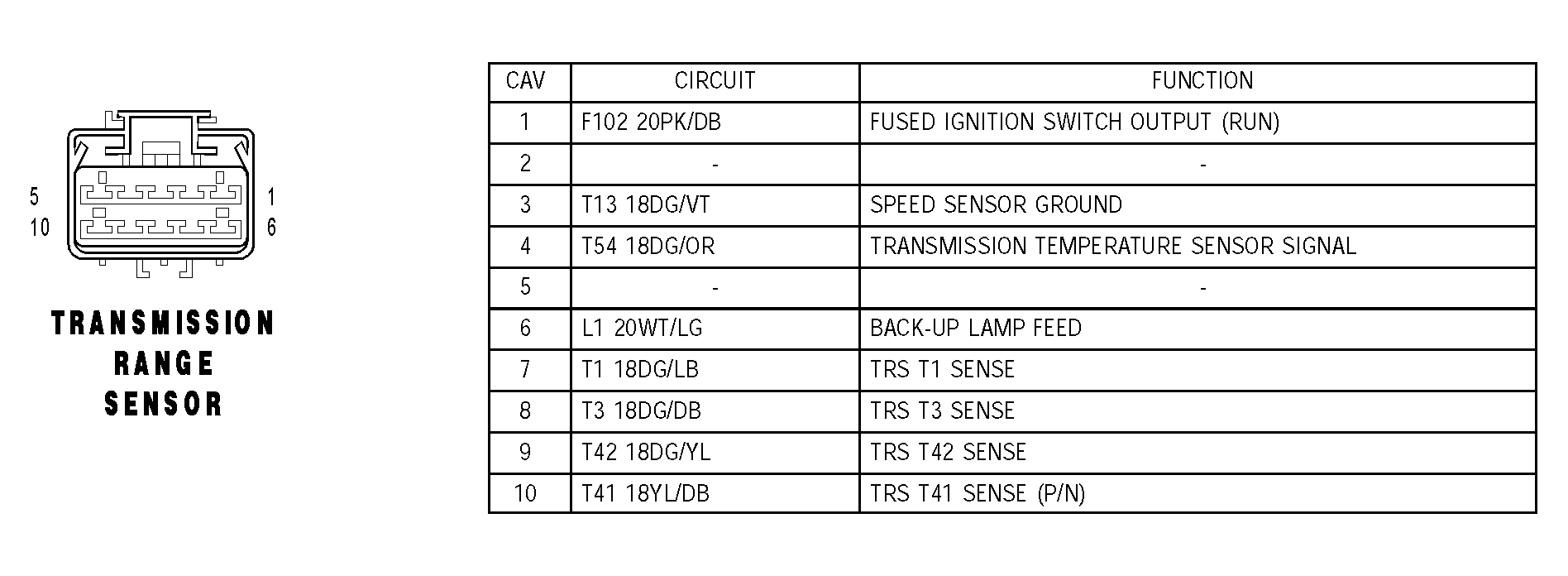

Fig 1: Identifying Transmission Range Sensor Connector Terminal - 10 Way

G04550638

Courtesy of DAIMLERCHRYSLER CORP.
