Home >> Jeep >> 2005 >> Wrangler Rubicon, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Connector PINOUTS >> Sentry Key Immobilizer Module - Black 6 Way

Sentry Key Immobilizer Module - Black 6 Way

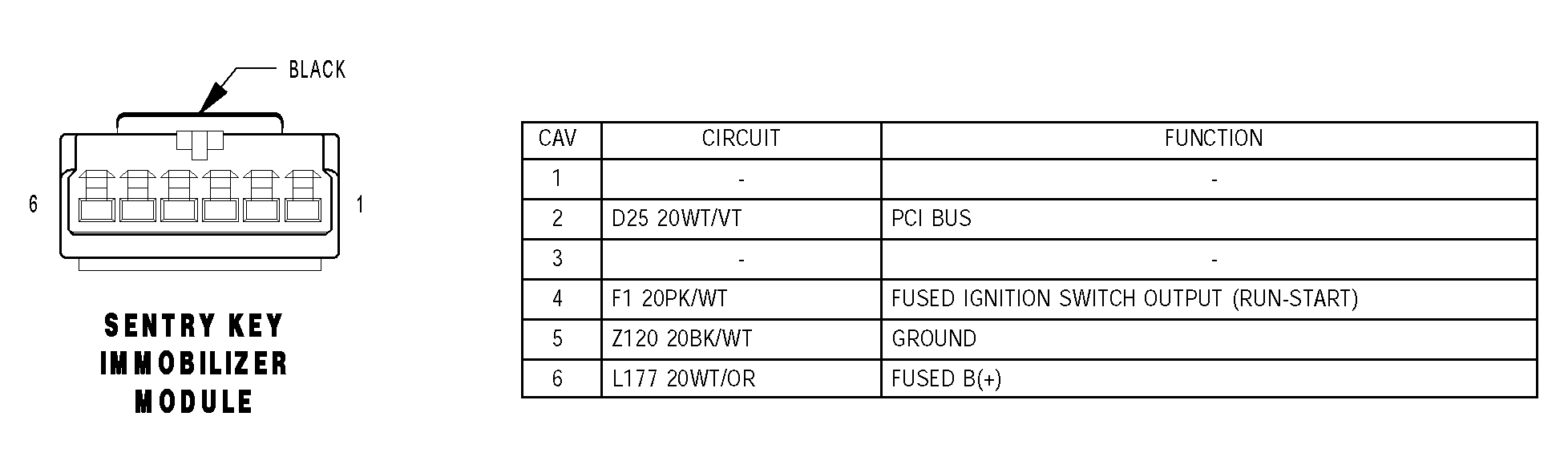

Fig 1: Identifying Sentry Key Immobilizer Module Connector Terminal - Black 6 Way

G04550631

Courtesy of DAIMLERCHRYSLER CORP.
