Powertrain Control Module C1 - Black/Black 38 Way

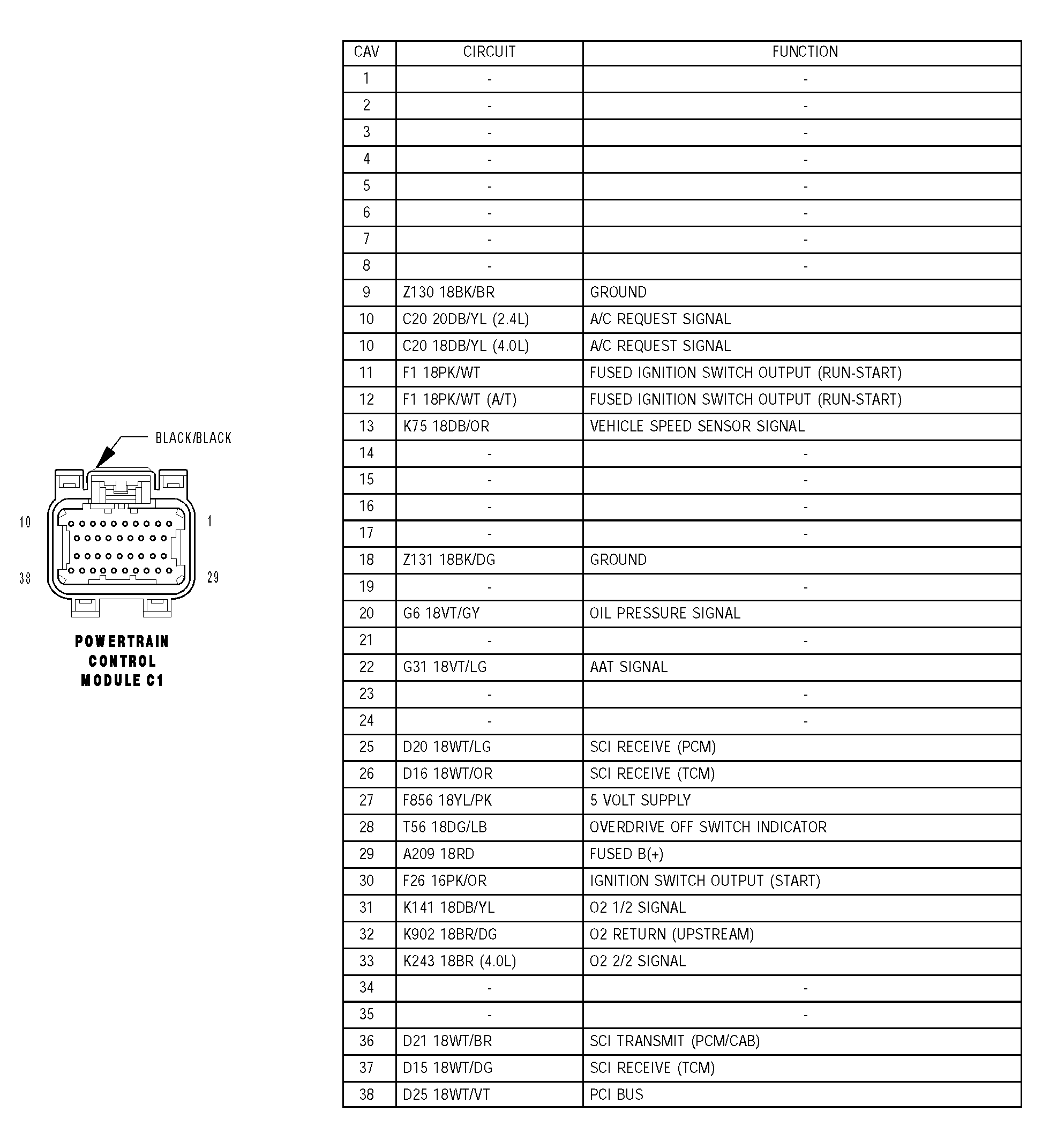

Fig 1: Identifying Powertrain Control Module Connector Terminal C1 - Black/Black 38 Way
G04550625Courtesy of DAIMLERCHRYSLER CORP.
