Generator - 3 Way

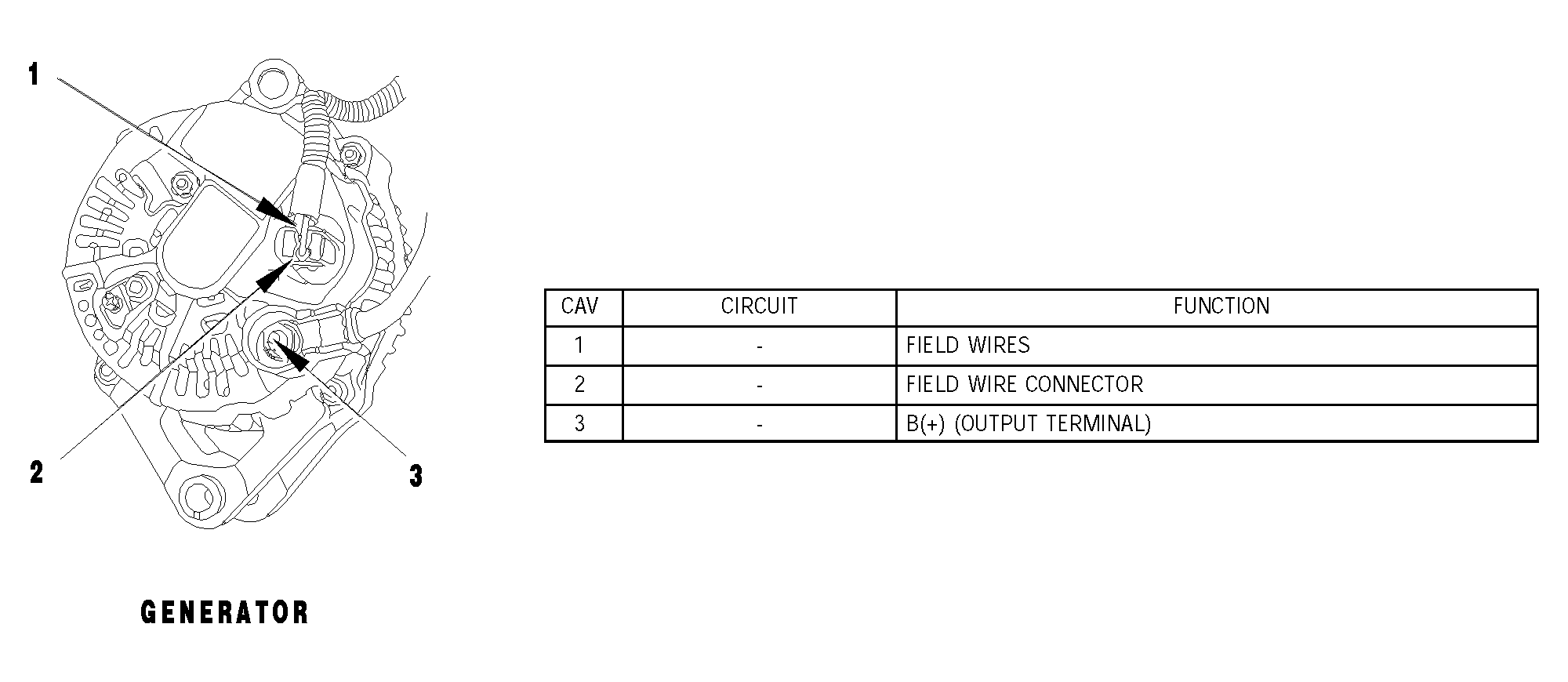

Fig 1: Identifying Generator Connector - 3 Way

G04550605

Courtesy of DAIMLERCHRYSLER CORP.
