Seat Belt Turning Loop Adjuster: Installation

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

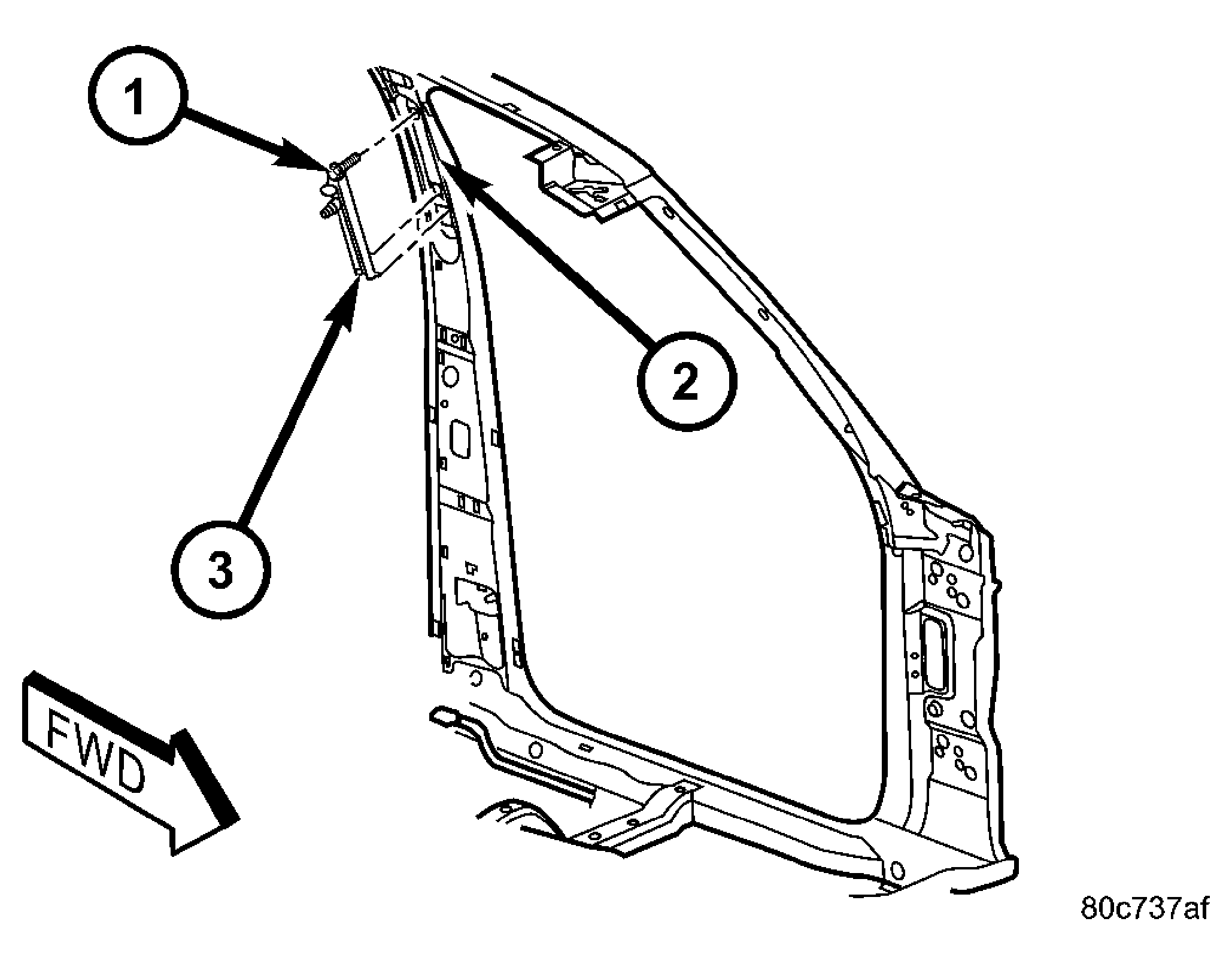

  1. Position the seat belt turning loop adjuster to the B-pillar. See Figure.
  2. Engage the hooks on the lower end of the adjuster into the slots in the B-pillar.
  3. Tilt the upper end of the turning loop adjuster up into position against the B-pillar.
  4. Install and tighten the screw that secures the seat belt turning loop adjuster to the upper B-pillar. Tighten the screw to 34 N.m (25 ft. lbs.).
  5. Reinstall the upper trim onto the inside of the B-pillar. (Refer to BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION) .
  6. Position the seat belt turning loop onto the height adjuster stud on the upper B-pillar.
  7. Install and tighten the nut that secures the seat belt turning loop to the height adjuster stud. Tighten the nut to 34 N.m (25 ft. lbs.).
  8. Fold and snap the trim cover back into place to conceal the nut that secures the front seat belt turning loop to the height adjuster on the upper B-pillar.
  9. Reconnect the battery negative cable.
