Stabilizer Link: Installation

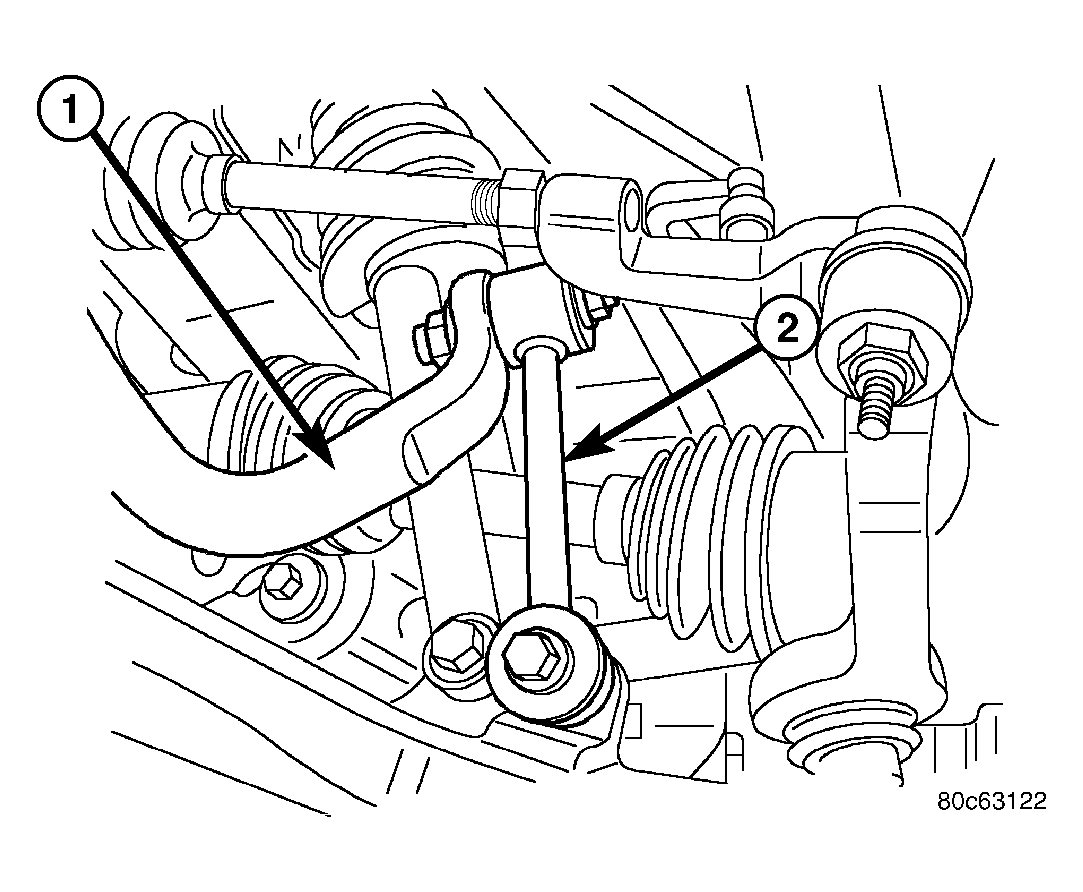

  1. Install the stabilizer link. See Figure.
  2. Install the upper stabilizer link bolt and washer at the stabilizer bar. Tighten the bolt to 136 N.m (100 ft.lbs.).
  3. Install the lower stabilizer link bolt and washer at the lower control arm. Tighten the nut to 115 N.m (85 ft.lbs.).
  4. Install the tire and wheel assembly. (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
