Lower Control Arm: Removal

  1. Raise and support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Remove the lower clevis bracket bolt at the lower control arm.
  4. Remove the stabilizer link bolt at the lower control arm.
  5. Remove the lower ball joint nut.
  6. Separate the lower ball joint from the lower control arm using tool C-4150A.
    NOTE: Marking the lower control arm pivot bolts front and rear will aid in the assembly procedure.
  7. Mark the lower control arm pivot bolts front and rear.
  8. Remove the front cam/pivot bolt. See Fig 1
  9. Remove the rear cam/pivot bolt. See Fig 1
  10. Remove the lower control arm from the vehicle.

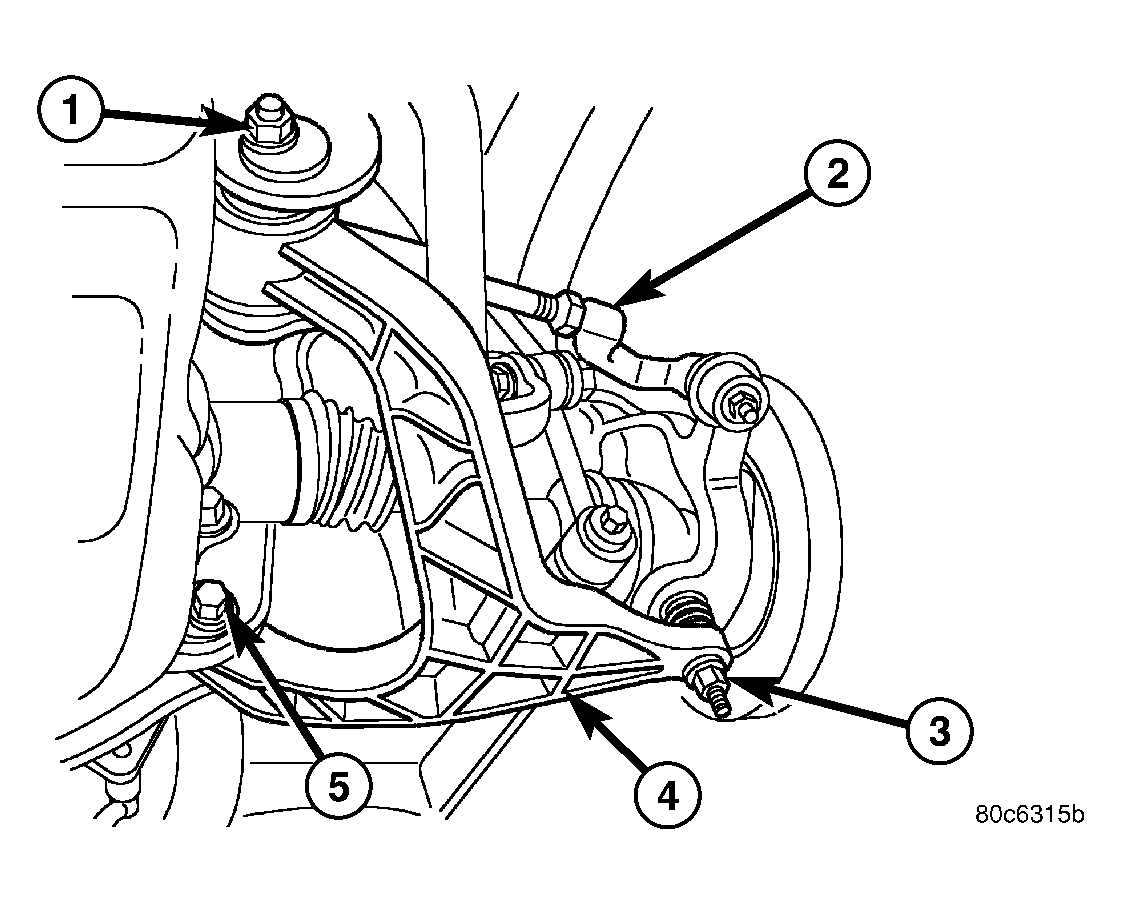

Fig 1: LOWER CONTROL ARM
GC0024963Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT CAM BOLT
2 - OUTER TIE ROD END
3 - LOWER BALL JOINT NUT
4 - LOWER CONTROL ARM
5 - REAR CAM BOLT
