Clevis Bracket: Installation

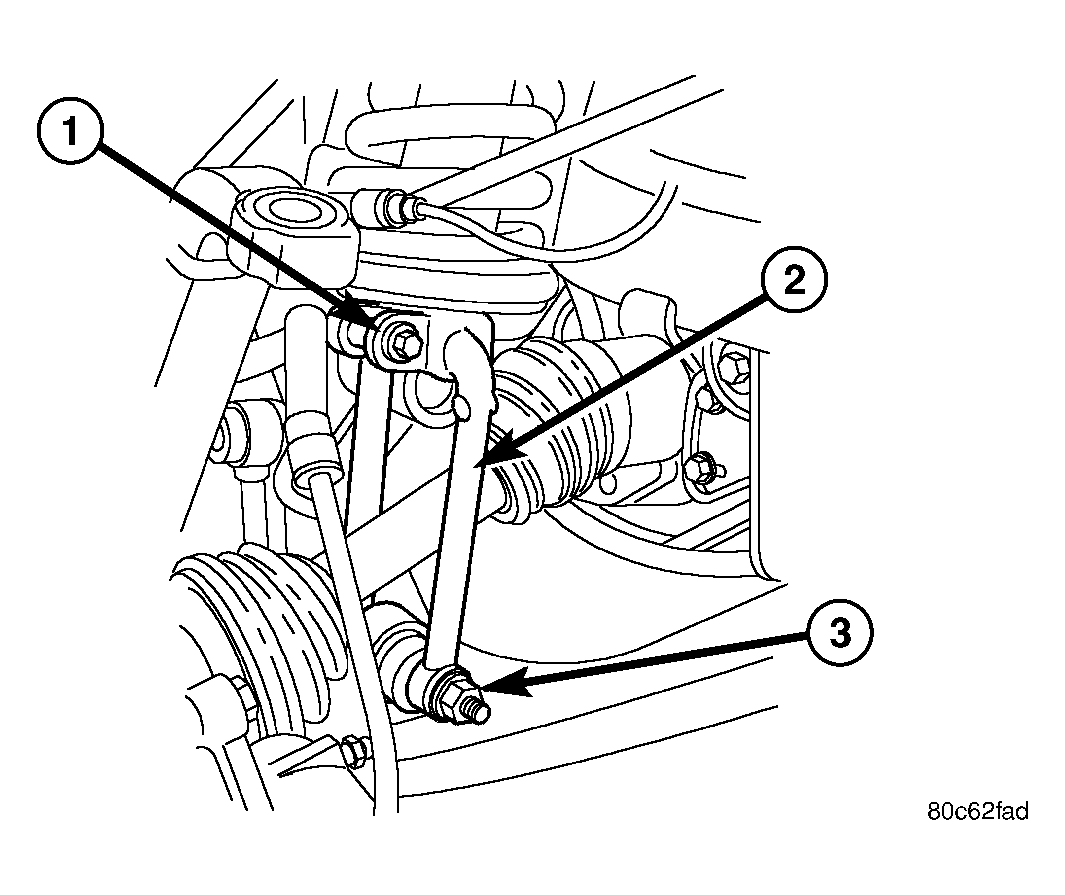

  1. Install the clevis bracket to the shock Seat the clevis against the stop on the shock  . Tighten the bolt to 136 N.m (100 ft.lbs.). See Figure.
  2. Raise the lower control arm to the lower ball joint.
  3. Install the nut to the lower ball joint. Tighten the nut to 81 N.m (60 ft.lbs.).
  4. Install the clevis bracket to the lower control arm. Tighten the bolt to 150 N.m (110 ft.lbs.).
  5. Install the lower stabilizer link bolt at the lower control arm. Tighten the bolt to 115 N.m (85 ft.lbs.).
  6. Install the tire and wheel assembly. (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
  7. Lower the vehicle.
