Transmission Temperature Sensor Specifications

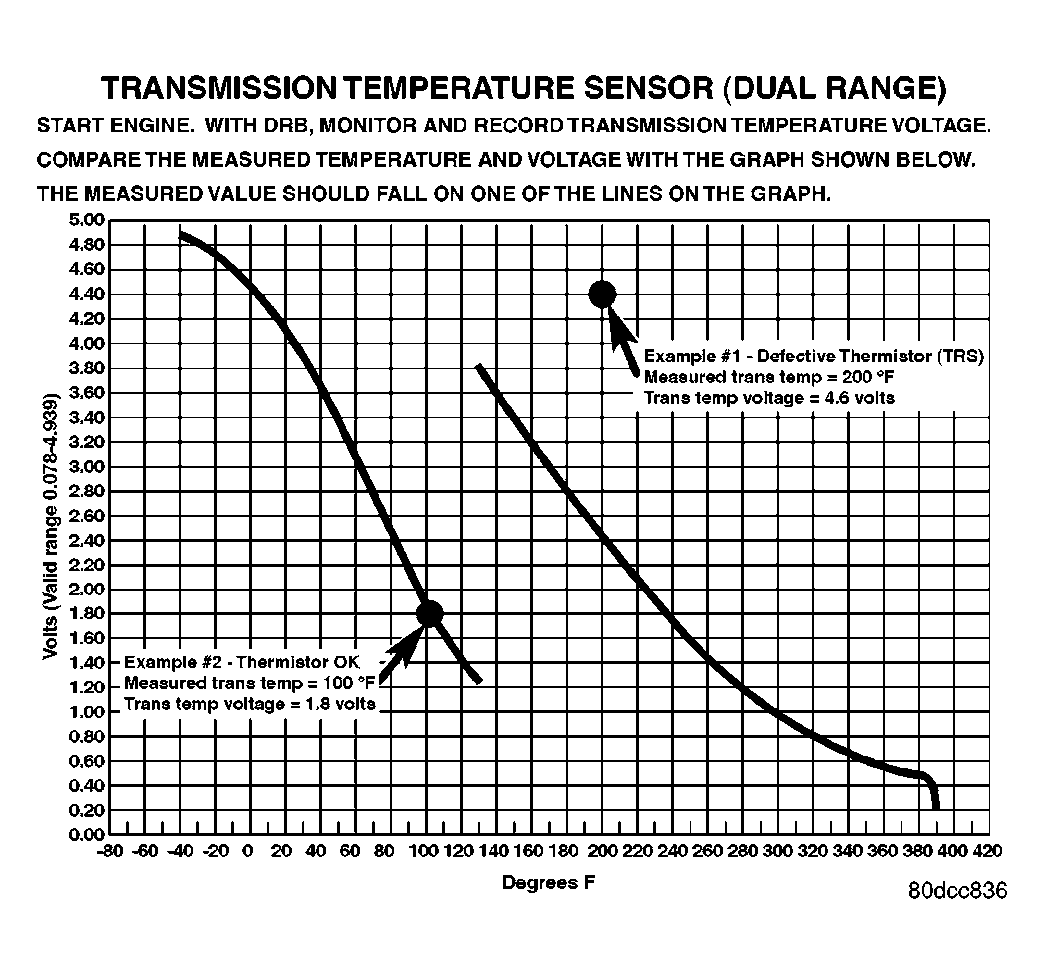

Fig 1: Transmission Temperature Sensor Voltage Graph

G04550021

Courtesy of DAIMLERCHRYSLER CORP.
