Fuel Pump Module: Description
| 1 - FUEL PUMP MODULE LOCK RING | 4 - EVAP CANISTER |
| 2 - FUEL PUMP MODULE | 5 - NVLD PUMP |
| 3 - ISOLATOR SLEEVE | 6 - FUEL TANK |

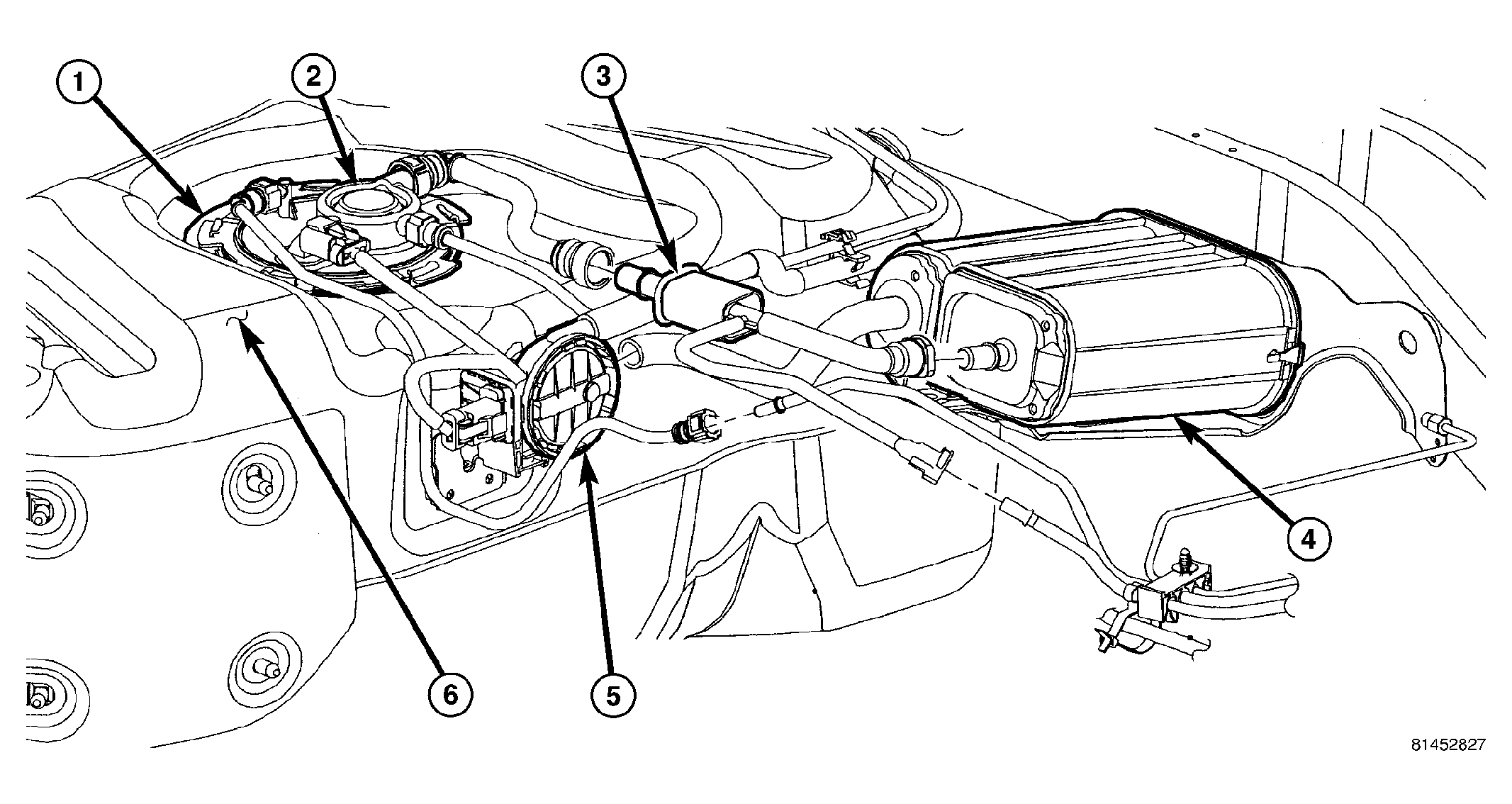

The fuel pump module assembly (2) is located on top of the fuel tank. See Fig 1. The complete assembly contains the following components:
- A fuel pressure regulator
- A built-in primary fuel filter
- A separate fuel pick-up, or inlet filter
- An electric fuel pump
- A lockring to retain pump module to tank
- A soft gasket between tank flange and module
- A fuel gauge sending unit (fuel level sensor)
- A fuel line connection
If the electrical fuel pump, primary inlet filter or fuel pressure regulator require service, the fuel pump module must be replaced.
