Battery Temperature Sensor: Removal

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on battery tray. See Fig 1.

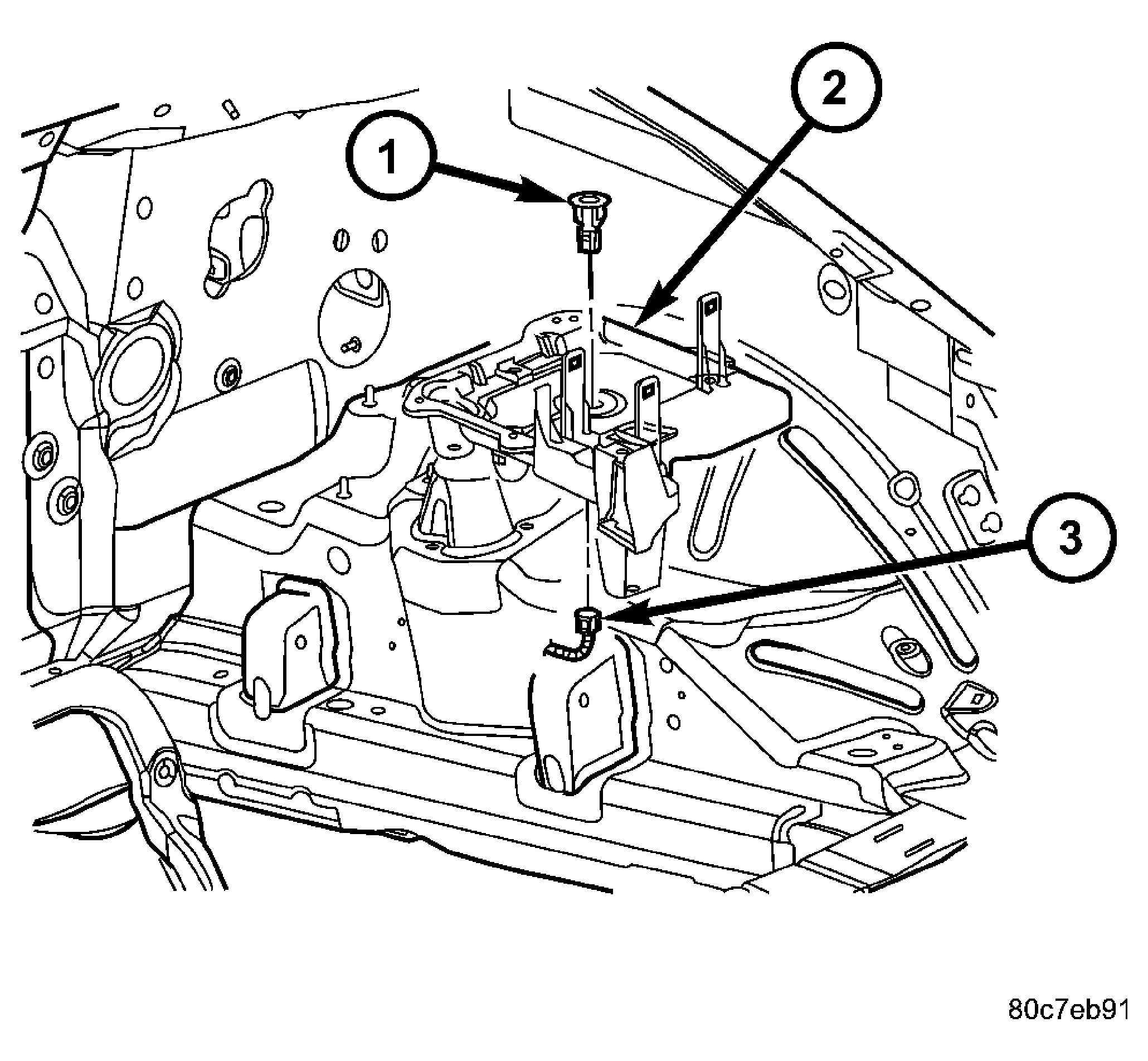

Fig 1: Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove battery. Refer to BATTERY SYSTEM for procedures.
2. Disconnect sensor pigtail harness from engine wire harness electrical connector.
3. Pry sensor straight up from battery tray mounting hole.
