Rear Wheel Speed Sensor: Installation

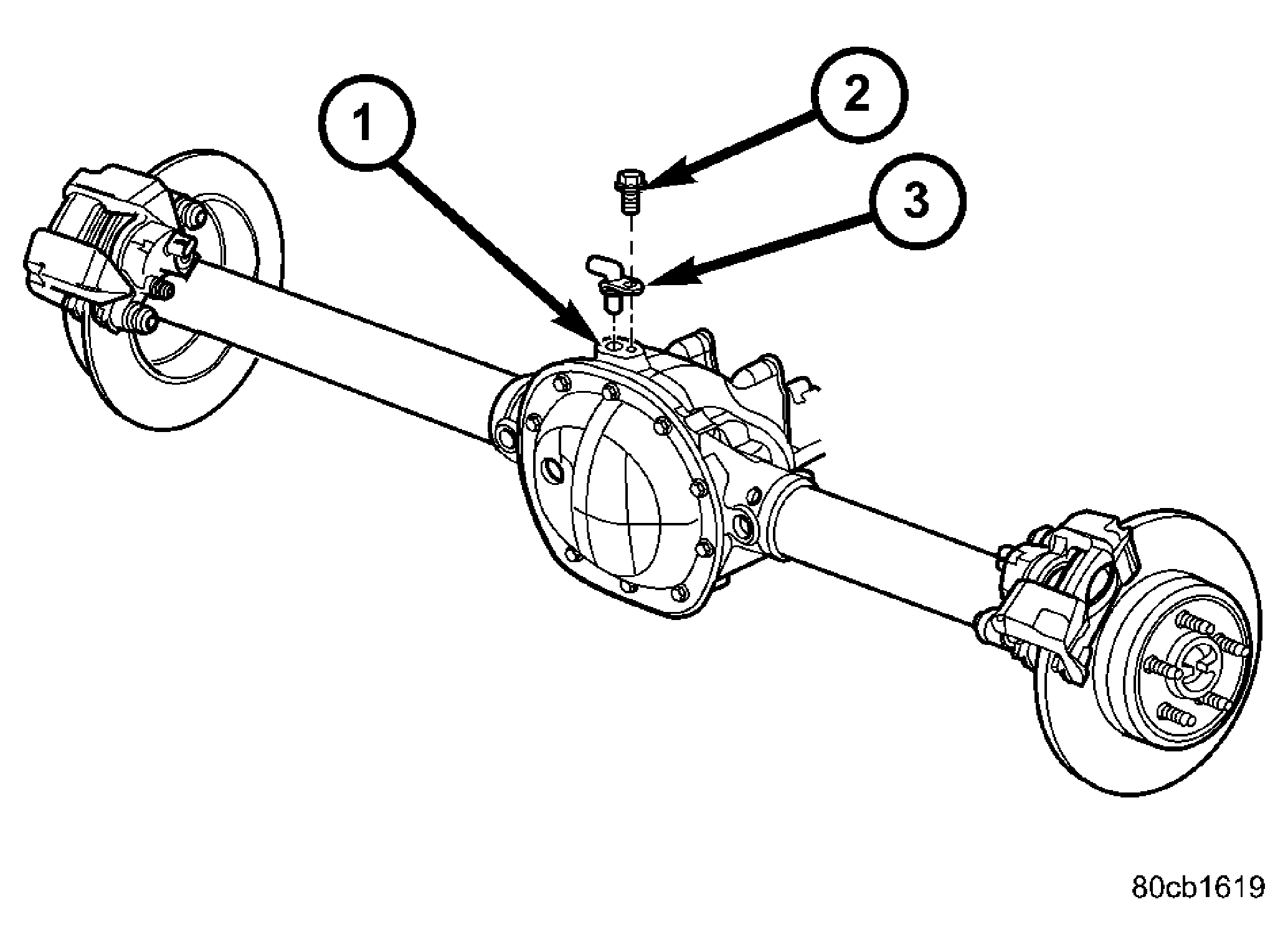

Fig 1: Rear Wheel Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - DIFFERENTIAL HOUSING

2 - MOUNTING BOLT

3 - WHEEL SPEED SENSOR

1. Connect harness to sensor 3). Be sure seal is securely in place between sensor and wiring connector.
2. Install O-ring on sensor (if removed).
3. Insert sensor (3) in differential housing (1).
4. Install the sensor mounting stud (2) and tighten to 9 N.m (80 in. lbs.). See Fig 1.
5. Install the sensor electrical connector.
6. Lower vehicle.
