Front Wheel Speed Sensor: Removal

  1. Disconnect the front wheel speed sensor wire connector that is located on the inboard side of the respective wheel house.
  2. Raise and support the vehicle.
  3. Remove the tire and wheel assembly.
  4. Remove the caliper adapter. (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - REMOVAL) .
    CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose with result. Provide a suitable support to hang the caliper securely.

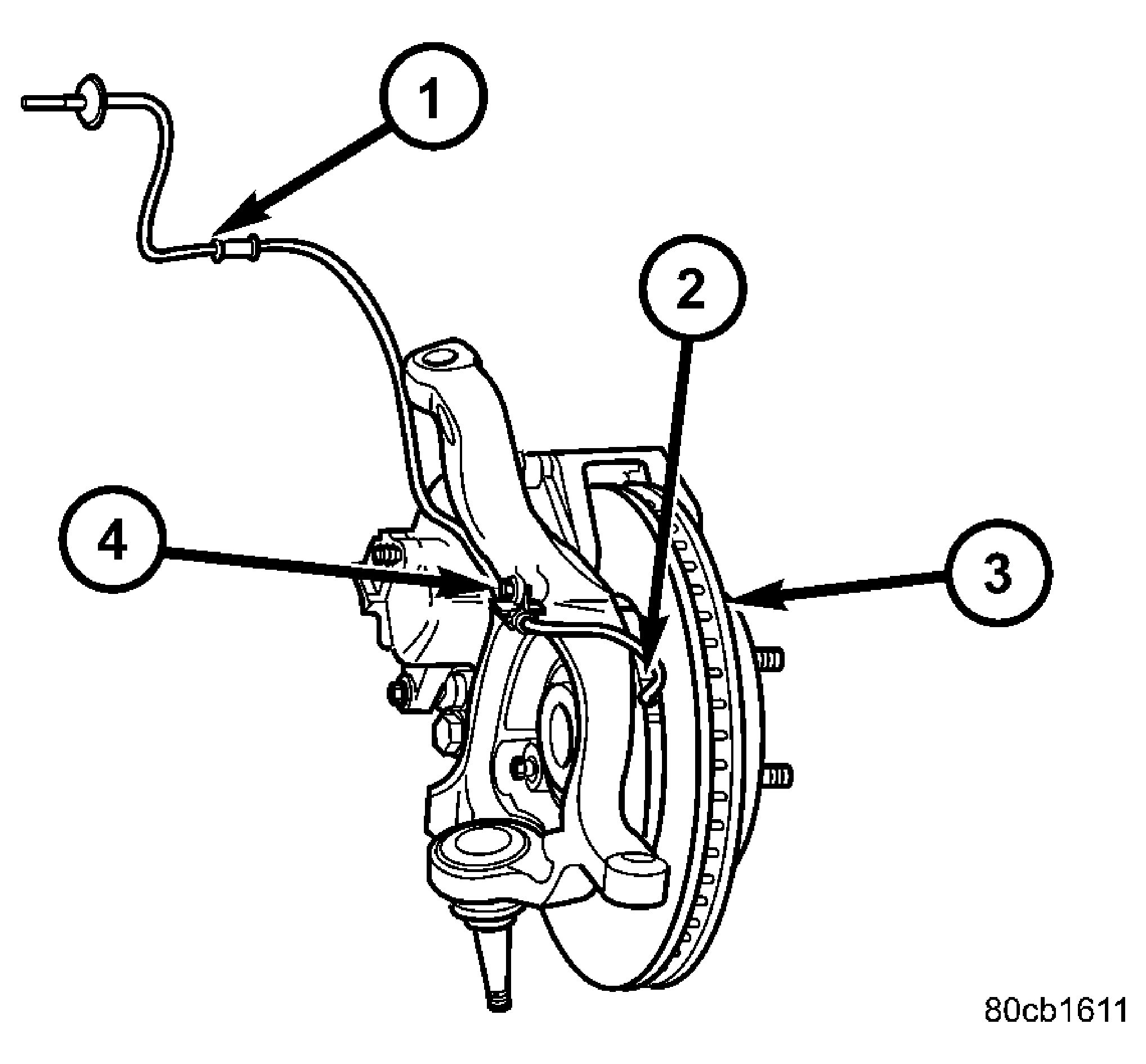

    Fig 1: Front Wheel Speed Sensor
    GC0025532Courtesy of DAIMLERCHRYSLER CORP.
    1 - WHEEL SPEED SENSOR WIRE
    2 - WHEEL SPEED SENSOR
    3 - ROTOR
    4 - WHEEL SPEED SENSOR WIRE HOLD DOWN
  5. Remove the disc brake rotor (3). (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) .
  6. Remove the wheel speed sensor mounting bolt to the hub. See Fig 1.
  7. Remove the wheel speed sensor wire from the hub/bearing. See Fig 1.
  8. Remove the wheel speed sensor wire hold down (4) from the knuckle. See Fig 1.
  9. Remove the wheel speed sensor wire (1) thru the wheel well.
  10. Remove the wheel speed sensor (2) from the vehicle.
