Junction Block

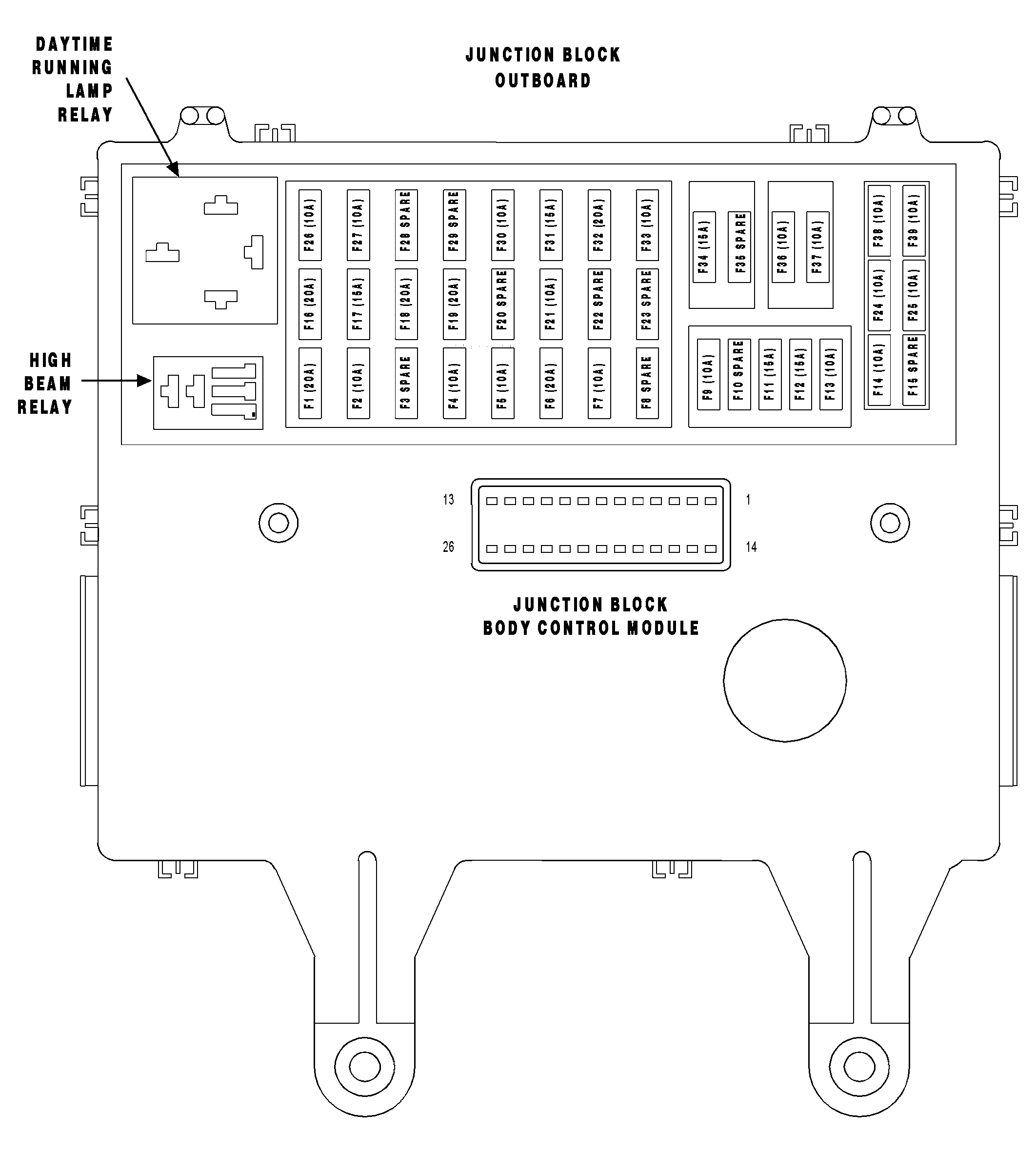

Fig 1: View Of Junction Block Outboard

G04549980

Courtesy of DAIMLERCHRYSLER CORP.

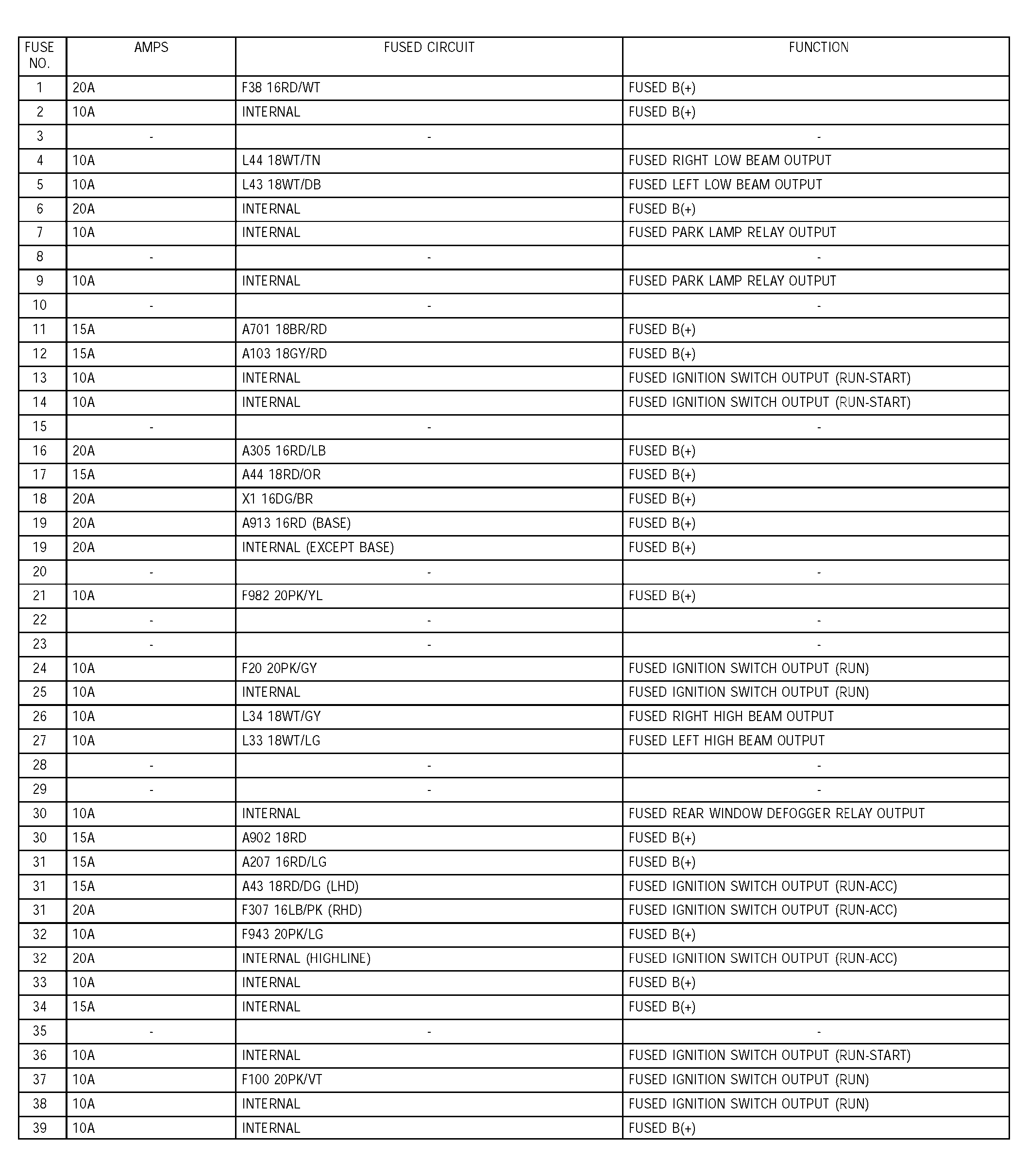

Fig 2: Fuses (JB) Reference Table

G04549981

Courtesy of DAIMLERCHRYSLER CORP.
