O2 Sensor Locations (3.7L)

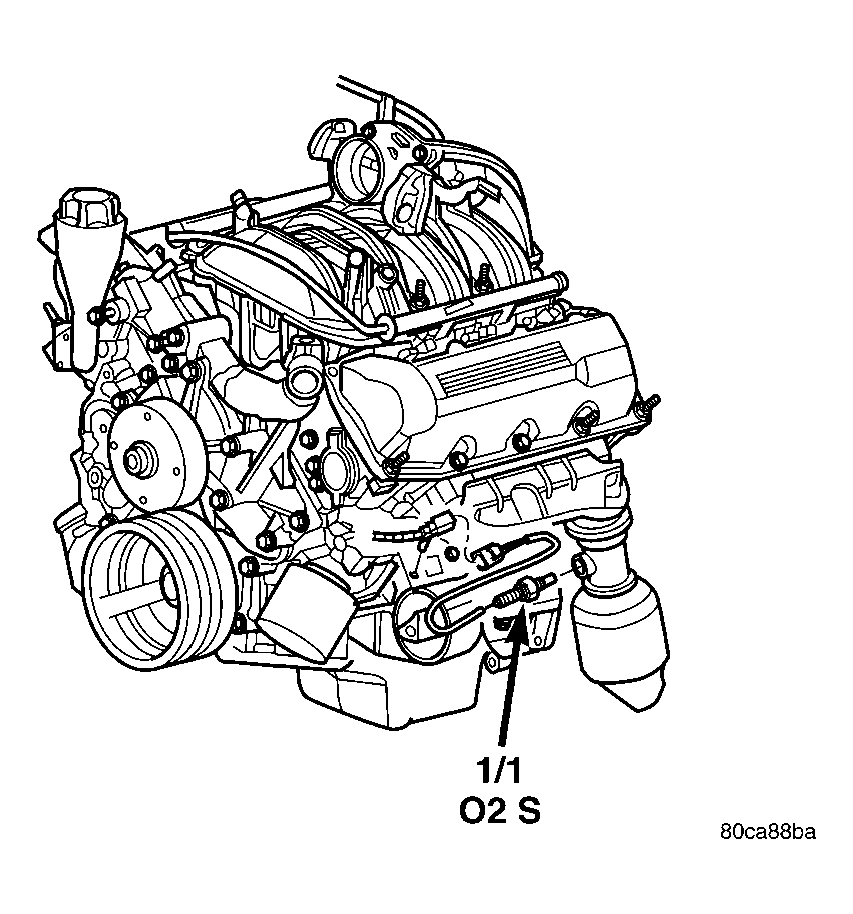

Fig 1: Locating 1/1 O2 Sensor (3.7L)
G04549927Courtesy of DAIMLERCHRYSLER CORP.

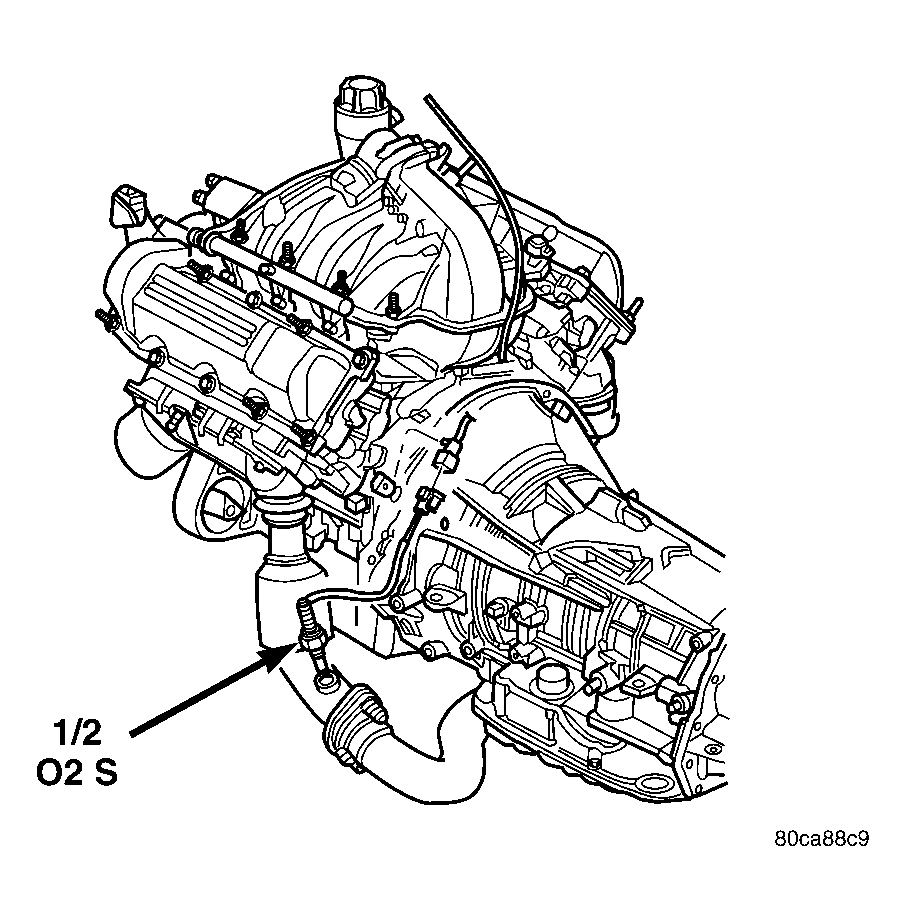

Fig 2: Locating 1/2 O2 Sensor (3.7L)
G04549928Courtesy of DAIMLERCHRYSLER CORP.

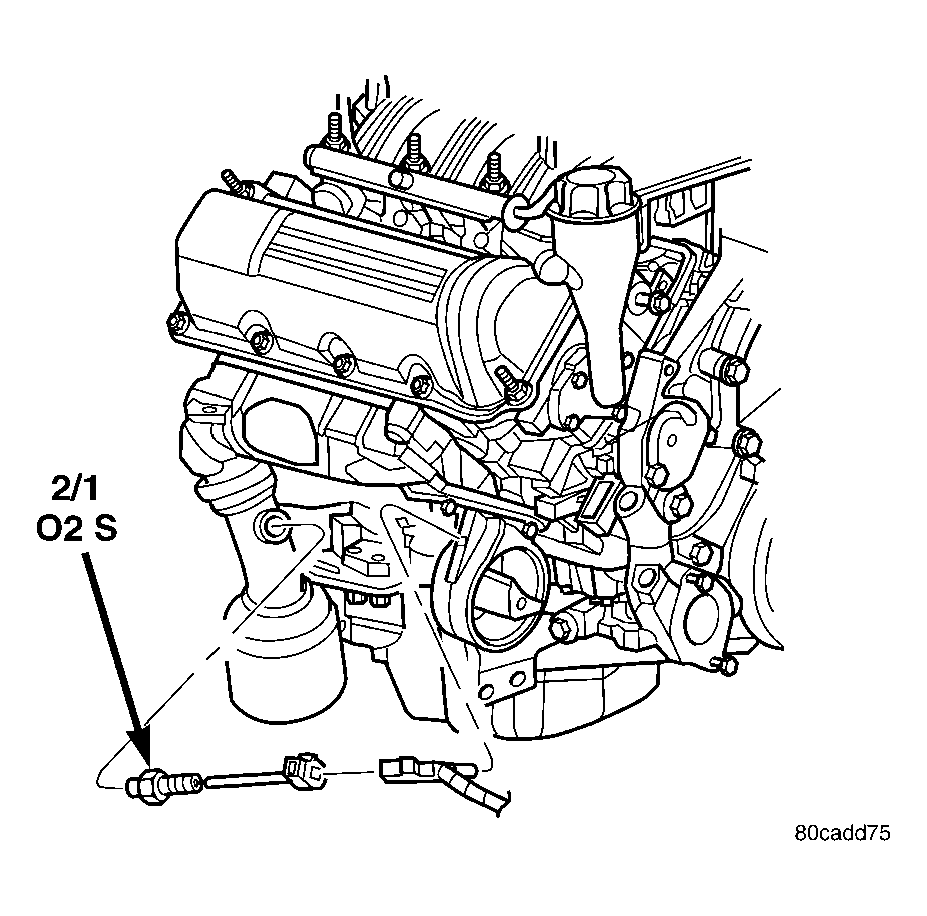

Fig 3: Locating 2/1 O2 Sensor (3.7L)
G04549929Courtesy of DAIMLERCHRYSLER CORP.

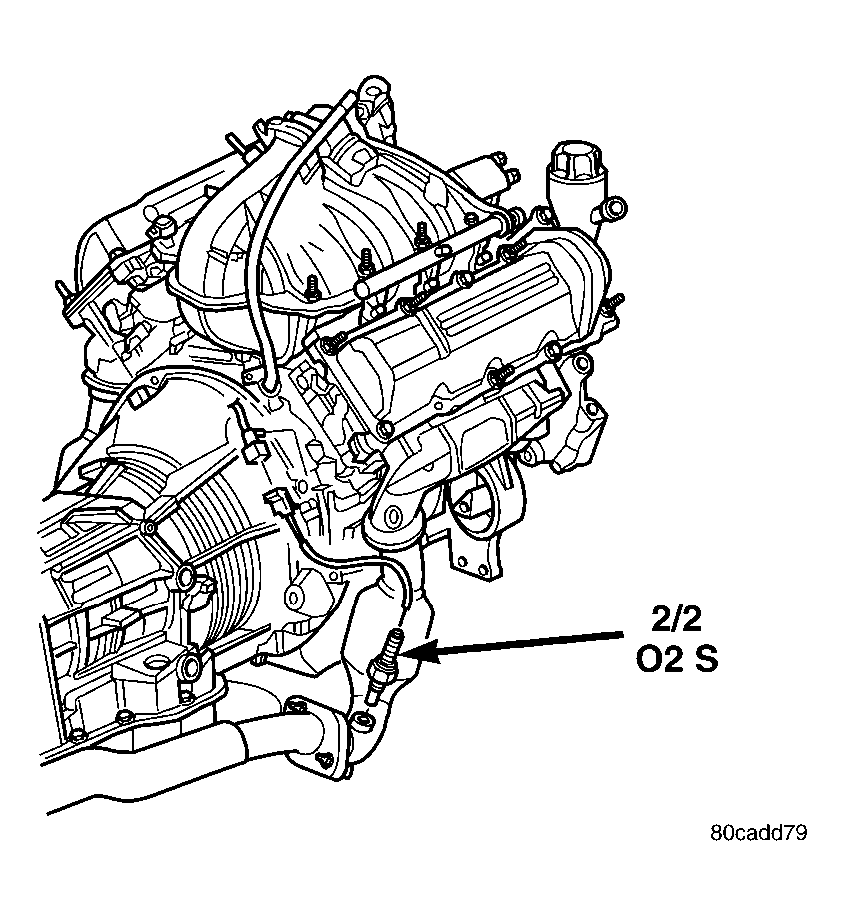

Fig 4: Locating 2/2 O2 Sensor (3.7L)
G04549930Courtesy of DAIMLERCHRYSLER CORP.
