Jeep
>>
2005
>>
Liberty Limited, 3.7 K, 4WD, Part Time
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

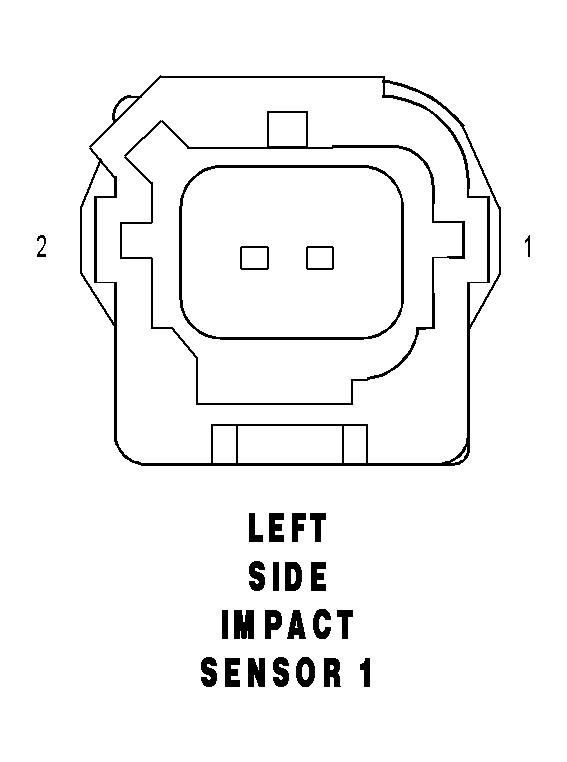

Left Side Impact Sensor 1 Connector End View
Left Side Impact Sensor 1 Connector End View
LEFT SIDE IMPACT SENSOR 1 - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R15 20LG/BR
LEFT SIDE IMPACT SENSOR 1 GROUND
2
R13 20LG/VT
LEFT SIDE IMPACT SENSOR 1 SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
