Body Control Module C2 - Gray 22 Way

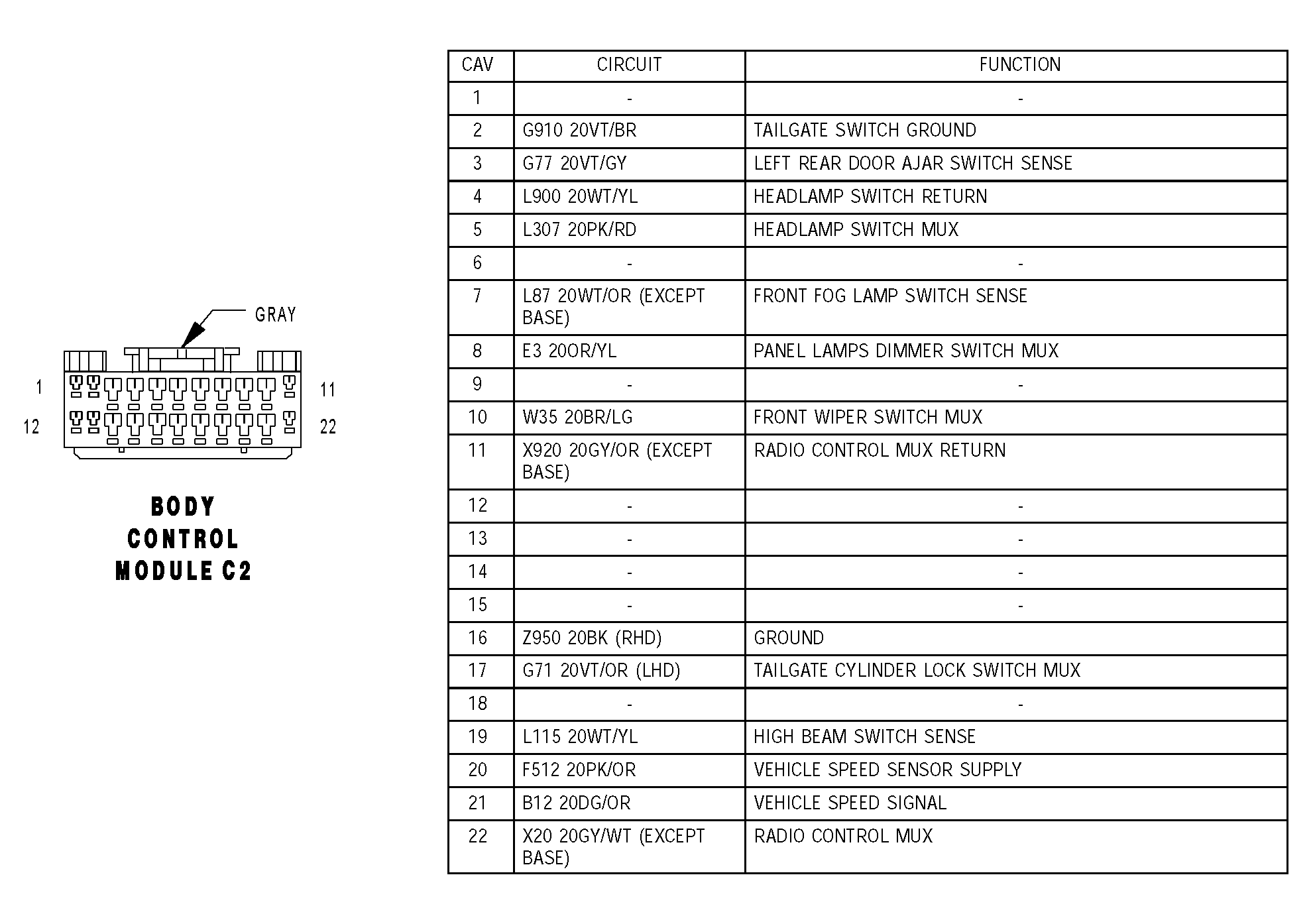

Fig 1: Body Control Module C2 Connector Pinouts - Gray 22 Way

G04550138

Courtesy of DAIMLERCHRYSLER CORP.
