Engine Control Module C1 (Diesel) - 96 Way

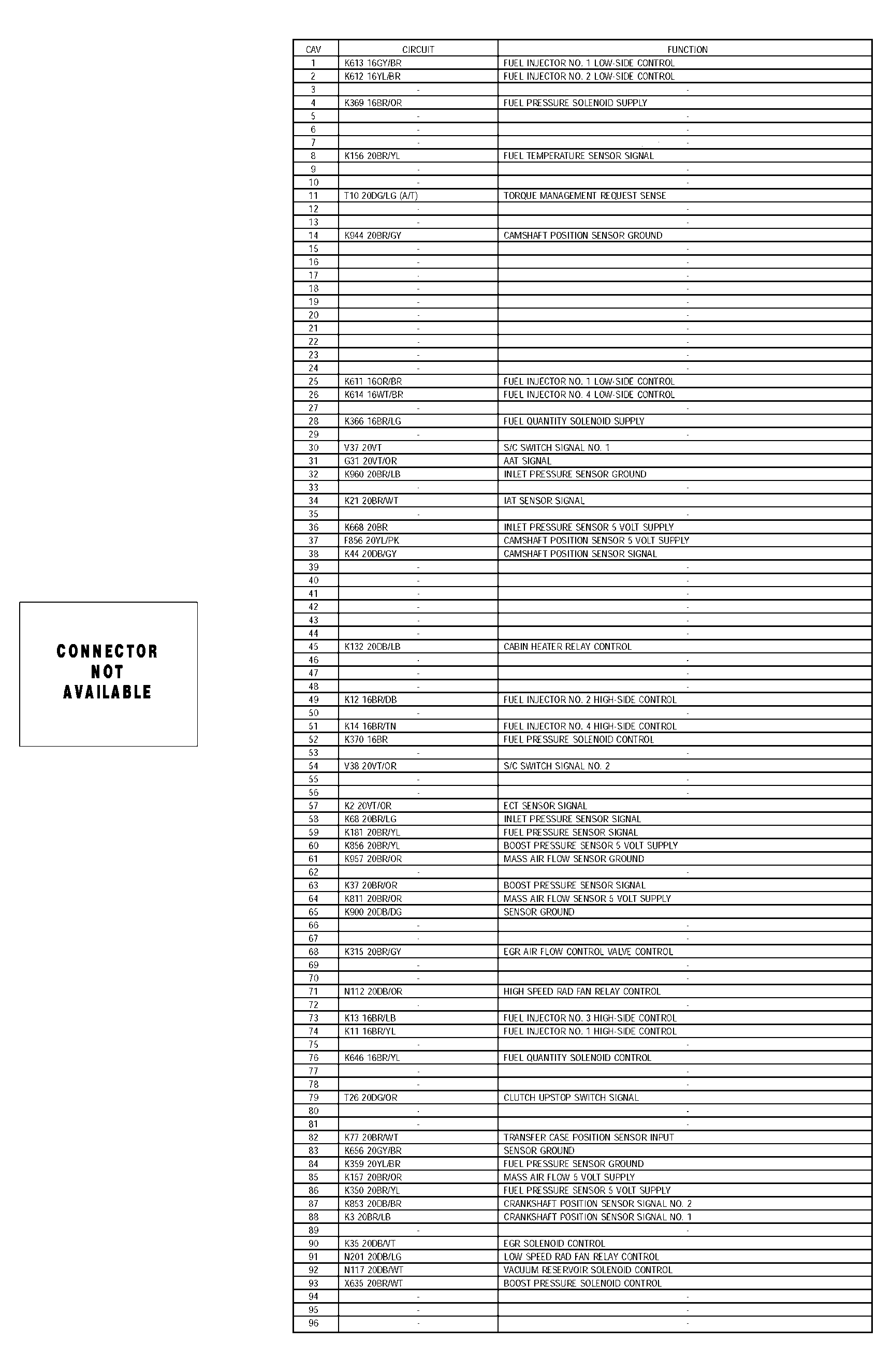

Fig 1: Engine Control Module C1 Connector Pinouts (Diesel) - 96 Way

G04550068

Courtesy of DAIMLERCHRYSLER CORP.
