Occupant Classification Module - 18 Way

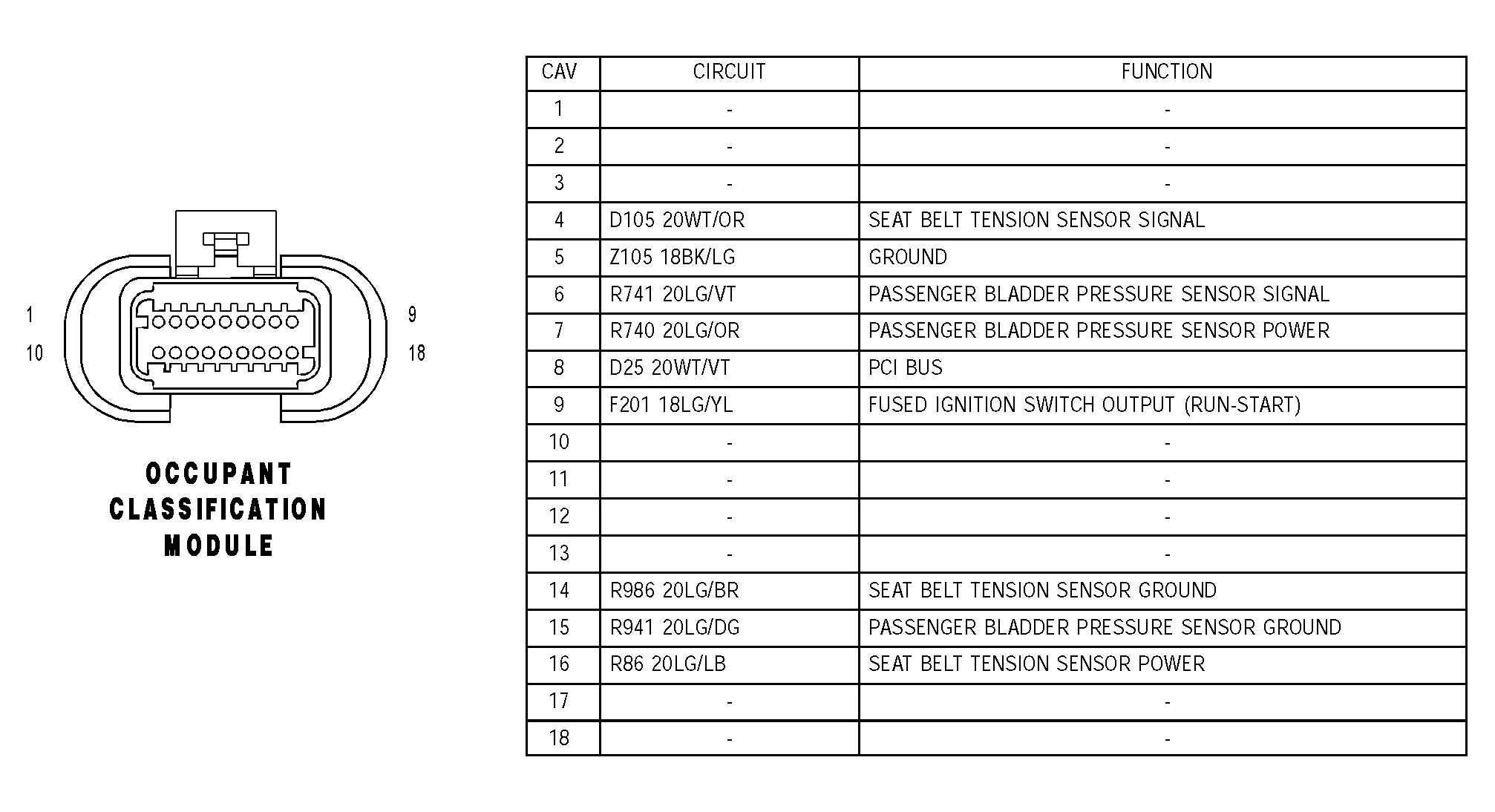

Fig 1: Occupant Classification Module Connector Pinouts - 18 Way

G04550191

Courtesy of DAIMLERCHRYSLER CORP.
