Front Control Module (Diesel) - 24 Way

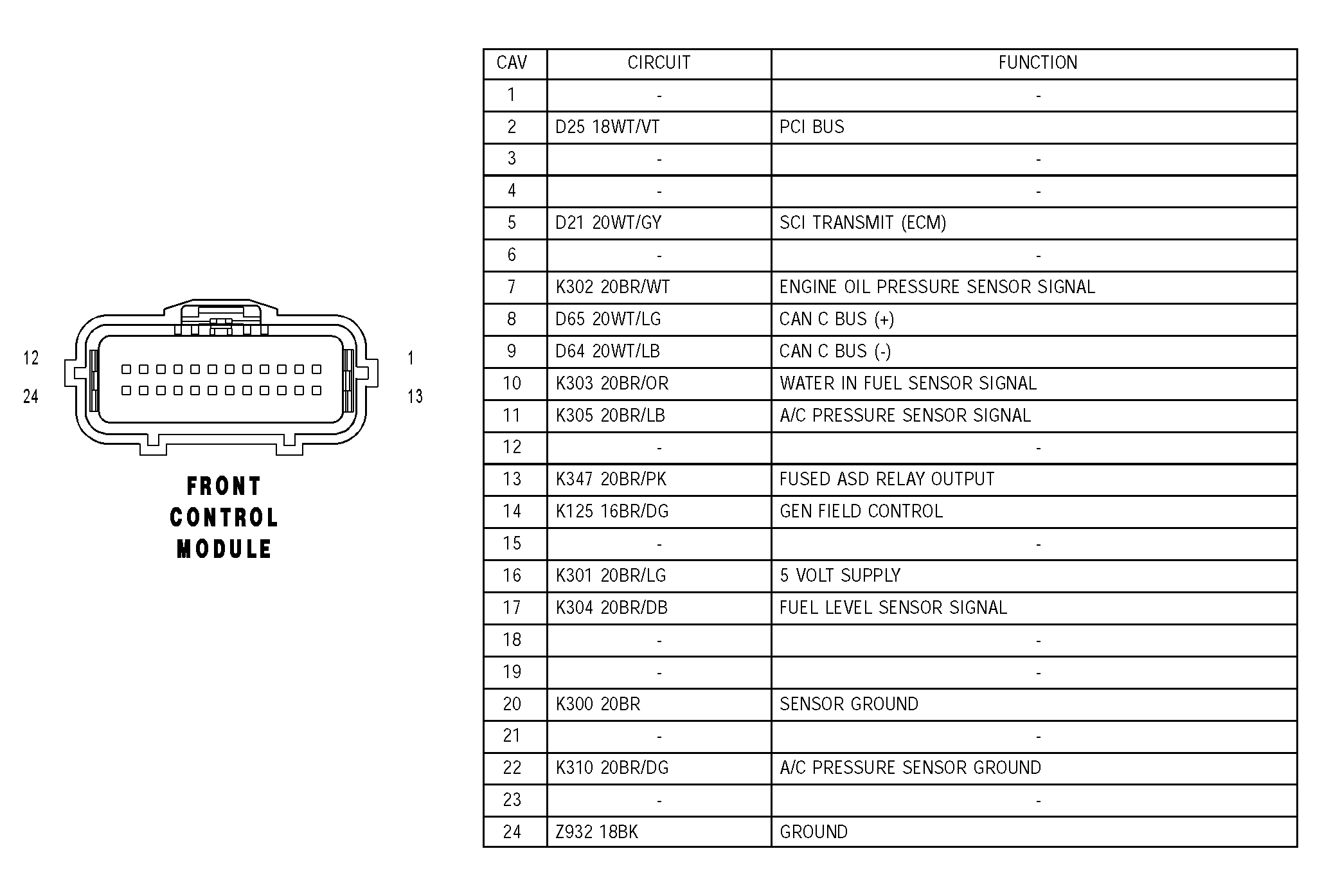

Fig 1: Front Control Module Connector Pinouts (Diesel) - 24 Way

G04550071

Courtesy of DAIMLERCHRYSLER CORP.
