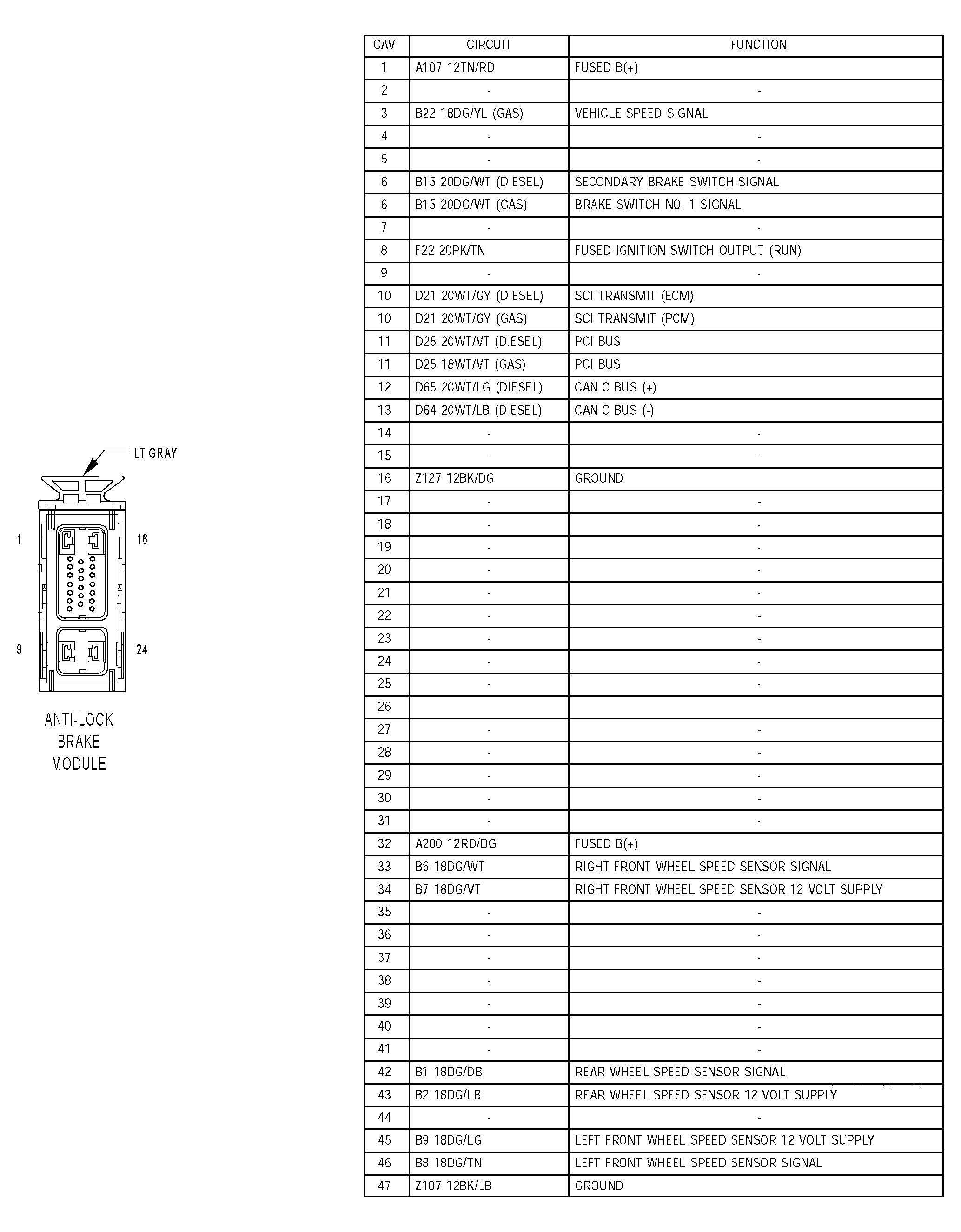

Home >> Jeep >> 2005 >> Liberty Limited, 2.8 5, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures - Diesel >> Connector PINOUTS >> Anti-Lock Brake Module - 47 Way
