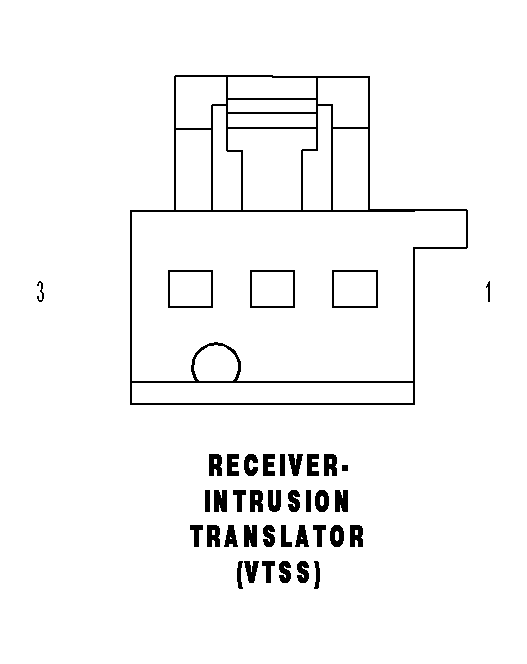

Intrusion Translator Vehicle Theft Security System Receiver Connector End View
RECEIVER-INTRUSION TRANSLATOR (VTSS) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G460 20DG/VT |
FRONT INTRUSION SENSOR SIGNAL |
| 2 |
- |
- |
| 3 |
G946 20LG/VT |
SENSOR GROUND |
