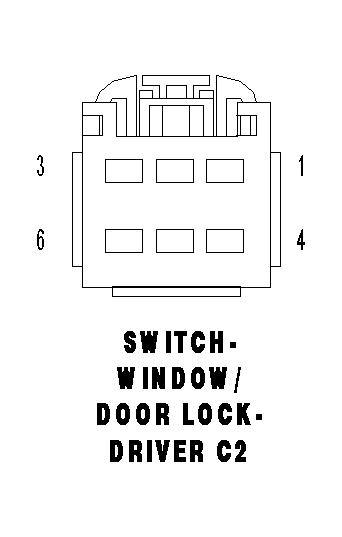

Driver Window Switch/Door Lock Switch Connector End View (C2)
SWITCH-WINDOW/DOOR LOCK-DRIVER C2 - 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q411 16OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 2 | Q412 16OR/LB | MASTER WINDOW SWITCH RIGHT REAR (UP) |
| 3 | Q612 16OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 4 | Q611 16OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 5 | Q26 16OR/GY | MASTER WINDOW SWITCH PASSENGER (DOWN) |
| 6 | Q16 16OR/TN | MASTER WINDOW SWITCH PASSENGER (UP) |
