Home >> Jeep >> 2005 >> Grand Cherokee Laredo, 4.7 N, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0579 To P0633 >> Diagnosis And Testing >> P0592-Speed Control Switch 2 Circuit Low >> Circuit Schematic

Circuit Schematic

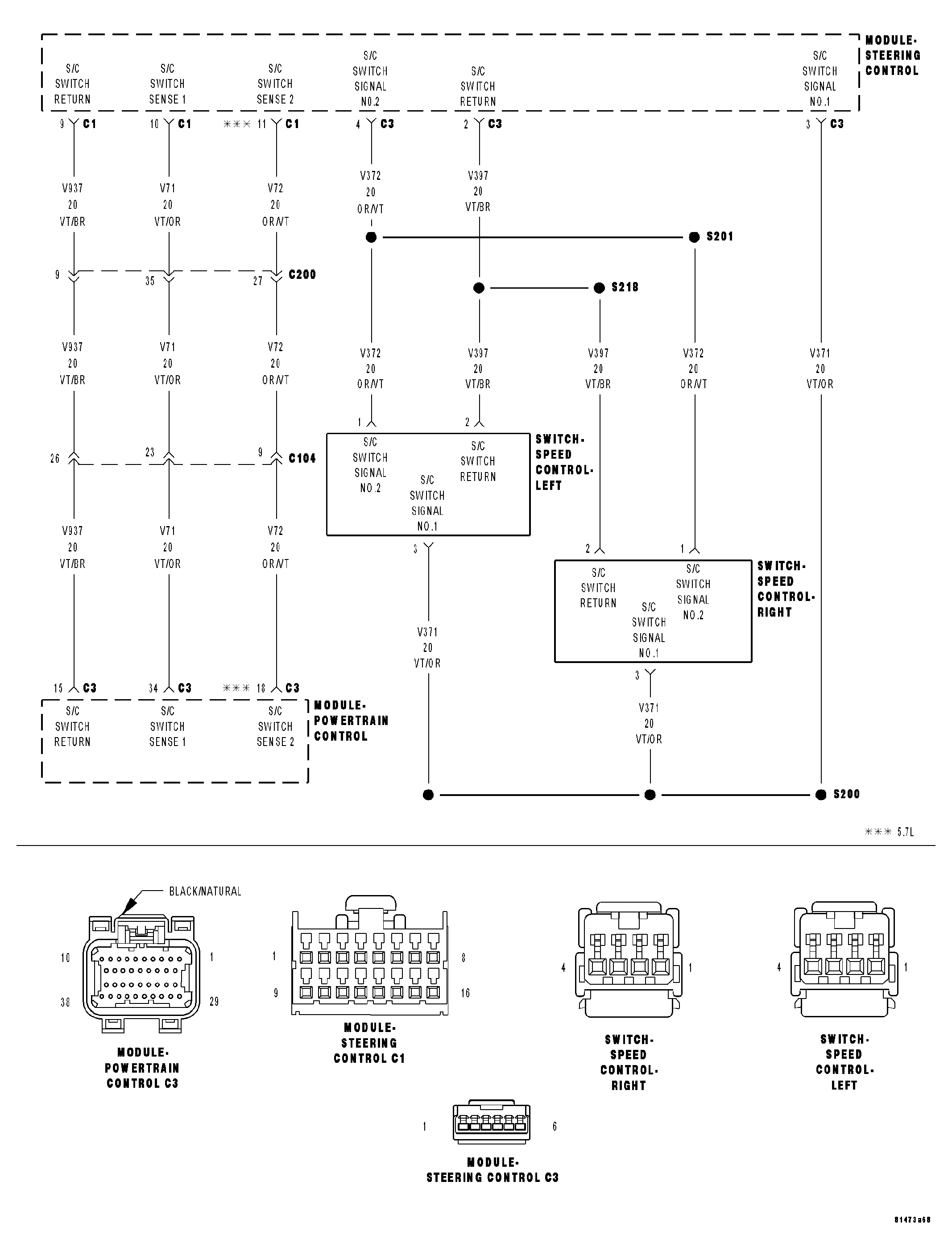

Fig 1: Speed Control Switches Circuit Schematic

GC0027150

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
