Windshield Frame: Removal

  1. Unlatch top.
  2. Remove the bolts attaching the sport bar to the windshield frame.
  3. Remove the windshield wiper arms. See WIPER/WASHER SYSTEMS article.
  4. Remove the Torx screw closest to the hinge pivot point and tilt the windshield forward.
  5. Remove the Torx screws attaching the windshield hinge to the windshield frame.

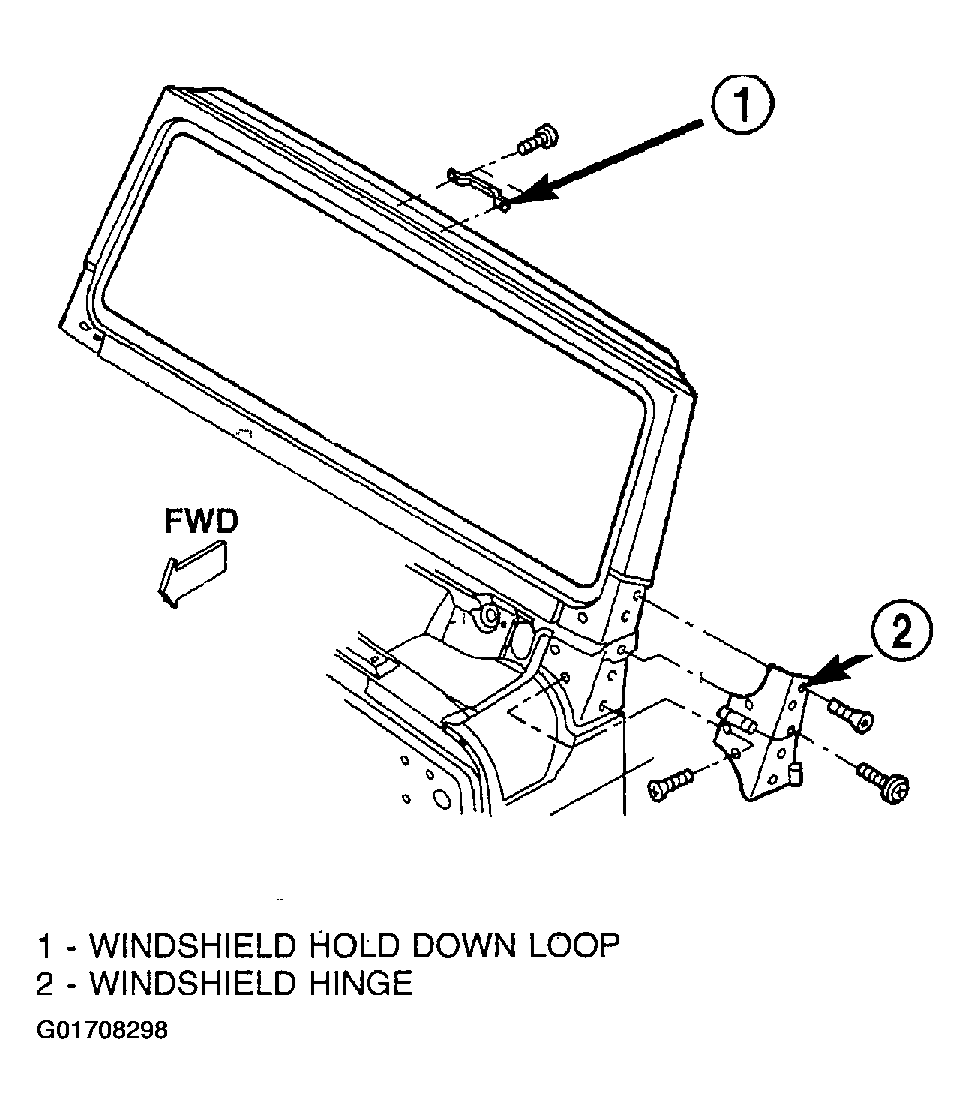

    Fig 1: Removing Windshield Frame
    G01708298Courtesy of DAIMLERCHRYSLER CORP.
  6. Separate the windshield frame from the vehicle.
